NJG1516R
SPDT SWITCH GaAs MMIC
GENERAL DESCRIPTION
NJG1516R is a GaAs SPDT switch IC suited for antenna
switch of cellular phone handset.
This switch features low loss, high isolation at high power,
and exhibits wide operating frequency range from 1MHz to
3GHz at low voltage of 2.7V.
PACKAGE OUTLINE
NJG1516R
FEATURES
Single, low voltage control
Handling power
Low insertion loss
+2.7V min.
36dBm typ.@f=2GHz, V
CTL
=3.0V
0.4dB typ. @f=1GHz, P
in
=31dBm, V
CTL
=3V
0.4dB typ. @f=1GHz, P
in
=34.5dBm, V
CTL
=3.5V
0.55dB typ. @f=2GHz, P
in
=31.5dBm, V
CTL
=3V
27dB
typ.@f=1GHz, P
in
=34.5dBm, V
CTL
=3.0V
25dB
typ.@f=2GHz, P
in
=31.5dBm, V
CTL
=3.0V
38uA
typ.@f=2GHz, P
in
=34.5dBm, V
CTL
=3.0V
VSP8 (Mount Size: 4.0x2.9x1.2mm)
High isolation
Low current consumption
Very small package
PIN CONFIGURATION
R TYPE
(Top View)
1
Pin Connection
1.VCTL2
8
7
6
5
2.PC
3.GND
4.VCTL1
5.P1
6.GND
7.GND
8.P2
2
3
4
TRUTH TABLE
“H”=V
CTL (H)
, “L”=V
CTL (L)
V
C T L1
V
C T L2
PC - P1
PC - P2
H
L
ON
OFF
L
H
OFF
ON
-1-
NJG1516R
ABSOLUTE MAXIMUM RATINGS
(T
a
=25°C)
PARAMETER
Input Power
Control Voltage
Power Dissipation
Operating Temp.
Storage Temp.
SYMBOL
P
in
V
CTL
P
D
T
opr
T
stg
CONDITIONS
V
CTL(L)
=0V, V
CTL(H)
=3.0V
V
CTL(H)
-V
CTL(L)
RATINGS
38
12
320
-40~+85
-55~+125
UNITS
dBm
V
mW
°C
°C
ELECTRICAL CHARACTERISTICS
(V
CTL (L)
=0V, V
CTL (H)
=3V, Z
S
=Z
l
=50Ω, T
a
=25°C)
PARAMETERS
Operating Voltage (LOW)
Operating Voltage (HIGH)
SYMBOL
V
CTL(L)
V
CTL(H)
I
CTL
LOSS1
LOSS2
LOSS3
LOSS4
ISL1
ISL2
P
in1
P
in2
P
in3
P
in4
P
in5
P
-0.2dB
1
VSWR
T
SW
CONDITIONS
MIN
-0.2
TYP
0
3.0
38
0.4
0.4
0.4
0.55
27
25
-
-
-
-
-
36
1.45
70
MAX
0.2
9.0
55
0.5
0.5
0.6
0.8
-
-
33.5
34
37
38
34.5
-
1.55
-
UNITS
V
V
uA
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
f=1GHz, P
in
=34.5dBm
f=1GHz, P
in
=34.5dBm
f=1GHz, P
in
=31dBm
f=1GHz, P
in
=34.5dBm
V
CTL(H)
=3.5V, V
CTL(L)
=0V
f=1GHz, P
in
=34.5dBm
f=2GHz, P
in
=31.5dBm
f=1GHz, P
in
=34.5dBm
f=2GHz, P
in
=31.5dBm
V
CTL(H)
=2.7V, f=2GHz
V
CTL(H)
=3V, f=2GHz
V
CTL(H)
=4V, f=2GHz
V
CTL(H)
=6V, f=2GHz
V
CTL(H)
=9V, f=2GHz
f=2GHz
f=0.05~2.5GHz,
ON State
f=0.05~2.5GHz
2.7
-
-
-
-
-
26
22
-
-
-
-
-
34.5
-
-
Control Current
Insertion Loss 1
Insertion Loss 2
Insertion Loss 3
Insertion Loss 4
Isolation 1
(PC-P1, PC-P2)
Isolation 2
(PC-P1, PC-P2)
Maximum Input Power 1
*1
Maximum Input Power 2
*1
Maximum Input Power 3
*1
Maximum Input Power 4
*1
Maximum Input Power 5
*1
Pout at 0.2dB Gain
Compression point
VSWR 1 (PC, P1, P2)
Switching Time
ns
*1: Maximum Input Power: This value is defined as maximum input power of linear
operating region or damage free operating region.
- 2-
NJG1516R
ELECTRICAL CHARACTERISTICS
(Cellular Band)
(V
CTL (L)
=0V, V
CTL (H)
=2.7V, Z
s
=Z
l
=50Ω, T
a
=25°C)
PARAMETERS
Frequency range
Control voltage (HIGH)
Insertion Loss 5
SYMBOL
f
in
V
CTL(H)
LOSS5
ISL3
P
-0.2dB
2
IIP3(1)
IIP3(2)
2fo
3fo
VSWR2
CONDITIONS
MIN
800
TYP
-
-
0.4
27
35
62
60
-80
MAX
1000
9
0.5
-
-
-
-
-
-
1.25
UNITS
MHz
V
dB
dB
dBm
dBm
dBm
dBc
dBc
P
in
=25dBm
P
in
=25dBm
P
in
=25dBm
2.7
-
26
33.5
Isolation 3
(PC-P1, PC-P2)
Pout at 0.2dB Gain
Compression point 2
Input 3rd Order
Intercept Point 1
Input 3rd Order
Intercept Point 2
Second Harmonics
Third Harmonics
VSWR 2 (PC, P1, P2)
f=900+901MHz, P
in
=25dBm,
V
CTL(H)
=3V, V
CTL(L)
=0V
*2
f=900+901MHz, P
in
=25dBm
V
CTL(H)
=2.7V, V
CTL(L)
=0V
*2
f=900MHz, P
in
=25dBm
2nd Harmonics of Input Signal
= -83dBc
f=900MHz, P
in
=25dBm
3rd Harmonics of Input Signal
=-100dBc
-
-
-
-
-70
1.15
ON State
*2: The input IP3 is defined as following equation.
IIP3 = (3 x Pout – IM3) / 2 + LOSS
-3-
NJG1516R
TERMINAL INFORMATION
No.
SYMBOL
EXPLANATION
Control port 2. The voltage of this port controls PC to P2 state. The ‘ON’
and ‘OFF’ state is toggled by controlling voltage of this terminal such as
high-state (2.7~5.5V) or low-state (-0.2~+0.2V). The voltage of 4
th
pin have
to be set to opposite state. The bypass capacitor has to be chosen to
reduce switching speed delay from 10pF~1000pF range.
Common RF port. In order to block the DC bias voltage of internal circuit,
an external capacitor is required. (50~100MHz: 0.01uF, 0.1~0.5GHz:
1000pF, 0.5~2.5GHz: 56pF)
Ground terminal. Please connect this terminal with ground plane as close
as possible for excellent RF performance.
Control port 1. The voltage of this port controls PC to P2 state. The ‘ON’
and ‘OFF’ state is toggled by controlling voltage of this terminal such as
high-state (2.7~5.5V) or low-state (-0.2~+0.2V). The voltage of 1
st
pin have
to be set to opposite state. The bypass capacitor has to be chosen to
reduce switching speed delay from 10pF~1000pF range.
RF port. This port is connected with PC port by controlling 4
th
pin (V
CTL (H)
)
to 2.7~9.0V and 1
st
pin (V
CTL (L)
) to -0.2~+0.2V. An external capacitor is
required to block the DC bias voltage of internal circuit. (50~100MHz:
0.01µF, 0.1~0.5GHz: 1000pF, 0.5~2.5GHz: 56pF)
RF port. This port is connected with PC port by controlling 1
st
pin (V
CTL (H)
)
to 2.7~9.0V and 4
th
pin (V
CTL (L)
) to -0.2~+0.2V. An external capacitor is
required to block the DC bias voltage of internal circuit. (50~100MHz:
0.01µF, 0.1~0.5GHz: 1000pF, 0.5~2.5GHz: 56pF)
1
VCTL2
2
3, 6, 7
PC
GND
4
VCTL1
5
P1
8
P2
- 4-
NJG1516R
ELECTRICAL CHARACTERISTICS
(f=50MHz~3.0GHz, with application circuit, losses of external circuit are excluded)

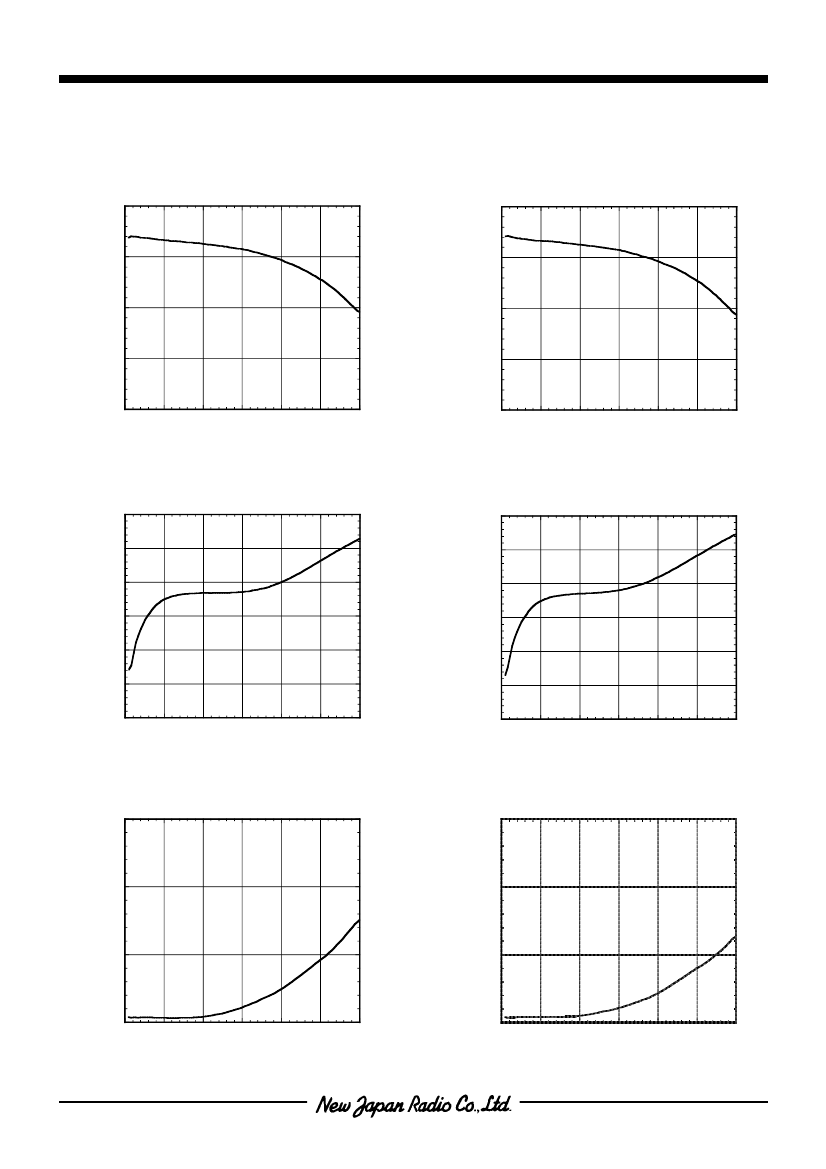

PC-P1 Insertion Loss vs. Frequency
(VCTL1=3.0V,VCTL2=0V,Pin=0dBm)
0.0
PC-P2 Insertion Loss vs. Frequency
(VCTL1=0V,VCTL2=3.0V,Pin=0dBm)
0.0
Insertion Loss (dB)
-0.5
Insertion Loss (dB)
0.5
1.0
1.5
2.0
2.5
3.0
-0.5
-1.0
-1.0
-1.5
-1.5
-2.0
0.0
-2.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
PC-P1 Isoration vs. Frequency
(VCTL1=0V,VCTL2=3V,Pin=0dBm)
-15
-15
PC-P2 Isoration vs. Frequency
(VCTL1=3V,VCTL2=0V,Pin=0dBm)
-20
-20
Isolation (dB)
-30
Isolation (dB)
0.5
1.0
1.5
2.0
2.5
3.0
-25
-25
-30
-35
-35
-40
-40
-45
0.0
-45
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
PC-P1 VSWR vs. Frequency
(VCTL1=3V,VCTL2=0V,PC port)
2.5
PC-P1 VSWR vs. Frequency
(VCTL1=3V, VCTL2=0V, P1 port)
2.5
2.0
2.0
1.5
VSWR
1.5
1.0
0.0
VSWR
1.0
0.5
1.0
1.5
2.0
2.5
3.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
-5-
