IHLE2525CDER1R5M5A datasheet, PDF

Datasheet> All Categories > Passive components> inductor> IHLE2525CDER1R5M5A

IHLE2525CDER1R5M5A: DescriptionFixed Inductors 1.5uH 20% e-field Sheild; CategoryPassive components inductor; File Size312KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

IHLE2525CDER1R5M5A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IHLE2525CDER1R5M5A	-	-	View	Buy Now

IHLE2525CDER1R5M5A Overview

Fixed Inductors 1.5uH 20% e-field Sheild

IHLE2525CDER1R5M5A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	78 weeks
uppercase and lowercase codes	2525
structure	Rectangular
DC Resistance	0.0132 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	4
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	3.23 mm
Package length	7.214 mm
Package form	SMT
Package width	7.117 mm
method of packing	TR, 13 Inch
Maximum rated current	10.6 A
Guideline	AEC-Q200
self resonant frequency	45.9 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	QUAD
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

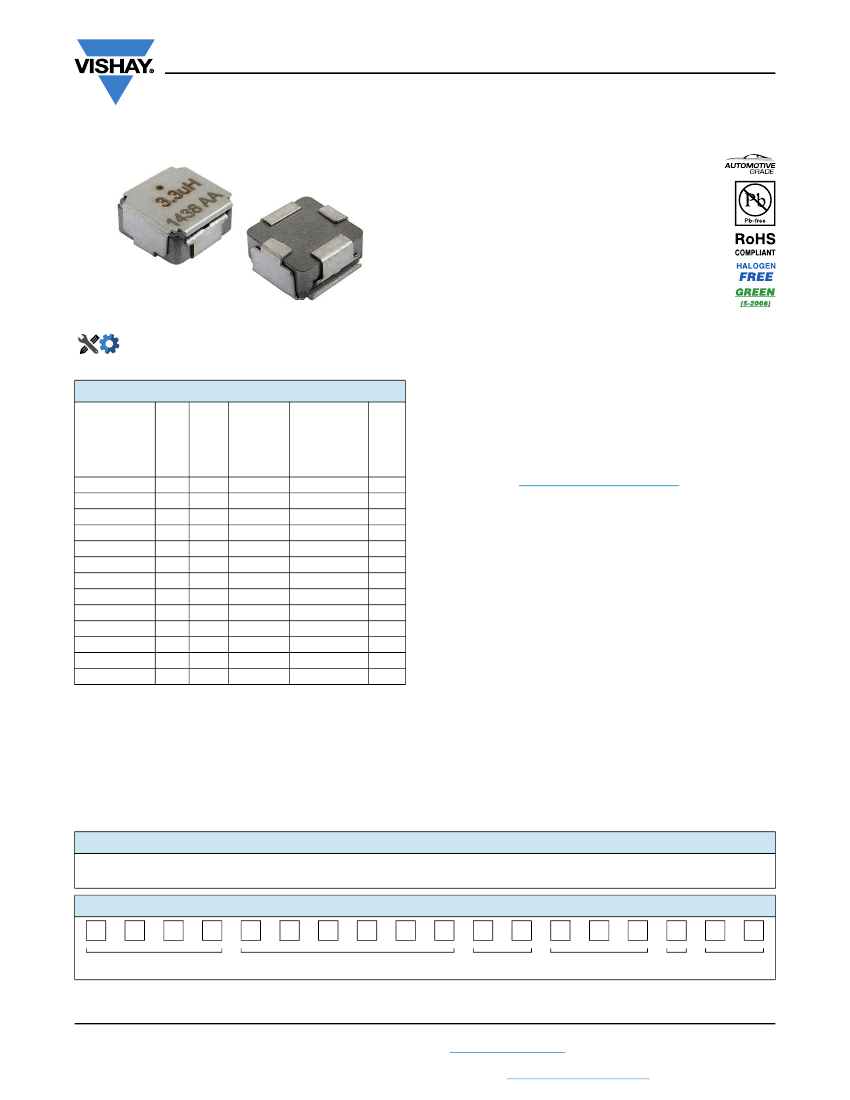

IHLE-2525CD-5A

www.vishay.com

Vishay Dale

IHLP

Automotive Inductors, High Temperature (155 °C) Series

FEATURES

• High temperature, up to 155 °C

• Integrated E-Shield

reduction

(1)

for

maximum

EMI

• Excellent DC/DC energy storage up to 1 MHz

to 2 MHz. Filter inductor applications up the

SRF (see Standard Electrical Specifications

table)

DESIGN SUPPORT TOOLS

click logo to get started

Design Tools

• Integrated e-field shield eliminates need for

separate shielding

• 20 dB e-field reduction at 1 cm

- Measured vertically from top center of device

• Lowest DCR/μH, in this package size

• Handles high transient current spikes without saturation

• Coplanarity of the 4 terminals



100 μm

• AEC-Q200 qualified

•

Patent pending

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

(1)

Maximum E-field reduction is realized with the IHLE shield is

connected to ground

Available

STANDARD ELECTRICAL SPECIFICATIONS

INDUCTANCE

± 20 % AT

100 kHz,

0.25 V, 0 A

(μH)

0.47

0.68

0.82

1.0

1.5

2.2

3.3

4.7

5.6

6.8

DCR

TYP.

25 °C

(m)

3.87

5.38

6.75

7.90

12.3

17.1

26.5

35.9

42.6

53.8

71.9

118.0

163.0

HEAT

DCR

RATING SATURATION

SRF

MAX. CURRENT CURRENT

TYP.

DC TYP.

25 °C DC TYP.

(MHz)

(A)

(2)

(m)

(A)

(1)

4.14

20.0

14.0

82.4

5.76

16.5

17.0

56.1

7.22

13.8

16.8

68.6

8.45

12.0

13.0

53.2

13.2

10.6

11.6

45.9

18.30

8.1

10.8

31.2

28.40

6.8

8.3

28.6

38.40

5.6

25.5

45.60

5.3

4.8

22.8

57.60

4.4

19.6

76.90

4.0

2.9

14.0

127.00

2.9

2.8

10.4

174.00

2.8

2.2

8.3

APPLICATIONS

• Engine and transmission control units

• Diesel injection drivers

• DC/DC converters for entertainment/navigation systems

• Noise suppression for motors

- Windshield wipers

- Power seats

- Power mirrors

- Heating and ventilation blower

- HID lighting

• LED drivers

Notes

• All test data is referenced to 25 °C ambient

• Operating temperature range -55 °C to +155 °C

• The part temperature (ambient + temp. rise) should not exceed

155 °C under worst case operating conditions. Circuit design,

component placement, PWB trace size and thickness, airflow

and other cooling provisions all affect the part temperature. Part

temperature should be verified in the end application

• Rated operating voltage (across inductor) = 50 V

(1)

DC current (A) that will cause an approximate

T

of 40 °C

(2)

DC current (A) that will cause L to drop approximately 20 %

DESCRIPTION

IHLE-2525CD-5A

MODEL

15 μH

INDUCTANCE VALUE

± 20 %

INDUCTANCE TOLERANCE

PACKAGE CODE

JEDEC

LEAD (Pb)-FREE STANDARD

GLOBAL PART NUMBER

SIZE

INDUCTANCE

VALUE

TOL.

PRODUCT FAMILY

PACKAGE

CODE

SERIES

Revision: 22-Dec-17

Document Number: 34388

For technical questions, contact:

magnetics@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
