108284018003030 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108284018003030

108284018003030: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108284018003030 Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle,

108284018003030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.217 inch
subject depth	0.5 inch
body length	1.933 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.6966 N
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8284
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

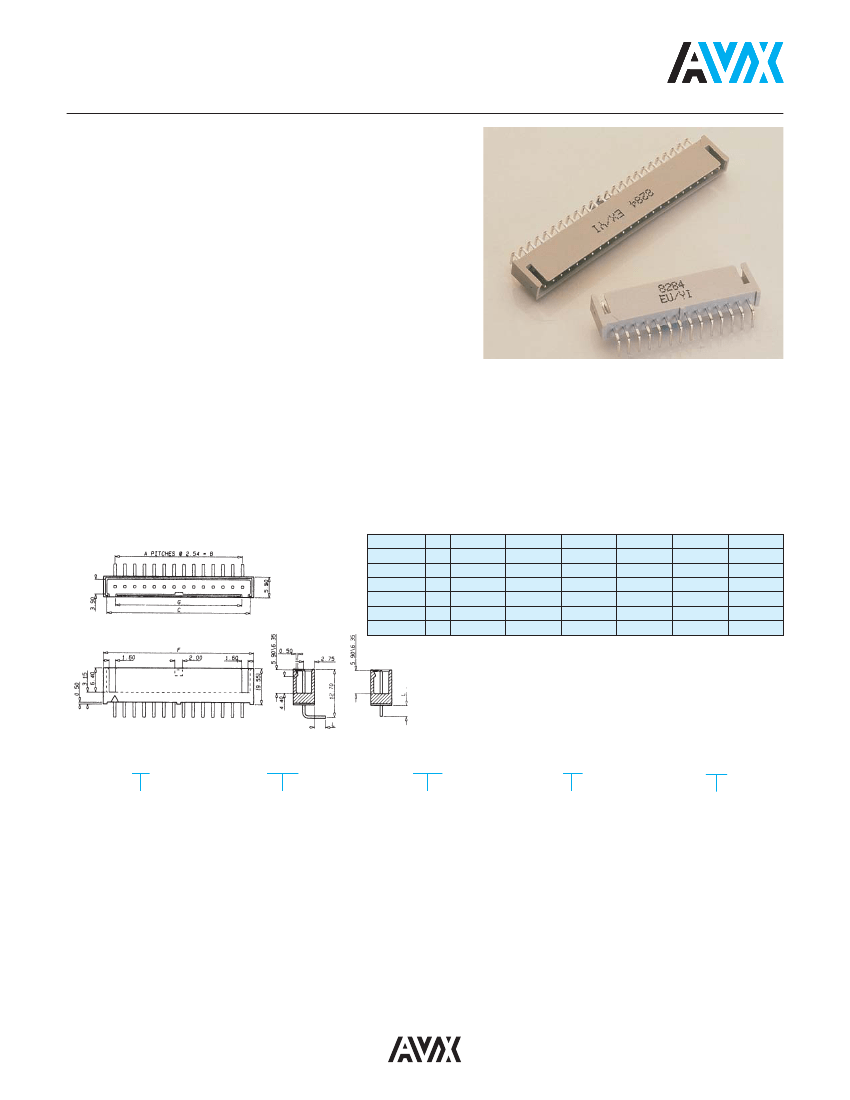

Single Row IDC Header

Series 8284

IDC header/socket for 0.100" (2.54mm) pitch IDC for

0.100" (2.54mm) round conductor flat cable uses similar

8289/8290 contact components recognized under UL &

CSA specifications, but housed in a single row insulator

format. The header is a 1-piece insulator with right angle,

straight solder or press-fit terminations. The socket

is a 2-piece insulator design with IDC contacts suitable for

termination to 26/28 AWG stranded ribbon cable or dip

solder terminations.

TECHNICAL SPECIFICATION

Material:

Molding - UL94VO rated grey polyester

Contact - Brass

Current Rating:

1.5 Amp maximum at 25ºC

1 Amp maximum at 70ºC

Insulation Resistance:

1000 megohms

Dielectric Withstanding Voltage:

1050V DC or AC peak

Voltage Rating:

350V DC or AC peak

Contact Resistance:

20 milliohms maximum

Operating Temperature:

-55ºC to +125ºC

Mechanical Endurance:

Standard tin plating - 10 cycles

Insertion/Withdrawal Forces:

2.7N max insertion force per contact

0.2N min withdrawal force per contact

HEADER

DIMENSIONS:

No. of Positions A

millimeters (inches)

21.30 (0.84)

36.54 (1.44)

42.22 (1.66)

46.70 (1.84)

52.38 (2.06)

61.94 (2.44)

18.54 (0.73)

33.78 (1.33)

38.86 (1.53)

43.94 (1.73)

49.02 (1.93)

59.18 (2.33)

19.30 (0.76)

34.54 (1.36)

39.62 (1.56)

44.70 (1.76)

49.78 (1.96)

59.94 (2.36)

23.70 (0.93)

38.94 (1.53)

44.02 (1.73)

49.10 (1.93)

54.18 (2.13)

64.34 (2.53)

17.54 (0.69)

32.78 (1.29)

37.86 (1.49)

42.94 (1.69)

48.02 (1.89)

58.18 (2.29)

17.78 (0.70)

33.02 (1.30)

38.10 (1.50)

43.18 (1.70)

48.26 (1.90)

58.42 (2.30)

ORDERING CODE

Connector Code

Prefix

10 = Header Connector

8284

Series Number

014

Number of

Contacts

008 = 8 position

014 = 14 position

016 = 16 position

018 = 18 position

020 = 20 position

024 = 24 position

000

Contact Variation

000 = 0.110" (2.8mm)

Straight PC Tail

001 = 0.146" (3.7mm)

Straight PC Tail

002 = 0.110" (2.8mm)

R.A. PC Tail

003 = 0.146" (3.7mm)

R.A. PC Tail

009 = 0.209" (4.5mm)

Straight PF Tail

030

Plating Variation

030 = Tin plating,

10 cycles

040 = Gold plating,

50 cycles

Not all versions are available, please check

with AVX Customer Service for availability.
