11_N-50-3-54/133_NE

Description
RF N Connector, Male, Cable Mount, Clamp Solder Terminal, Plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size50KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

11_N-50-3-54/133_NE Overview

RF N Connector, Male, Cable Mount, Clamp Solder Terminal, Plug, ROHS COMPLIANT

11_N-50-3-54/133_NE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompli
Other featuresSTANDARDS: IEC 60169-16; MIL-STD-348A/304, APPLICABLE CABLE: RG 223/U, VSWR MAX AT 12.4GHZ
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF N CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceYES
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCLAMP SOLDER
voltage standing wave ratio8.6
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

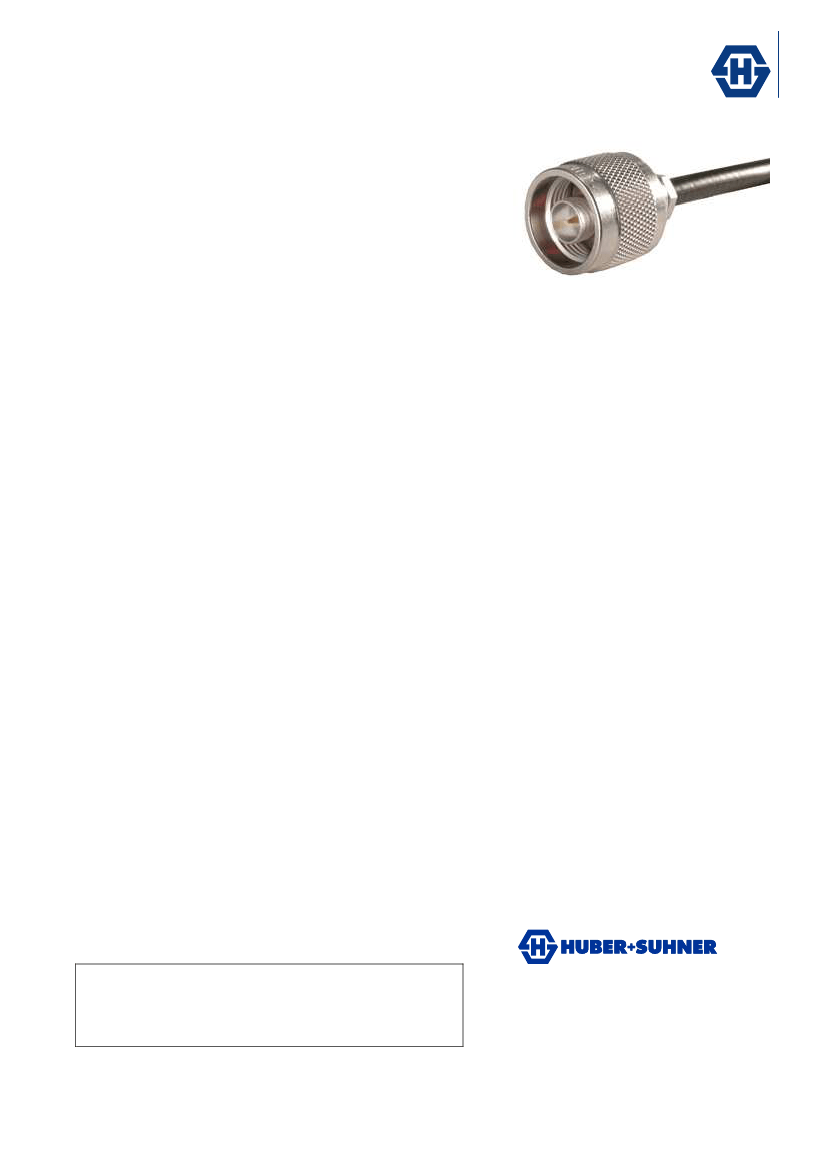

Coaxial Cable Connector: 11_N-50-3-54/133_N
Description
Rev.: B
Straight cable plug
Interface Standards
IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50
18 GHz
DC to 4 GHz
≥ 26 dB
soldered
clamped
0.0321 kg
-65 °C to 165 °C
compliant
Material
Brass
Brass
Brass
PFA / PTFE
Brass
MVQ (Silicone Rubber)
DOU-00006147
DOC-0000179361
11_N-50-3-54/133_NE
RG_223_/U, RG_142_B/U
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Mechanical Data
Centre contact
Outer contact
Weight
4 to 10 GHz
≥ 21 dB
10 to 12.4 GHz
≥ 19 dB
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material Data
Related Documents
Catalogue drawing
Assembly instruction
Single package
Suitable cables
Ordering Information
Additional Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000179359 N
Issued: 07.11.07
Uncontrolled Copy
Page 1/1
