DS-081GB-U2A1E: DescriptionEmbedded Box Computers Signage Box with Skylake i3-6100U (no RAM & HDD, OS) (Embedded); CategoryModule/solution; File Size693KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DS-081GB-U2A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS-081GB-U2A1E	-	-	View	Buy Now

DS-081GB-U2A1E Overview

Embedded Box Computers Signage Box with Skylake i3-6100U (no RAM & HDD, OS) (Embedded)

DS-081GB-U2A1E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Embedded Box Computers
RoHS	Details
Processor Brand	Intel
Processor Type	Intel Core i3-6100U
Chipsets	Integrated in SoC
Memory Size	32 GB
Interface Type	Serial
Operating Supply Voltage	19 V
Maximum Operating Temperature	+ 40 C
Dimensions	180 mm x 190 mm x 19 mm
Memory Type	DDR4
Minimum Operating Temperature	0 C

Preview

Download Datasheet

View All

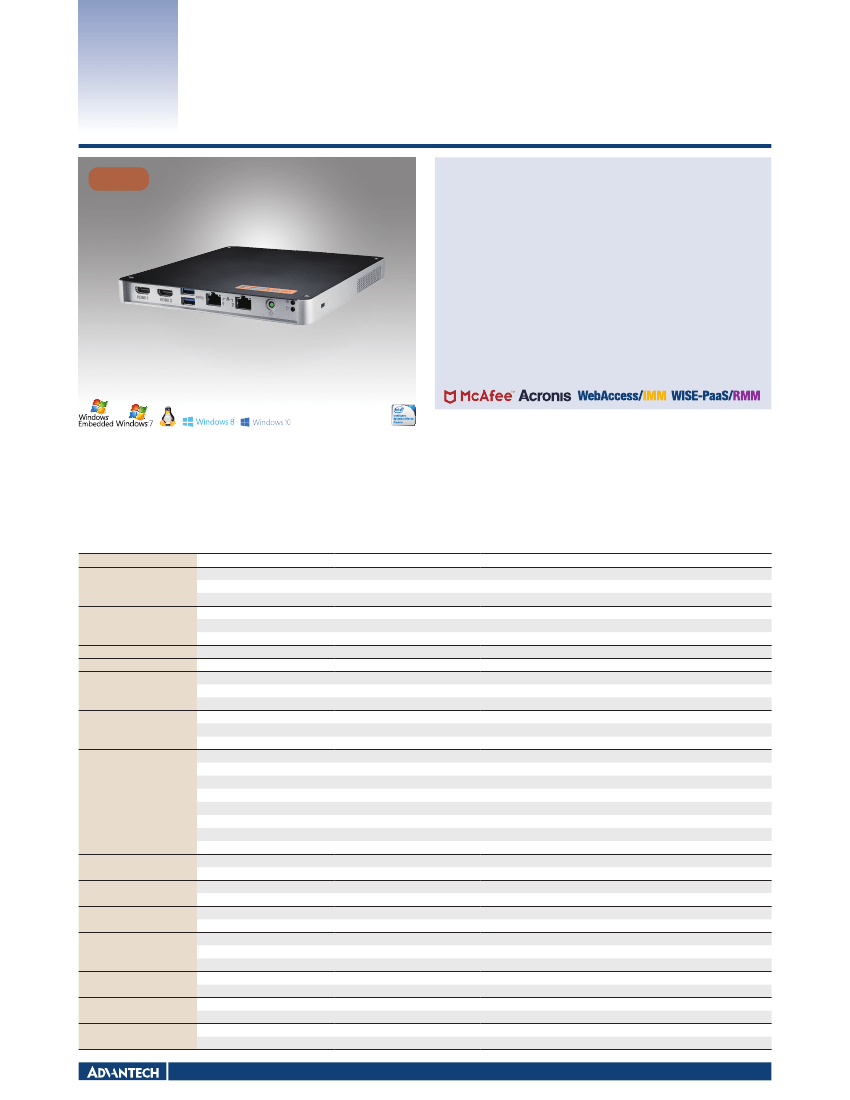

DS-081

NEW

6th Generation Intel

Core™ i3/i5

Ultra-slim Fanless Digital Signage Player

Features

Power by Intel

Core™ i5-6300U/6200U, Core™ i3-6100U processors

Adopts embedded/non-embedded processors for different application needs

19mm-thin chassis ideal for space-limited installation

Dual HDMI display output, resolution up to 4096 x 2304 UHD

Fanless & Cable-less design for easy maintenance

Highly expandable via internal Mini-PCIe interface (M-SATA compliant)

Supports WISE-PaaS/RMM and Embedded Software APIs

Supports WebAccess/IMM for intuitive signage content managing, remote

monitoring and control

Introducton

Measuring at 19 mm thick, DS-081 is the world’s slimmest digital signage player powered by 6th Generation Intel

Core™ i3/i5 processors. This thin-and-powerful signage player is

equipped with 2x HDMI display which is capable to achieve up to 4096 x 2304 UHD resolution, and delivers a premium visual experience when graphics performance really matters.

Windows

Embedded OS, Linux are supported, and Advantech WebAccess/IMM, Web-based content management software, is also free on offer. We’ve designed the DS-081 in the

smallest possible form factor, for optimized performance.

Specifications

Processor

Chipset

BIOS

Technology

Max. Capacity

Socket

DS-081GB-U2A1E

DS-081GB-U3A1E

Intel

Core™ i5 6200U

Intel

Core™ i3 6100U

Integrated in SOC

AMI uEFI 128 Mbit

DDR4 2133MHz

32GB (16GB per SO-DIMM)

2 x 260-pin SODIMM

N/A

Fanless

Intel

HD Graphics 520

HDMI x 2

4096 x 2304 @ 24Hz

(LAN1) INTEL

I219-LM / (LAN2) Realtek RTL8111G

Gigabit LAN Controller

2 x RJ-45

1 (SPDIF/Line-out/ Mic-in), support Jack Sense

2 (RJ-45)

1 x RS-232

1 (Full-size)

1 x Power on/off button

1 x Power, 1 x HDD Access

1 x 2.5-inch SATA III HDD/SSD (7 mm height)

1 x Full-size

ACPI 3.0

19 V DC-in (ATX/AT mode)

Interrupt, system reset

255-level timer interval, setup by software

VESA/Desk/Wall/Din Rail

180 x 190 x 19 mm

0.87 kg (1.92 lb)

0 ~ 40° C (32 ~ 104F) with 0.7 m/s airflow

95% @ 40° C (non-condensing), operating

Supports Win7 x64/x86, Win8.1 x64, Win10 x64

supported by project

CE,FCC Class B,CCC,BSMI

UL,CB,CCC,BSMI

DS-081GB-U4A1E

Intel

Core™ i5 6300U

Memory

Intel

AMT

Thermal Solution

Display

Yes (LAN1)

Ethernet

I/O Interfaces

Storage

Power Requirement

Watchdog Timer

Physical Characteristics

Environment

Operating System

Certifications

Graphics Engine

Output

Resolution

Controller

Interface

Connector

Audio

LAN

HDMI

USB 3.0

Serial Port

Mini-PCIe (Internal)

PSW

LED Indicators

SATA

mSATA

Power Management

Input Voltage

Output

Interval

Mounting

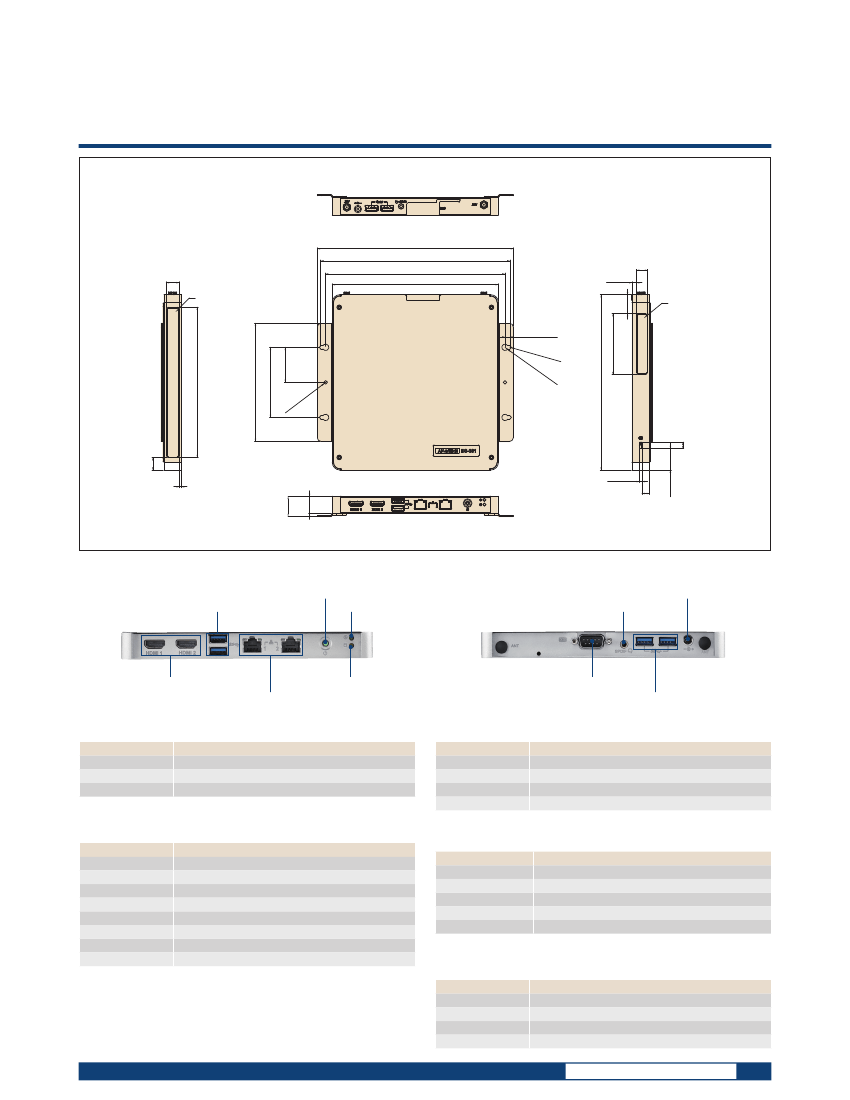

Dimensions (W x D x H)

Weight

Operating Temperature

Relative Humidity

Operating System

Linux

EMC

Safety

Digital Signage Player

All product specifications are subject to change without notice.

Last updated: 25-Aug-2017

DS-081GB-U2A1E Related Products

	DS-081GB-U2A1E	DS-081GB-U3A1E	DS-081GB-U4A1E
Description	Embedded Box Computers Signage Box with Skylake i3-6100U (no RAM & HDD, OS) (Embedded)	Embedded Box Computers DS-081, Core i5, barebone	Embedded Box Computers DS-081, Core i5 6300U, barebone
Product Attribute	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Advantech	Advantech	Advantech
Product Category	Embedded Box Computers	Embedded Box Computers	Embedded Box Computers
RoHS	Details	Details	Details
Processor Brand	Intel	Intel	Intel
Processor Type	Intel Core i3-6100U	Intel Core i5-6200U	Intel Core i5-6300U
Chipsets	Integrated in SoC	Integrated in SoC	Integrated in SoC
Memory Size	32 GB	32 GB	32 GB
Interface Type	Serial	Serial	Serial
Operating Supply Voltage	19 V	19 V	19 V
Dimensions	180 mm x 190 mm x 19 mm	180 mm x 190 mm x 19 mm	180 mm x 190 mm x 19 mm
Memory Type	DDR4	DDR4-2133	DDR4-2133
