DTC114EUBHZGTL: DescriptionBipolar Transistors - Pre-Biased NPN SOT-323FL 50V VCC 0.1A IC; CategoryDiscrete semiconductor The transistor; File Size1MB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

DTC114EUBHZGTL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTC114EUBHZGTL	-	-	View	Buy Now

DTC114EUBHZGTL Overview

Bipolar Transistors - Pre-Biased NPN SOT-323FL 50V VCC 0.1A IC

DTC114EUBHZGTL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SMALL OUTLINE, R-PDSO-F3
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	ROHM - DTC114EUBHZGTL - TRANS, NPN, 10K/10K, SOT-323
Other features	BUILT IN BIAS RESISTANCE RATIO IS 1
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	30
JESD-30 code	R-PDSO-F3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Guideline	AEC-Q101
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz

Preview

Download Datasheet

View All

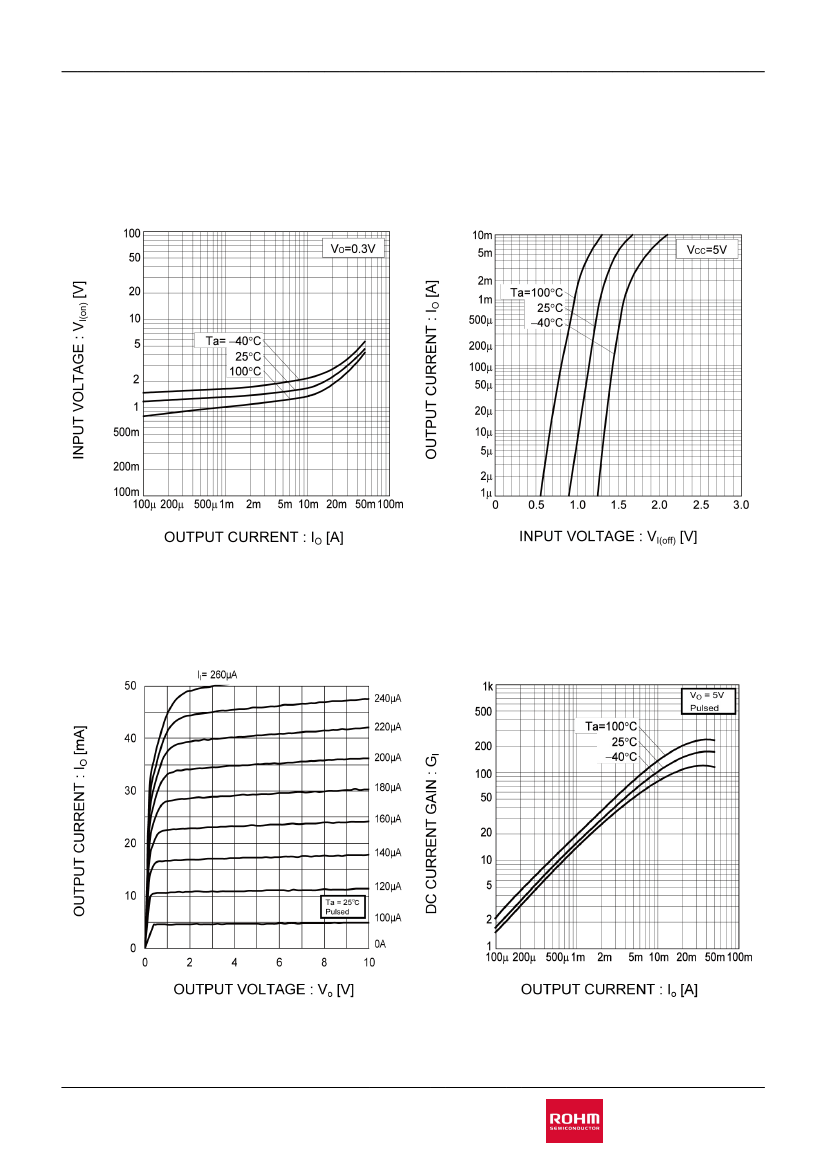

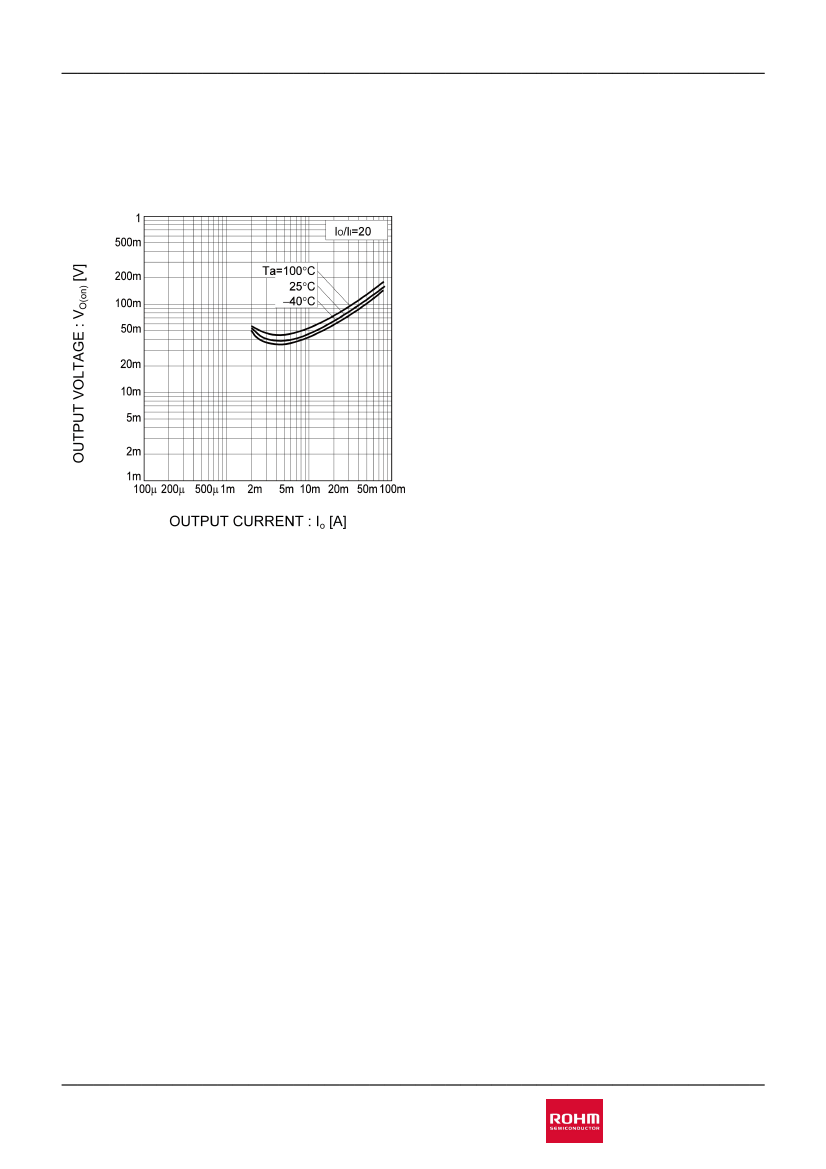

DTC114EUB HZG

NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors)

Datasheet

AEC-Q101 Qualified

Outline

Parameter

C(MAX.)

Value

50V

100mA

10kΩ

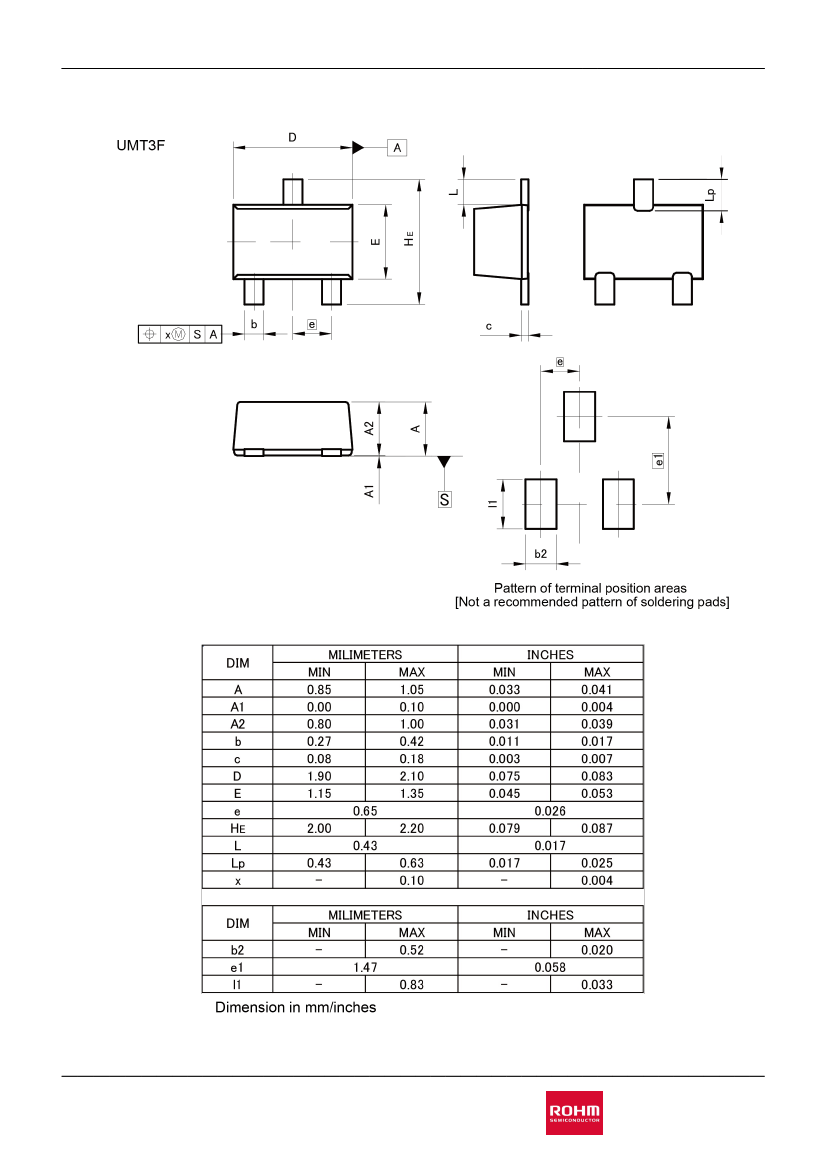

UMT3F

(SC-85)

Features

1) Built-In Biasing Resistors, R

= R

= 10kΩ

2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .

3) Only the on/off conditions need to be set

for operation, making the circuit design easy.

4) Complementary PNP Types: DTA114EUB HZG.

Inner circuit

Application

INVERTER, INTERFACE, DRIVER

Packaging specifications

Part No.

DTC114EUB HZG

Package

UMT3F

Package

size

2021

Taping

code

Reel size Tape width

(mm)

180

Basic

ordering

unit.(pcs)

3000

Marking

www.rohm.com

1/5

20150527 - Rev.001
