RSRK 120M-676/20F datasheet, PDF

Datasheet> All Categories > Wire/cable> RSRK 120M-676/20F

RSRK 120M-676/20F: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size952KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

RSRK 120M-676/20F Overview

Sensor Cables / Actuator Cables

RSRK 120M-676/20F Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	1-1/8 in
Connector End A Pin Count	12 Position
Connector End B	1-1/8 in
Connector End B Pin Count	12 Position
Gender	Male / Female
Length	20 ft
Voltage Rating	300 V
Color	Yellow
Description/Function	Mini, 1 1/8â??-Round-Plug Connector, Double-Ended Cordsets
Jacket Material	Polyurethane (PUR)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

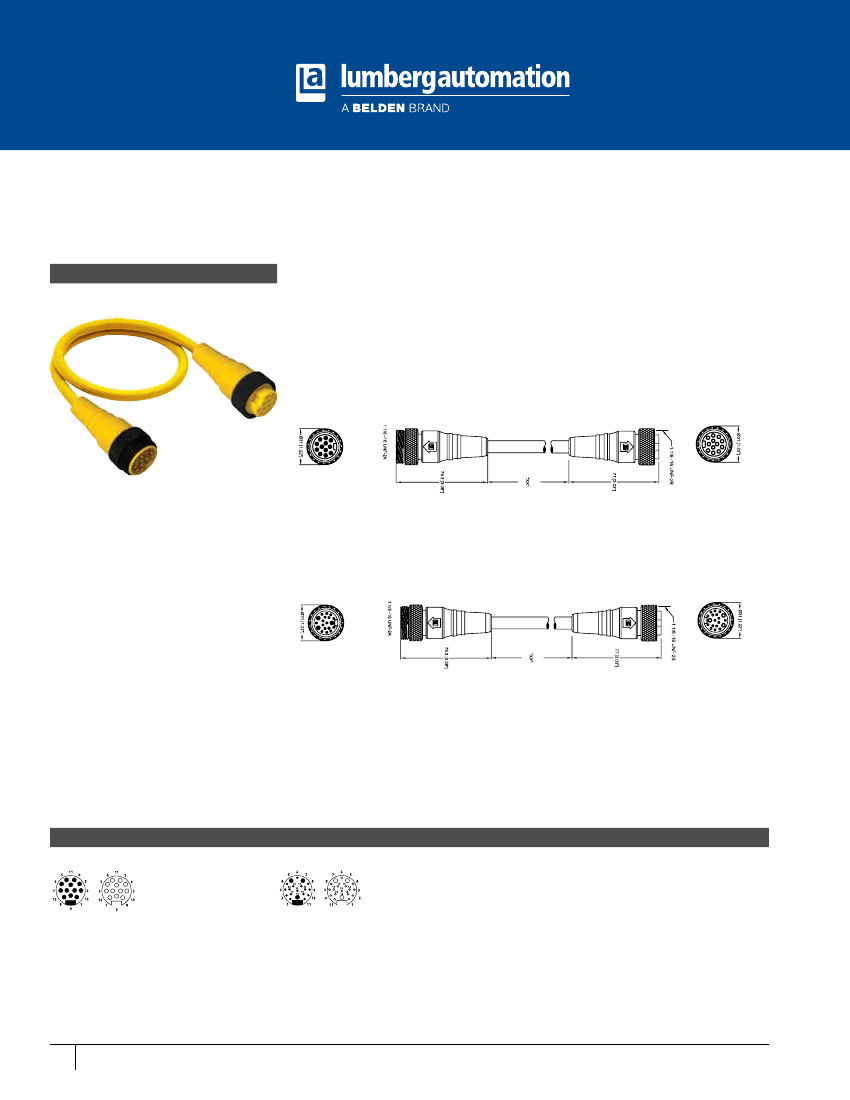

Mini, 1 1/8”-Round-Plug Connector, Double-Ended Cordsets,

Numeric Color Code

RSRK 120M | RSRK 190M

12- and 19-Poles

Mini, 1 1/8” double-ended cordsets, male straight

(external threads) to female straight (internal

threads) connector, 12- and 19-poles with

molded cable, Numeric color code, PUR or TPE

Cable, 18 AWG.

RSRK 120M

RSRK 190M

Pin Assignments

Mini, 1 1/8” - Male / Female

12 poles

10 =

11 =

12 =

black w/ number “1”

black w/ number “2”

black w/ number “3”

black w/ number “4”

black w/ number “5”

black w/ number “6”

black w/ number “7”

black w/ number “8”

green w/yellow tracer

black w/ number “10”

black w/ number “11”

black w/ number “12”

19 poles

10 =

11 =

12 =

13 =

14 =

15 =

16 =

17 =

18 =

19 =

black w/ number “1”

black w/ number “2”

black w/ number “3”

black w/ number “4”

black w/ number “5”

black w/ number “6”

black w/ number “7”

black w/ number “8”

black w/ number “9”

black w/ number “10”

black w/ number “11”

green w/yellow tracer

black w/ number “13”

black w/ number “14”

black w/ number “15”

black w/ number “16”

black w/ number “17”

black w/ number “18”

black w/ number “19”

19 poles - current rating

1-4, 6, 8-11, and 13-19 = 3 A

5 and 7 = 8 A

12 = Ground”

214

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com
