BRSTS 8X-BRSTS 8X-552/15 M Overview

Sensor Cables / Actuator Cables

BRSTS 8X-BRSTS 8X-552/15 M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
RoHS	Details
Connector End A	M12
Connector End A Pin Count	8 Position
Connector End B	M12
Gender	Male / Male
Length	15 m
Current Rating	500 mA
Voltage Rating	48 V
Coding	X Coded
Number of Conductors	8 Conductor
Color	Blue
Jacket Material	FRNC
Factory Pack Quantity	1

Preview

Download Datasheet

View All

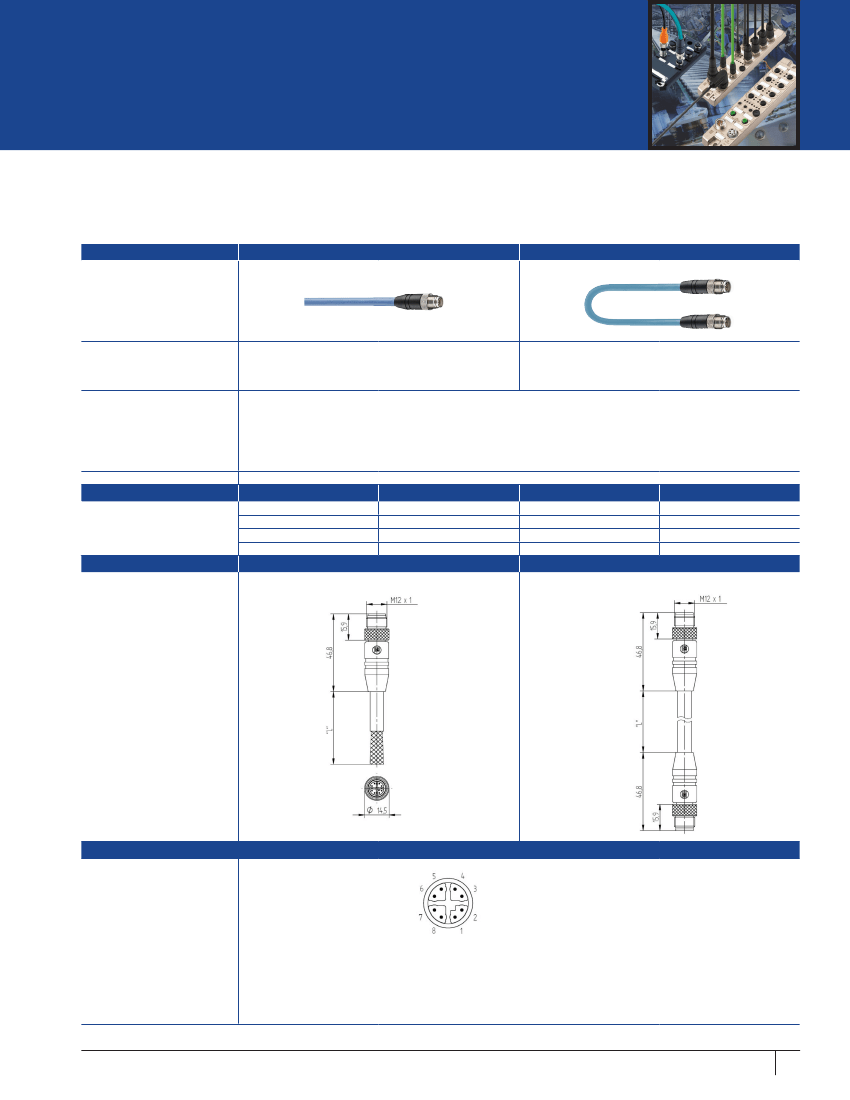

Be Certain with Belden

Gigabit Shielded Industrial-Ethernet M12 Cord Sets

Rail-approved versions

Type

BRSTS 8X-552/… M

BRSTS 8X-BRSTS 8X-552/… M

Product description

Standards

Ethernet Gigabit Cord set, single ended M12 male connector with molded

Ethernet Gigabit Cord set, double ended M12 male connector with molded

cable, X-coded, supports transfer rates up to 10 Gigabit, 360° shielding

connected to knurled screw, 2M, 5M, 10M and 15M cable lengths.

Connectors comply with international railway standards

IEC 61076-2-109

Control Cable:

• ISO/IEC 11801 Cat 7

• EN 50173-1

• DIN 5510-2, EN 45545-2

• TIA/EIA-568-B.2 (May 2001)

DIN EN 50155 (in accordance), DIN EN 45545-2, DIN EN 50467, DIN EN 61373

Part number

BRSTS 8X-552/2 M

BRSTS 8X-552/5 M

BRSTS 8X-552/10 M

BRSTS 8X-552/15 M

Order number

934809009

934809010

934809011

934809012

M12

Part number

BRSTS 8X-BRSTS 8X-552/2 M

BRSTS 8X-BRSTS 8X-552/5 M

BRSTS 8X-BRSTS 8X-552/10 M

BRSTS 8X-BRSTS 8X-552/15 M

Order number

934809013

934809014

934809015

934809016

Approvals

Ordering information

Technical illustration

M12 to M12

Pin Assignment

1 = white/orange

2 = orange

3 = white/green

4 = green

5 = white/brown

6 = brown

7 = white/blue

8 = blue

www.lumberg-automationusa.com

800-235-3361 or 1-800-BELDEN1

61
