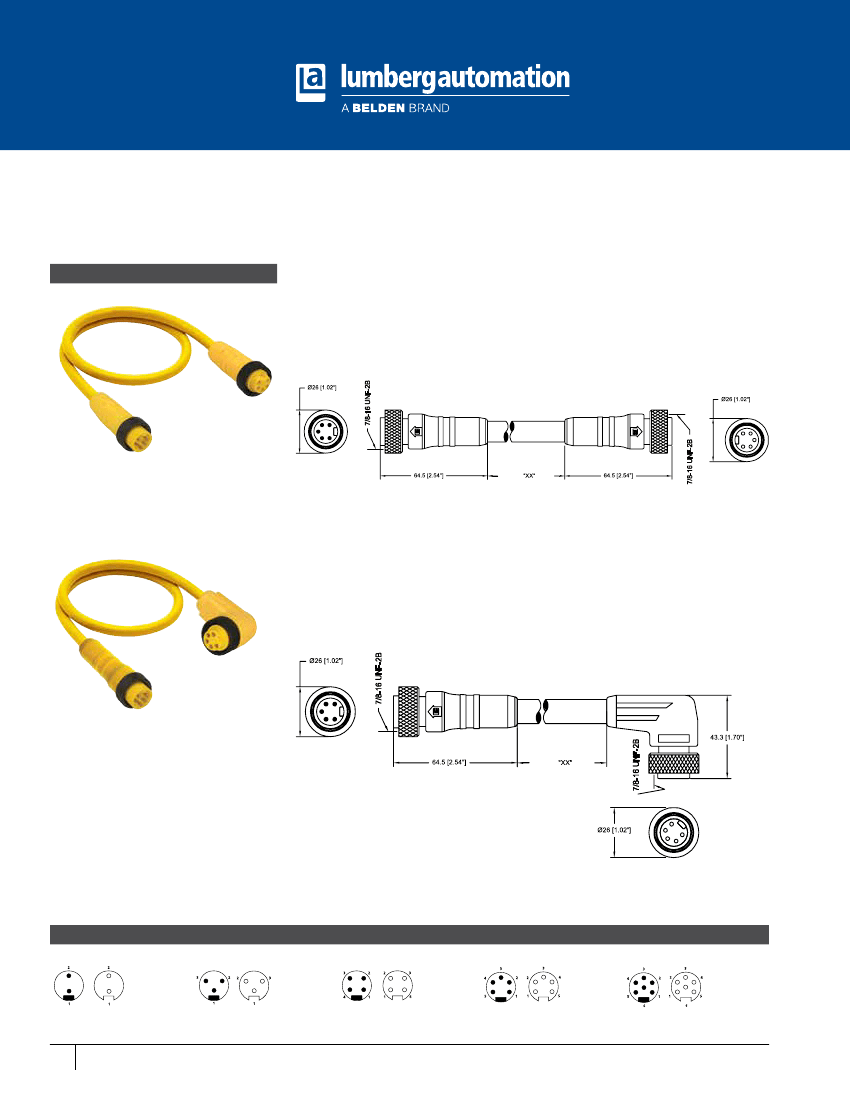

Mini, 7/8”-Round-Plug Connector, Double-Ended Cordsets,
US Color Code
RSRK 201...601A | RSRKW 201...601A
2-, 3-, 4-, 5-, and 6-Poles
Mini, 7/8” double-ended cordsets, male to
female straight, 2-, 3-, 4-, 5-, and 6-poles with
molded cable, US color code.
RSRK
Mini, 7/8” double-ended cordsets, male straight
to female 90°, 2-, 3-, 4-, 5-, and 6-poles with
molded cable, US color code.
RSRKW
Pin Assignments
Mini, 7/8” - Male / Female
2 poles
1=
2=
white
black
3 poles
1=
2=
3=
green
black
white
4 poles
1=
2=
3=
4=
black
white
red
green
5 poles
1=
2=
3=
4=
5=
white
red
green
orange
black
6 poles
1=
2=
3=
4=
5=
6=
white
red
green
orange
black
blue
196
Technical Support:
1-717-217-2289
www.lumberg-automationusa.com
Cordsets
Double-Ended
Be Certain with Belden
Mini, 7/8”-Round-Plug Connector, Double-Ended Cordsets, US Color Code
RSRK 201...601A | RSRKW 201...601A
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Housing / Molded body
Insert
Contact
Coupling nut
Electrical
Current rating
IP 67 / NEMA 6P
-40°C (-40°F) /
+90°C (194°F)
TPU, yellow
TPU, yellow
CuZn, gold over silver plated
Aluminum, anodized black
2 pole: 12 A
3-5 pole: 8 A
6 pole: 5 A
Cordsets
Double-Ended
Voltage rating
Cable Specifications - US Color Code
Cable No.
619
678
697
738
739
777
839
877
600 V
Outer Jacket
CPE
PVC
PVC
TPE
TPE
TPE
TPE
TPE
Gauge
18AWG
16AWG
18AWG
16AWG
16AWG
16AWG
16AWG
16AWG
Jacket
Color
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
OD
.370” (9.4 mm)
.375” (9.5 mm)
.502” (12.8 mm)
.390” (9.9 mm)
.415” (10.5 mm)
.495” (12.6 mm)
.342” (8.7 mm)
.371” (9.4 mm)
Temperature Rating
-40°C (-40°F) to +90°C (194°F)
-40°C (-40°F) to +105°C (221°F)
-40°C (-40°F) to +105°C (221°F)
-50°C (-58°F) to +105°C (221°F))
-50°C (-58°F) to +105°C (221°F)
-50°C (-58°F) to +105°C (221°F)
-30°C (-22°F) to +90°C (194°F)
-30°C (-22°F) to +90°C (194°F)
Agency Approvals
UL: SOOW / CSA: SOW
UL: STOW / CSA: STO
UL: STOW / CSA: STOO
UL: SEOOW / CSA: STOOW
UL: SEOOW / CSA: STOOW
UL: SEOOW / CSA: STOOW
UL: TC-ER
UL: TC-ER
Part Number
RSRK 201-678/...F
RSRK 301-619/...F
RSRK 301-738/...F
RSRK 401-739/...F
RSRK 401-839/...M
RSRK 501-777/...F
RSRK 501-877/...M
RSRK 601A-697/...F
RSRKW 201-678/...F
RSRKW 301-619/...F
RSRKW 301-738/...F
RSRKW 401-739/...F
RSRKW 401-839/...M
RSRKW 501-777/...F
RSRKW 501-877/...M
RSRKW 601A-697/...F
Pins
2
3
3
4
4
5
5
6
Outer Jacket Standard Cable Lengths
PVC
CPE
TPE
TPE
TPE
TPE
TPE
PVC
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
1 M / 2 M / 3 M / 5 M / 10 M / 20 M
6 F / 12 F / 15 F / 20 F / 30 F
1 M / 2 M / 3 M / 5 M / 10 M / 20 M
6 F / 12 F / 15 F / 20 F / 30 F
Characteristics
www.lumberg-automationusa.com
Technical Support:
1-717-217-2289
197
