Advanced Analog Circuits
Data Sheet
AZ4580
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
General Description
The AZ4580 is a dual low noise operational amplifier.
It is specifically designed for audio systems to improve
tone control; it can also be used in pre-amplifier, indus-
trial measurement tools and applications where gain
and phase matched channels are mandatory.
The IC features monolithic silicon chip, internal fre-
quency compensation, low noise, low distortion, high
gain and high bandwidth. The AZ4580 can operate
under dual power supply voltage up to
±18V
or single
power supply up to 36V.
Features
·
·
·
·
·
·
·
Operating voltage:
±2V
~
±18V
Large DC voltage gain: 110dB typ.
Low input noise voltage: 0.7
µV
RMS
typ.
Wide gain bandwidth product: 15 MHz typ.
Low distortion: 0.0005% typ.
Slew rate: 7V/µs typ.
Package outline: DIP8, SOIC8
Applications
·
·
Audio AC-3 decoded system
Audio amplifier
SOIC-8
DIP-8

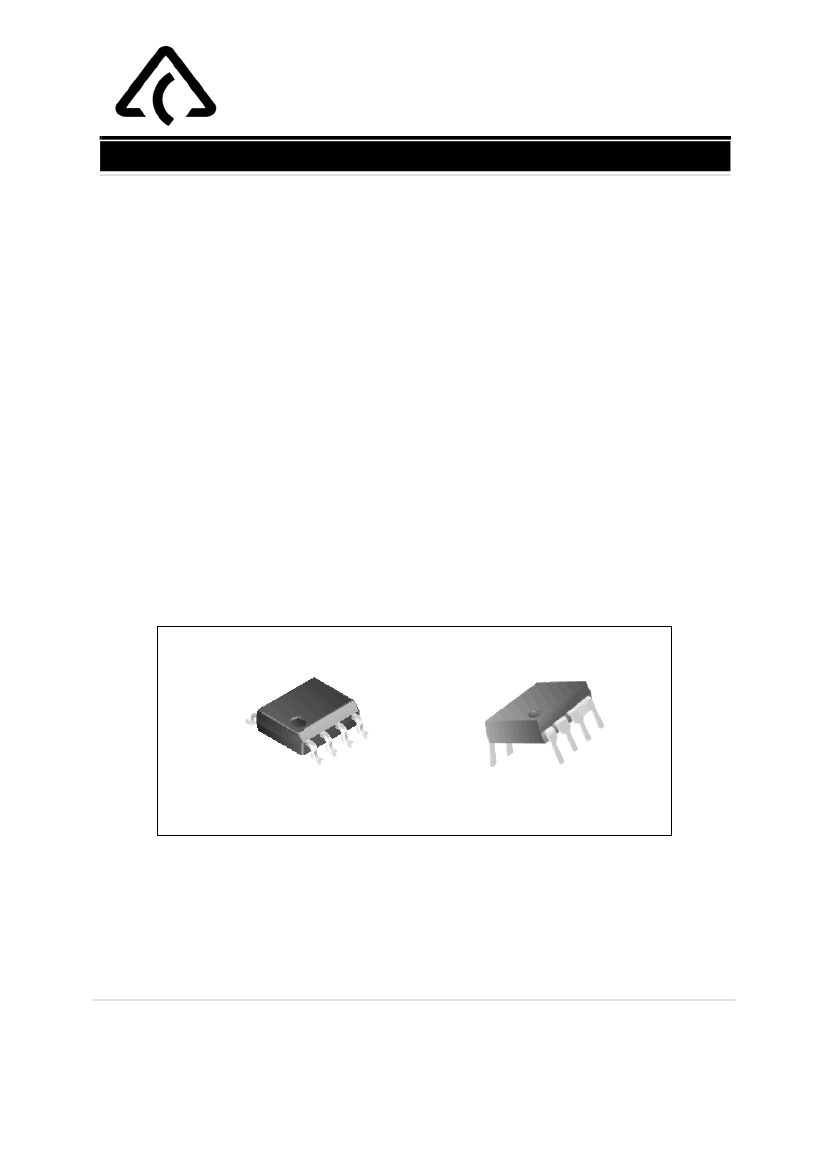

Figure 1. Package Types of AZ4580
Issue Date: Jan. 2003
1
Rev.1.0
Advanced Analog Circuits
Data Sheet
AZ4580
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Pin Configuration
OUTPUT 1
INPUT 1-
INPUT 1+
V
EE
1
2
3
4
Top View
8
7
6
5
V
CC
OUTPUT 2
INPUT 2-
INPUT 2+
Figure 2. Pin configuration of AZ4580
Functional Block Diagram
V
CC
-INPUT
+INPUT
OUTPUT
V
EE
Figure 3. Representative Schematic Diagram of AZ4580
Issue Date: Jan. 2003
2
Rev.1.0
Advanced Analog Circuits
Data Sheet
AZ4580
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Ordering Information
Package
SOIC-8
DIP-8
Temperature Range
-40
o
C to 85
o
C
Part Number
4580M
AZ4580P
Packing Type
Tube, Reel
Tube
Absolute Maximum Ratings (Note 1)
Parameter
Power Supply Voltage
Min.
V
CC
V
EE
Differential Input Voltage
Input Voltage
Power Dissipation
V
ID
V
IC
DIP-8
SOIC-8
Operating Temperature Range
Storage Range
ESD (Human Body Mode)
ESD (Machine Mode)
T
OP
T
STG
-40 to 85
-60 to 150
4000
350
Max.
+ 20
- 20
± 30
± 15
800
800
o
o
Unit
V
V
V
mW
C
C
V
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated under "Recommended Operation Ratings" is not implied. Exposure to "Absolute Maximum Rat-
ings" for extended periods may affect device reliability.
Recommended Operation Conditions
Parameter
Supply Voltage
Min.
±2
Max.
± 18
Unit
V
Issue Date: Jan. 2003
3
Rev.1.0
Advanced Analog Circuits
Data Sheet
AZ4580
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Electrical Characteristics
Operating Conditions: V
CC
=
+
15V, V
EE
= - 15V, T
A
= 25
o
C unless otherwise specified.
Parameter
Supply Current
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Common Mode Voltage Range
Common Mode Rejection Ratio
Large Signal Voltage Gain
Power Supply Rejection Ratio
Slew Rate
Gain Bandwidth Product
Total Harmonic Distortion
Equivalent Input Noise Voltage
V
CM
=0V to V
CC
-1.5V, R
S
≤
10KΩ
R
L
=2KΩ, V
O
=
±
10V
R
S
≤
10KΩ
R
L
≥
2KΩ
R
L
=2KΩ, f=10KHz
A
V
=20dB, V
O
=5V
R
L
=2KΩ, f=1KHz
RIAA R
S
=2.2KΩ, 30KHz LPF
Conditions
no load
R
S
≤
10KΩ
Min.
-
-
-
-
Typ.
4
0.5
5
150
Max.
7
3
100
500
-
-
-
-
-
-
-
Unit
mA
mV
nA
nA
V
dB
dB
dB
V /
µ
S
MHz
%
µV
RMS
±
12
80
90
80
-
-
-
-
±
13.5
110
110
110
7
15
0.0005
0.7
Issue Date: Jan. 2003
4
Rev.1.0
Advanced Analog Circuits
Data Sheet
AZ4580
DUAL LOW NOISE OPERATIONAL AMPLIFIERS
Typical Characteristics
120
110
30
Open Loop Voltage Gain (dB)
100
90
80
70
60
50
40
30
20
10
0
1
10
100
1k
10k
V
CC
= 15V, V
EE
= -15V
R
L
=2K
Ω
,T
A
=25 C
o
25
Output Voltage Swing (V)
20
V
CC
= 15V,V
EE
= -15V
R
L
=2K
Ω
, T
A
=25 C
o
15
10
5
100k
1M
10M
0
100
1k
10k
100k
1M
10M
Frequency (Hz)
Frequency (H z)
Figure 4. Open Loop Voltage Gain vs. Frequency
Figure 5. Maximum Output Voltage Swing vs. Frequency
30
28
20
Output Voltage Swing (V)
26
24
22
20
18
16
14
12
0.1
1
10
Equivalent Input Noise Voltage (nV/(Hz) )
0.5
15
V
CC
= 15V,V
EE
= -15V,
T
A
=25 C
o
V
CC
= 15V, V
EE
= -15V
R
S
=50
Ω
,T
A
=25 C
10
o
5
0
1
10
100
1k
Load Resistance (K
Ω
)
Frequency (Hz)
Figure 6. Maximum Output Voltage Swing
vs. Load Resistance
Figure 7. Equivalent Input Noise Voltage
vs. Frequency
Issue Date: Jan. 2003
5
Rev.1.0
