2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Weight
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2003-07-30
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ164

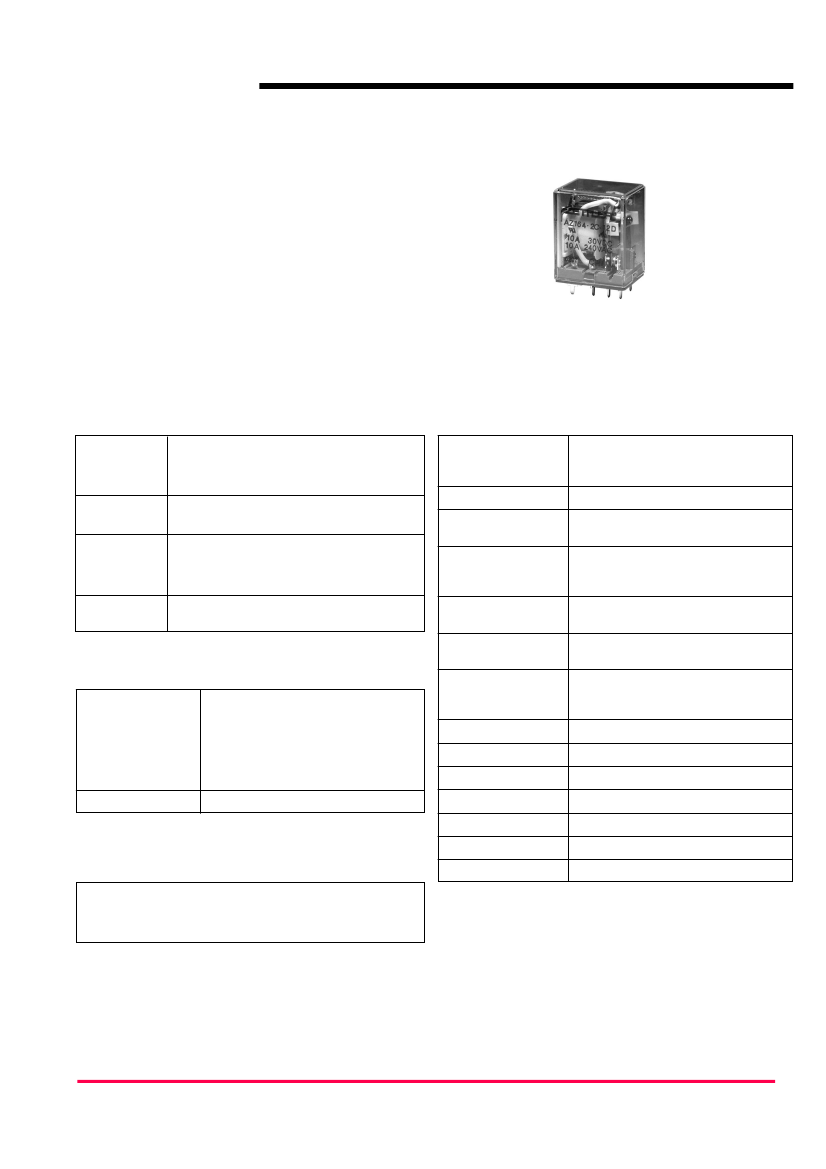

CONTACT RATINGS
Maximum
Ratings
SPDT Heavy duty, resistive load:
Max. Switched Power: 450 W, 3750 VA
Max. Switched Current: 15 A
Max. Switched Voltage: 30 VDC, 250 VAC
DPDT Heavy duty, resistive load:
Max. Switched Power: 300 W, 2500 VA
Max. Switched Current: 10 A
Max. Switched Voltage: 30 VDC, 250 VAC
DPDT Standard duty, resistive load:
Max. Switched Power: 210 W, 1750 VA
Max. Switched Current: 7 A
Max. Switched Voltage: 30 VDC, 250 VAC
3PDT, 4PDT, Standard duty, resistive load:
Max. Switched Power: 150 W, 1250 VA
Max. Switched Current: 5 A
Max. Switched Voltage: 30 VDC, 250 VAC
UL/CUR
Ratings
SPDT Heavy duty:
15 A, 250 VAC 100k, Resistive
15 A, 30 VDC, 100k N.O., 30k N.C., Resistive
DPDT Heavy duty:
10 A, 250 VAC, 100k, General use
10 A, 30 VDC, 100k, Resistive
1
/
3
HP, 120/240 VAC, 100k Motor load
DPDT, Standard duty:
7A, 250 VAC, 100k Resistive
7A, 30 VDC, 100k, Resistive
3A, 240 VAC/30 VDC, 100k, General use
3PDT, 4PDT, Standard duty:
5A, 250 VAC, 100k, Resistive
5A, 30 VDC, 100k, Resistive
3A, 240 VAC/30 VDC, 100k, General use

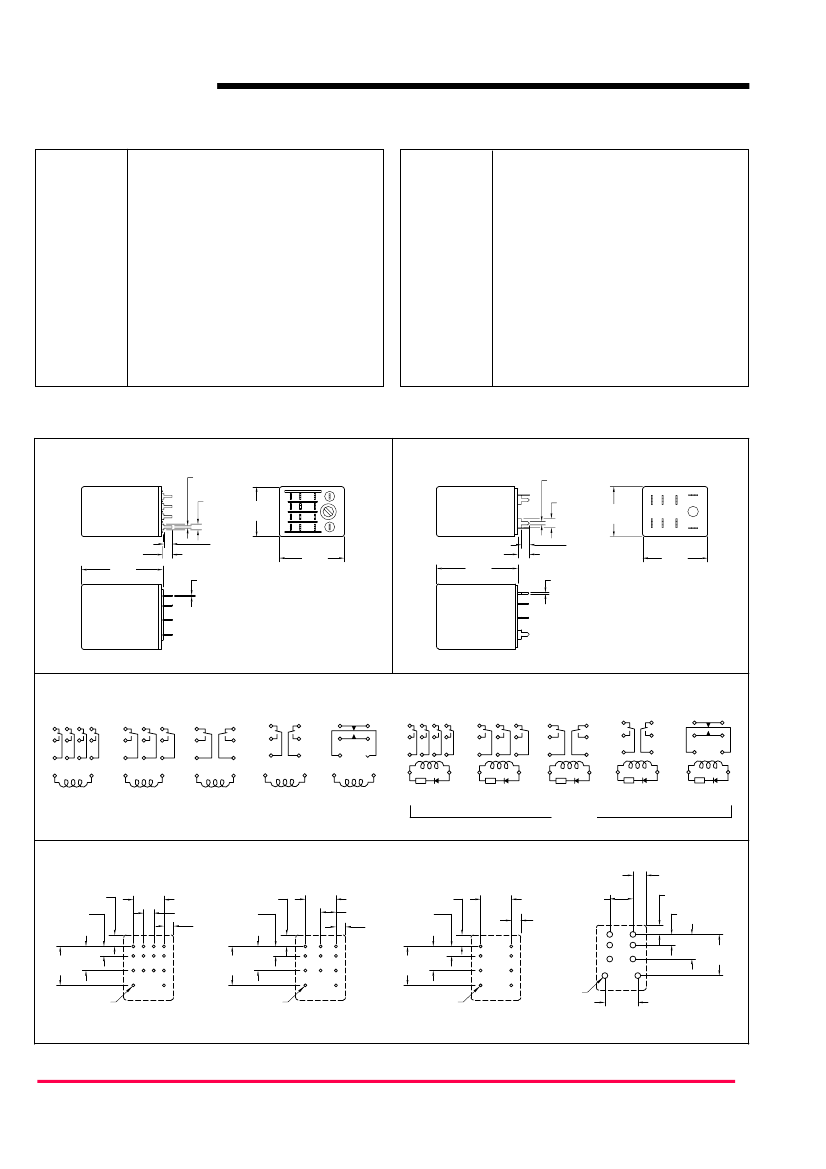

MECHANICAL DATA
AZ164-_C
.039
[1.0]
.098
[2.5]
AZ164-_CT
.059
[1.5]
.846
[21.5]
.157
[4.0]
.846
[21.5]
1.378
[35.0]
.157
[4.0]
.020
[0.5]
.138
[3.5]
1.102
[28.0]
1.378
[35.0]
.197
[5.0]
.020
[0.5]
.138
[3.5]
1.102
[28.0]
WIRING DIAGRAM
1
5
9
2
6
10
3
7
11
4
8
12
1
4
7
13
2
5
8
3
6
9
14
1
5
9
13
4
8
12
14
7
1
3
5
2
4
6
Viewed Towards Terminal
1
4
7
2
5
8
3
6
9
1
5
9
4
8
12
1
3
5
2
4
6
1
3
5
2
4
6
1
3
5
2
4
6
1
5
9
2
6
10
3
7
11
4
8
12
13
14
8
7
8
13
14
13
14
13
14
7
8
7
8
-
4C
4C
3C
2C
2CT
1CT
+
-
3C
+
-
2C
+
-
2CT
+
-
1CT
+
WITH LED
PC BOARD LAYOUTS
.169
[4.3]
.161
[4.1]
Viewed Towards Terminal
.226
[5.7]
.520
[13.2]
.173
[4.4]
.169
[4.3]
.163
[4.1]
.520
[13.2]
.161
[4.1]
.260
[6.6]
.163
[4.1]
.169
[4.3]
.161
[4.1]
.520
[13.2]
.163
[4.1]
.394
[10.0]
.156
[4.0]
.181
[4.6]
.661
[16.8]
.409
[10.4]
.661
[16.8]
.409
[10.4]
.661
[16.8]
.409
[10.4]
.417
[10.6]
.699
[17.75]
ø.051 TYP
[ø1.3 TYP]
ø.051 TYP
[ø1.3 TYP]
ø.051 TYP
[ø1.3 TYP]
ø.098 TYP
[ø2.5 TYP]
.559
[14.2]
4C
3C
2C
1CT & 2CT
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2003-07-30
Junkersstrasse 3, D-82178 Puchheim, Germany
AZ164
RELAY ORDERING DATA
STANDARD RELAYS: DC Coil
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
12
24
48
110
Must Operate
VDC
4.0
4.8
9.6
19.2
38.4
88.0
Max. Continuous
VDC
5.5
6.6
13.2
26.4
52.8
121.0
Nominal Current
mA ± 10%
181.0
150.0
75.0
36.9
18.5
10.0
Coil Resistance
Ohm
27.5 ± 10%
40.0 ± 10%
160
650
2600
11,000
± 10%
± 10%
± 15%
± 15%
ORDER NUMBER*
AZ164–2C–5D
AZ164–2C–6D
AZ164–2C–12D
AZ164–2C–24D
AZ164–2C–48D
AZ164–2C–110D
STANDARD RELAYS: AC Coil (50/60 Hz)
COIL SPECIFICATIONS
Nominal Coil
VAC
6
12
24
48
120
220
240
Must Operate
VAC
4.8
9.6
19.2
38.4
96.0
176.0
192.0
Max. Continuous
VAC
7.1
14.3
28.6
57.1
143.0
261.0
288.0
Nominal Current
mA ± 10%
200.0
100.0
50.0
25.0
10.0
5.5
5.0
Coil Resistance
Ohm
11.5 ± 10%
46.0 ± 10%
184
735
4,550
14,400
22,000
± 10%
± 10%
± 10%
± 15%
± 15%
ORDER NUMBER*
AZ164–2C–6A
AZ164–2C–12A
AZ164–2C–24A
AZ164–2C–48A
AZ164–2C–120A
AZ164–2C–220A
AZ164–2C–240A
* For 3PDT or 4PDT substitute “-3C” or “-4C” for “-2C”. For LED add “1” to the end of p/n. “-2C” and “-4C” versions are available with a lockable “push to
test” lever. Add suffix “P” to part number for “Push to Test” lever.
RELAY ORDERING DATA
HEAVY DUTY RELAYS: DC Coil
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
12
24
48
110
Must Operate
VDC
4.0
4.8
9.6
19.2
38.4
88.0
Max. Continuous
VDC
5.5
6.6
13.2
26.4
52.8
121.0
Nominal Current
mA ± 10%
181.0
150.0
75.0
36.9
18.5
10.0
Coil Resistance
Ohm
27.5 ± 10%
40.0 ± 10%
160
650
2600
11,000
± 10%
± 10%
± 15%
± 15%
ORDER NUMBER*
AZ164–1CT–5D
AZ164–1CT–6D
AZ164–1CT–12D
AZ164–1CT–24D
AZ164–1CT–48D
AZ164–1CT–110D
HEAVY DUTY RELAYS: AC Coil (50/60 Hz)
COIL SPECIFICATIONS
Nominal Coil
VAC
6
12
24
48
120
220
240
Must Operate
VAC
4.8
9.6
19.2
38.4
96.0
176.0
192.0
Max. Continuous
VAC
7.1
14.3
28.6
57.1
143.0
261.0
288.0
Nominal Current
mA ± 10%
200.0
100.0
50.0
25.0
10.0
5.5
5.0
Coil Resistance
Ohm
11.5 ± 10%
46.0 ± 10%
184
735
4,550
14,400
22,000
± 10%
± 10%
± 10%
± 15%
± 15%
ORDER NUMBER*
AZ164–1CT–6A
AZ164–1CT–12A
AZ164–1CT–24A
AZ164–1CT–48A
AZ164–1CT–120A
AZ164–1CT–220A
AZ164–1CT–240A
* For DPDT substitute “-2CT” for “-1CT”. For LED add “1” to the end of p/n.
