HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL

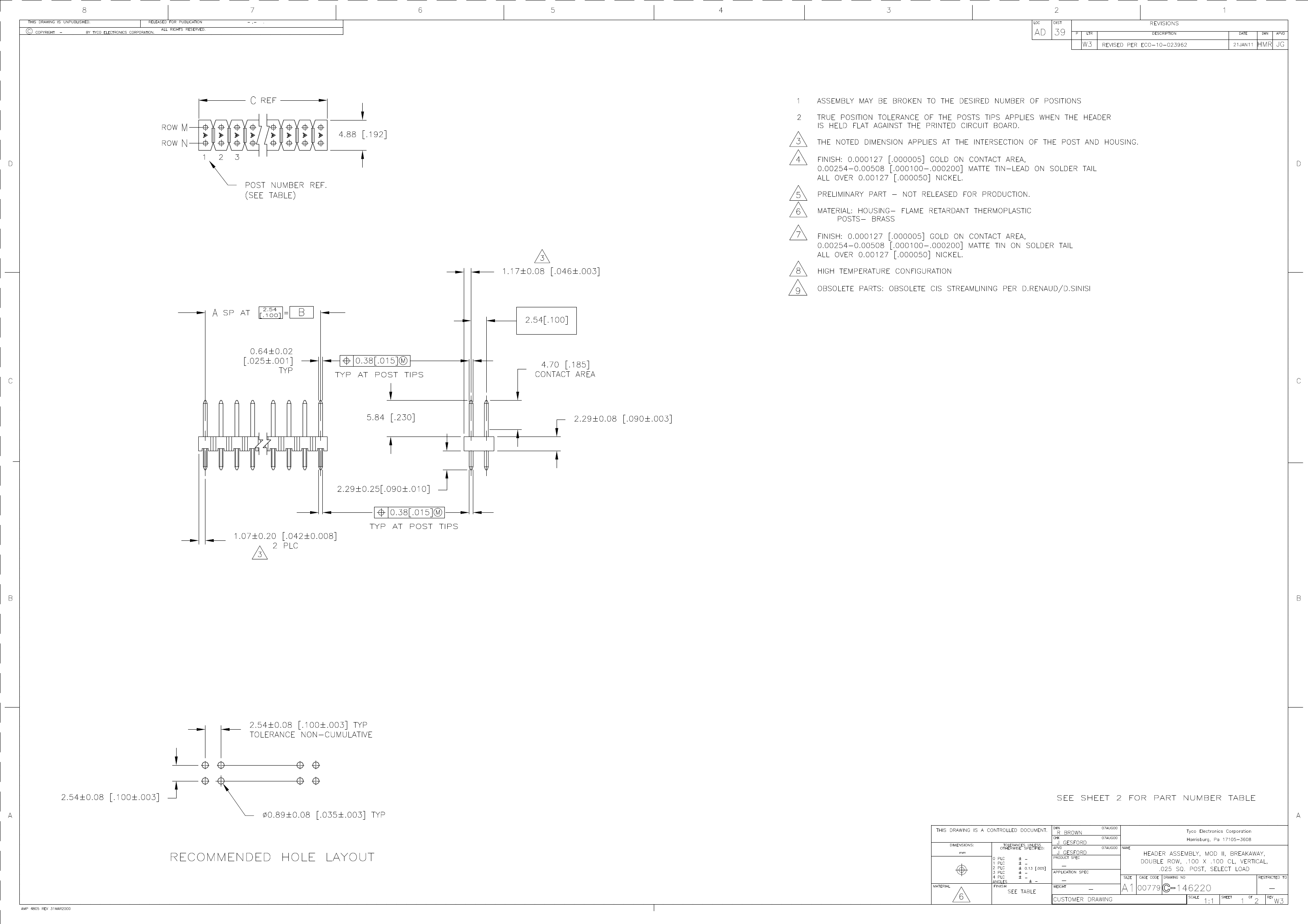

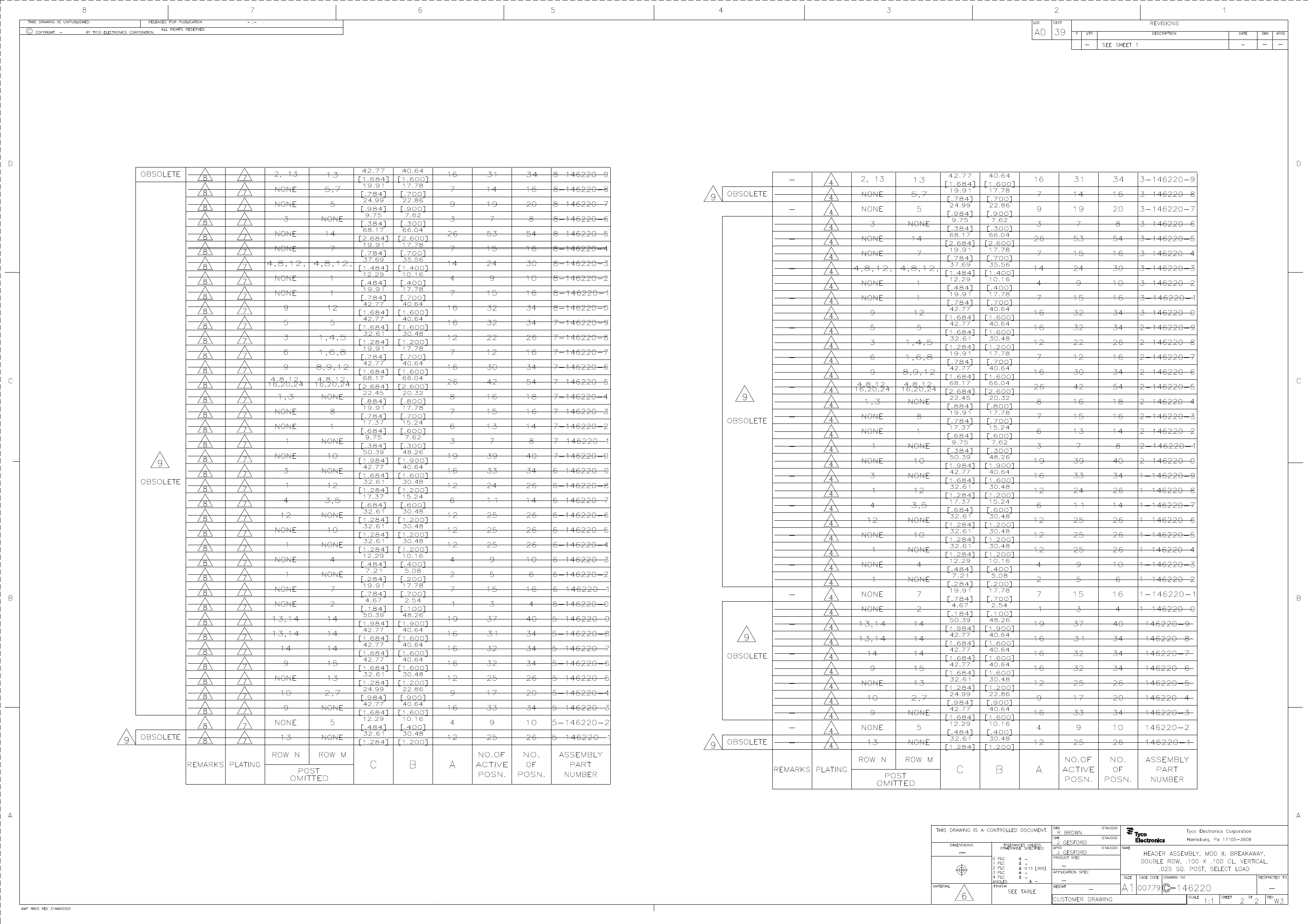

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Objectid | 303020247 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | NO. 4,8,12 POST OF N&M OMITTED |
| body width | 0.192 inch |
| body length | 1.484 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 750VAC V |
| Insulation resistance | 5000000000 Ω |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 146220 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 5u inch |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 30 |
| 3-146220-3 | 1-146220-0 | 2-146220-1 | 2-146220-3 | 3-146220-5 | MA-141-045-243-A2200 | |
|---|---|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL | 3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | HEADER CONNECTOR,PCB MNT,RECEPT,8 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL | HEADER CONNECTOR,PCB MNT,RECEPT,16 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL | 53 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER | Board Connector |
| Reach Compliance Code | compliant | unknown | compli | compli | unknown | compliant |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | FEMALE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | CABLE |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 1 |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | WIRE |
| Total number of contacts | 30 | 3 | 8 | 16 | 53 | 45 |
| Is it Rohs certified? | incompatible | - | incompatible | incompatible | - | conform to |
| Objectid | 303020247 | 1513334677 | - | - | 1513334835 | 7001203570 |
| body width | 0.192 inch | - | 0.192 inch | 0.192 inch | - | 0.08 inch |
| Body/casing type | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | - | RECEPTACLE |
| contact mode | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact style | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | - | RND PIN-SKT |
| Insulation resistance | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω | - | 5000000000 Ω |
| insulator material | THERMOPLASTIC | - | THERMOPLASTIC | THERMOPLASTIC | - | POLYPHENYLENE SULFIDE |
| Manufacturer's serial number | 146220 | 146220 | 146220 | 146220 | 146220 | - |
| Plug contact pitch | 0.1 inch | - | 0.1 inch | 0.1 inch | - | 0.05 inch |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - |
| Number of connectors | ONE | - | ONE | ONE | - | ONE |
| Maximum operating temperature | 105 °C | - | 105 °C | 105 °C | - | 125 °C |
| Minimum operating temperature | -65 °C | - | -65 °C | -65 °C | - | -55 °C |
| Plating thickness | 5u inch | - | 5u inch | 5u inch | - | 50u inch |
| Guideline | UL, CSA | - | UL, CSA | UL, CSA | - | MIL |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | - |
