ATFN6024A Overview

Crystal Filter

Preview

Download Datasheet

View All

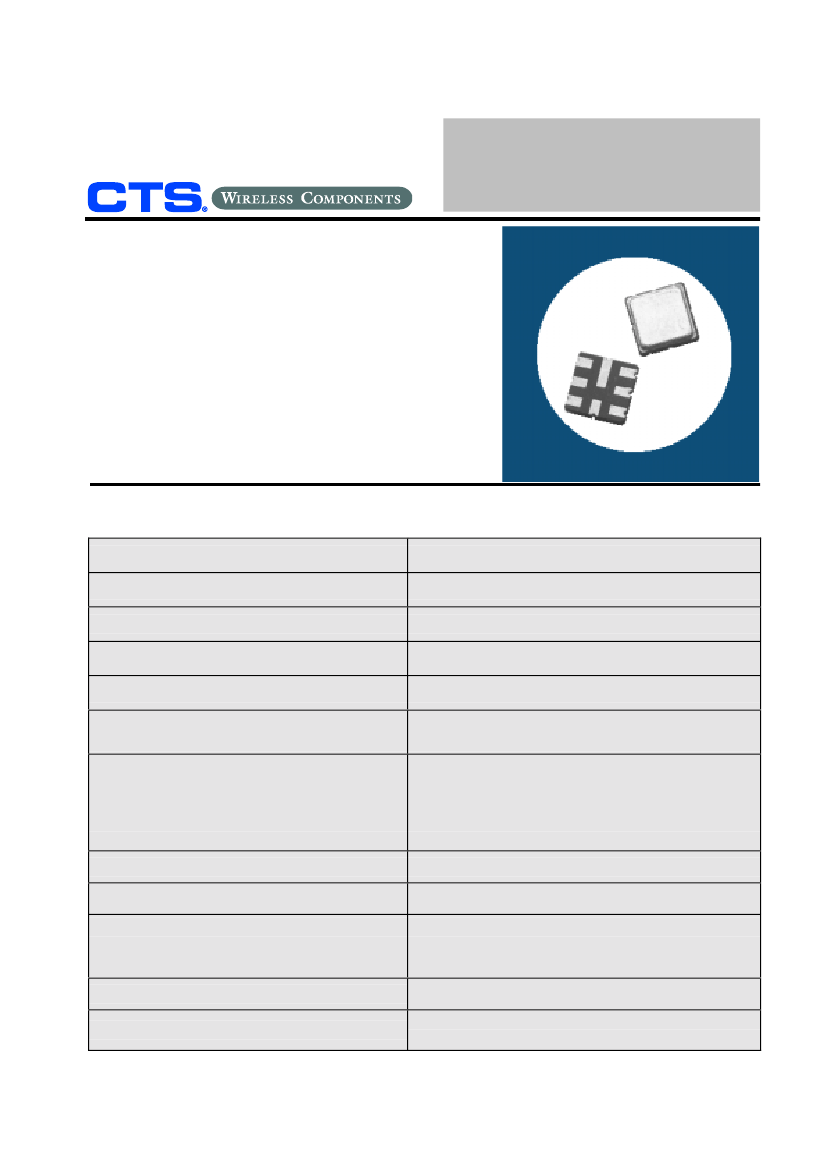

Model ATFN6024A

Crystal Filter

Features:

•

3-Pole IF Filter Performance

•

Low Profile Seam Weld Package

•

Excellent Shock and Vibration Capability

Description

and Applications:

Surface mount

3.8x3.8mm

IF filter for use

in analog phones, the analog component

of multi-mode phones, digital TDMA

applications, two-way radios, and

telecommunications infrastructure

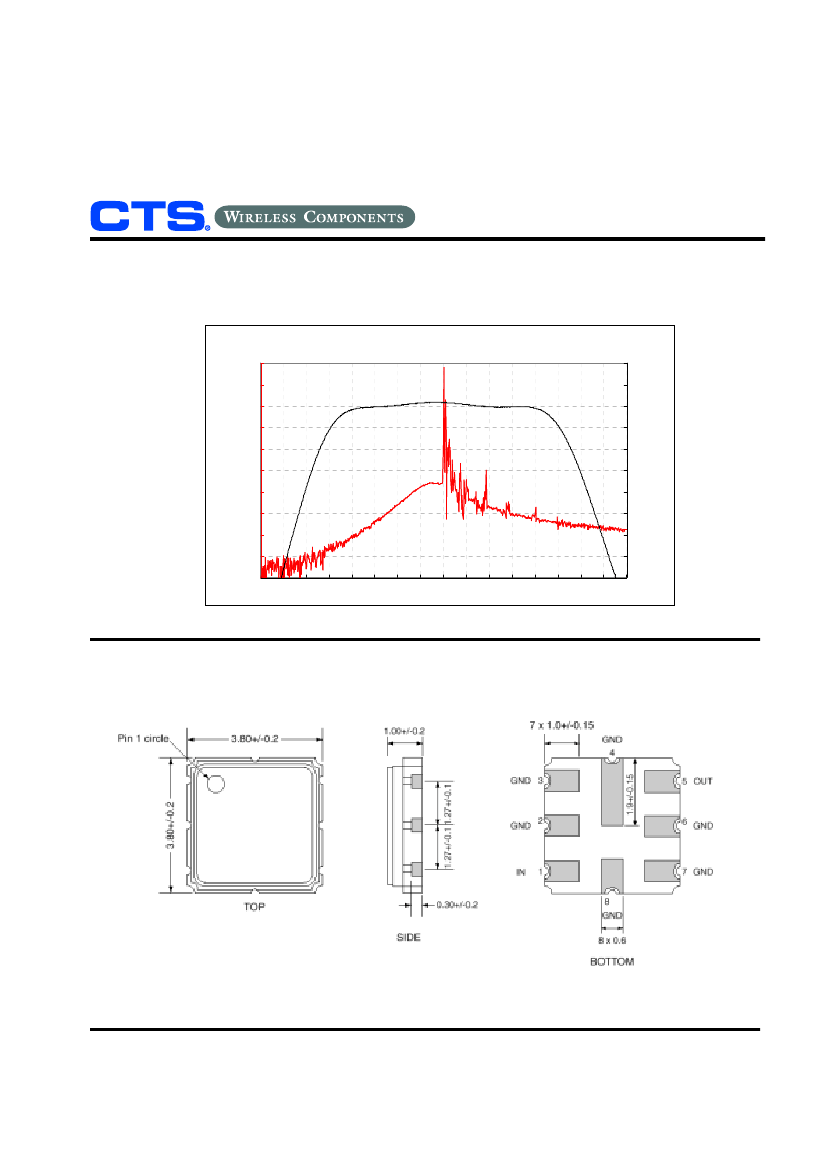

Electrical Specifications

ATFN6024A

Center Frequency Fo

Insertion Loss

Ripple (

10 Khz)

Passband (

10 Khz)

Stopband (

25 Khz)

Stopband (

60 Khz)

Equalized atten. (A1=1.0, A2=0.5)

(A1*Fo-60Khz+A2*Fo-120Khz)

(A1*Fo-120Khz+A2*Fo-330Khz)

(A1*Fo+60Khz+A2*Fo+120Khz)

(A1*Fo+120Khz+A2*Fo+330Khz)

Flyback (

25MHz)

Group Delay (Fo

12Khz)

Intermodulation (-20dBm input signal )

(

60Khz &

120Khz)

(

330Khz &

660Khz)

Terminating Impedance

Operating Temperature

Specification

109.65 Mhz (3

Overtone)

2.5 dB max.

0.5 dB max.

3 dB min

22 dB min

45 dB min

48 dB min

45 dB min

48 dB min

7.5 dB min

20 us max

70dB min

2000Ω// -0.6pF

-40°C ~ +85°C

CTS Wireless Components,

Inc. 171 Covington Dr. Bloomingdale, Illinois 60108

Tel. (800) 757-6686 Fax: (630) 295-6606 www.ctscorp.com
