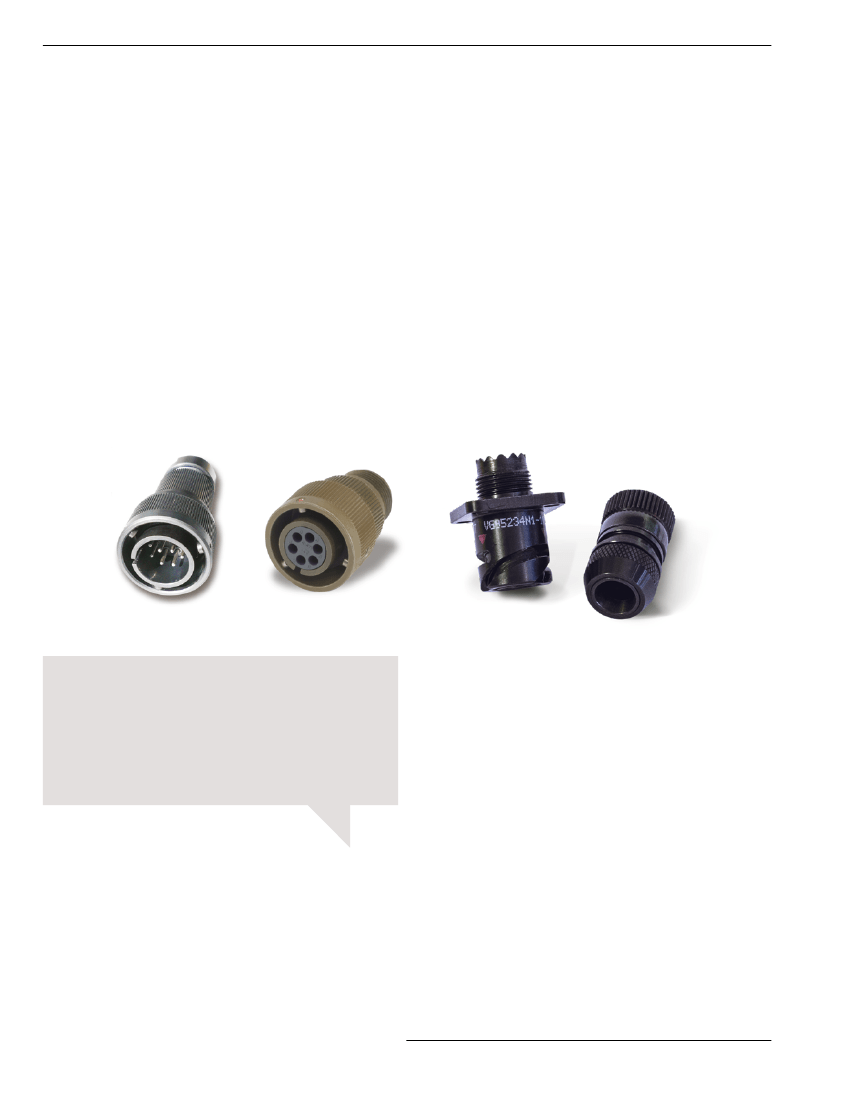

Introduction to CAB/VG95234
Cannon CA Bayonet series was designed in accordance with the VG95234
specification. This versatile and highly reliable connector series is an
improvement on the well established MIL-C-5015 series. CA-Bayonet
has a proven “reverse bayonet” coupling design that offers exceptional
vibration protection, by a simple 120° turn.
Initially designed for aircraft and airborne applications, these rugged
connectors are used in the electrical equipment of various off-road
vehicles, construction machinery, industrial devices, railroad and
military vehicles.
VG & commercial offering
- Connector offering according VG95234 standard – fully
approved VG portfolio as required for military applications
- Extended offering of additional connector versions and endbell
solutions for typical industrial applications
Contact offering
- Contacts provide at least 500 mating cycles
- Contacts available as crimp, solder or PCB versions
- Gold plated contacts available for low current applications
- Crimp and assembly tooling available for all contact sizes
Environmental protection
-
Cadmium as standard, high performance plating 500h salt
spray, highly conductive
- Cadmium & ChromVI free alternatives for RoHS applications
> ZnNi Blue grey A240 plating for 500h salt spray resistance
and highly conductive
> ZnCo Black A232 plating, for 200h salt spray resistance,
conductive
> ZnCo Green A233 plating, for 200h salt spray resistance and
highly conductive
> ZnCo Black A239 plating, VG approved military plating, 48h salt
spray and highly conductive
- IP67 pressure water & IP69k water jet sealing
Insulators / grommets
- Made of high quality polychloroprene for temperature range
-55/125°C (-67/+257°F)
- Material is self-extinguishing
- Resistant against hydraulic fluids, jet fuel, diesel fuel, gasoline,
lubricants, brake and fire extinguisher fluids
Advantages
– rugged shell design
– waterproof up to IP68, (10 meters / 35 feet or 1 bar for 16 h)
and IP69k (water jet)
– environmental protection
– bayonet coupling for easy mating and unmating
– vibration proof
Cannon has the complete VG95234 program available and,
in addition, many other types which exceed the requirements
of VG95234 and MIL-C-5015.
Attention
Metal shell connectors which may be accessed are not suitable
for mains power.
Connector Design & Features
Robust design
- Rugged aluminium shell for most severe conditions
- Bayonet coupling with rigid stainless steel roller bolts for fast
and reliable mating (min. 500 cycles)
- An audible sound and a colour-marked snap-in position ensure
additional coupling security
Contact arrangements & accessories
- Over 140 arrangements and 12 connector sizes available for 1
to 65 circuits
- Wide selection of end bells for individual wires & jacketed cables
- Choice of accessories e.g. seals, gaskets, dust caps, wire hole
fillers
