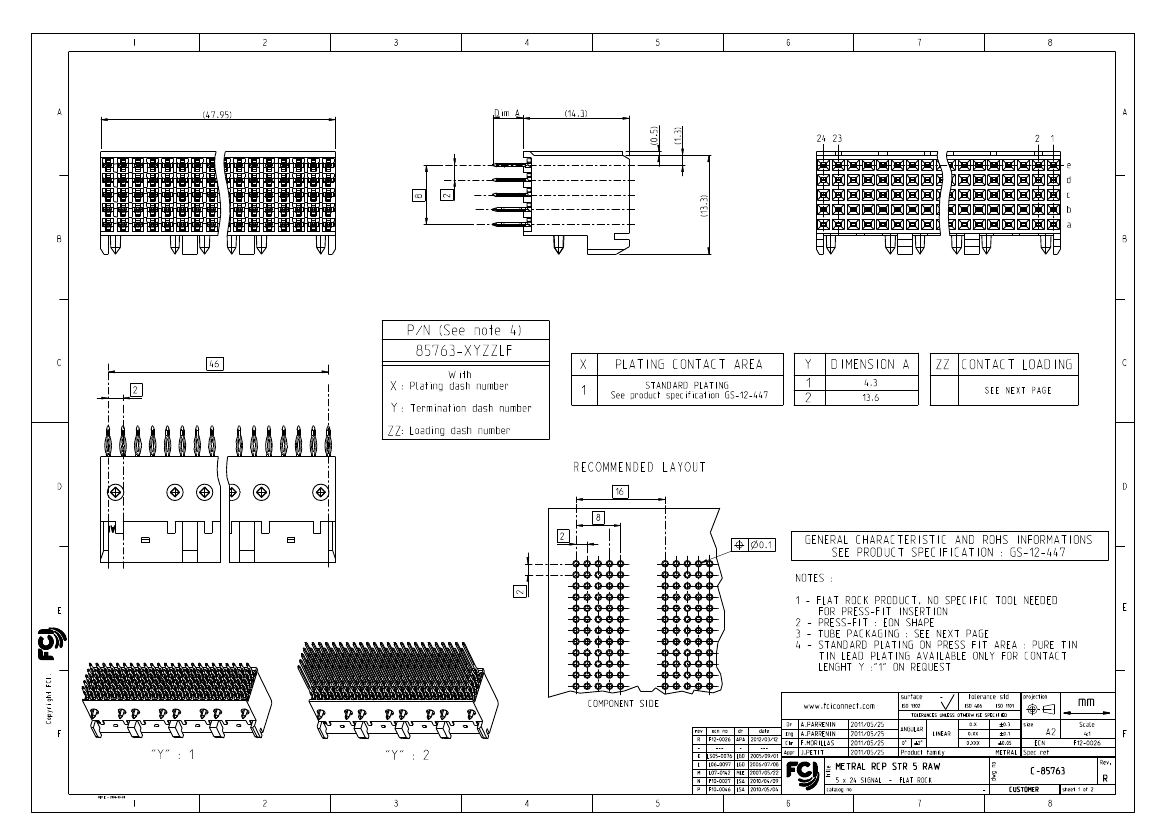

Preview

85763-1101: DescriptionHigh Speed / Modular Connectors METRAL RCT STR PF 5X24; CategoryThe connector; File Size748KB，2 Pages; ManufacturerFCI / Amphenol

Download Datasheet Parametric Compare View All

85763-1101 Overview

High Speed / Modular Connectors METRAL RCT STR PF 5X24

85763-1101 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	High Speed / Modular Connectors
RoHS	N
Product	Receptacles
Number of Positions	120 Position
Number of Rows	5 Row
Pitch	2 mm
Termination Style	Through Hole
Packaging	Bulk
Current Rating	1 A
Housing Material	Liquid Crystal Polymer (LCP)
Mounting Angle	Straight
Voltage Rating	1 kV
Contact Material	Copper Alloy
Insulation Resistance	1000 MOhms
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	12

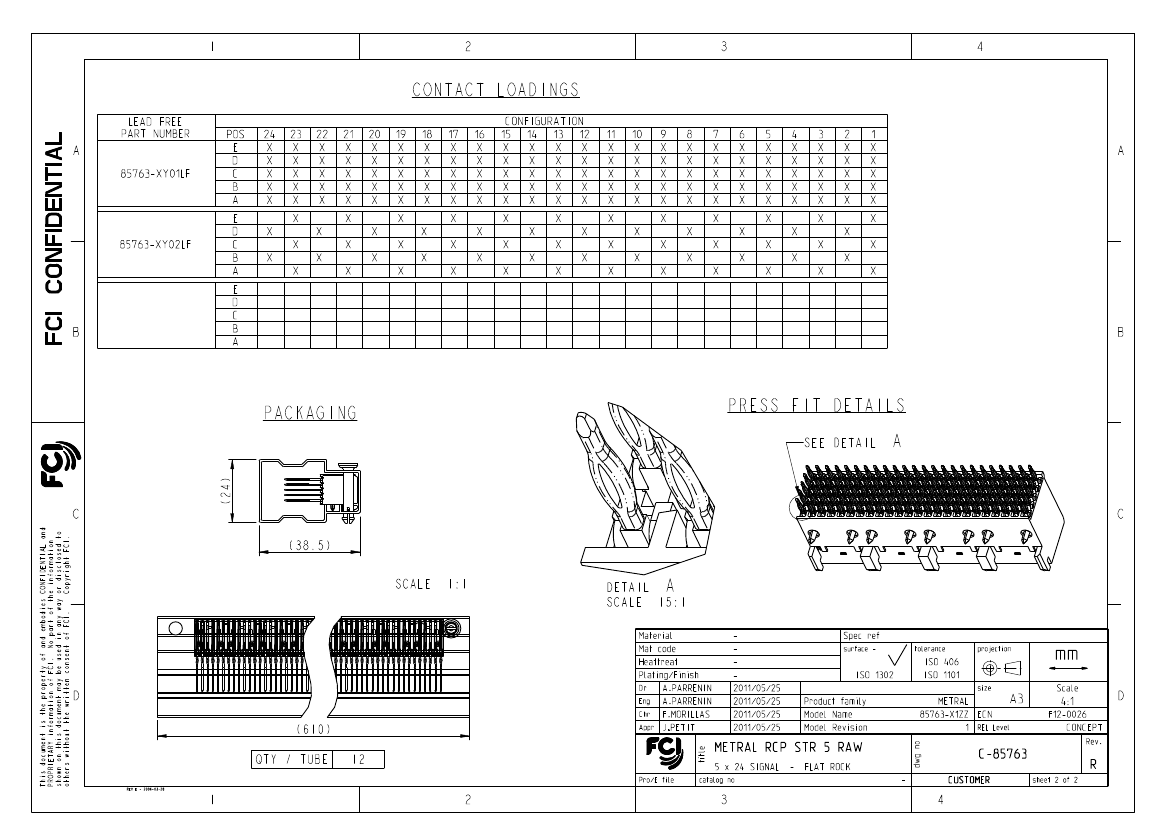

Preview

Download Datasheet

View All

PDM: Rev:R

STATUS:

Released

Printed: Apr 06, 2012

.

85763-1101 Related Products

	85763-1101	85763-1201LF	85763-1102	85763-1102LF	85763-1201	85763-1101LF
Description	High Speed / Modular Connectors METRAL RCT STR PF 5X24	High Speed / Modular Connectors 5ROW STRT SIG RECPT PRESS-FIT	High Speed / Modular Connectors METRAL RCT STR PF 5X24	High Speed / Modular Connectors 5ROW STRT SIG RECPT PRESS-FIT	High Speed / Modular Connectors METRAL RCT STR PF 5X24	High Speed / Modular Connectors 5R SIGNAL RCPT 120P STRAIT PRESS FIT
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	High Speed / Modular Connectors	High Speed / Modular Connectors	High Speed / Modular Connectors	High Speed / Modular Connectors	High Speed / Modular Connectors	High Speed / Modular Connectors
RoHS	N	Details	N	Details	N	Details
Product	Receptacles	Receptacles	Receptacles	Receptacles	Receptacles	Receptacles
Number of Positions	120 Position	120 Position	60 Position	60 Position	120 Position	120 Position
Number of Rows	5 Row	5 Row	5 Row	5 Row	5 Row	5 Row
Pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Packaging	Bulk	Tube	Bulk	Bulk	Tube	Bulk
Current Rating	1 A	1 A	1 A	1 A	1 A	1 A
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Angle	Straight	Straight	Straight	Straight	Straight	Straight
Voltage Rating	1 kV	1 kV	1 kV	1 kV	1 kV	1 kV
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Maximum Operating Temperature	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C	+ 105 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	12	12	12	12	120	12
