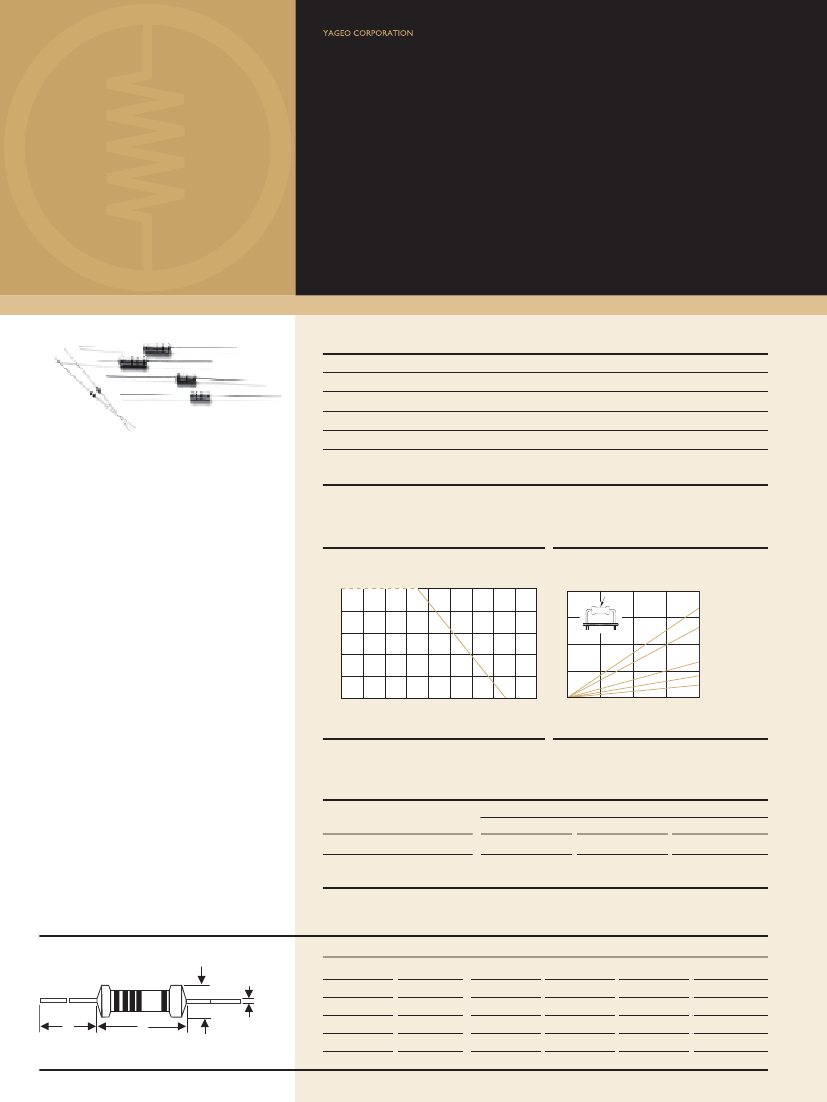

leaded resIsTOrs
Carbon Film Resistors
CFR Type
Normal & Miniature Style [ CFR Series ]
FeaTUres
Industry's Lowest Cost
Delivery From Stock in Bulk, Taped and Strip Pack
Exceptional Long-Term Stability
Exceeds Carbon Comp MIL-R-11 Performance
Resistance Tolerance: ±2%, ±5%
Variety of Packaging-Bulk, Strip Pack, 26mm and 52mm Tape and Reel, Cut and Formed, or Radial
Panasert/Avisert
INTrOdUCTION
Billions of products are already in use worldwide
in all types of applications-from process control
instrumentation to telephone receivers and FM
radio to color television.
The secret is in a proprietary production system
and baking by a uniquely designed and automated
production technique. years of experience in
making raw materials and production machinery
prove the unique quality and high reliability of
these products.
The meet-or far exceed-such specifications as
EIA RS196A. JIS-C-6402 and IEC-115.
The resistors are coated with layers of tan color
lacquer.
deraTING CUrVe
Rated Load (%)
100
80
60
40
20
20
40
60
80
100
120
140
160
180
70°C
HOT
-sPOT TeMPeraTUre
Surface Temp. Rise (°C)
200
150
100
50
CFR100 CFR50S
CFR-50
CFR-12
0
25
50
75
100
CFR25S
CFR-25
Measuring Position
CFR2WS
CFR200 CFR1WS
Ambient Temperature (°C)
Applied Load, % of RCWV
TaBle 1 TeMPeraTUre COeFFICIeNT
sTYle
CFR100, CFR200, CFR2WS
CFR-12, CFR-25, CFR-50,
CFR25S, CFR50S, CFR1WS
Max. Value of Temp. Coefficient ppm/°C
under 100KΩ
±350
+350
-500
100KΩ ~ 1MΩ
-500
-700
1MΩ ~ 10MΩ
-1500
-1500
dIMeNsIONs
sTYle
Normal
CFR-12
ød
H
L
øD
CFR-25
CFR-50
CFR100
CFR200
Miniature
CFR25S
CFR50S
CFR1WS
CFR2WS
-
dIMeNsION
l
3.4±0.3
6.3±0.5
9.0±0.5
11.5±1.0
15.5±1.0
ød
1.9±0.2
2.4±0.2
3.3±0.3
4.5±0.5
5.0±0.5
H
28±2.0
28±2.0
26±2.0
35±2.0
33±2.0
ød
Unit : mm
0.5±0.05
0.6±0.05
0.6±0.05
0.8±0.05
0.8±0.05
Note :
eleCTrICal CHaraCTerIsTICs
sTYle
Power Rating at 70°C
Operating Temp. Range
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Voltage
Value Range ±2%, ±5%
CFr-12
1/6W
CFr25s
1/4W
CFr-25
CFr50s
1/2W
CFr-50
CFr1Ws
1W
CFr100
CFr2Ws
2W
CFr200
-55°C to +155°C
150V
300V
300V
1Ω~10MΩ
200V
400V
400V
250V
500V
500V
300V
600V
500V
350V
700V
500V
400V
800V
700V
500V
1000V
1000V
500V
1000V
1000V
500V
1000V
1000V
Temperature Coefficient (by Type) see TABLE 1
* Standard resistance is 1Ω~10MΩ, below or over this resistance on request.
eNVIrONMeNTal CHaraCTerIsTICs
PerFOrMaNCe TesT
Short Time Overload
Dielectric Withstanding Voltage
Temperature Coefficient of Resistance
Insulation Resistance
Solderability
Resistance to Solvent
Terminal Strength
Pulse Overload
Load Life in Humidity
Load Life
Temperature Cycling
Resistance to Soldering Heat
TesT MeTHOd
JIS-C-5202 5.5
JIS-C-5202 5.7
JIS-C-5202 5.2
JIS-C-5202 5.6
JIS-C-5202 6.5
JIS-C-5202 6.9
2.5 Times RCW V for 5 Seconds
in V-Block for 60 Seconds
-55°C to +155°C
in V-Block
235±5°C for 5±0.5 Seconds
IPA for 1 Min. with Ultrasonic
aPPraIse
±(0.75%+0.05Ω)
by Type
by Type
>1000MΩ
95% Min. Coverage
No Deterioration of
Coatings and Markings
≥2.5kg (24.5N)
±(1%+0.05Ω)
±(3%+0.05Ω)
±(3%+0.05Ω)
±(1%+0.05Ω)
±(1%+0.05Ω)
Direct Load for 10 Sec. in The Direction of The Terminal Leads
JIS-C-5202 5.8
JIS-C-5202 7.9
JIS-C-5202 7.10
JIS-C-5202 7.4
JIS-C-5202 6.4
4 Times RCW V 10000 Cycles (1 Sec. on , 25 Sec. off)
40±2°C, 90~95% RH at RCWV for 1000 Hrs.
(1.5 Hrs. on , 0.5 Hrs. off )
70°C at RCWV for 1000 Hrs. (1.5 Hrs. on , 0.5 Hrs. off)
-55°C➞Room
Temp.➞+155°C➞Room
Temp. for 5 Cycles
350°C±10°C for 3±0.5 Seconds
* Rated Continuous Working Voltage (RCW V)=
Power Rating x Resistance Value
