TECHNICAL DATA SHEET
TNC 50
STRAIGHT PLUG

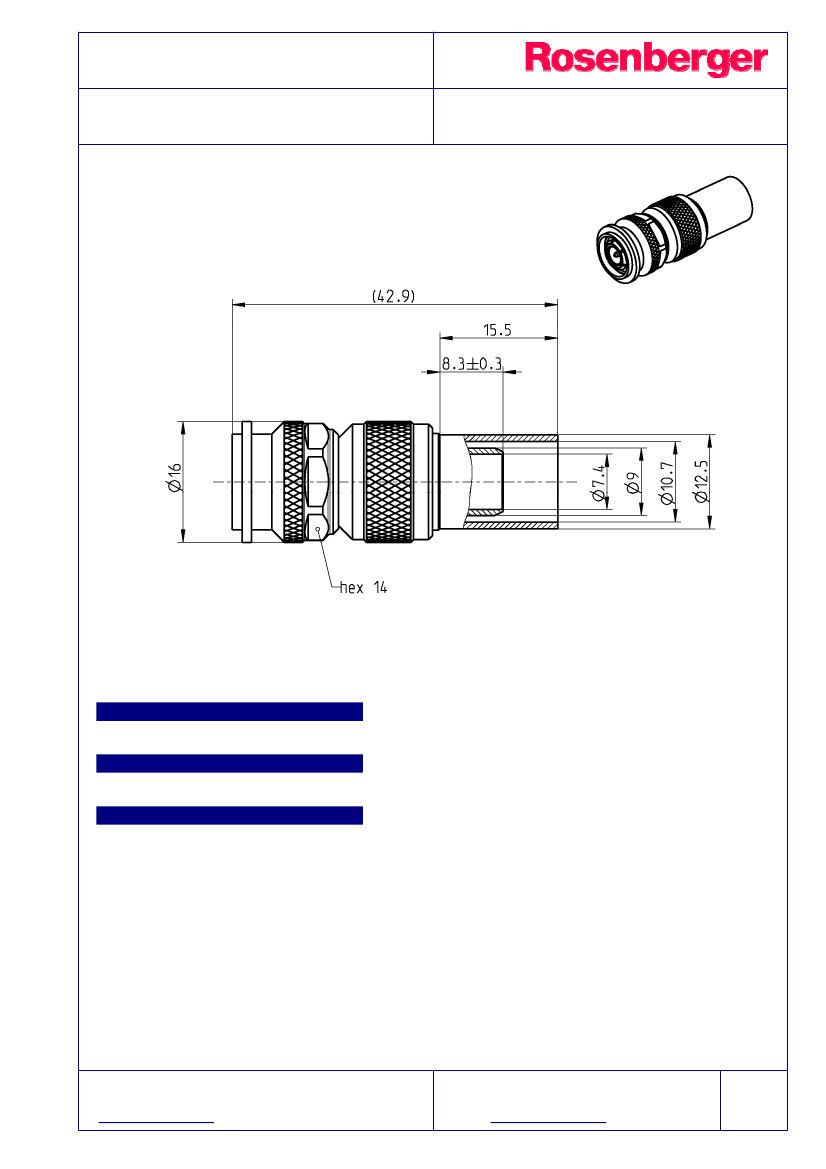

56S101-115N5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-17, MIL-PRF-39012, DIN EN 122200
Documents
Assembly instruction
51 O
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Crimping ferrule
Material
Plating
Brass
AuroDur®, gold plated
Brass
Flash white bronze over silver(e.g. Optargen®)
Brass
Flash white bronze over silver(e.g. Optargen®)
PTFE
NeopreneCR 50C6
Copper
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
TNC 50
Electrical data
Impedance
Frequency
Return loss
STRAIGHT PLUG
50
DC to 10 GHz
30 dB, DC to 1 GHz
20 dB, 1 to 2 GHz
16 dB, 2 to 6 GHz
0.05 x
56S101-115N5
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
- Limitations are possible due to the used cable type -
f [GHz]
dB, DC to 6 GHz
5 x10
3
M
1.5 m
1 m
1500 V rms
500 V rms
80 W @ 2 GHz
Mechanical data
Mating cycles
Coupling test torque
Recommended torque
min. 500
max. 1.7 Nm
0.46 Nm to 0.69 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-215
Suitable cables
RG 213 /U
Weight
Weight
30.7 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
10/08/04
Approved
Sa. Krautenbacher
Date
20.03.14
Rev.
d00
Engineering change number
14-0352
Name
T. Krojer
Date
20.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
