FBM-10-201209-151T: DescriptionFerrite Chip, 1 Function(s), 0.3A, EIA STD PACKAGE SIZE 0805, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size258KB，3 Pages; ManufacturerKing Core Electronics Inc

Download Datasheet Parametric View All

FBM-10-201209-151T Overview

Ferrite Chip, 1 Function(s), 0.3A, EIA STD PACKAGE SIZE 0805, 2 PIN

FBM-10-201209-151T Parametric

Parameter Name	Attribute value
package instruction	EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum DC resistance	0.4 Ω
filter type	FERRITE CHIP
high	0.9 mm
length	2 mm
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	150 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.2XH0.9 (mm)/L0.079XB0.047XH0.035 (inch)
Rated current	0.3 A
width	1.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

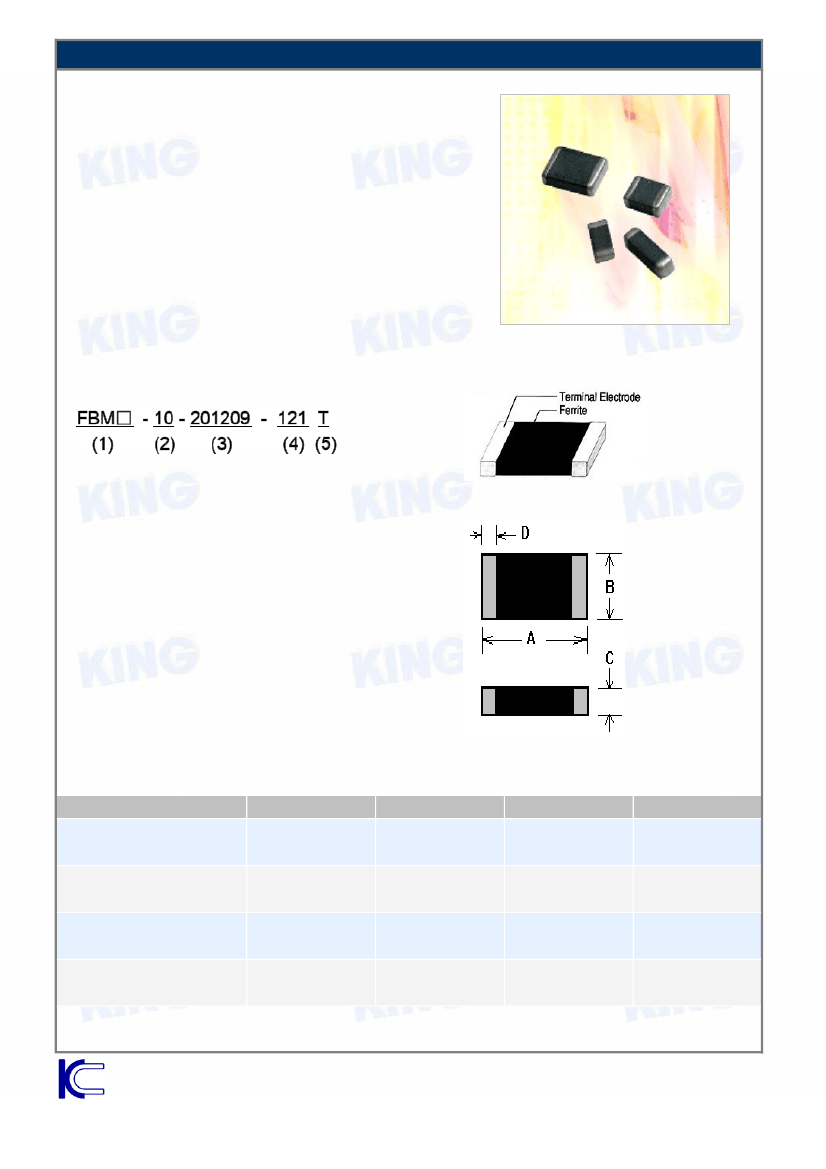

SPECIFICATION OF FBM□-10 SERIES

APPLICATIONS

1. EMI suppression for various electric equipment

by the addition of impedance to the circuit.

2. It is particular effective with unstable grounding.

3. High frequency EMI prevention of computers ,

printers , VCRs , TVs and portable telephone.

4. The FBM□-10 series can minimize attenuation

of the signal wave form for high speed signal due

to its sharp impedance characteristics.

This is much lower impedance in frequency

range low than 100 MHz.

ORDERING CODE

(1) PRODUCT TYPE CODE

FBM : Ferrite Bead Multilayer

口:

RoHS Code

(2) DESIGN CODE

Type : 11,10,09,15,HA,L11,L10

(3) SIZE CODE

See Following Table

(4) IMPEDANCE VALUE CODE

Example : 121=120Ω , 280=28Ω

(5) TAPING

SHAPE & DIMENSIONS

SIZE CODE

FBM□-10-100505

(0402)

FBM□-10-160808

(0603)

FBM□-10-201209

(0805)

FBM□-10-321611

(1206)

A

1.00±0.10

(0.040±0.004)

1.60±0.20

(0.063±0.008)

2.00±0.20

(0.079±0.008)

3.20±0.20

(0.126±0.008)

B

0.50±0.10

(0.020±0.004)

0.80±0.20

(0.031±0.008)

1.20±0.20

(0.047±0.008)

1.60±0.20

(0.063±0.008)

C

0.50±0.10

(0.020±0.004)

0.80±0.20

(0.031±0.008)

0.90±0.20

(0.035±0.008)

1.10±0.20

(0.043±0.008)

UNIT:mm (inch)

D

0.25±0.10

(0.010±0.004)

0.30±0.20

(0.012±0.008)

0.50±0.30

(0.020±0.012)

0.50±0.30

(0.020±0.012)

※All

the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.

KING CORE ELECTRONICS INC.

Tel:886-3-4698855

Fax:886-3-4691395

No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan

E-mail:kc@mail.kingcore.com.tw

Web Site:http://www.kingcore.com.tw

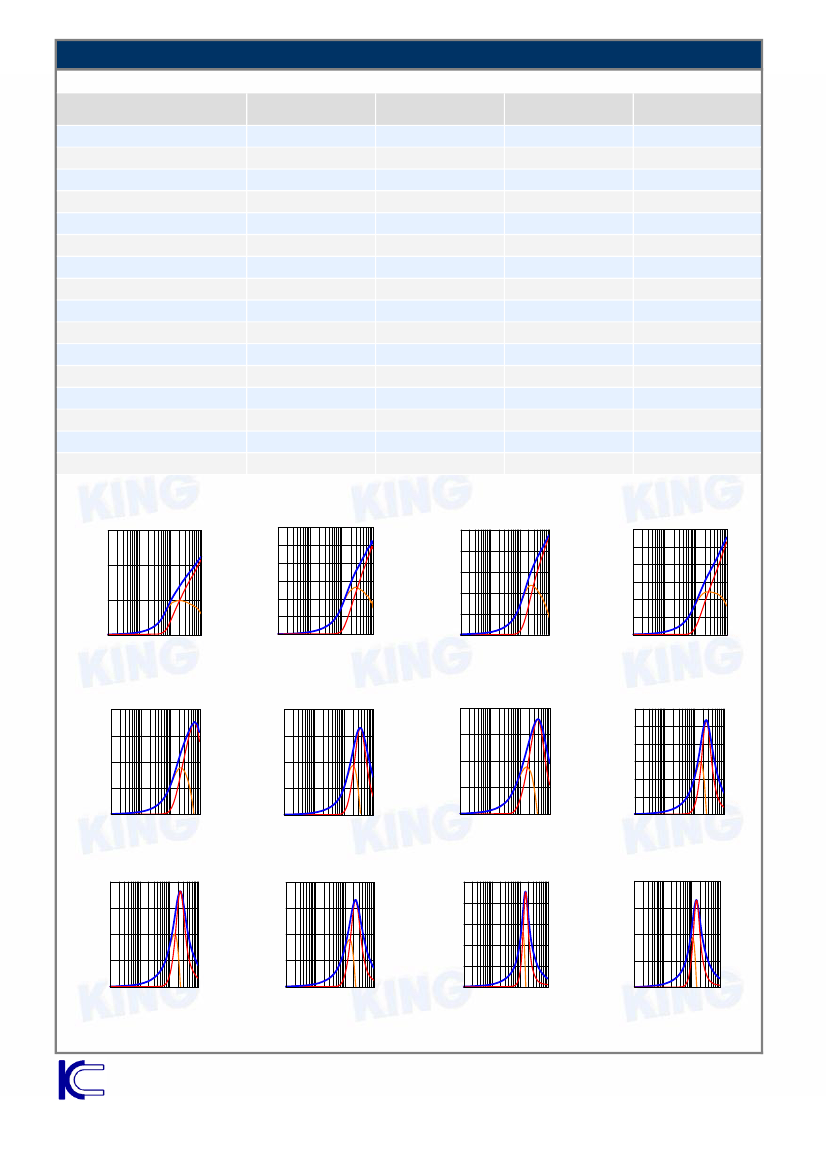

1

FBM-0A.A01
