AS8E128K32PN-250/883C: Description128K x 32 EEPROM Memory Array; File Size309KB，13 Pages; ManufacturerAUSTIN; Websitehttp://www.austinsemiconductor.com/

Download Datasheet View All

AS8E128K32PN-250/883C Overview

128K x 32 EEPROM Memory Array

AS8E128K32PN-250/883C Preview

EEPROM

Austin Semiconductor, Inc.

128K x 32 EEPROM

EEPROM Memory Array

AVAILABLE AS MILITARY

SPECIFICATIONS

•

AS8E128K32

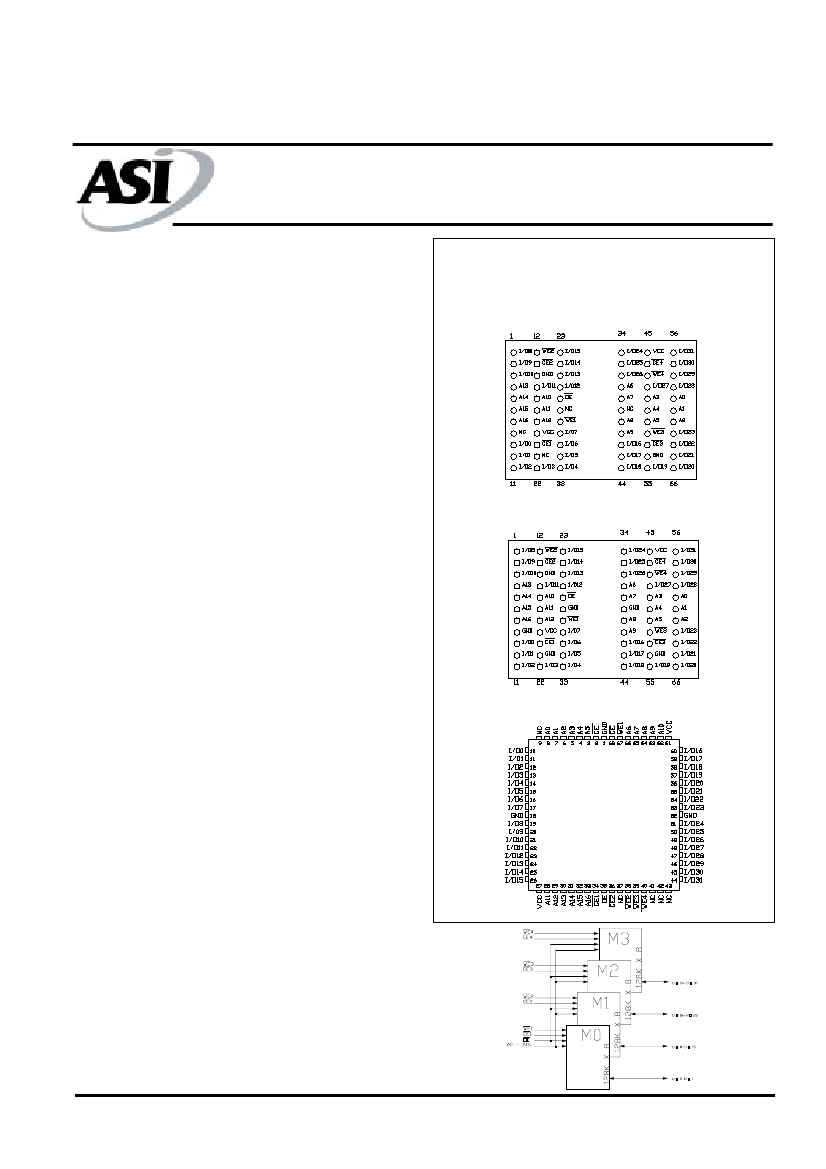

PIN ASSIGNMENT

(Top View)

66 Lead PGA

(Pins 8, 21, 28, 39 are no connects on the PN package)

SMD 5962-94585

MIL-STD-883

Access times of 120, 140, 150, 200, 250, and 300 ns

Built in decoupling caps for low noise operation

Organized as 128K x32; User configurable

as 256K x16 or 512K x8

Operation with single 5 volt supply

Low power CMOS

TTL Compatible Inputs and Outputs

Operating Temperature Ranges:

Military: -55

C to +125

Industrial: -40

C to +85

FEATURES

66 Lead PGA

(Pins 8, 21, 28, 39 are grounds on the P package)

OPTIONS

•

MARKINGS

-120

-140

-150

-200

-250

-300

No. 703

No. 904

68 Lead CQFP

•

Timing

120 ns

140 ns

150 ns

200 ns

250 ns

300 ns

Package

Ceramic Quad Flat pack

Pin Grid Array- 8 Series

GENERAL DESCRIPTION

The Austin Semiconductor, Inc. AS8E128K32 is a 4 Megabit

EEPROM Module organized as 128K x 32 bit. User configurable to

256K x16 or 512Kx 8. The module achieves high speed access, low

power consumption and high reliability by employing advanced CMOS

memory technology.

The military grade product is manufactured in compliance to the

SMD and MIL-STD 883, making the AS8E128K32 ideally suited for

military or space applications.

The module is offered in a 1.075 inch square ceramic pin grid

array substrate. This package design provides the optimum space

saving solution for boards that accept through hole packaging.

The module is also offered as a 68 lead 0.990 inch square ceramic

quad flat pack. It has a max. height of 0.200 inch. This package design

is targeted for those applications which require low profile SMT

Packaging.

For more products and information

please visit our web site at

www.austinsemiconductor.com

AS8E128K32

Rev. 5.5 9/01

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

EEPROM

Austin Semiconductor, Inc.

DEVICE IDENTIFICATION

An extra 128 bytes of EEPROM memory is available on each

die for user identification. By raising A9 to 12V + 0.5V and using

address locations 1FF80H to 1FFFFH the bytes may be written to

or read from in the same manner as the regular memory array.

AS8E128K32

of the last byte written will result in the complement of the written

data to be presented on I/O7. Once the write cycle has been com-

pleted, true data is valid on all outputs, and the next write cycle may

begin. DATA Polling may begin at anytime during the write cycle.

TOGGLE BIT

DEVICE OPERATION

The 128K x 32 EEPROM memory solution is an electrically

erasable and programmable memory module that is accessed like a

Static RAM for the read or write cycle without the need for external

components. The device contains a 128-byte-page register to allow

writing of up to 128 bytes of data simultaneously. During a write

cycle, the address and 1 to 128 bytes of data are internally latched,

freeing the address and data bus for other operations. Following the

initiation of a write cycle, the device will automatically write the

latched data using an internal control timer. The end of a write cycle

can be detected by DATA polling of I/O7. Once the end of a write

cycle has been detected a new access for a read or write can begin.

In addition to DATA Polling the module provides another method

for determining the end of a write cycle. During the write operation,

successive attempts to read data from the device will result in I/O6 of

the accessed die toggling between one and zero. Once the write has

completed, I/O6 will stop toggling and valid data will be read. Reading

the toggle bit may begin at any time during the write cycle.

DATA PROTECTION

If precautions are not taken, inadvertent writes may occur during

transitions of the host power supply. The E

module has incorpo-

rated both hardware and software features that will protect the memory

against inadvertent writes.

READ

The memory module is accessed like a Static RAM. When CE\

and OE\ are low and WE\ is High, the data stored at the memory

location determined by the address pins is asserted on the outputs.

The module can be read as a 32 bit, 16 bit or 8 bit device. The outputs

are put in the high impedance state when either CE\ or OE\ is high.

This dual-line control gives designers flexibility in preventing bus

contention in their system.

HARDWARE PROTECTION

Hardware features protect against inadvertent writes to the mod-

ule in the following ways: (a) Vcc sense - if Vcc is below 3.8 V

(typical) the write function is inhibited; (b) Vcc power-on delay -

once Vcc has reached 3.8 V the device will automatically time out 5 ms

(typical) before allowing a write; (c) write inhibit - holding any one of

OE\ low, CE\ high or WE\ high inhibits write cycles; (d) noise filter -

pulses of less than 15 ns (typical) on the WE\ or CE\ inputs will not

initiate a write cycle.

BYTE WRITE

A low pulse on the WE\ or CE\ input with CE\ or WE\ low

(respectively) and OE\ high initiates a write cycle. The address is

latched on the falling edge of CE\ or WE\, whichever occurs last. The

data is latched by the first rising edge of CE\ or WE\. Once a BWDW

(byte, word or double word) write has been started it will automati-

cally time itself to completion.

SOFTWARE DATA PROTECTION

A software controlled data protection feature has been imple-

mented on the memory module. When enabled, the software data

protection (SDP), will prevent inadvertent writes. The SDP feature

may be enabled or disabled by the user and is shipped with SDP

disabled, SDP is enabled by the host system issuing a series of three

write commands; three specific bytes of data are written to three

specific addresses (refer to Software Data Protection Algorithm). After

writing the three byte command sequence and after t

the entire

module will be protected from inadvertent write operations. It should

be noted, that once protected the host may still perform a byte of page

write to the module. This is done by preceding the data to be written

by the same three byte command sequence used to enable SDP. Once

set, SDP will remain active unless the disable command sequence is

issued. Power transitions do not disable SDP and SDP will protect

the 128K x 32 EEPROM during power-up and Power-down condi-

tions. All command sequences must conform to the page write timing

specifications. The data in the enable and disable command sequences

is not written to the device and the memory addresses used in the

sequence may be written with data in either a byte or page write

operation.

After setting SDP, any attempt to write to the device without the

three byte command sequence will start the internal write timers. No

data will be written to the device; however, for the duration of t

read operations will effectively be polling operations.

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

PAGE WRITE

The page write operation of the 128K x 32 EEPROM allows 1 to

128 BWDWs of data to be written into the device during a single

internal programming period. Each new BWDW must be written

within 150-µ sec (t

BLC

) of the previous BWDW. If the t

BLC

limit is

exceeded the memory module will cease accepting data and commence

the internal programming operation. For each WE high to low transi-

tion during the page write operation, A7-A16 must be the same.

The A0-A6 inputs are used to specify which bytes within the

page are to be written. The bytes may be loaded in any order and may

be altered within the same load period. Only bytes which are speci-

fied for writing will be written; unnecessary cycling of other bytes

within the page does not occur.

DATA POLLING

This memory module features DATA Polling to indicate the end

of a write cycle. During a byte or page write cycle an attempted read

AS8E128K32

Rev. 5.5 9/01

EEPROM

Austin Semiconductor, Inc.

ABSOLUTE MAXIMUM RATINGS*

Voltage on Vcc Supply Relative to Vss

Vcc ..............................................................................-.5V to +7.0V

Storage Temperature ....................... ....................-65°C to +150°C

Short Circuit Output Current (per I/O)….............................20mA

Voltage on any Pin Relative to Vss.....................-.5V to Vcc+1 V

Max Junction Temperature**.............................................+150°C

Thermal Resistance junction to case (θ

Package Type Q...............................................11.3° C/W

Package Type P & PN.......................................2.8° C/W

AS8E128K32

*Stresses greater than those listed under "Absolute Maximum

Ratings" may cause permanent damage to the device. This is

a stress rating only and functional operation of the device at

these or any other conditions above those indicated in the

operation section of this specification is not implied. Exposure

to absolute maximum rating conditions for extended periods

may affect reliability.

**Junction temperature depends upon package type, cycle time,

loading, ambient temperature and airflow, and humidity (plas-

tics).

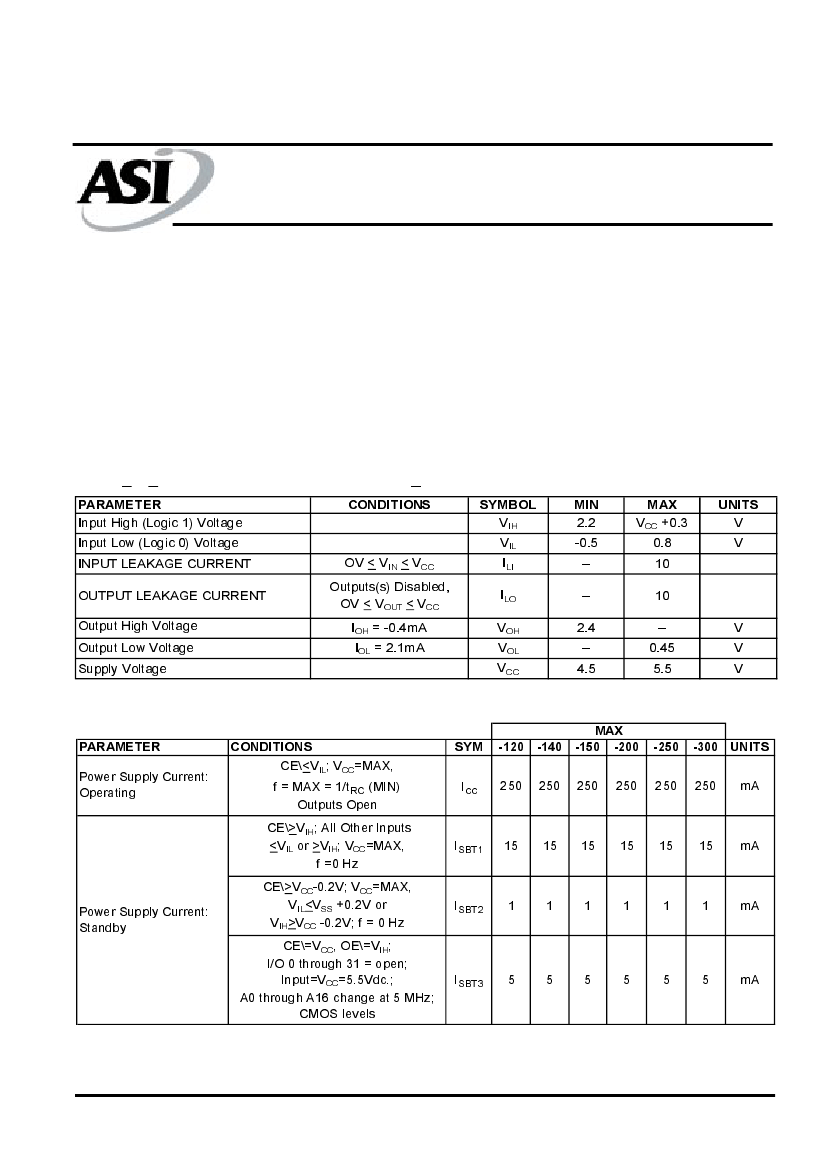

ELECTRICAL CHARACTERISTICS AND RECOMMENDED DC OPERATING CONDITIONS

(-55

C<T

<125

C or -40

C to +85

C; Vcc = 5V + 10%)

"#$#%" &

''"!

µΑ

( )

)

( ! !

"#$#%" & ''"!

(

(** +*,-.

( )

)

/ 01#

/ 1#

1#2" / 3 ""4

".5)

1#2" / 3 ""4

/.+63

(' #"

&' $%

!"#)! * #

'+,'

!"#)! - ,!.) . $%

/ 0

AS8E128K32

Rev. 5.5 9/01

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

EEPROM

Austin Semiconductor, Inc.

CAPACITANCE TABLE

= 0V, f = 1 MHz, T

= 25

SYMBOL

ADD

WE,

PARAMETER

A0 - A16 Capacitance

OE\ Capacitance

WE\ and CE\ Capacitance

I/O 0- I/O 31 Capacitance

MAX

UNITS

AS8E128K32

NOTE:

1. This parameter is guaranteed but not tested.

TRUTH TABLE

MODE

Read

Write (2)

Standby/Write

Write Inhibit

Output Disable

X (1)

High Z

I/O

OUT

High Z

NOTES:

1. X can be V

or V

2. Refer to AC Programming Waveforms

AC TEST CONDITIONS

Current Source

TEST SPECIFICATIONS

Input pulse levels...........................................V

to 3V

Input rise and fall times...........................................5ns

Input timing reference levels.................................1.5V

Output reference levels.........................................1.5V

Output load................................................See Figure 1

Device

Under

Test

Vz = 1.5V

(Bipolar

Supply)

Ceff = 50pf

Current Source

NOTES:

Vz is programmable from -2V to + 7V.

and I

programmable from 0 to 16 mA.

Vz is typically the midpoint of V

and V

and I

are adjusted to simulate a typical resistive load

circuit.

AS8E128K32

Rev. 5.5 9/01

Figure 1

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

EEPROM

Austin Semiconductor, Inc.

AS8E128K32

ELECTRICAL CHARACTERISTICS AND RECOMMENDED AC OPERATING CONDITIONS

(-55

C < T

< +125

C or -40

C to +85

C; Vcc = 5V +10%)

DESCRIPTION

Address to Output Delay

CE\ to Output Delay

OE\ to Output Delay

CE\ or OE\ to Output Float

Output Hold from OE\, CE\ or Address,

whichever comes first

120

SYMBOL MIN MAX

140

MIN MAX

140

150

MIN MAX

150

200

MIN MAX

200

250

MIN MAX

250

300

MIN MAX UNITS

300

ACC

120

AC READ WAVEFORMS

(1,2,3)

tRC

ADDRESS

ADDRESS VALID

tCE

CE/

tDF

tOE

tOH

OE\

ACC

tACC

OUTPUT VALID

NOTES:

1. CE\ may be delayed to t

ACC

-t

after the address transition without impact on t

ACC

2. OE\ may be delayed to t

-t

after the falling edge of CE\ without impact on t

or by t

ACC

-t

after an address change

without inpact on t

ACC

3. t

is specified from OE\ or CE\ whichever occurs first (C

= 5pF).

AS8E128K32

Rev. 5.5 9/01

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Proportional temperature controller circuit

Wireless transmitter principle circuit diagram

Multi-channel microphone input amplifier

Module data experimental circuit diagram

Temperature controlled nickel cadmium battery charger

Using LEDs to decorate the circuit of an electric fan

I found that there are professionals who reply to posts in the forum?: You can pay attention to each section, some very old posts have been pushed up, but when I looked carefully, it turned out to be the same person! ~It seems that everyone should "learn" from this class...; wanghongyang Talking

Voice chip: [i=s]This post was last edited by paulhyde on 2014-9-15 09:28[/i] Design of intelligent recording and playback system based on ISD4000 series chip ([url=http://www.nkcpu.cn]www.nkcpu.cn[/url]...; fhyfm Electronics Design Contest

Want to learn MSP430 low-level driver development by yourself: I have been engaged in pure hardware development for more than a year since graduation. I am familiar with various test equipment, but I know nothing about software. I am self-studying the development...; 卧龙生 Microcontroller MCU

(FPGA~2014-07-03) Do you understand the difference between blocking assignment “=” and non-blocking assignment “<=”?: [font=Tahoma][size=5]When I first learned Verilog HDL, I was confused by the "=" and "<=". Then I looked up Baidu and found a good article. I am not confused anymore. As follows, those who are still c...; 天明 FPGA/CPLD

Is it better for children to go to university or learn professional skills in the future?: Everyone has thought about their children's future: is it better to go to university or learn technology? I have always preferred learning technology. It doesn't mean that going to university is usele...; 哆啦A梦 Talking

Ming Deyang’s latest sharing---There is a new way to use FPGA state machine, four-stage state machine!: [i=s]This post was last edited by njiggih on 2017-2-14 16:12[/i] [align=center][font=黑体][size=26.0pt]Four-stage state machine[/size][/font][/align] [align=left]In FPGA, I believe that those who have e...; njiggih FPGA/CPLD

Shortcut: A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components
