Carbon Economy Trimmers
Type CB10 Series
Key Features
I
I
I
I
I
I
I
I
Low Cost
Robust Enclosed
Construction
Spindle Adjust
Versions
Flame Retardant
Arrow Position
Indicator
Top, Bottom and Side
Adjust Styles
Stable in High
Humidity
Edgewheel Operation
Style
Low price, versatility and stable environmental characteristics are important benefits of
this product. Featuring an innovative carbon resistive element printed on film in a fully
enclosed package, this potentiometer style is normally chosen for a wide range of
applications in industrial, professional and consumer equipment.
Characteristics - Electrical
Resistance Range:
Resistance Values:
Resistance Tolerance:
End Resistance:
Power Rating @ 40°C:
Maximum Voltage:
Rotational Noise (CRV):
Temperature Coefficient:
Slider Current:
Resolution:
Electrical Adjustment:
100R to 10M Linear , 1K to 1M Non-Linear
1, 2.2 & 4.7 in each decade
± 20% (± 30% above 1 Megohms)
< 3%
0.15 Watts (derating to zero at 70°C)
Lin. 200V DC / Log. 150V DC
<5% of Rn nominal
±500 ppm/°C( < 100K ohms)
50mA
Essentially Infinite
240° Nominal 1 Turn
Characteristics - Mechanical
End Torque:
Starting Torque:
Mechanical Adjustment:
Weight:
50 mNm maximum
4 to 20 mNm
295° nominal
0.8 grams
Characteristics - Environmental
Temperature Range:
Temperature Storage:
Rotational Life:
Load Life at 40°C:
Sealing:
Climate Category:
-25°C to +70°C
1000 hours at 100°C
500 cycles, minimum
(10000 cycles-extended life versions)
ΔR <10% after 1000 hours
Dust and Splash Proof
25/70/21
1773190 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Carbon Economy Trimmers
Type CB10 Series

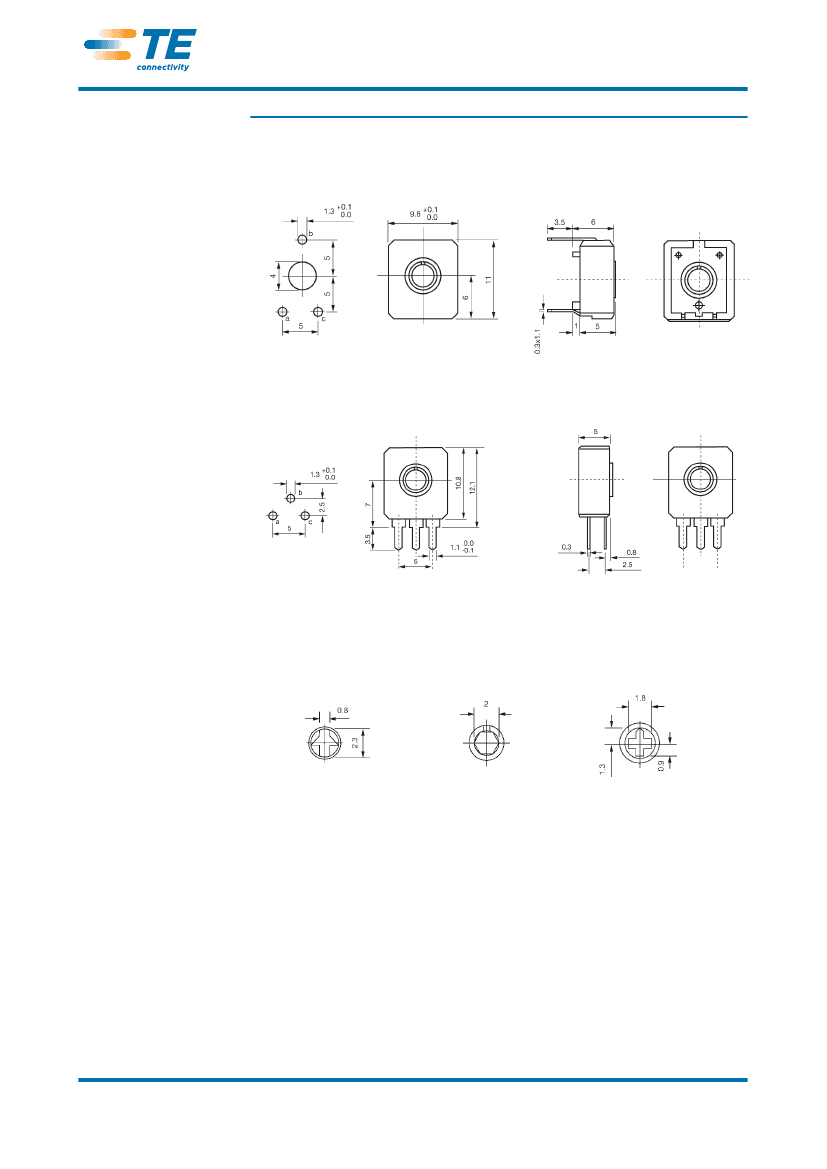

Dimensions
CB10V
CB10H
Adjustment Styles
L
M
K
1773190 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Carbon Economy Trimmers
Type CB10 Series

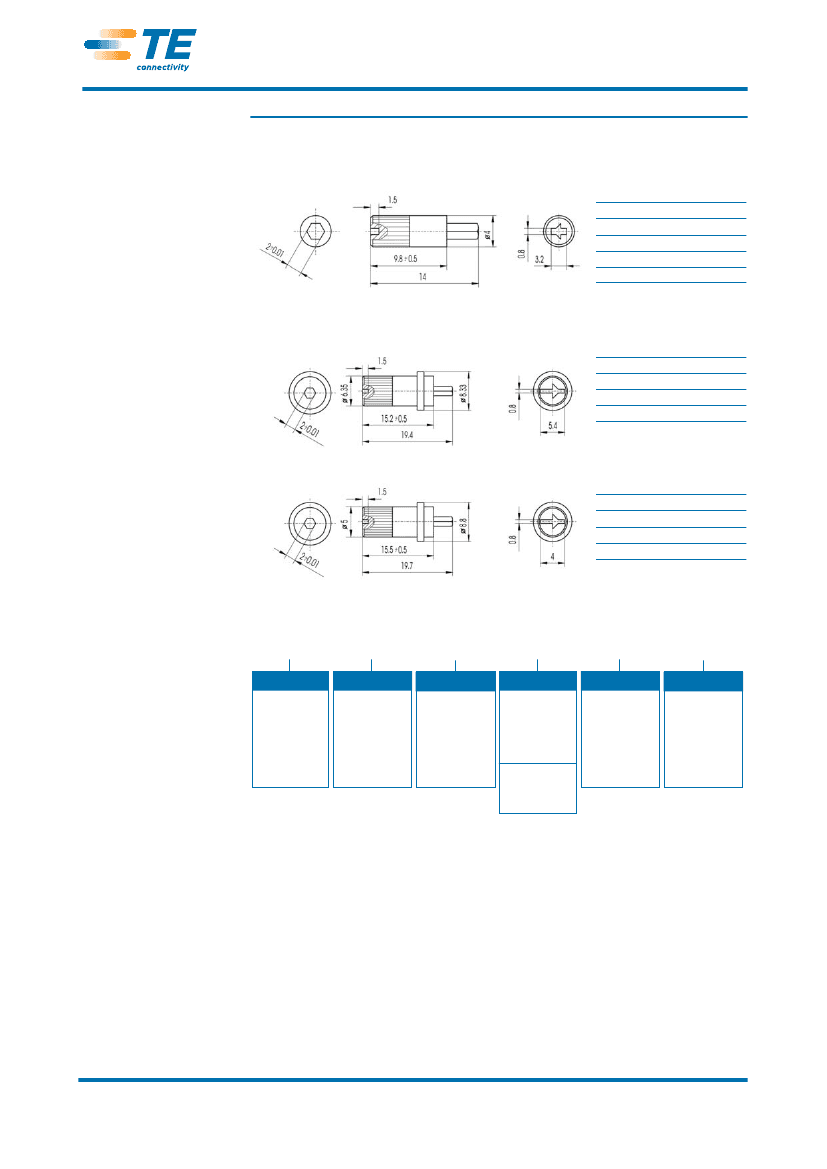

Plug-In Spindles / Edgewheels
Colour
White
Black
Red
Blue
Part Number
CB101161
CB101387
CB101490
CB101598
Colour
White
Black
Red
Part Number
CB101446
CB101489
CB101502
Colour
White
Black
Red
Part Number
CB101544
CB101589
CB101776
How to Order
CB10
L
H
Orientation
H - Vertical to
PCB
V - Horizontal to
PCB
102
Resistance Value
The first two digits
are signifigant figures
of resistance value
and the third denotes
the number of zeros
following.
e.g. 100R: 101
1K0: 102
10K: 103
100K: 104
M
Tolerance
K - 10%
(Special)
–
Features
Common Part Adjustment Style
L - Arrow Head
CB10 - 10mm
Carbon Trimmer
M - Hex Centre
K - Cross Slot
– - Standard
M - 20%
E - Extended Life
N - 30%
(<1 Meg)
