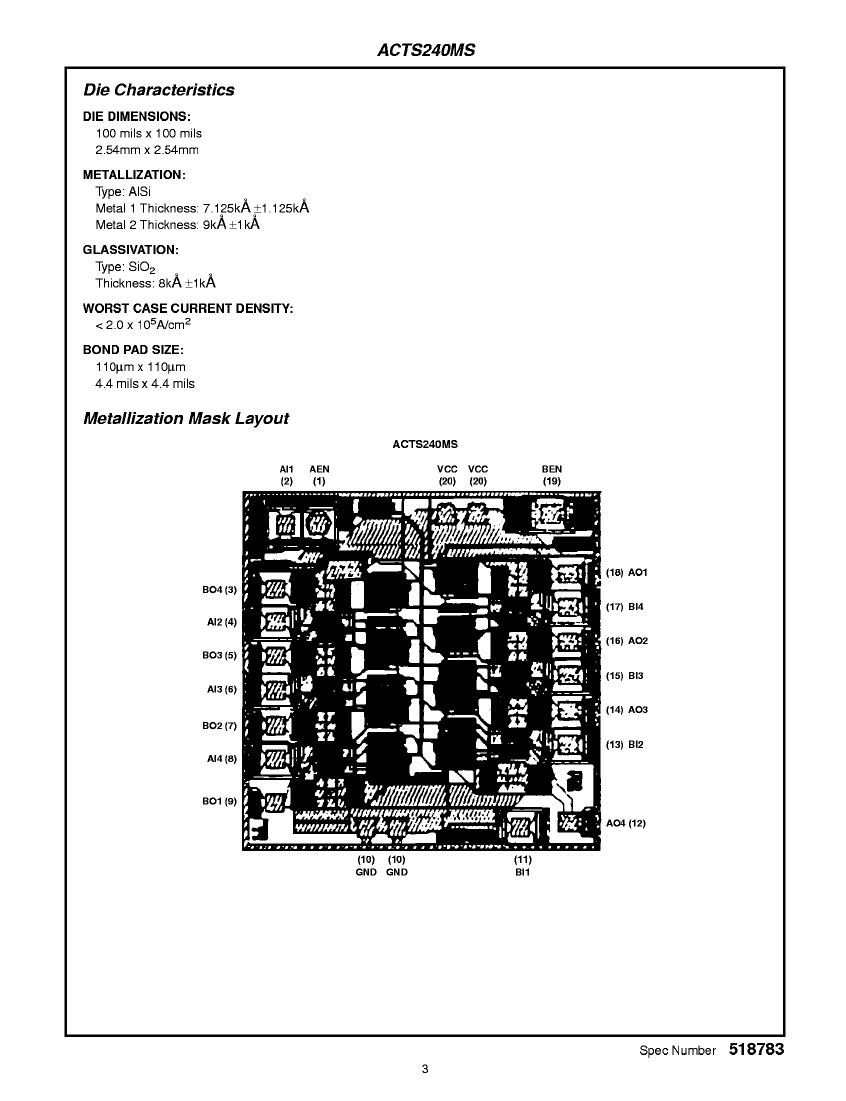

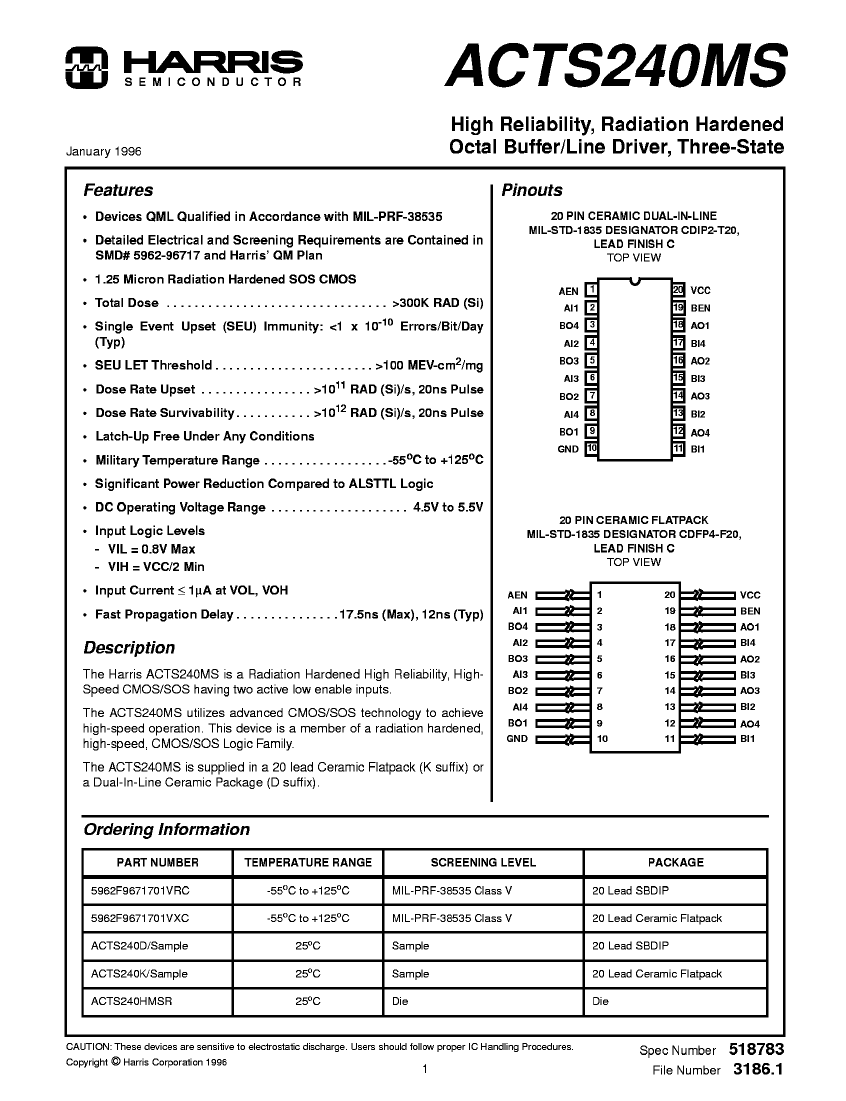

ACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, UUC20, DIE-20
| Parameter Name | Attribute value |
| Maker | Renesas Electronics Corporation |
| Parts packaging code | DIE |
| package instruction | DIE, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | ACT |
| JESD-30 code | X-XUUC-N20 |
| JESD-609 code | e0 |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | INVERTED |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | UNSPECIFIED |
| Package form | UNCASED CHIP |
| propagation delay (tpd) | 13 ns |
| Certification status | Not Qualified |
| Filter level | MIL-PRF-38535 Class V |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| total dose | 300k Rad(Si) V |
| Base Number Matches | 1 |
| 5962F9671702V9A | ACTS240K/SAMPLE-02 | ACTS240D/SAMPLE-02 | ACTS240HMSR-02 | |
|---|---|---|---|---|
| Description | ACT SERIES, 4-BIT DRIVER, INVERTED OUTPUT, UUC20, DIE-20 | ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDFP20, CERAMIC, DFP-20 | ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20 | ACT SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, UUC20 |
| Maker | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Parts packaging code | DIE | DFP | DIP | DIE |
| package instruction | DIE, | CERAMIC, DFP-20 | DIP, | DIE, |
| Contacts | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | ACT | ACT | ACT | ACT |
| JESD-30 code | X-XUUC-N20 | R-CDFP-F20 | R-CDIP-T20 | X-XUUC-N20 |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 2 | 2 | 2 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | INVERTED | INVERTED | INVERTED | INVERTED |
| Package body material | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED |
| encapsulated code | DIE | DFP | DIP | DIE |
| Package shape | UNSPECIFIED | RECTANGULAR | RECTANGULAR | UNSPECIFIED |
| Package form | UNCASED CHIP | FLATPACK | IN-LINE | UNCASED CHIP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Terminal form | NO LEAD | FLAT | THROUGH-HOLE | NO LEAD |
| Terminal location | UPPER | DUAL | DUAL | UPPER |
