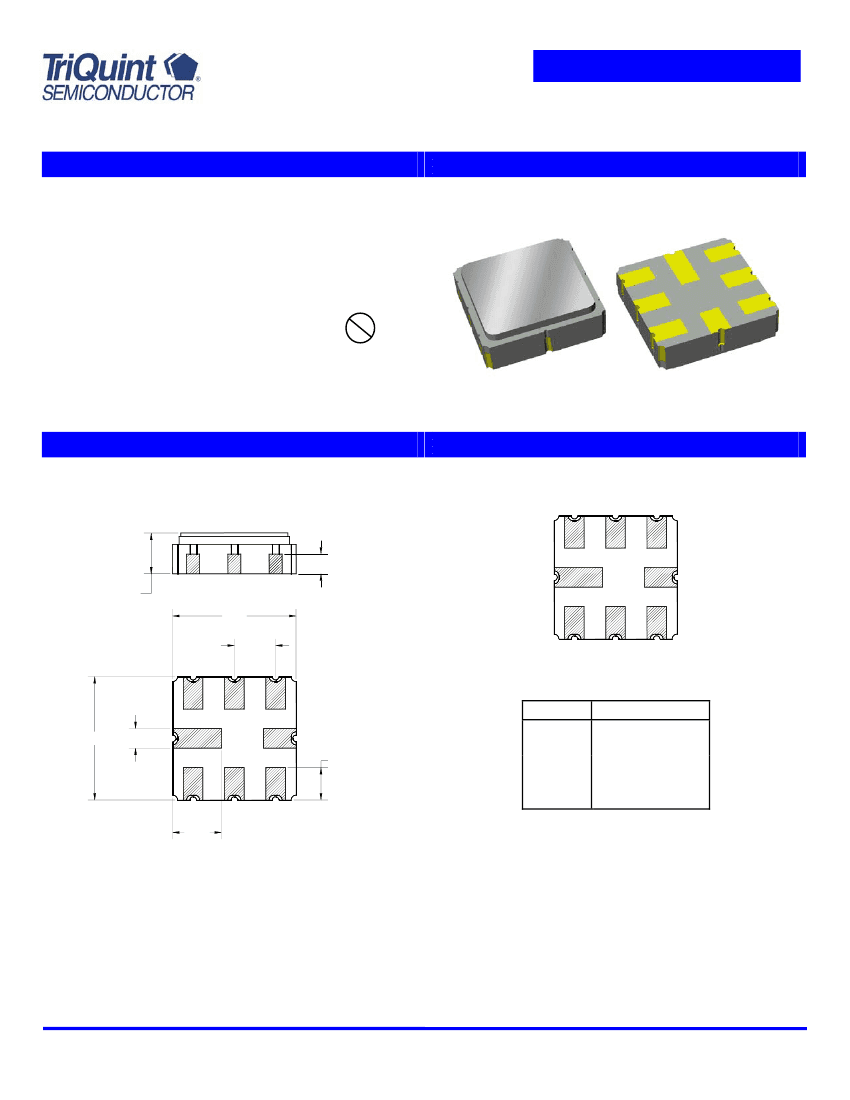

Data Sheet
Features
•
•
•
•
•
•
•
•
For WiMAX applications
Usable bandwidth 10 MHz
Low loss
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856586
467 MHz SAW Filter
•
Package
Surface Mount 3.80 x 3.80 x 1.27 mm
Pin Configuration
Bottom View
1
2
3
0.61
1.27 NOM.
1.45 MAX.
3.80
1.27
7
6
5
8
4
3.80
0.60
1.00
Pin No.
1
2
5
6
3,4,7,8
Description
Input
Input return
Output
Output return
Case ground
1.50
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
© 9-06 TriQuint Semiconductor, Inc.
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856586
467 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Lower 1dB Bandedge
Upper 1dB Bandedge
Absolute Attenuation
10 - 427 MHz
427 - 438 MHz
496 - 506 MHz
537 - 700 MHz
700 - 1000 MHz
Amplitude Variation
462 - 472 MHz
Group Delay Variation
462 - 472 MHz
Source Impedance
(4)
Load Impedance
(4)
Notes:
1.
2.
3.
4.
Minimum
-
-
-
472
45
40
35
45
40
-
-
-
-
Typical
467
3
459
474.5
58
65
48
52
48
0.4
40
50
50
Maximum
-
5
462
-
-
-
-
-
-
1.0
100
-
-
Unit
MHz
dB
MHz
MHz
dB
dB
dB
dB
dB
dB p-p
ns p-p
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
5
2,3,4
6,7,8
50
Ω
50Ω
Single-ended
Input
50
Ω
50Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
© 9-06 TriQuint Semiconductor, Inc.
Page 2 of 5
Data Sheet
Part Number 856586
467 MHz SAW Filter

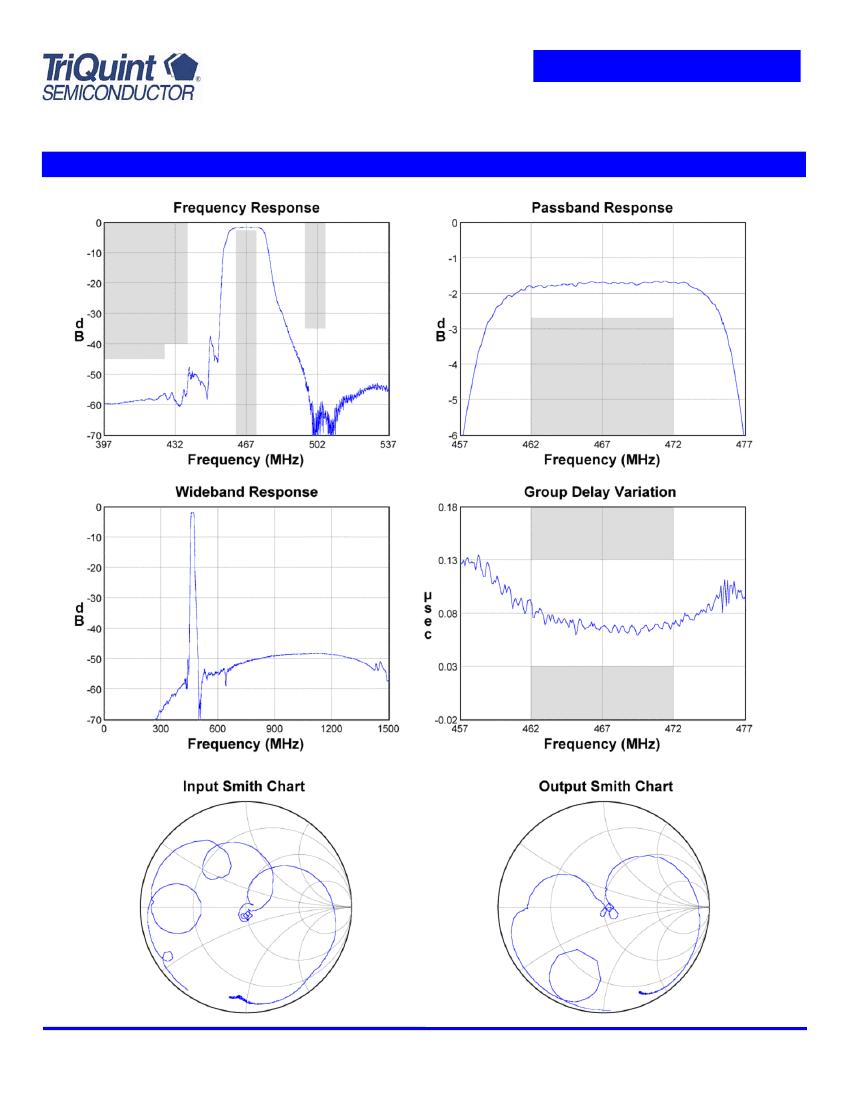

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
© 9-06 TriQuint Semiconductor, Inc.
Page 3 of 5
Data Sheet
Part Number 856586
467 MHz SAW Filter
Matching Schematics
1
5
2,3,4
6,7,8
50
Ω
50Ω
Single-ended
Input
50
Ω
50Ω
Single-ended
Output
Marking
Marking
code
PCB Footprint
1.70
4.01
1.19
Sawtek
logo
.81
.41
7
JJJYM
ID dot
Date code
.46
.81
1.19
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
12.8
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
4.1
1.8
Section A-A
4.1
8.0
Ø1.5
A
Sawtek
logo
Ø102
Ø20.2
Ø13.0
12.0
2.0
Direction of travel
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev A
© 9-06 TriQuint Semiconductor, Inc.
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856586
467 MHz SAW Filter
Symbol
T
T
stg
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev A
© 9-06 TriQuint Semiconductor, Inc.
Page 5 of 5
