3496131000000: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector; File Size191KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric Compare View All

3496131000000 Overview

Board Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

3496131000000 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.098 inch
subject depth	0.39 inch
body length	1.31 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	3496
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	3.81 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

3496

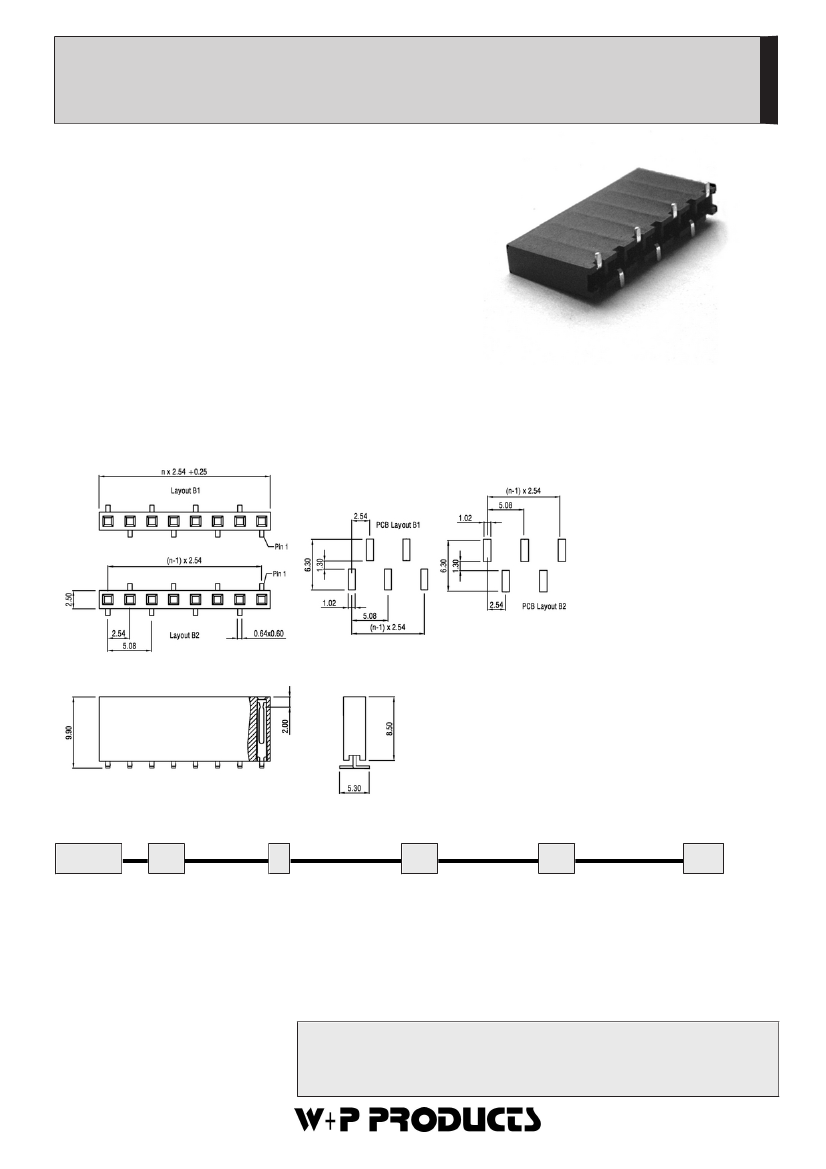

SMT-Buchsenleisten - BH 9,9mm - RM 2,54mm - 1-reihig

SMT Female Headers - 2,54mm Pitch - Single / Double Row - 9,9mm Profile

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kontakt für Vierkantstift 0,635mm, Kupferlegierung

Contact Material

Contact for square pin 0,635mm, copper alloy

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

1000V

Test Voltage

1000V

Nennspannung

250V

Voltage Rating

250V

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Einsetzbar mit Vierkantstift 0,635mm

Accepts square pin 0,635mm

Series

Contacts

Layout

Plating

Locating Peg

Packing

3496

04-40

Einreihig

Single row

Einreihig B1

Single row B1

Einreihig B2

Single row B2

Vergoldet

Gold plated

Verzinnt

Tin plated

Sel. Au/Sn

Duplex plating

Ohne Pos.hilfe

W/o loc. peg

PPST

PPTR

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= Schüttgut ohne PP-Pad /

Bulk good w/o PP-Pad

= In Stangen ohne PP-Pad /

Packed in tubes

PPST

= In Stangen mit PP-Pad /

In tubes with PP-Pad

PPTR

= Tape & Reel mit PP-Pad /

Tape & Reel packing with PP-Pad

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com

3496131000000 Related Products

	3496131000000	3496251000000	3496081000000	3496321000000	3496121000000	3496221000000	3496231000000	3496351000000	3496261000000	3496211000000
