N74F154D datasheet, PDF - EEWORLD Datasheet

N74F154D: DescriptionDecoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO24; Categorylogic; File Size54KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

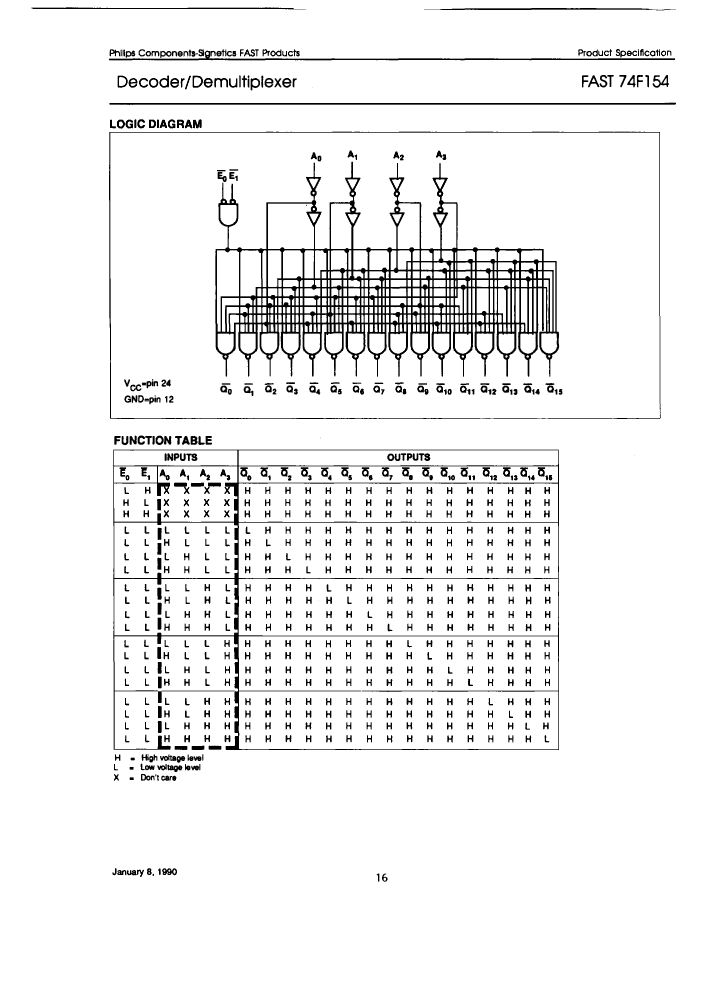

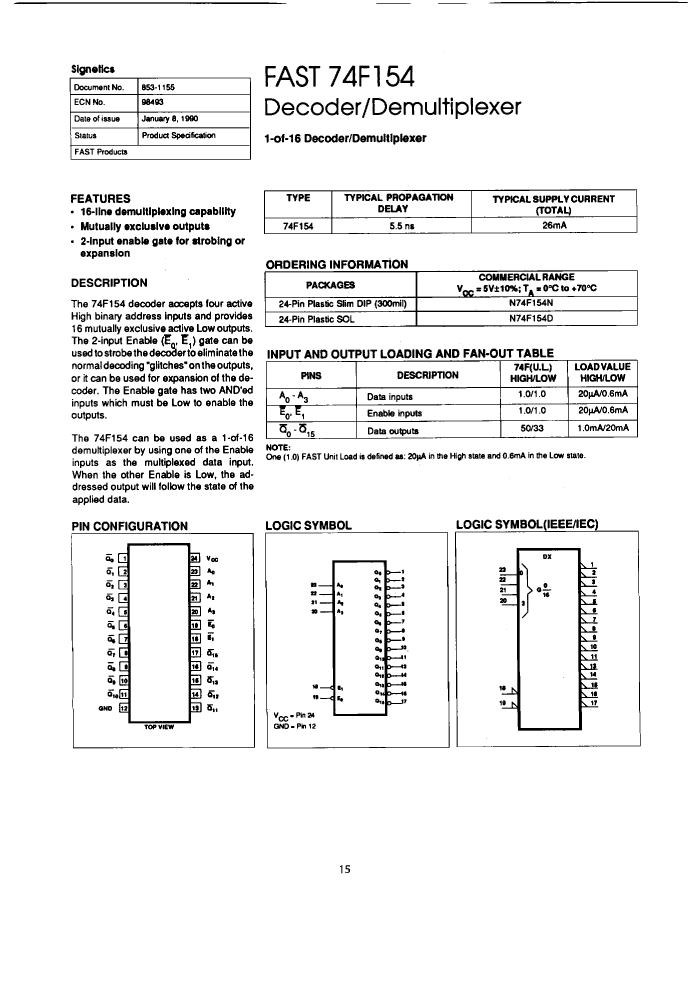

N74F154D Overview

Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO24

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	F/FAST
JESD-30 code	R-PDSO-G24
Load capacitance (CL)	50 pF
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	45 mA
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	N74F154D	N74F154N	N74F154D-T
Description	Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO24	Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDIP24	Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO24
Maker	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	F/FAST	F/FAST	F/FAST
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
Load capacitance (CL)	50 pF	50 pF	50 pF
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	45 mA	45 mA	45 mA
propagation delay (tpd)	10.5 ns	10.5 ns	10.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
