4175-T083 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > inductor> variometer> 4175-T083

Preview

4175-T083: DescriptionVariable Inductor, Shielded, ROHS COMPLIANT; Categoryinductor variometer; File Size60KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

4175-T083 Overview

Variable Inductor, Shielded, ROHS COMPLIANT

4175-T083 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	P-5LG/AM
Number of functions	1
Number of terminals	5
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

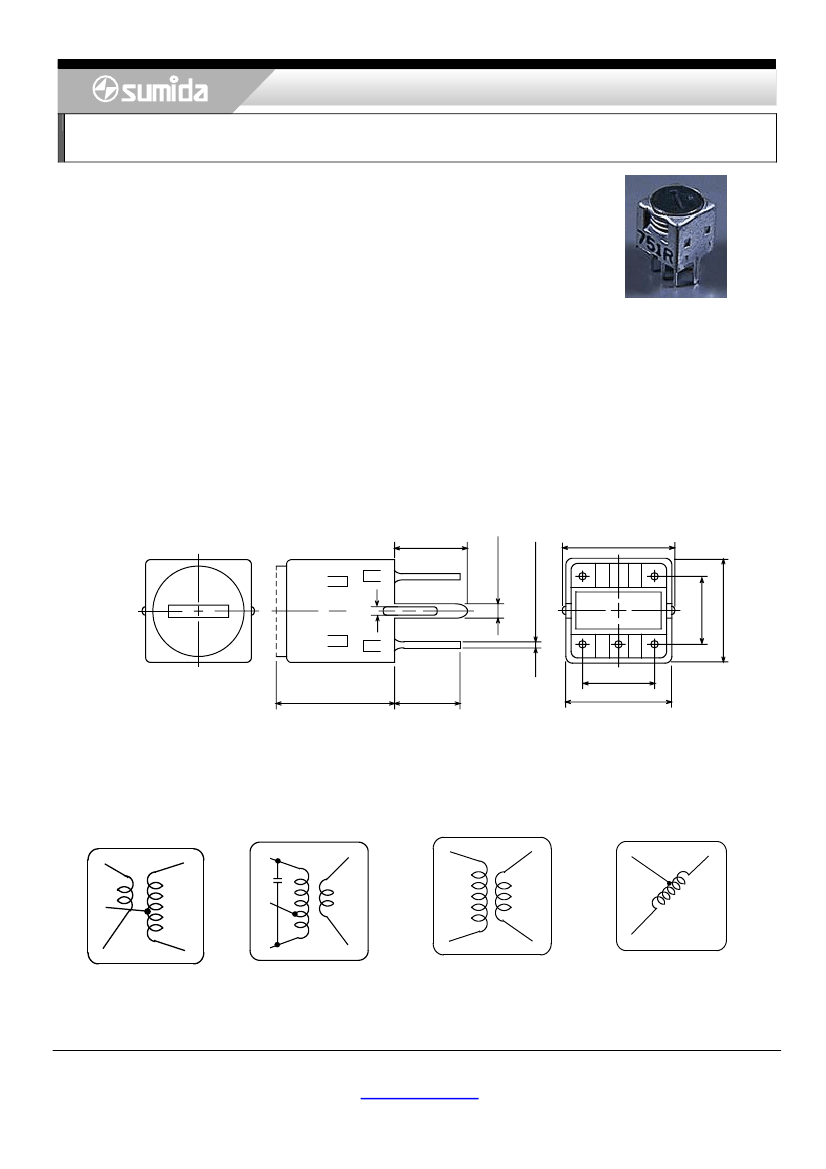

IFT COILS < Pin Type: P-5 Series>

Type: P-5LG/FM, P-5LG/AM, P-5LG/MW, P-5LG/SW

◆

Product Description

・6.0×5.9mm

Max.(L×W), 6.5mm Max. Height.

・Inductance:1~680µH

Max.

・Operating

frequency:20MHz Max.

・In

addition to the reference versions of parameters shown here,custom designs

are available to meet your exact requirements.

◆

Feature

・Variable

shielded types.

・FM,AM,MW,SW

types are available.

・Internally

assembled condenser is available.

・Ideally

used in Radio (FM,AM,MW,SW),TV. Transceiver

・RoHS

Compliance

◆

Dimensions (mm)

＋0.1

1.0−0.05

2.8±0.2

6.0

＋0.1

φ0.4−0.05

3.5±0.15

(Color:White)

6.5 MAX.

2.6±0.4

3.5±0.15

5.8±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch shall be measured at the root of terminal.

＊

Dimension without tolerance are approx.

◆

Connection (Bottom View)

③

②

④

S

S ③

②

①

④

③

②

S ①

④ S

③

②

⑥ S

S

①

P-5LG/AM

⑥

S ①

P-5LG/FM

“S” is winding start

P-5LG/MW

P-5LC/SW

◆

Specification (P-5LG/FM)

(Part No. 4176-T051)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

5.8±0.3

④

⑥

0.4

1/1

4175-T083 Related Products

	4175-T083	4176-T051	S1325005	4177-T039
Description	Variable Inductor, Shielded, ROHS COMPLIANT	Variable Inductor, Shielded, ROHS COMPLIANT	Variable Inductor, Shielded, 2423, ROHS COMPLIANT	Variable Inductor, Shielded, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR	VARIABLE INDUCTOR
Manufacturer's serial number	P-5LG/AM	P-5LG/FM	P-5LG/SW	P-5LG/MW
Number of functions	1	1	1	1
Number of terminals	5	5	5	5
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER	PCB MOUNT, VERTICAL ADJUSTER
shield	YES	YES	YES	YES
surface mount	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE
Base Number Matches	1	1	1	-
