Part Number

Search

550011MBLKX

Description
Pushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, Solder Terminal, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size315KB,3 Pages
ManufacturerE-Switch
Websitehttp://www.e-switch.com
Download Datasheet Parametric View All

550011MBLKX Overview

Pushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, Solder Terminal, Through Hole-straight

550011MBLKX Parametric

Parameter NameAttribute value
MakerE-Switch
Reach Compliance Codecompliant
ECCN codeEAR99
body width12.4 mm
body height8 mm
Body length or diameter17.5 mm
Maximum contact current (DC)0.3 A
Contact (DC) maximum rated R load.3A@12VDC
Maximum contact voltage (DC)12 V
Electrical life500000 Cycle(s)
JESD-609 codee4
Manufacturer's serial number5500
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force2.5 N
Maximum operating temperature65 °C
Minimum operating temperature-25 °C
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typePUSHBUTTON SWITCH
Terminal surfaceGOLD
Termination typeSOLDER
Base Number Matches1

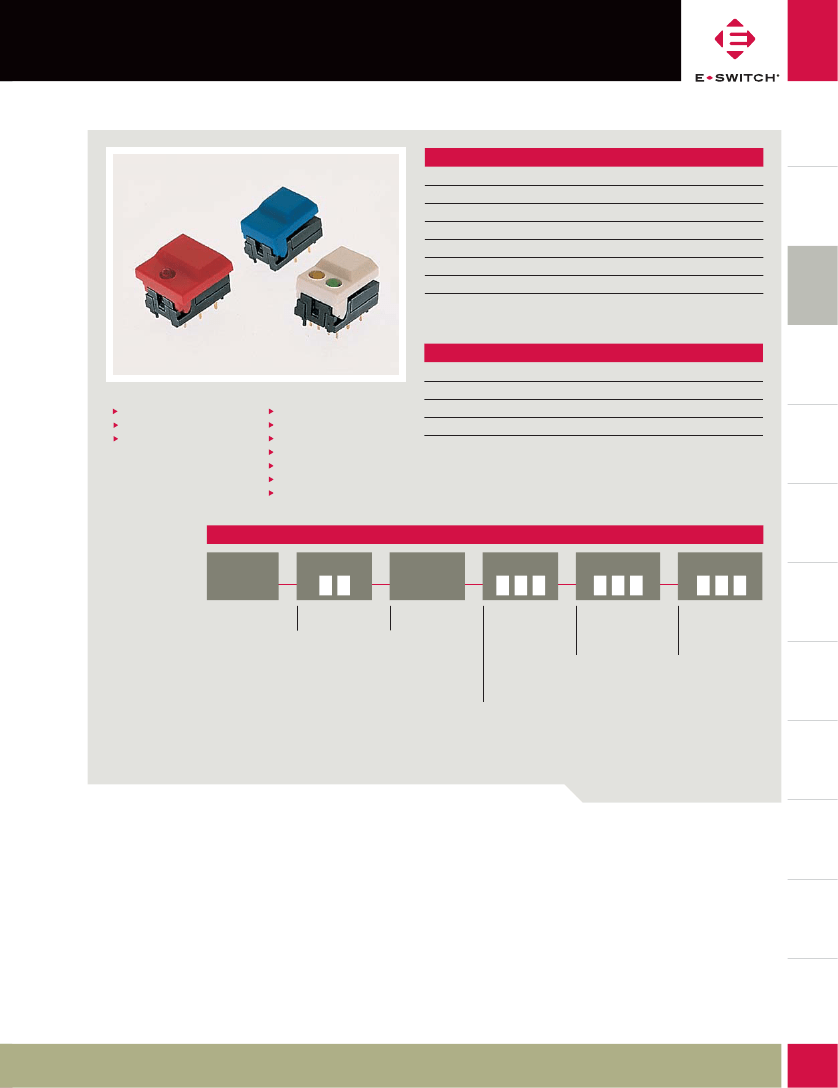

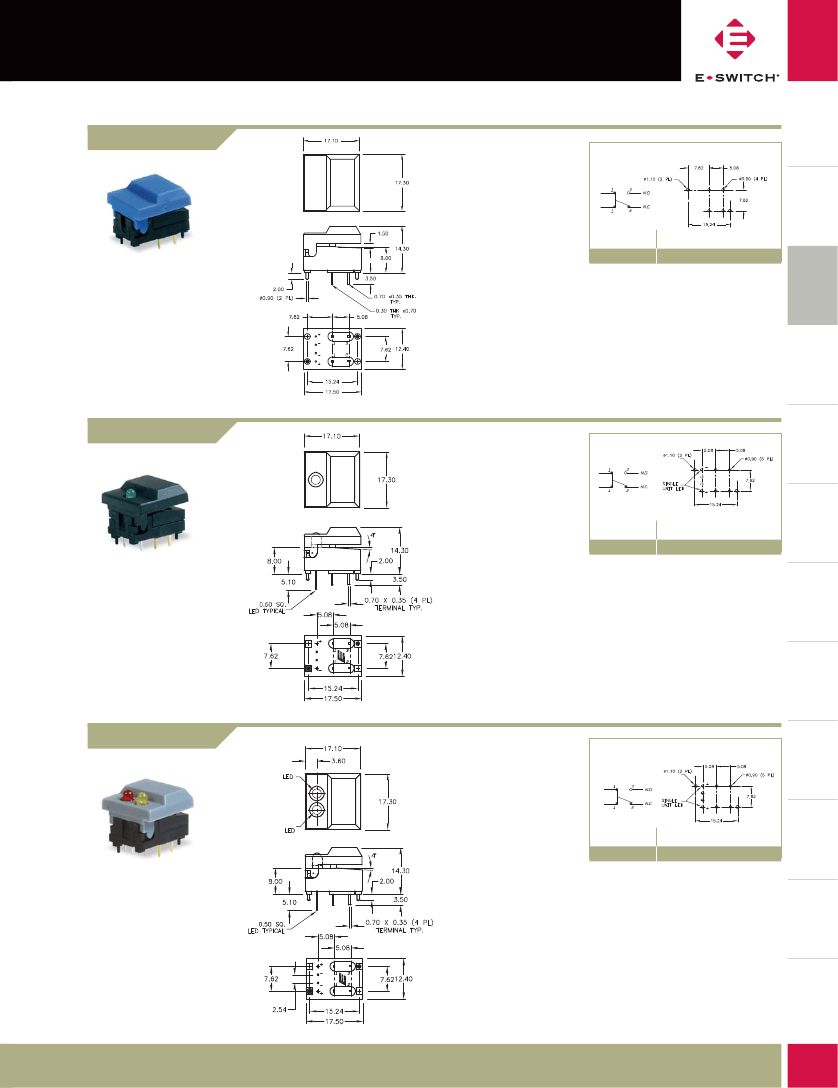

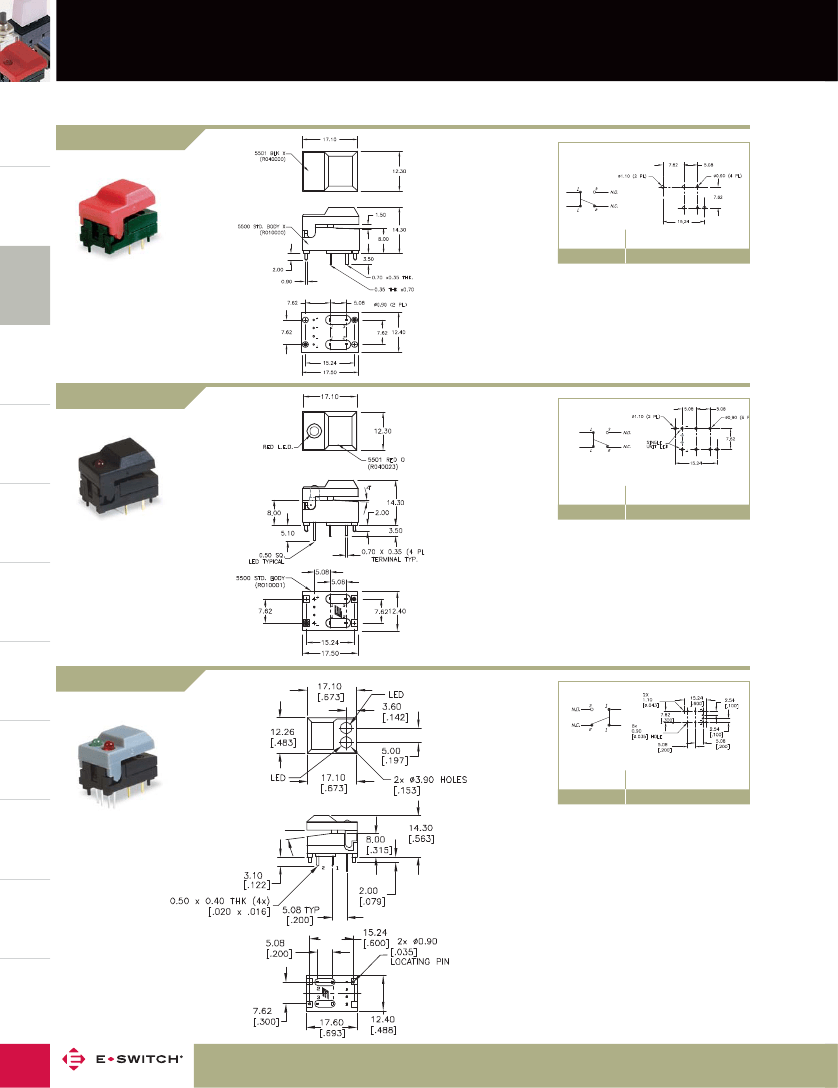

SERIES 5500 SWITCHES
SPECIFICATIONS
Life Expectancy:
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Actuation Force:
500,000 cycles typical
50mΩ max. typical @ 2-4 VDC, 100mA
50 MΩ min.
>1,000 V rms at sea level
255 grams max.
PUSHBUTTON
SWITCHES
2nd LED COLOR
NAVIGATION
SWITCHES
CAP
OPTIONS
DETECTOR
SWITCHES
ROTARY
SWITCHES
KEYLOCK
SWITCHES
Specifications subject to change without notice.
Contact Ratings:
300mA @ 12 VDC
Operating Temperature: -25°C to +65°C
MATERIALS
Housing:
Nylon
ABS
Gold over nickel over copper alloy
Gold over nickel over copper alloy
Cap:
Contacts:
Terminals:
FEATURES & BENEFITS
Single or dual LED options
Hinged pushbutton design
High operating life
APPLICATIONS/MARKETS
Telecommunications
Networking
Computers/servers
Performance audio
Instrumentation
Low power on/off designs
External hard drives and modems
HOW TO ORDER
SERIES
CAP STYLE
MECHANICAL
CONFIGURATION
CAP COLOR
1st LED COLOR
(1-LED cap styles only)
(2-LED cap styles only)
55
01 = Small
11 = Large
M
M = Momentary
BLK = Black
GRY = Grey
YEL = Yellow
BLU = Blue
RED = Red
ORG = Orange
GRN = Green
WHT= White
X = No LED
RED = Red LED
GRN = Green LED
YEL = Yellow LED
,
RED = Red LED
GRN = Green LED
YEL = Yellow LED
Example Ordering Number
55_ 11_ M_ BLU
55_ 01_ M_ WHT_ RED, GRN
www.e-switch.com
info
@
e-switch.com
DIP
SWITCHES
SNAP-ACTION
SWITCHES
SLIDE
SWITCHES
ROCKER
SWITCHES
TOGGLE
SWITCHES
TACT
SWITCHES
PUSHBUTTON SWITCHES
81
