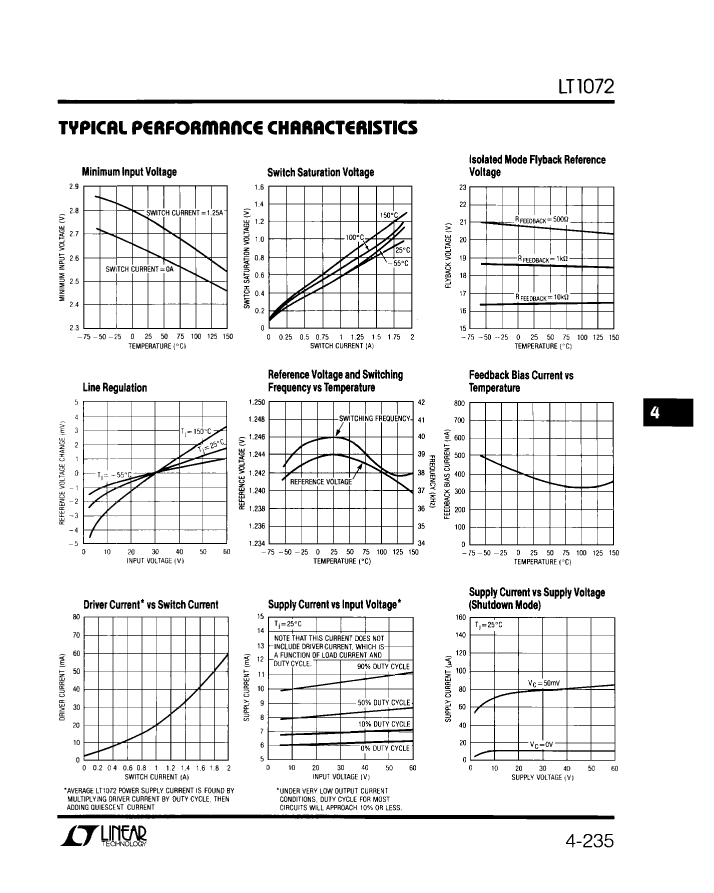

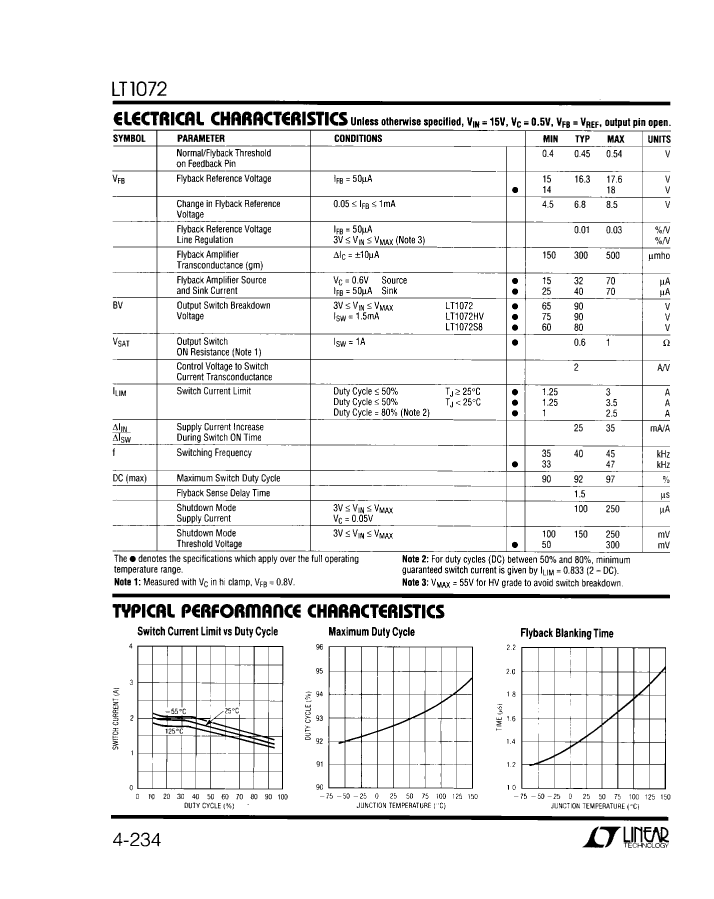

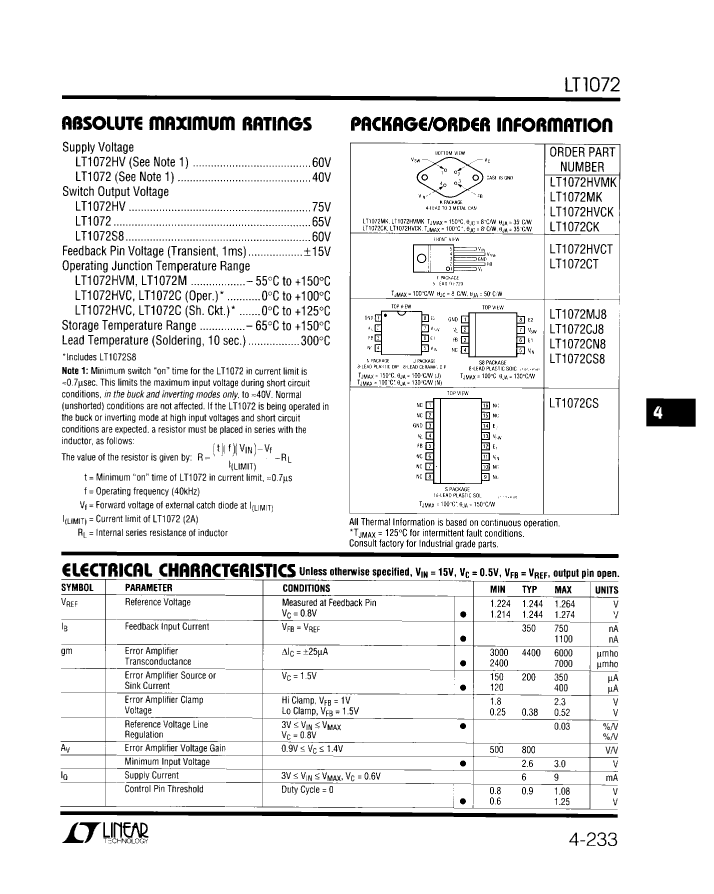

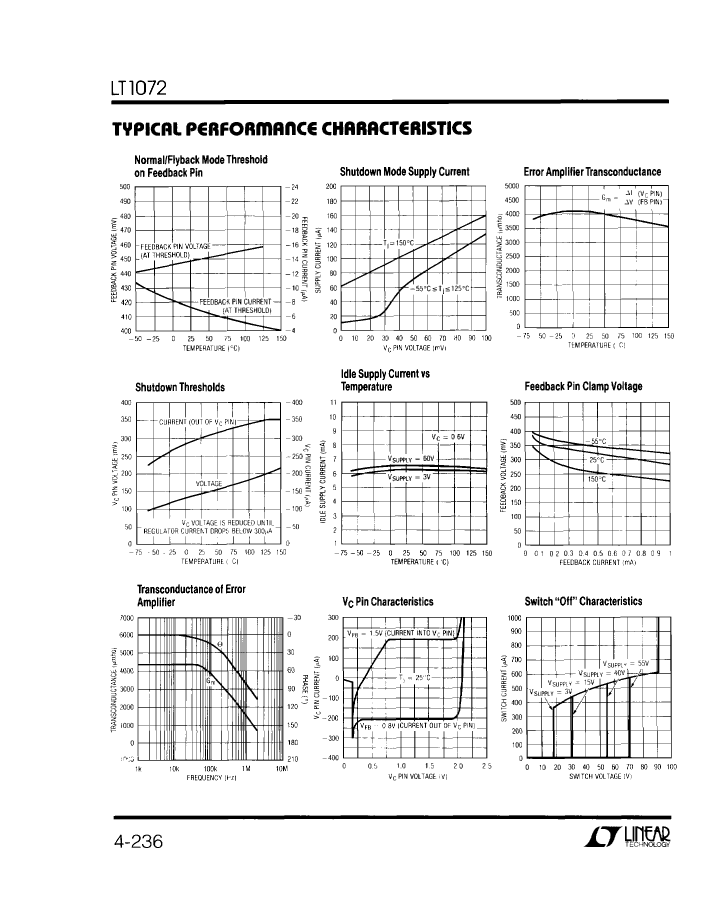

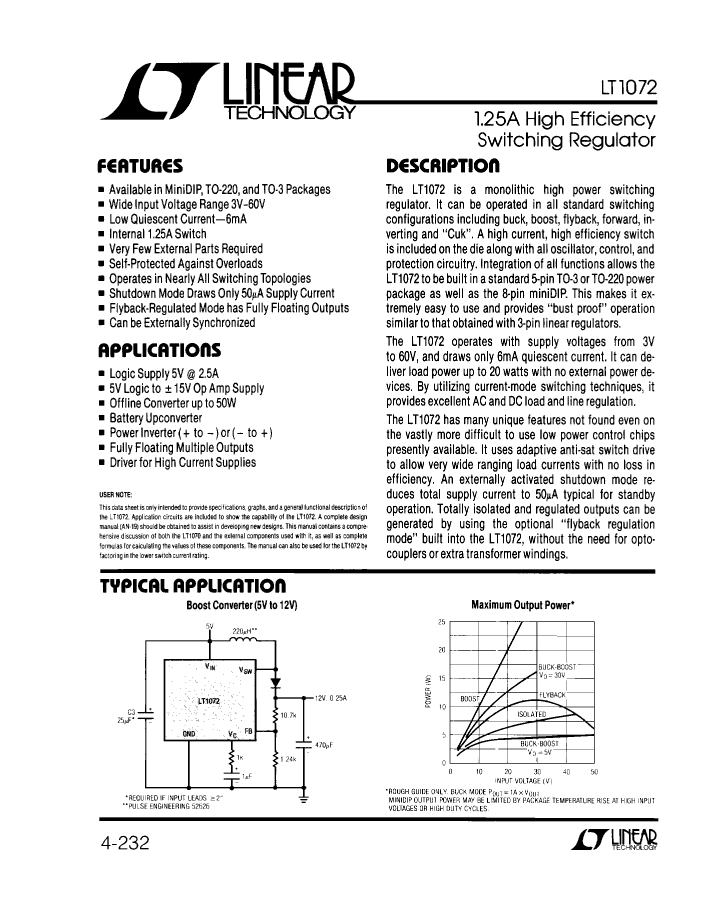

IC 3.5 A SWITCHING REGULATOR, 47 kHz SWITCHING FREQ-MAX, CDIP8, CERAMIC, DIP-8, Switching Regulator or Controller
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Linear ( ADI ) |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR |
| control mode | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION |
| Maximum input voltage | 40 V |
| Minimum input voltage | 3 V |
| Nominal input voltage | 15 V |
| JESD-30 code | R-GDIP-T8 |
| Humidity sensitivity level | 1 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Maximum output current | 3.5 A |
| Nominal output voltage | 1.24 V |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 225 |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Maximum supply current (Isup) | 9 mA |
| surface mount | NO |
| Switch configuration | BOOST |
| Maximum switching frequency | 47 kHz |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9082503MPA | 5962-9082506MYA | 5962-9082503MYX | 5962-9082506MYX | 5962-9082503MPX | 5962-9082503MYA | LT1072HVMK/883 | |
|---|---|---|---|---|---|---|---|
| Description | IC 3.5 A SWITCHING REGULATOR, 47 kHz SWITCHING FREQ-MAX, CDIP8, CERAMIC, DIP-8, Switching Regulator or Controller | IC 3.5 A SWITCHING REGULATOR, 47 kHz SWITCHING FREQ-MAX, MBFM4, TO-3, FM-4, Switching Regulator or Controller | IC 1.25 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller | IC 1.25 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller | IC 1.25 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, CDIP8, CERDIP-8, Switching Regulator or Controller | IC 3.5 A SWITCHING REGULATOR, 47 kHz SWITCHING FREQ-MAX, MBFM4, TO-3, FM-4, Switching Regulator or Controller | IC 1.25 A SWITCHING REGULATOR, 40 kHz SWITCHING FREQ-MAX, MBFM2, METAL CAN, TO-3, 4 PIN, Switching Regulator or Controller |
| Parts packaging code | DIP | TO-204AA | TO-204AA | TO-204AA | DIP | TO-204AA | TO-204AA |
| package instruction | DIP, | TO-3, | TO-3, | TO-3, | DIP, | TO-3, | TO-3, CAN4/5,.45FL |
| Contacts | 8 | 2 | 2 | 2 | 8 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR | SWITCHING REGULATOR |
| control mode | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE | CURRENT-MODE |
| Control Technology | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION | PULSE WIDTH MODULATION |
| Maximum input voltage | 40 V | 60 V | 40 V | 55 V | 40 V | 40 V | 55 V |
| Minimum input voltage | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| JESD-30 code | R-GDIP-T8 | O-MBFM-P4 | O-MBFM-P2 | O-MBFM-P2 | R-GDIP-T8 | O-MBFM-P4 | O-MBFM-P2 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 4 | 2 | 2 | 8 | 4 | 2 |
| Maximum output current | 3.5 A | 3.5 A | 1.25 A | 1.25 A | 1.25 A | 3.5 A | 1.25 A |
| Package body material | CERAMIC, GLASS-SEALED | METAL | METAL | METAL | CERAMIC, GLASS-SEALED | METAL | METAL |
| encapsulated code | DIP | TO-3 | TO-3 | TO-3 | DIP | TO-3 | TO-3 |
| Package shape | RECTANGULAR | ROUND | ROUND | ROUND | RECTANGULAR | ROUND | ROUND |
| Package form | IN-LINE | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | IN-LINE | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Switch configuration | BOOST | BOOST | BOOST | BOOST | BOOST | BOOST | BOOST |
| Maximum switching frequency | 47 kHz | 47 kHz | 40 kHz | 40 kHz | 40 kHz | 47 kHz | 40 kHz |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal form | THROUGH-HOLE | PIN/PEG | PIN/PEG | PIN/PEG | THROUGH-HOLE | PIN/PEG | PIN/PEG |
| Terminal location | DUAL | BOTTOM | BOTTOM | BOTTOM | DUAL | BOTTOM | BOTTOM |
| Is it Rohs certified? | incompatible | incompatible | - | - | - | incompatible | incompatible |
| Maker | Linear ( ADI ) | - | Linear ( ADI ) | - | Linear ( ADI ) | Linear ( ADI ) | Linear ( ADI ) |
| Nominal output voltage | 1.24 V | 1.24 V | - | - | - | 1.24 V | 1.24 V |
| Peak Reflow Temperature (Celsius) | 225 | 225 | - | - | - | 225 | NOT SPECIFIED |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | - |
| Maximum supply current (Isup) | 9 mA | 9 mA | - | - | - | 9 mA | 9 mA |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | - | - | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - |
| JESD-609 code | - | - | e0 | e0 | e0 | - | e0 |
| Terminal surface | - | - | TIN LEAD | TIN LEAD | TIN LEAD | - | Tin/Lead (Sn/Pb) |
