581050 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 581050

581050: DescriptionElectric Fuse, 50A, 48VAC, 48VDC, 2500A (IR), Inline/holder,; CategoryCircuit protection; File Size281KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

581050 Overview

Electric Fuse, 50A, 48VAC, 48VDC, 2500A (IR), Inline/holder,

581050 Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
body width	30.35 mm
body height	17.35 mm
Body length or diameter	39 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
physical size	39mm x 30.35mm x 17.35mm
Rated breaking capacity	2500 A
Rated current	50 A
Rated voltage (AC)	48 V
Rated voltage (DC)	48 V
Guideline	UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

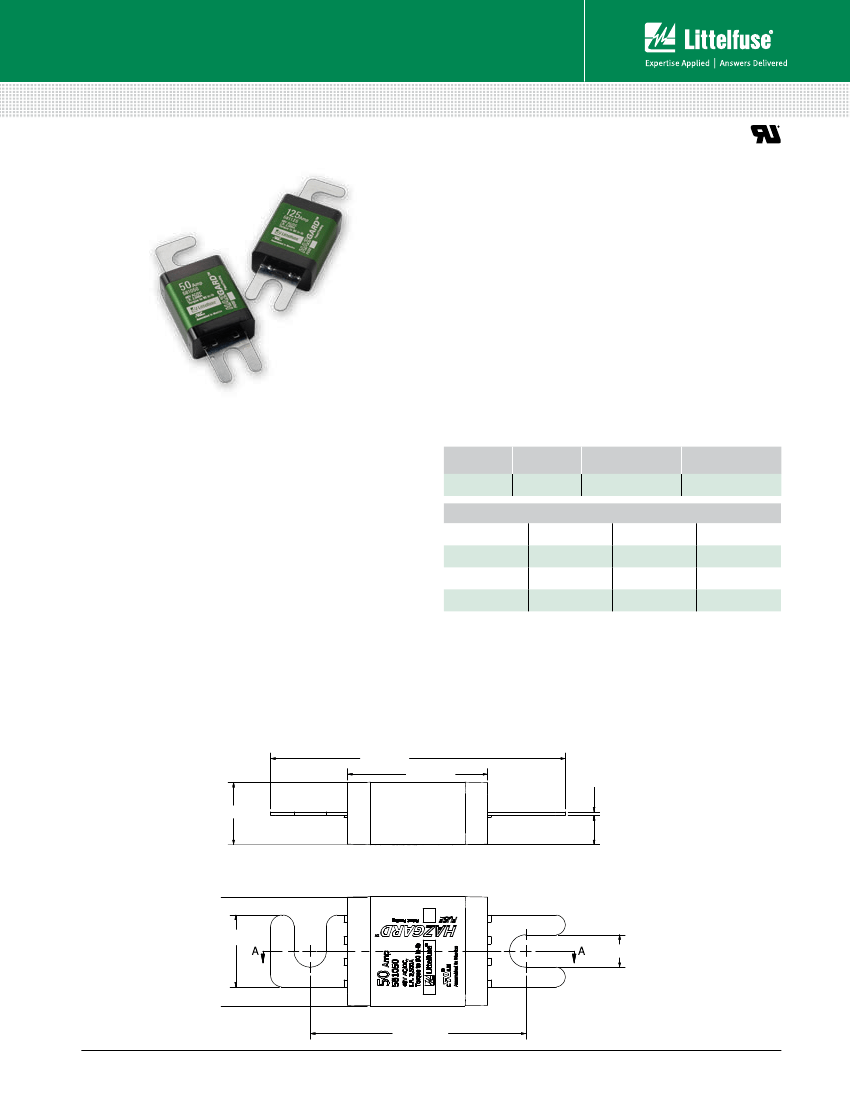

POWR-GARD

Fuse Datasheet

Hazgard SerieS Lift truck fuSeS

48 V • 35-800 A

Specifications

Voltage Ratings

Interrupting Rating

Ampere Rating

Approval

Torque

Fuse Holder

Environmental

Country of Origin

48 VAC/DC

2,500 A

10 – 800 A

UL Recognized (File: E71611)

90 in-lb

LFFB003

RoHS Compliant

Mexico

Description

HAZGARD fuses are designed to provide overcurrent protection

for low voltage equipment used in hazardous operations. It

is UL 248 recognized and has been evaluated for the use in

UL 583 type EE and ES applications. Unique design does not

require an additional enclosure as is needed with a standard

forklift fuse, saving assembly time and costs.

Ordering Information

SerieS

581

amperage

200

cataLog

number

581200

ordering

number

0581200.X

ampere ratingS

*Contact factory for availability

Features/Benefits

• Evaluated for use in UL 583 hazardous applications

• Easily upgrade Type E and ES equipment to Type EE

• Does not require an external enclosure

100

125

150

200

250

300

400

425

500

750*

800*

—

Applications

Lift trucks, scissor lifts, pallet movers, and other low

voltage battery operated equipment used to move

hazardous materials.

Recommended Fuse Holders

LFFB0003Z

Web Resources

Littelfuse.com/hazgard

Dimensions mm (inches)

82.0 (3.23)

39.0 (1.54)

2.0 (0.08)

17.4 (0.68)

8.43-7.68

(.33-.30)

20.0 (.79)

30.4 (1.20)

2x 9.0 (0.35)

60.0 (2.36)

Littelfuse.com

1 of 1

Products

Rev: 121812
