APL5833
300mA Low Dropout Linear Regulator of Fixed 2.85V,3.3V and 3.5V
Features
•
•
•
•
•
•
•
•
Low Dropout Voltage of 1.2V at 300mA
Output Voltage Accuracy ± 2.0%
Line Regulation - 1mV (typ.)
Load Regulation - 6mV (typ.)
Input Voltage Range up to 9V
Internal Current Limiting and Thermal Shut-
down Protections
Available Output Voltages - 2.85V, 3.3V and
3.5V
Various SOT-89 and TO-92 Packages Avail-
able
General Description
The APL5833 is a 3-pin low dropout linear regulator
with 2.0% accuracy of output voltage over line, load
and temperature variations. Dropout voltage at
300mA output current is less than 1.2V. Both output
current limiting and thermal shutdown are built in to
provide maximal protection to the APL5833 against
fault conditions. The over current and thermal shut-
down circuits become active when the current ex-
ceed 300mA, or the junction temperature reach
150°C. Normal operation is recovered when junction
temperature drops below 130°C.
Pin Configuration
3
V
IN
Applications
•
•
•
•
•
•
Voltage Regulator for CD-ROM Drivers
Voltage Regulator for LAN Cards
Wireless Communication Systems
Portable Instrument
Portable Consumer Equipment
Low Voltage Systems
2
GND
1
V
OUT
1
V
OUT
2
GND
3
V
IN
TO-92 (Top View)
SOT-89 (Top View)
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise
customers to obtain the latest version of relevant information to verify before placing orders.
Copyright
ANPEC Electronics Corp.
Rev. B.1 - Apr., 2003
1
www.anpec.com.tw
APL5833
Ordering and Marking Information
A P L5833-
L e a d F re e C o d e
H a n d lin g C o d e
Tem p. R ange
P ackage C ode
V o lt a g e C o d e
P ackage C ode
D : S O T -8 9
E : T O -9 2
Tem p. R ange
C : 0 to 7 0
°
C
H a n d lin g C o d e
TU : T ube
T R : T ape & R eel
V o lt a g e C o d e
2 8 : 2 .8 5 V
3 3 : 3 .3 V
3 5 : 3 .5 V
B la n k : A d ju s t a b le V e r s io n
L e a d F re e C o d e
L : L e a d F r e e D e v ic e
B la n k : O r ig in a l D e v ic e
A P L
5833
X XX XX
A P L
5833
X XX XX 28
A P L
5833
X XX XX 33
A P L
5833
X XX XX 35
A P L5833 D :
A P L5833
X XX XX
X XX XX
-
D a te C o d e
A P L5833 E :
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -2 8 D :
A P L5833
X XX XX 28
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -2 8 E :
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -3 3 D :
A P L5833
X XX XX 33
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -3 3 E :
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -3 5 D :
A P L5833
X XX XX 35
X XX XX
-
D a te C o d e
A P L 5 8 3 3 -3 5 E :
X XX XX
-
D a te C o d e
Block Diagram
V
IN
Thermal
Shutdown
+
-
Current
Limit
V
OUT
V
REF
GND
Absolute Maximum Ratings
Symbol
V
IN
I
OUT
T
A
T
J
T
STG
P
D
θ
JA
Parameter
Input Voltage
Output Current
Operating Ambient Temperature Range
Operating Junction Temperature Range
Storage Temperature Range
Power Dissipation Package
Thermal Resistance
2
SOT-89
TO-92
SOT-89
TO-92
Rating
9
300
450
0 to 70
-40 to +150
-65 to +150
550
550
180
180
Unit
V
mA
°
C
°
C
°
C
mW
°
C / W
www.anpec.com.tw
Copyright
ANPEC Electronics Corp.
Rev. B.1 - Apr., 2003
APL5833
Electrical Characteristics
Symbol
V
IN
V
OUT
I
OUT
I
SC
I
Q
Parameter
Input Voltage
Output Voltage
Output Current
Capability
Short Circuit Current
Quiescent Current
I
OUT
=10mA
V
OUT
=3.3V,
∆
V
OUT
=2%
V
OUT
<
0.4V
V
IN
=5V, No Load
I
OUT
=10mA, V
IN
= 5V to 8V
I
OUT
=1mA~300mA
(T
A
=25°C, unless otherwise noted)
APL5833
Min.
V
OUT
+1.2V
0.98 V
OUT
300
500
6
1
6
1200
55
150
100
100
10
6
12
1300
Typ.
Max.
9
1.02 V
OUT
Test Conditions
Unit
V
V
mA
mA
mA
mV
mV
mV
dB
°C
µ
Vrms
ppm/°C
REG
LINE
Line Regulation
REG
LOAD
Load Regulation
V
DROPOUT
Dropout Voltage
I
OUT
=300mA,
∆
V
OUT
=1%
Power Supply Rejection
at 1kHz
PSRR
Ratio
Over Temperature
OTS
Shutdown
E
N
Output Noise
Output Voltage
TC
Temperature Coefficient
Application Schematic
1.25V to 7V Adjustable Regulator
Fixed 2.85, 3.3V and 3.5V Regulator
A P L583 3
V
IN
IN
ADJ
OUT
R1
+
1µ
F
APL5833
V
OUT
V
IN
IN
O UT
G ND
V
OU T
+
R2
10µ
F
1µ
F
10µ
F
V
OUT
=
1.250V
×
R1
+
R2
R1
Copyright
ANPEC Electronics Corp.
Rev. B.1 - Apr., 2003
3
www.anpec.com.tw
APL5833

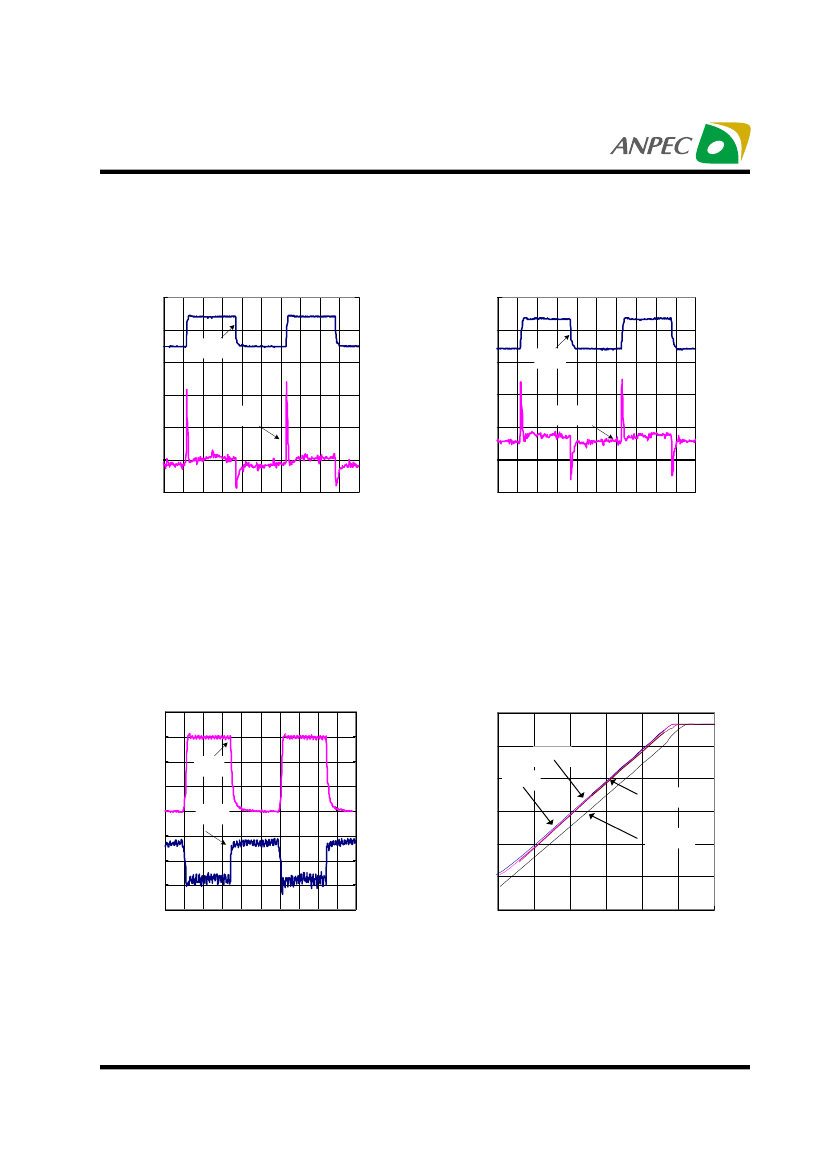

Typical Characteristics (Cont.)
Output Voltage vs. Input Voltage
3.35
Input Current vs. Input Voltage
8
7
3.33
3.31
6
5
Output Voltage (V)
Input Current (mA)
6
7
8
9
10
4
3
2
1
0
0
2
4
6
8
10
3.29
3.27
3.25
5
Input Voltage (V)
Input Voltage (V)
Short Current vs. Input Voltage
700
600
500
Output Voltage vs. Output Current
3.35
3.33
3.31
Short Current (mA)
400
300
200
100
0
0
2
4
6
8
10
Output Voltage (V)
3.29
3.27
3.25
0
100
200
300
Input Voltage (V)
Output Current (mA)
Copyright
ANPEC Electronics Corp.
Rev. A.7 - Apl., 2001
5
www.anpec.com.tw
