CUSTOMER TERMINAL
RoHS
LEAD(Pb)--FREE
Sn 96%, Ag 4%
Yes
Yes
ELECTRICAL SPECIFICATIONS @ 25
o
C unless otherwise noted:
PARAMETER
750315491
D.C. RESISTANCE
D.C. RESISTANCE
INDUCTANCE
SATURATION CURRENT
LEAKAGE INDUCTANCE
DIELECTRIC
TURNS RATIO
TEST CONDITIONS
3-2
tie(1+2, 3+4), @20ºC
7-8
@20ºC
3-2 tie(1+2, 3+4),10kHz, 100mV, Ls
3-2
tie(1+2, 3+4), 20% rolloff from initial
3-2
tie(1+2, 3+4, 7+8),100kHz, 100mV, Ls
1-8
tie(3+4), 3125VAC, 1 second
(3-2):(7-8), tie(1+2, 3+4)
VALUE
0.224 ohms ±10%
0.027 ohms ±30%
63.0µH ±10%
1.3A
0.9µH typ., 1.8µH max.
2500VAC, 1 minute
3:1, ±1%
GENERAL SPECIFICATIONS:
3
4
PRI
5Vdc
400kHz
1
2
7
OPERATING TEMPERATURE RANGE: -40°C to +125°C including temp rise.
SEC
5V - 240mA
8
Designed to comply with the following requirements as defined by IEC60950-1,
EN60950-1, UL60950-1/CSA60950-1 and AS/NZS60950.1:
- Functional insulation for a primary circuit at a working voltage of 1000Vpeak, Overvoltage CategoryII.
Customer to tie terminals 1&2 and 3&4 on PC board.
Wire insulation & RoHS status not affected by wire color. Wire insulation color may vary depending on availability.
Tolerances unless otherwise specified:
DFM
SP
Packaging Specifications

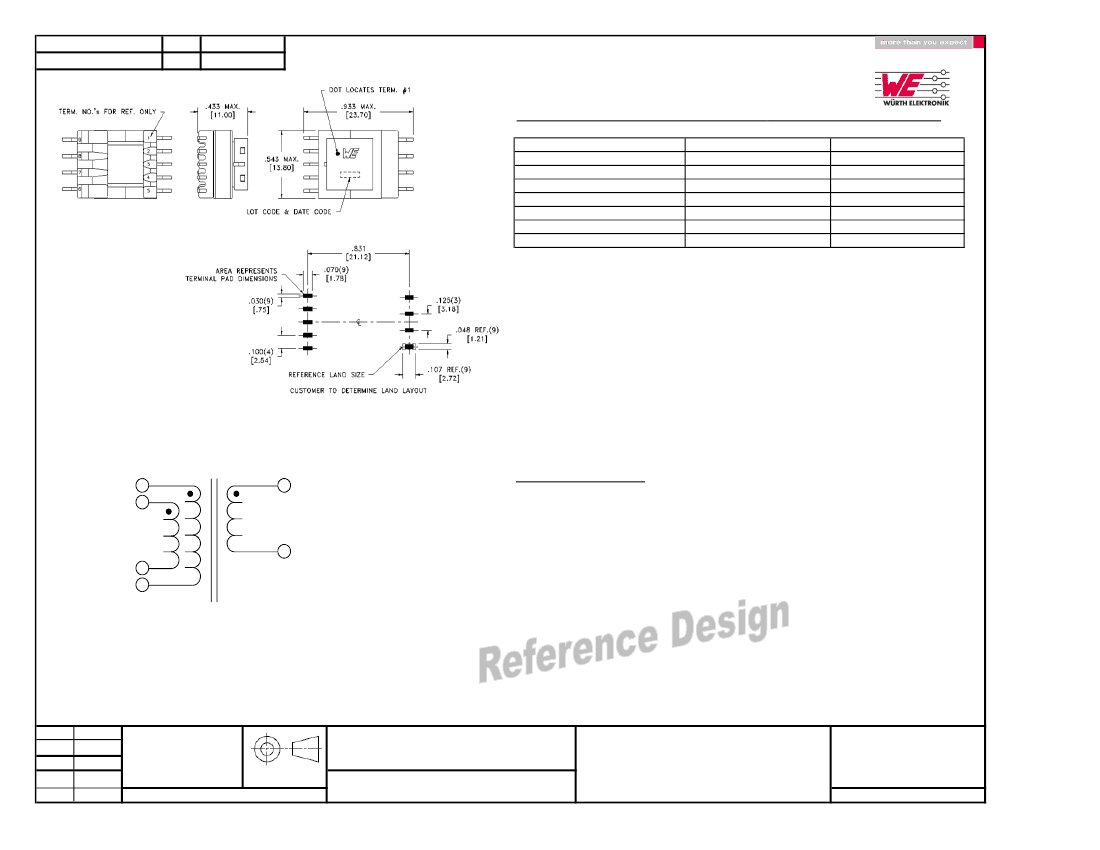

DRAWING TITLE
o
Angles: ±1
Decimals: ±.005 [.13]
DATE 4/8/2015 Method: Tape & Reel
TRANSFORMER
Fractions: ±1/64 Footprint: ± .005 [.13]
ENG
KLM PKG-0654
REV.
00
CONVENTION PLACEMENT
PART NO.
DATE 6/7/2016
www.we-online.com/midcom
This drawing is dual dimensioned. Dimensions in
brackets are in millimeters.
750315491
SPECIFICATION SHEET 1 OF 1
