817M-81-204-06 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 817M-81-204-06

Preview

817M-81-204-06: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector; File Size337KB，3 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

817M-81-204-06 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

817M-81-204-06 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	GOLD (15) OVER NICKEL (50)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	817M
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

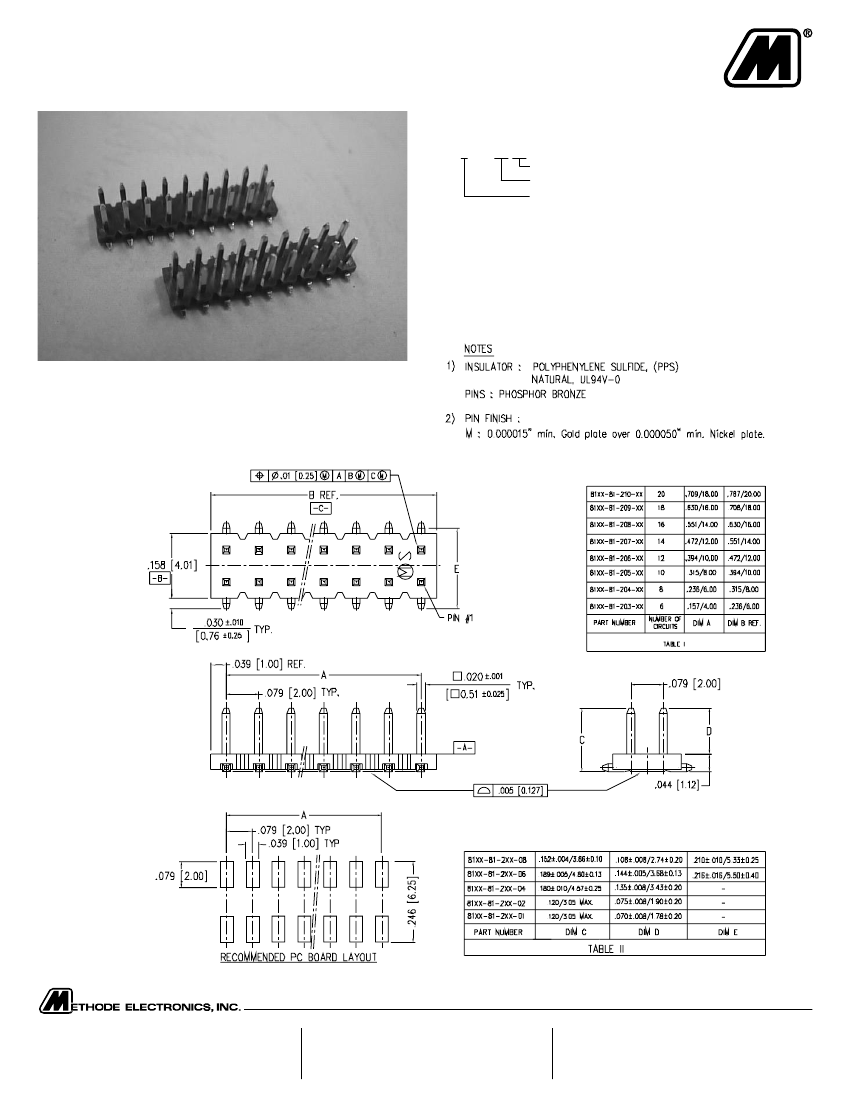

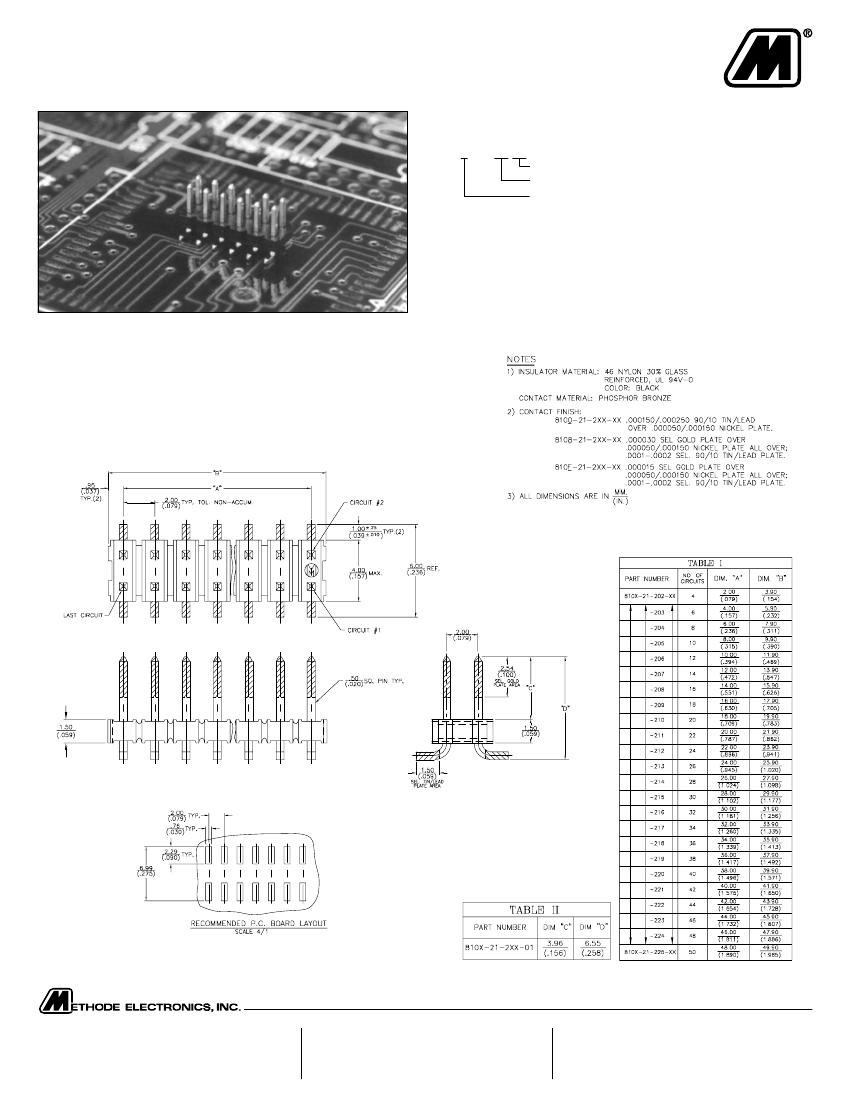

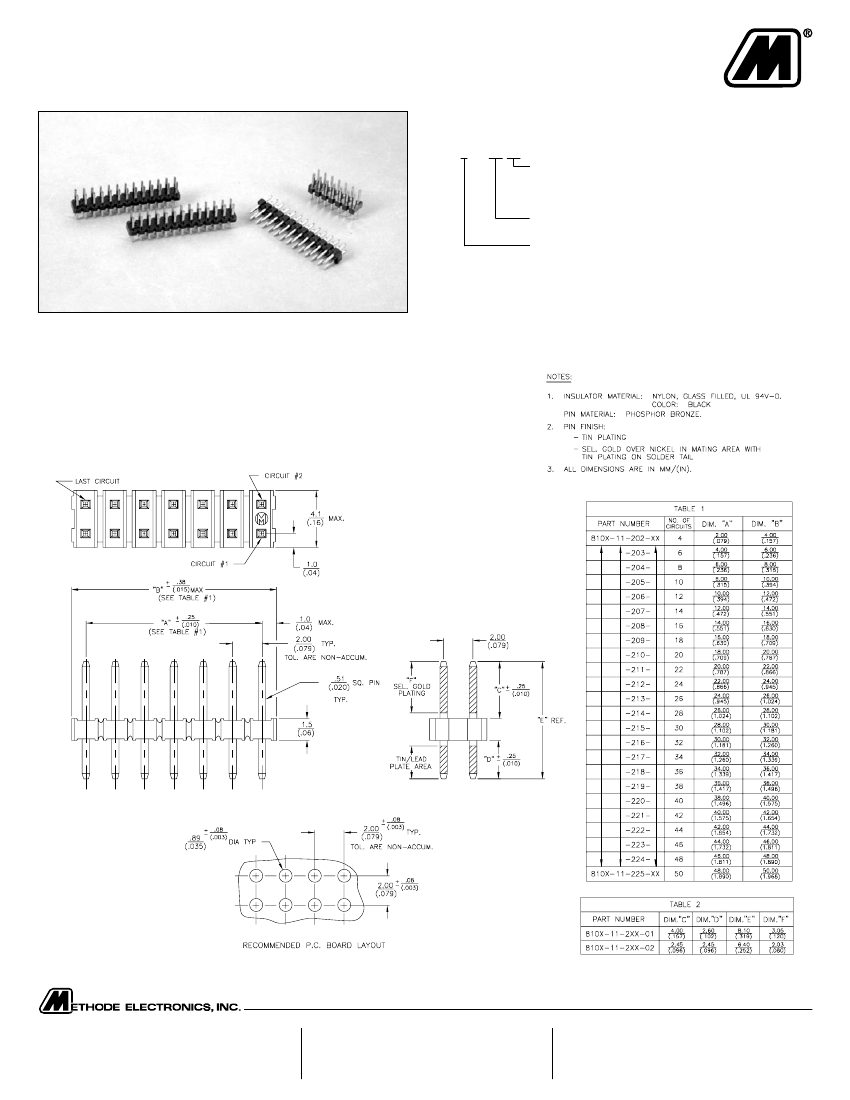

.079" (2mm) Dual Row

Through Hole Vertical Headers

8100 SERIES “POST/BOXE”

PART NUMBER LEGEND

810X-1-2XX-XX

PIN LENGTH

DIM C

1 = 4.00 (1.57)

7 = .050 (1.27)

2 - 25

DIM D

2.60 (.102)

2.45 (.096)

DIM E

8.10 (.319)

6.40 (.252)

NUMBER OF POSITIONS PER ROW

CONTACT FINISH

0 = TIN/LEAD

8 = .000030 SELECTIVE GOLD

F = .000015 SELECTIVE GOLD

MATING CONNECTORS: 8000 SERIES
