NPN General Purpose Amplifier
FEATURES
For general AF application.
Complementary PNP type available
BC808.
High collector current, high current gain.
Low collector-emitter saturation voltage.
Production specification
BC818
Pb
Lead-free
APPLICATIONS
General purpose medium power amplifier.
SOT-23
ORDERING INFORMATION
Type No.
BC818-16
BC818-25
BC818-40
Marking
6E
6F
6G
Package Code
SOT-23
SOT-23
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j,
T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
Value
30
25
5
500
330
-65to+150
Unit
V
V
V
mA
mW
℃
Document number: BL/SSSTC102
Rev.A
www.galaxycn.com
1
BL
Galaxy Electrical
NPN General Purpose Amplifier
Production specification
BC818
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Symbol
Test conditions
MIN
MAX
UNIT
Collector-base breakdown voltage
V
(BR)CBO
I
C
=10μA I
E
=0
30
V
Collector-emitter breakdown
voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
V
(BR)CEO
I
C
=10mA I
B
=0
B
25
V
V
(BR)EBO
I
CBO
I
EBO
I
E
=10μA I
C
=0
V
CB
=25V I
E
=0
V
EB
=4V I
C
=0
5
0.1
0.1
V
μA
μA
DC current gain
818-16
818-25
818-40
h
FE
V
CE
=1V I
C
=100mA
100
160
250
250
400
630
Collector-emitter saturation voltage
V
CE(sat)
I
C
=500mA I
B
=50mA
B
0.7
V
Base-emitter saturation voltage
V
BE(sat)
I
C
=500mA I
B
=50mA
B
1.2
V
Transition frequency
f
T
V
CE
=5V
f=100MHz
I
C
=50mA
170
MHz
Document number: BL/SSSTC102
Rev.A
www.galaxycn.com
2
BL
Galaxy Electrical
NPN General Purpose Amplifier
Production specification
BC818

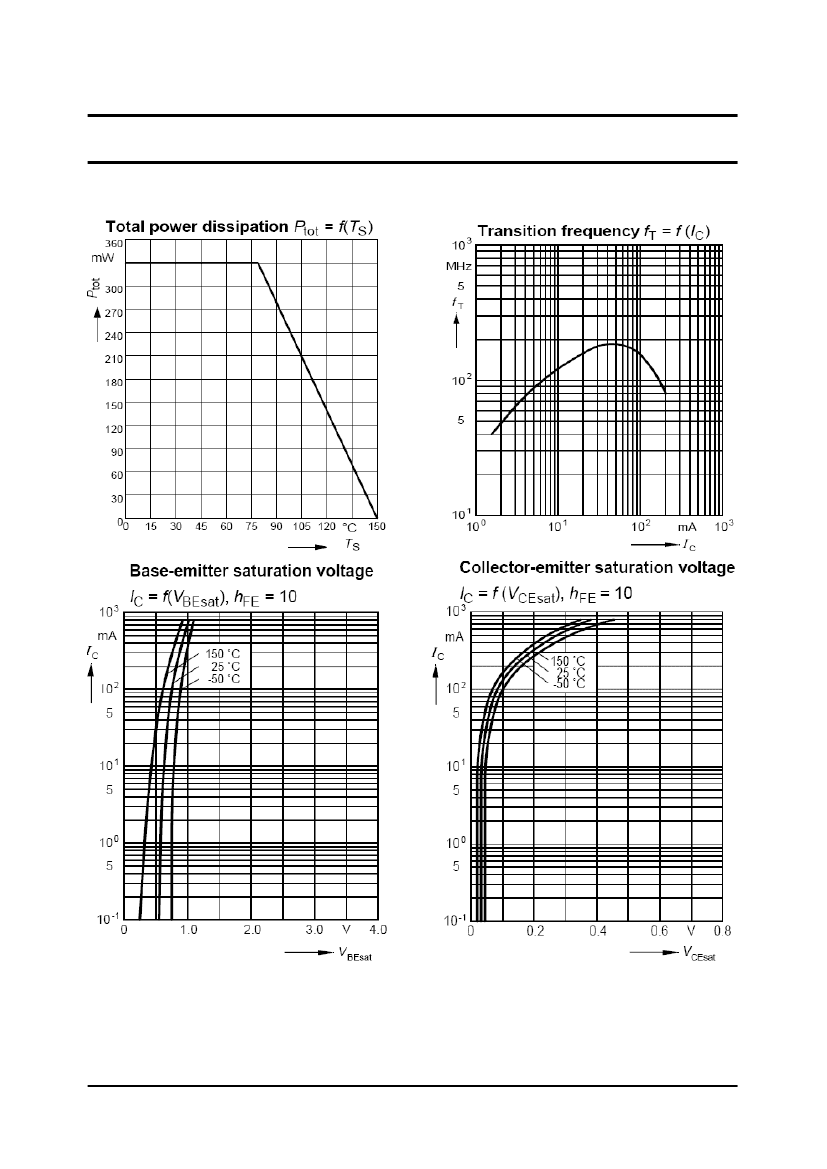

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Document number: BL/SSSTC102
Rev.A
www.galaxycn.com
3
BL
Galaxy Electrical
NPN General Purpose Amplifier
PACKAGE OUTLINE
Plastic surface mounted package
A
E
Production specification
BC818
SOT-23
SOT-23
Dim
A
B
C
D
Min
2.85
1.25
0.37
0.35
1.85
0.02
2.35
Max
2.95
1.35
0.43
0.48
1.95
0.1
2.45
K
B
1.0Typical
D
G
J
E
G
H
H
C
J
K
0.1Typical
All Dimensions in mm
SOLDERING FOOTPRINT
Unit：mm
PACKAGE
Device
BC818
INFORMATION
Package
SOT-23
Shipping
3000/Tape&Reel
Document number: BL/SSSTC102
Rev.A
www.galaxycn.com
4
