311-100PM29C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 311-100PM29C

311-100PM29C: DescriptionD Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug; CategoryThe connector; File Size55KB，1 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

311-100PM29C Overview

D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug

311-100PM29C Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.37 inch
body length	3.315 inch
Body/casing type	PLUG
Connector type	OTHER D TYPE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	311
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	IDC
Total number of contacts	100
UL Flammability Code	94V-0
Maximum wire diameter	30 AWG
Minimum wire diameter	32 AWG
Base Number Matches	1

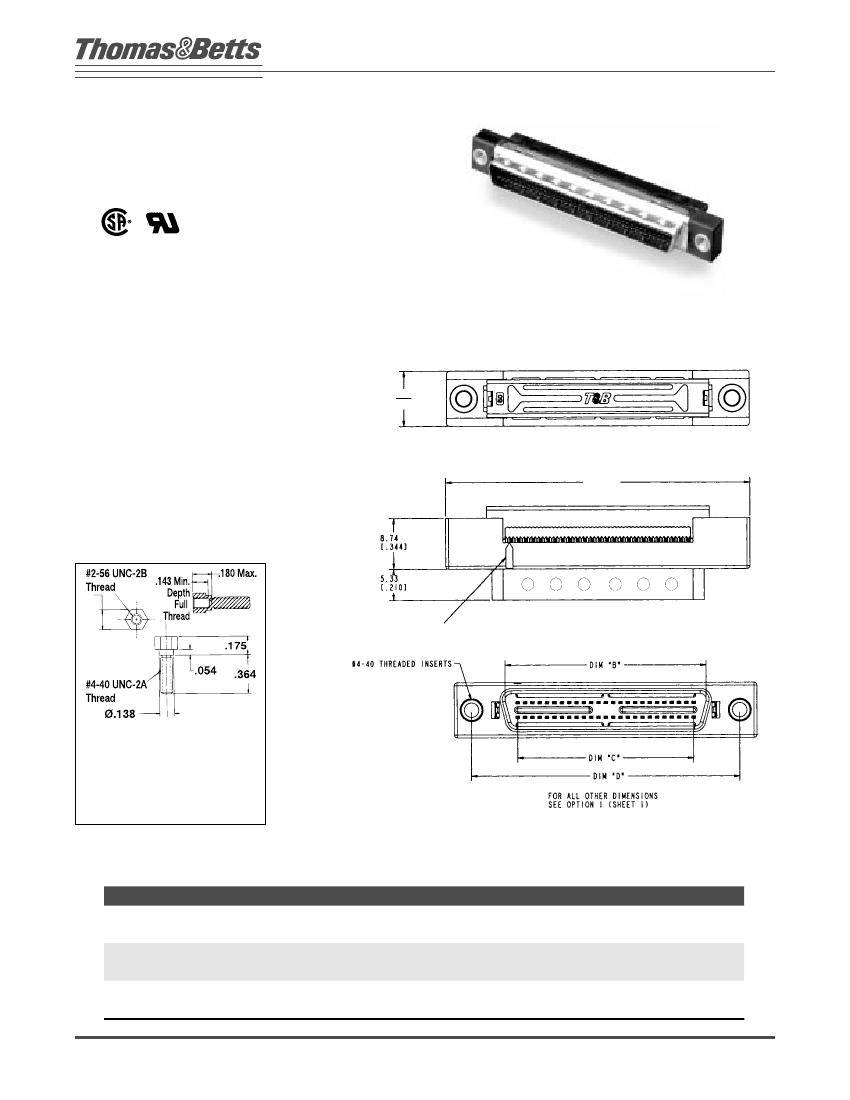

Preview

Download Datasheet

View All

IDC Systems

D-Subminiature

IDC METAL SHELL

“D” PLUG

.050" x .100" CENTERS

LR49571

E60980

HYSICAL

ROPERTIES

NSULATION

ATERIAL

Glass reinforced thermoplastic

rated UL 94V-0

OLOR

Black

ONTACTS

Beryllium copper, 30 microinches gold

over nickel plating in the mating area, tin/lead

plating in the termination area.

ETAL

HELL

Tin plated steel

LECTRICAL

ROPERTIES

URRENT

ATING

1 Amp

NSULATION

ESISTANCE

>1000 Megohms

IELECTRIC

TRENGTH

>1000 VAC (Sea Level)

9.40

(.370)

NVIRONMENTAL

ROPERTIES

EMPERATURE

ATING

-55 C to 125 C

PPLICATION

OOLING

AND

OOL

LATEN

779-3112168A

ENCH

RESS

LATEN

779-3113168A

DIM “A”

ABLE

See pages 97-104

OUNTING

ARDWARE

PIN ONE INDICATOR

Jacksocket Kit

Catalog Number: 8700040001

(for mounting style “C”)

Kit includes:

— 2 Jacksockets (shown above)

— 2 Split Lockwashers

Ordering Information

PART NUMBER

311-026PM29C

311-040PM29C

311-050PM29C

311-068PM29C

311-080PM29C

311-100PM29C

NUMBER OF CONTACTS

100

37.21 (1.465)

46.10 (1.815)

52.45 (2.065)

63.88 (2.515)

71.50 (2.815)

84.20 (3.315)

19.61 (0.772)

28.50 (1.122)

34.85 (1.372)

46.28 (1.822)

53.90 (2.122)

66.60 (2.622)

15.24 (0.600)

24.13 (0.950)

30.48 (1.200)

41.91 (1.650)

49.53 (1.950)

62.23 (2.450)

31.24 (1.230)

40.13 (1.580)

46.48 (1.830)

57.91 (2.280)

65.53 (2.580)

78.23 (3.080)

Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312

Dimensions shown are for reference only. Dimensions are in millimeters (inches).

311-100PM29C Related Products

	311-100PM29C	311-080PM29C	311-050PM29C	311-026PM29C	311-040PM29C	311-068PM29C
Description	D Type Connector, 100 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 80 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 26 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 40 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, IDC Terminal, #4-40, Plug
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY	EMI/RFI SHIELDED, HIGH DENSITY
body width	0.37 inch	0.37 inch	0.37 inch	0.37 inch	0.37 inch	0.37 inch
body length	3.315 inch	2.815 inch	2.065 inch	1.465 inch	1.815 inch	2.515 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR	OTHER D TYPE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	311	311	311	311	311	311
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	100	80	50	26	40	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Minimum wire diameter	32 AWG	32 AWG	32 AWG	32 AWG	32 AWG	32 AWG
Base Number Matches	1	1	1	1	1	1
Maker	Thomas & Betts Corporation	-	Thomas & Betts Corporation	Thomas & Betts Corporation	Thomas & Betts Corporation	-
