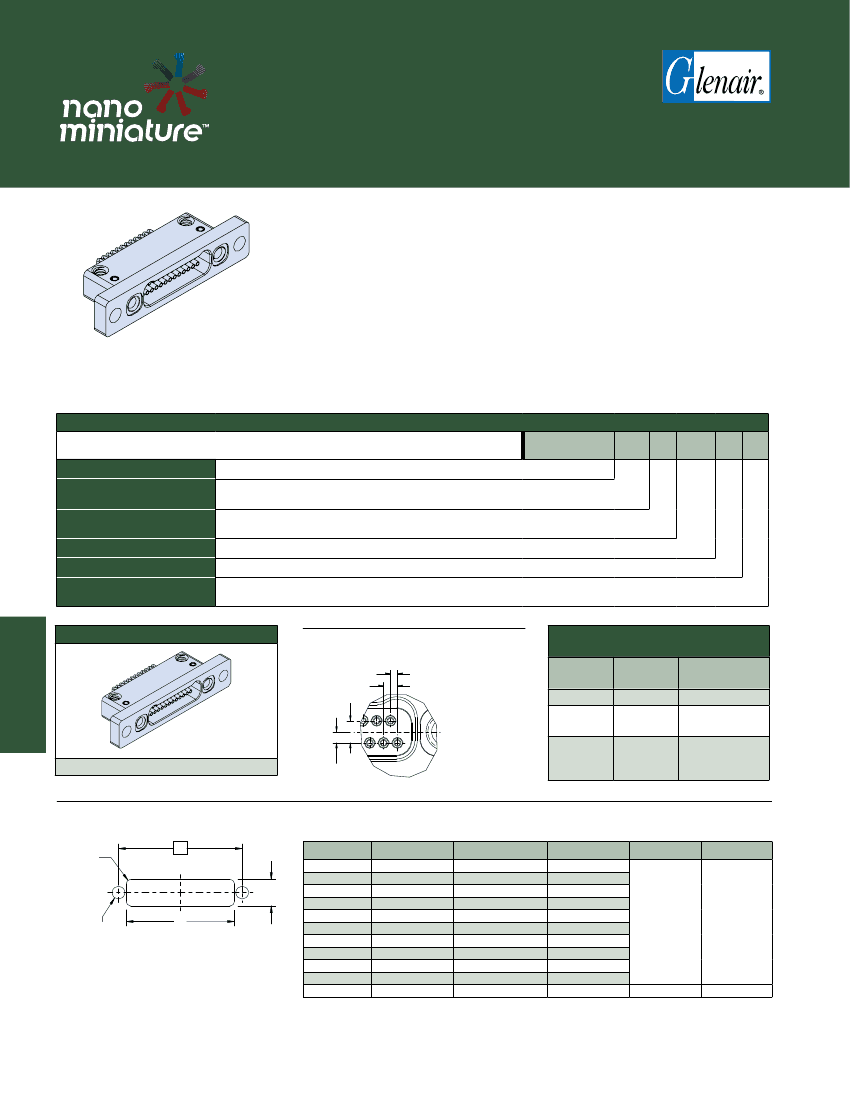

SERIES 89
Dual Row Connectors
Front Panel Mount, Right Angle Surface Mount PCB
Receptacle - How to Order
Front Panel Mount PCB Surface
Mount Connectors
feature gold alloy
TwistPin contacts, offering premium
performance and reliability for
demanding applications. Available
with female threads for board level
applications.
Pre‑Tinned PC Tails
are coated with
Sn63Pb37 or Sn60Pb40 tin-lead for
excellent solderability.
How to Order
Sample Part Number
Series
Insert Arrangement/Contact
Type
Shell Material and Finish
Termination Type
Hardware
Mounting Hole Option
Choose Aluminum, Titanium or
Stainless Steel Shells
in eleven
layouts from 9 to 85 contacts. MIL-
DTL-32139 type connectors are
intermateable with any corresponding
Glenair Series 891 Dual row metal shell
nanominiature connector.
891-052
891-052
Receptacle, Front Panel Mount Right Angle PCB Surface Mount
Sockets (891-052 Receptacle):
9S, 15S, 21S, 25S, 31S, 37S, 41S, 51S, 65S, 69S, 85S
A1
- Aluminum Shell, Cadmium Plating
T
- Titanium Shell, Unplated
BRS
- Board Right Angle Surface Mount
T
- Female Thread (#0-80 for size 9-69, #2-56 for size 85)
C
- Clearance Hole
T
- Female Thread
-25S A2 -BRS
T
C
A2
- Aluminum Shell, Eletroless Nickel Plating
S
- Stainless Steel Shell, Passivated
Receptacle (Socket)
DETAIL A
.0125 (.32) TYP
.025 (.63) TYP
Panel Mount
Connector Mounting Matrix
Connector
Holes
Tapped
Clearance
Clearance
Panel
Holes
Clearance
Tapped
Clearance
Mounting
Location
Rear Panel Mount
Front Panel
Mount
Front or Rear
Panel Mount with
screw and nut
D
T - Female Thread
.040 (1.02) TYP
.020 (.51) TYP
PANEL CUT-OUT DIMENSIONS
4X
R.024 (.61)
MAX
C
N
ØP +.006/-.000
(+.15/-.00) THRU
OR K THD
HOLE THRU
M
Shell Size
9
15
21
25
31
37
41
51
65
69
85
C
.480 (12.19)
.555 (14.10)
.630 (16.00)
.680 (17.27)
.755 (19.17)
.830 (21.08)
.880 (22.35)
1.005 (25.53)
1.180 (29.97)
1.230 (31.24)
1.527 (38.79)
K
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#2-56 UNC-2B
M
.395 (10.03)
.470 (11.94)
.545 (13.84)
.595 (15.11)
.670 (17.02)
.745 (18.92)
.795 (20.19)
.920 (23.37)
1.095 (27.81)
1.145 (29.08)
1.397 (35.48)
N
P
.145 (3.68)
.070 (1.78)
.170 (4.31)
.096 (2.44)
D-93
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 89
Dual Row Connectors
Front Panel Mount, Right Angle Surface Mount PCB
Receptacle - Dimensions
Dimensions
891-052 Receptacle (Socket) Connectors
2X K THD THRU
SHELL SIZE 9-69
.187 (4.75)
SHELL SIZE 85
.210 (5.33)
D
SHELL SIZE 9-69
.225 (5.72)
SHELL SIZE 85
.270 (6.86)
2X K THD HOLES
.062 (1.57)
A
B
2X, ØH +.006/.000
(+.15/.00)
OR K THREAD
HOLE THRU:
See Part Number
Break Down
SHELL SIZE 9-69
.165 (4.19)
SHELL SIZE 85
.190 (4.83)
C
G
SOCKET #1
E
SEE DETAIL A
.101 (2.57)
.051 (1.30)
F
A BSC
Layout
9S
15S
21S
25S
31S
37S
41S
51S
65S
69S
85S
In
.270
.345
.420
.470
.545
.620
.670
.795
.970
1.020
1.246
mm
6.86
8.76
10.67
11.94
13.84
15.75
17.02
20.19
24.64
25.91
31.65
B BSC.
In
.163
.238
.313
.363
.438
.513
.563
.688
.863
.913
1.113
mm
4.14
6.05
7.95
9.22
11.13
13.03
14.30
17.48
21.92
23.19
28.27
C BSC.
In
.480
.555
.630
.680
.755
.830
.880
1.005
1.180
1.230
1.527
mm
12.19
14.10
16.00
17.27
19.18
21.08
22.35
25.53
29.97
31.24
38.79
In
.375
.450
.525
.575
.650
.725
.775
.900
1.075
1.125
1.377
D
mm
9.53
11.43
13.34
14.61
16.51
18.42
19.69
22.86
27.31
28.58
34.98
In
.125
.125
.125
.125
.125
.125
.125
.125
.125
.125
.150
E
mm
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.18
3.81
In
F BSC
mm
1.46
1.46
1.46
1.46
1.46
1.46
1.46
1.46
1.46
1.46
1.78
In
.585
.660
.735
.785
.860
.935
.985
1.110
1.285
1.335
1.677
.0575
.0575
.0575
.0575
.0575
.0575
.0575
.0575
.0575
.0575
.0700
G
mm
14.86
16.76
18.67
19.94
21.84
23.75
25.02
28.19
32.64
33.91
42.60
In
.0635
.0635
.0635
.0635
.0635
.0635
.0635
.0635
.0635
.0635
.0890
H
mm
1.61
1.61
1.61
1.61
1.61
1.61
1.61
1.61
1.61
1.61
2.26
K
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#0-80 UNF-2B
#2-56 UNC-2B
D
NOTES
1.
2.
3.
4.
5.
Inspect and Test IAW MIL-DTL-32139
Interface dimensions per MIL-DTL-32139/4
Panel cutout will allow for lobe up or down connector mounting.
Front or rear panel mounting dependent on selected mounting hole option
Recommended panel thickness: .100 (2.54) max
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
D-94
SERIES 89
Dual Row Connectors
Front Panel Mount, Right Angle Surface Mount PCB
Receptacle - PCB Pad Footprint
.016 (.41) TYP
PAD WIDTH
.040 (1.017) TYP
PAD HEIGHT
PAD FOOTPRINT DETAIL
MATING FACE
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.100 (2.54)
6 7 8 9
1 2 3 4 5
.0125 (3.18) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.175
(4.45)
1 1 1 1 1 1
9 0 1 2 3 4 5
1 2 3 4 5 6 7 8
.092 (2.34)
.270 (6.86)
.092 (2.34)
.345
(8.76)
2X, Ø.070 (1.78) THRU
2X Ø.070 (1.78) THRU
9 Contacts
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.250 (6.35)
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
15 Contacts
.300 (7.62)
D
1 1 1 1 1 1 1 1 2 2
2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1
0 1
.092 (2.34)
.420 (10.67)
.142 (3.61)
1 1 1 1 1 1 2 2 2 2 2 2
4 5 6 7 8 9 0 1 2 3 4 5
1
1 2 3 4 5 6 78 9 1 1 1 1
0 2 3
.092 (2.34)
.470 (11.94)
2X Ø.070 (1.78) THRU
2X Ø.070 (1.78) THRU
21 Contacts
25 Contacts
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.375 (9.53)
1 1 1 2 2 2 2 2 2 2 2 2 2 3 3
7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1
0 1 2 3 4 5 6
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.092 (2.34)
.142 (3.61)
.450 (11.43)
2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1 2 3 4 5 6 7 89 1 1 1 1 1 1 1 1 1 1
0 1 2 3 4 5 6 7 8 9
.092 (2.34)
.545 (13.84)
2X Ø.070 (1.78) THRU
.620 (15.75)
2X Ø.070 (1.78) THRU
31 Contacts
D-95
37 Contacts
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 89
Dual Row Connectors
Front Panel Mount, Right Angle Surface Mount PCB
Receptacle - PCB Pad Footprint
.016 (.41) TYP
PAD WIDTH
.040 (1.017) TYP
PAD HEIGHT
PAD FOOTPRINT DETAIL
MATING FACE
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.500 (12.7)
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.092 (2.34)
.142 (3.61)
.625 (15.88)
2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4
2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 8 1 2 2
0 1 2 3 4 5 6 7 9 0 1
2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5 5
7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6
.092 (2.34)
.670 (17.02)
2X Ø.070 (1.78) THRU
.795 (20.19)
2X Ø.070 (1.78) THRU
41 Contacts
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.800 (20.32)
51 Contacts
3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6
4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
3
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 3 1 3 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 2 3
.092 (2.34)
65 Contacts
2X Ø.070 (1.78) THRU
.970 (24.64)
.0125 (.32) TYP
.025 (.64) TYP
.085 (2.16)
.142 (3.61)
.850 (21.59)
D
.092 (2.34)
3 3 3 34 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6
6 7 8 90 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9
3
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 5
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4
2X Ø.070 (1.78) THRU
1.020 (25.91)
69 Contacts
.0125 (.32) TYP
.025 (.64) TYP
.098 (2.49)
.164 (4.17)
1.050 (26.67)
4 4 4 4 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 8 8 8 8 8 8
4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5
2
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 5 2 2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3
.114 (2.90)
85 Contacts
2X Ø.096 (2.44) THRU
1.246 (31.65)
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • Series 89 Nanominiature Catalog
U.S. CAGE code 06324/0CA77 • Dimensions in Inches (millimeters) are subject to change without notice.
D-96
