54174J/B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 54174J/B

54174J/B: DescriptionD Flip-Flop; Categorylogic; File Size1MB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

54174J/B Overview

D Flip-Flop

54174J/B Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	,
Reach Compliance Code	unknown
Logic integrated circuit type	D FLIP-FLOP
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

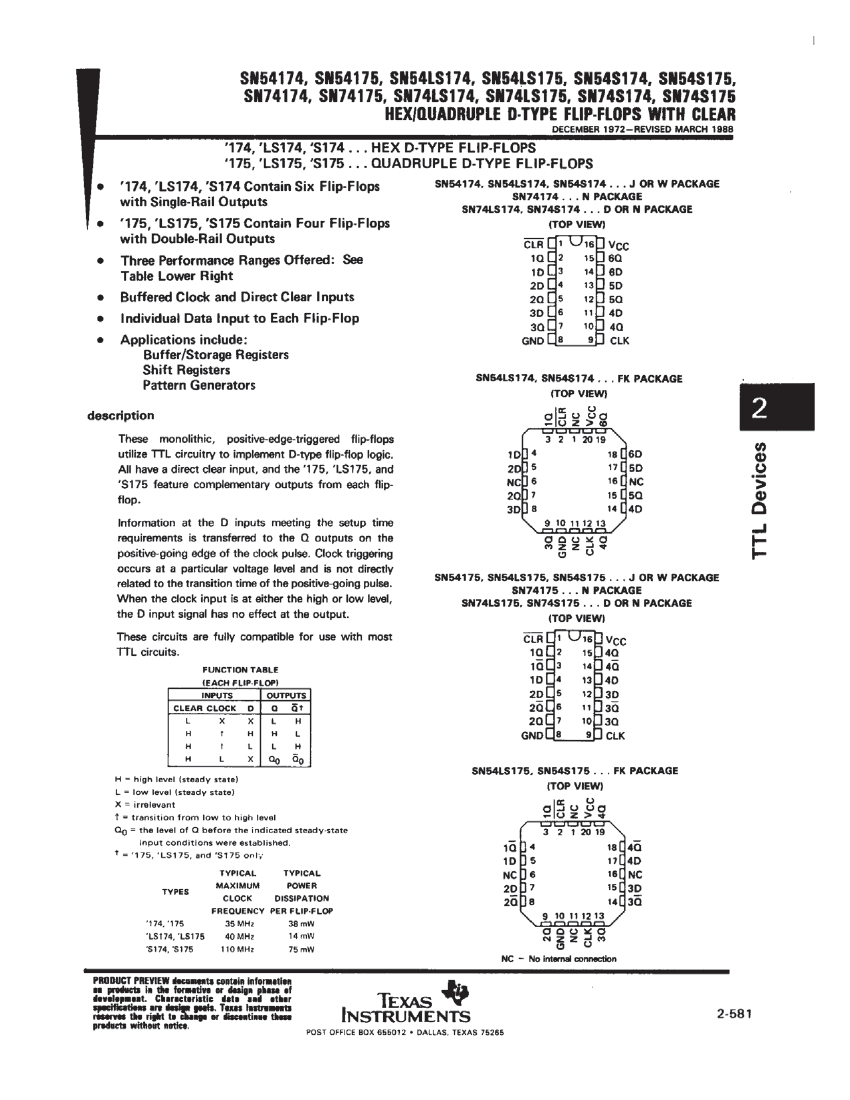

SN54174, SN54175, SN54LS174, SN54LS175, SN54S174, SN54S175

SN74174, SN74175, SN74LS174, SN74LS175, SN74S174, SN74S175

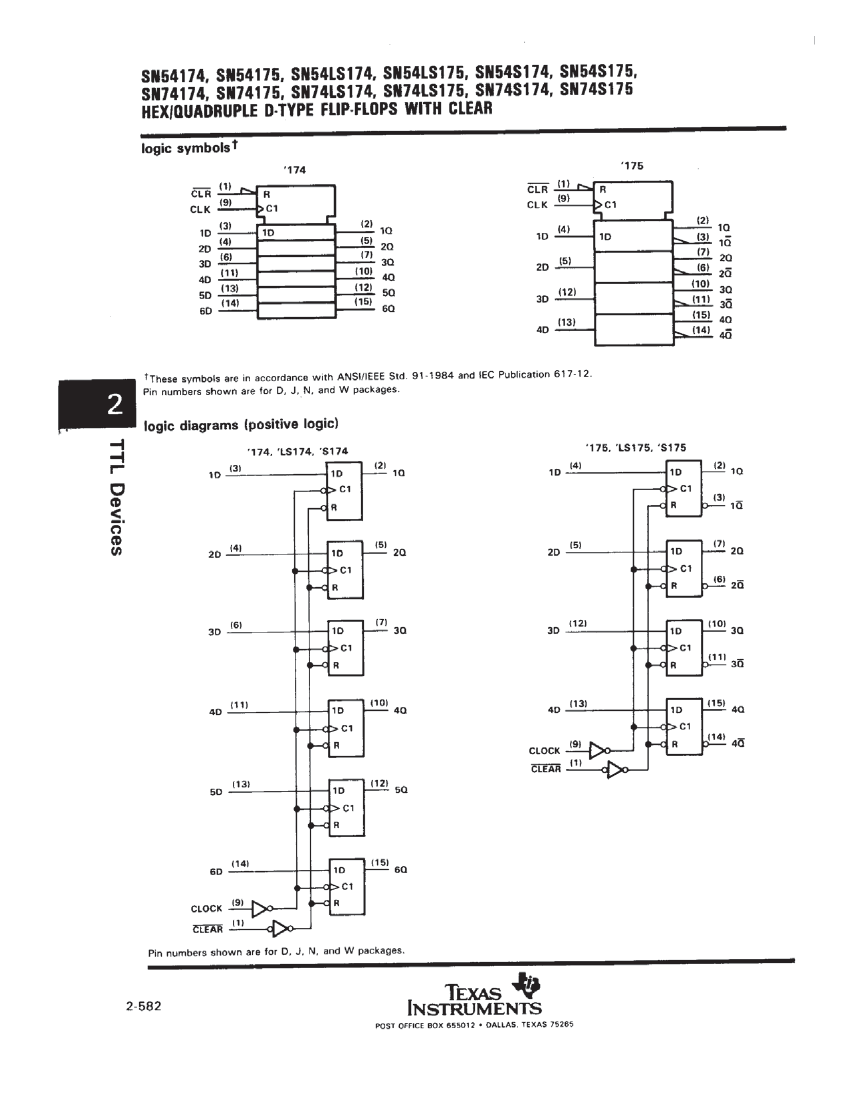

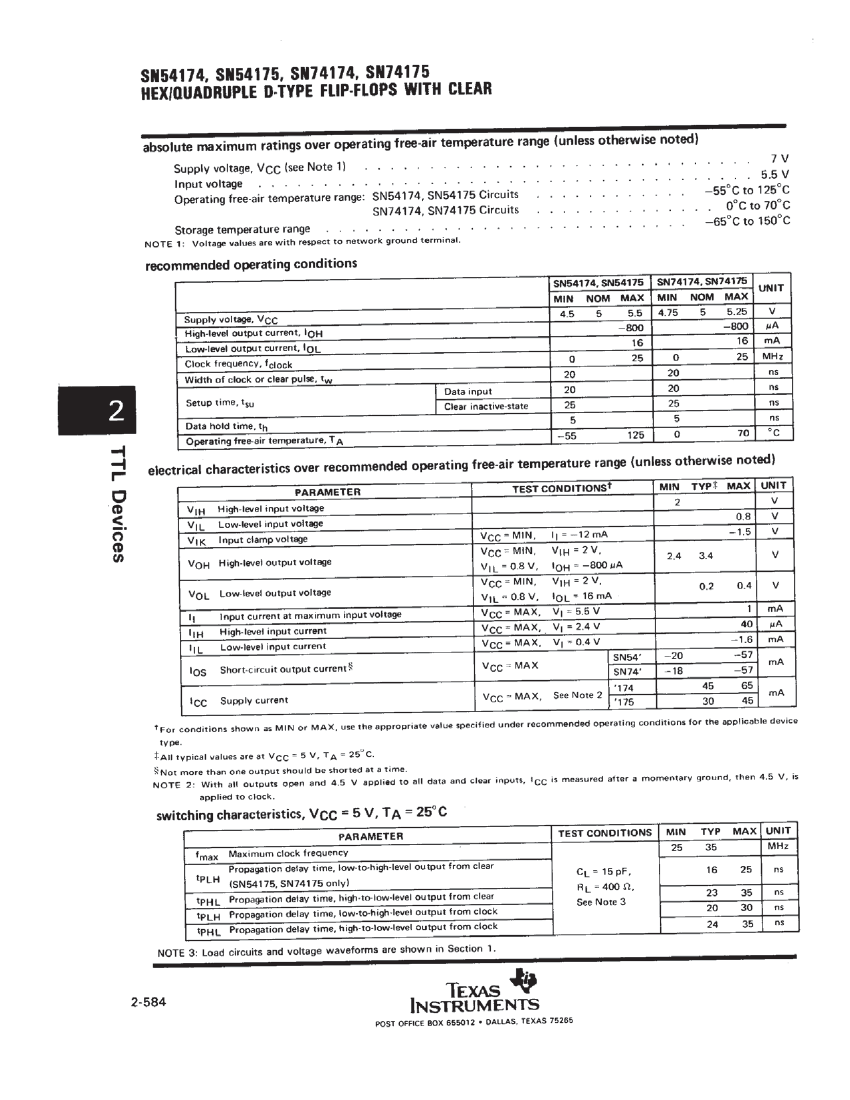

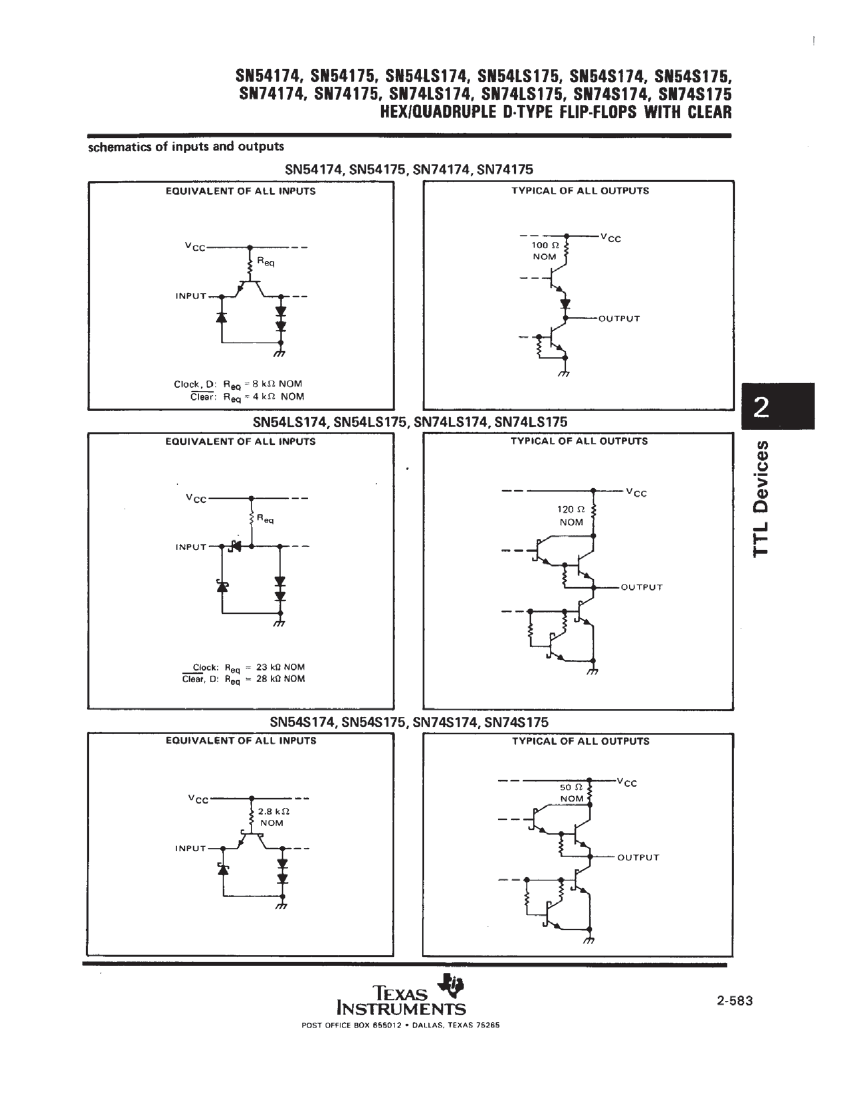

Hex/Quadruple D-Type Flip-Flops with Clear

These monolithic, positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop

logic. All have a direct clear input, and the ‘175, ‘LS175, and ‘S175 feature complementary outputs

from each flip-flop.

Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the

positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not

directly related to the transition time of the positive-going pulse. When the clock input is at either the

high or low level, the D input signal has no effect at the output.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

• Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com
