85HFL10S02PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> 85HFL10S02PBF

85HFL10S02PBF: DescriptionRectifier Diode, 1 Phase, 1 Element, 85A, 100V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN; Categorydiode Rectifier diode; File Size4MB，10 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

85HFL10S02PBF Overview

Rectifier Diode, 1 Phase, 1 Element, 85A, 100V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN

85HFL10S02PBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	DO-5
package instruction	O-MUPM-D1
Contacts	1
Reach Compliance Code	compliant
Other features	FREE WHEELING DIODE
application	FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.75 V
JEDEC-95 code	DO-203AB
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	1369 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	85 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

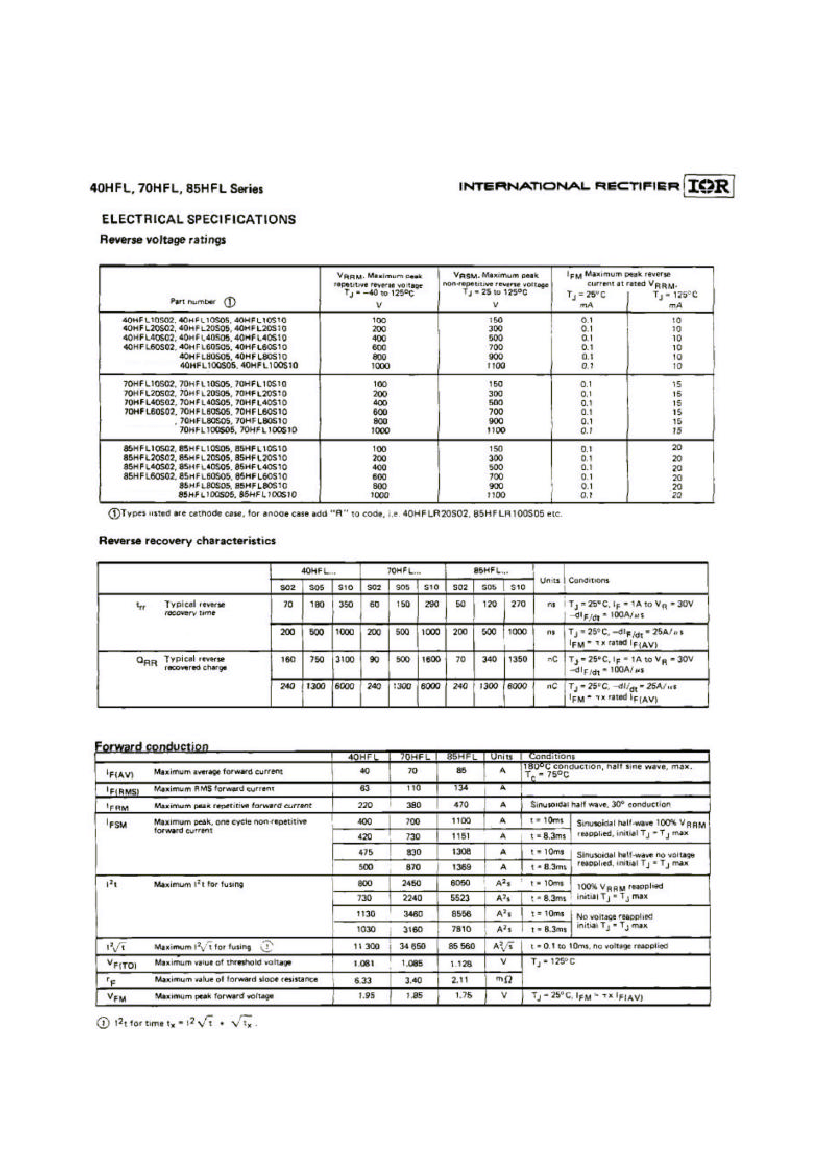

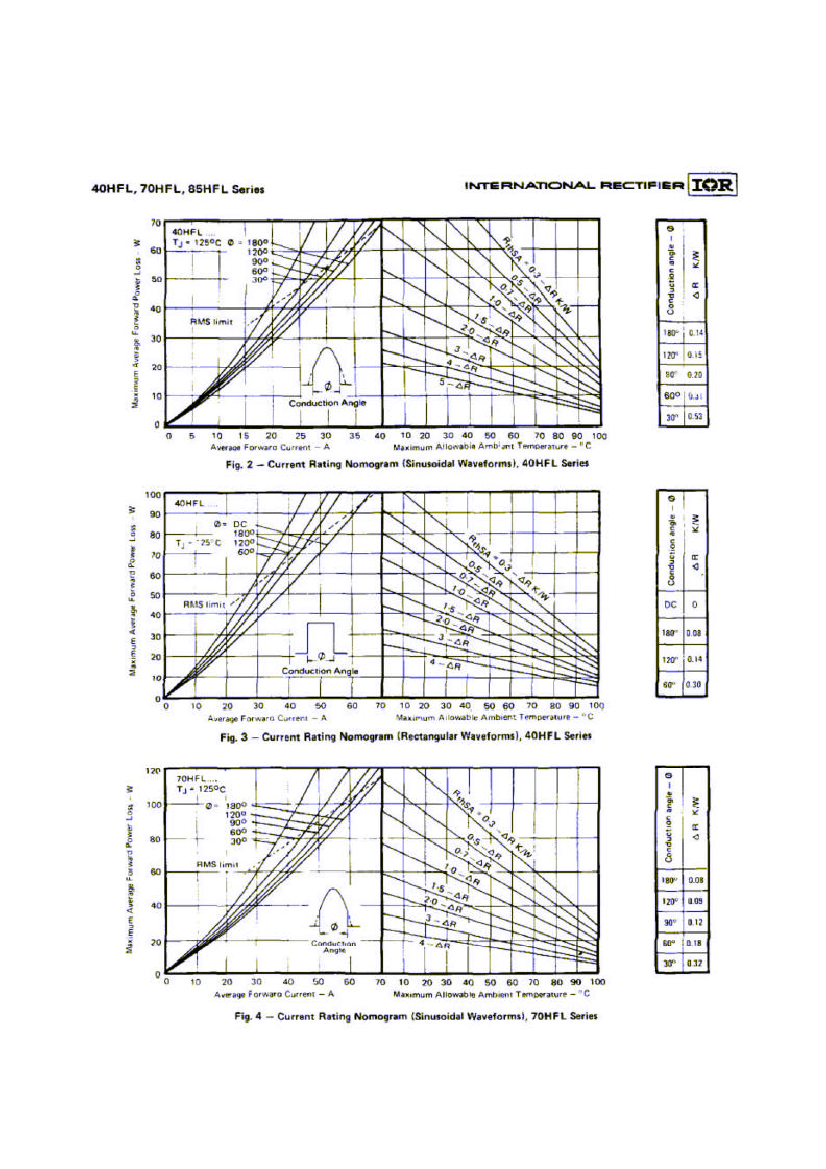

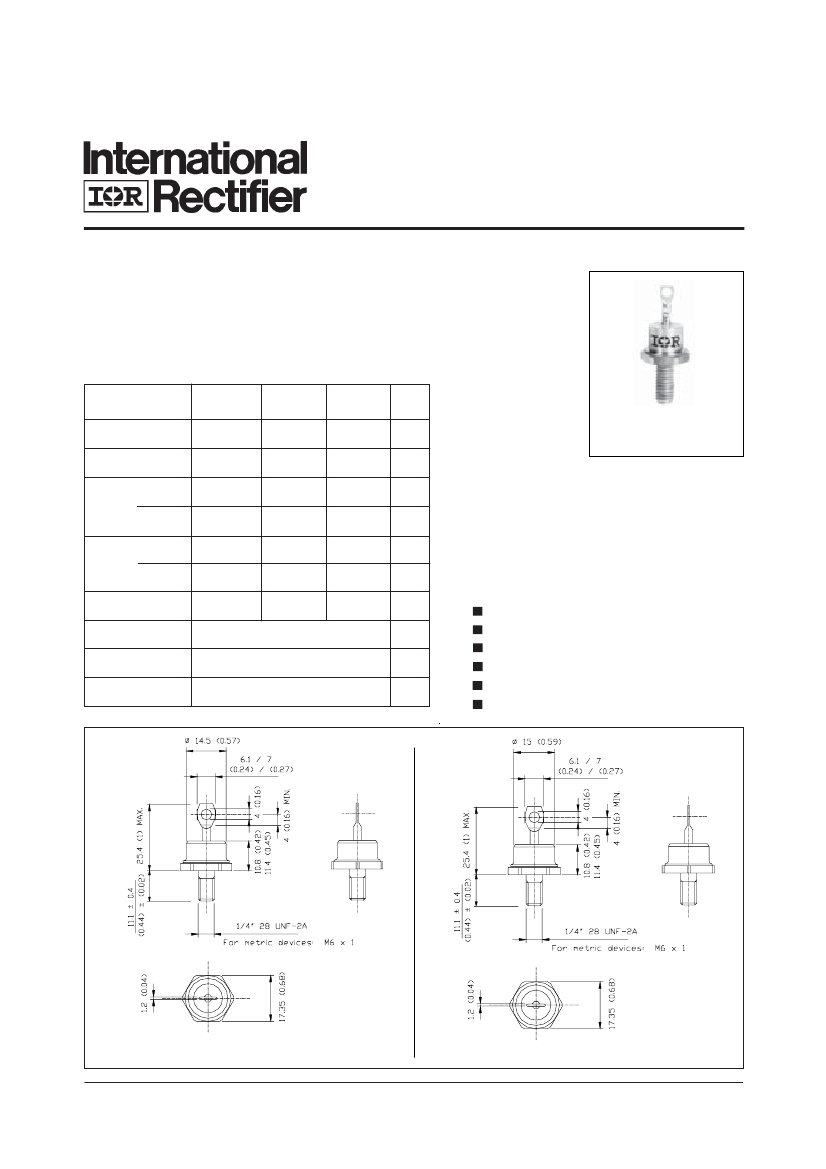

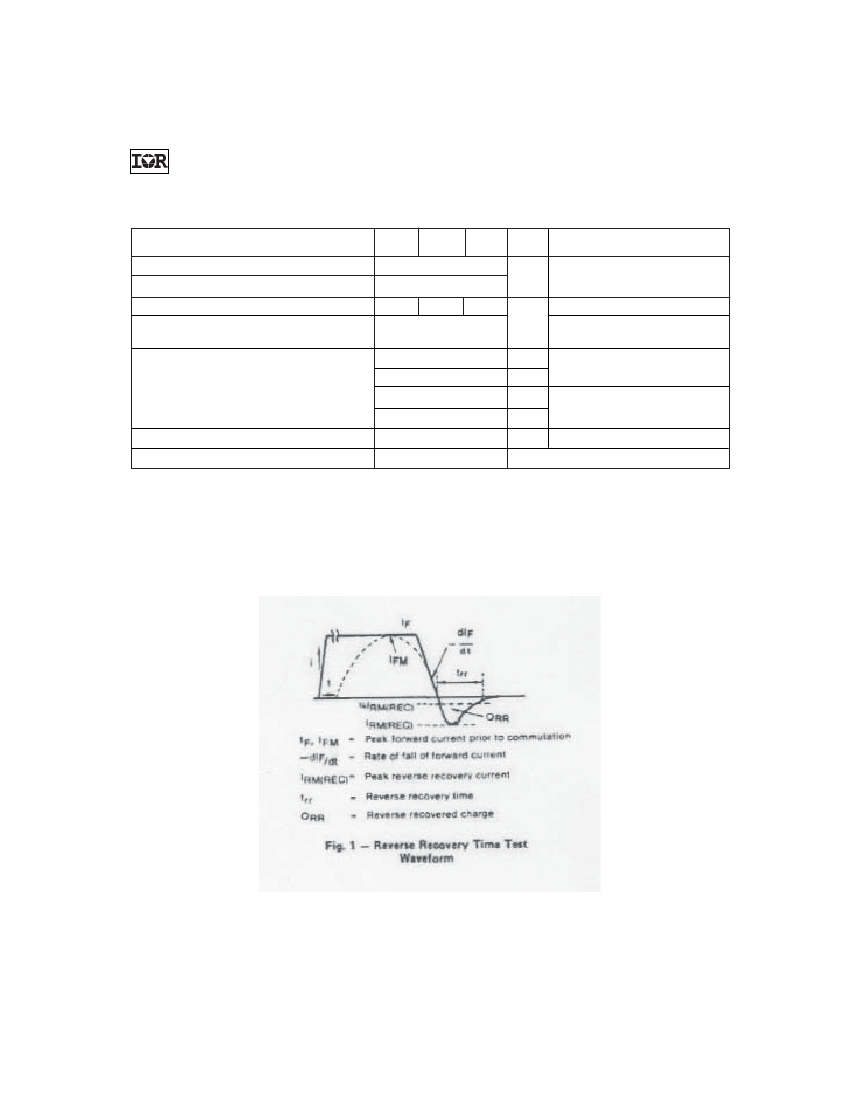

Bulletin PD-2.093 revC

01/05

40HFL, 70HFL, 85HFL SERIES

FAST RECOVERY DIODES

Stud Version

Major Ratings and Characteristics

Parameters

F(AV)

@ Max Tc

FSM

@ 50Hz

@ 60Hz

@ 50Hz

@ 60Hz

√t

RRM

range

40HFL

400

420

800

730

11300

70HFL

700

730

2450

2240

34650

100 to 1000

see table

- 40 to 125

85HFL

1100

1151

6050

5523

85560

Units

√s

°C

case style

DO-203AB (DO-5)

Description

This range of fast recovery diodes is

designed for applications in DC power

supplies, inverters, converters, choppers,

ultrasonic systems and for use as a free

wheeling diode.

Features

Short reverse recovery time

Low stored charge

Wide current range

Excellent surge capabilities

Stud cathode and stud anode versions

Types up to 1000V

RRM

40HFL/ 70HFL

85HFL
