5962-9099604MXA datasheet, PDF

Datasheet> All Categories > Microcontrollers and processors> 5962-9099604MXA

5962-9099604MXA: DescriptionMultiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64; CategoryMicrocontrollers and processors; File Size280KB，8 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric Compare View All

5962-9099604MXA Overview

Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64

5962-9099604MXA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LOGIC Devices
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ
boundary scan	NO
External data bus width	12
JESD-30 code	R-CDIP-T64
JESD-609 code	e0
length	81.28 mm
low power mode	NO
Humidity sensitivity level	3
Number of terminals	64
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	27
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	3.81 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	22.86 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
Base Number Matches	1

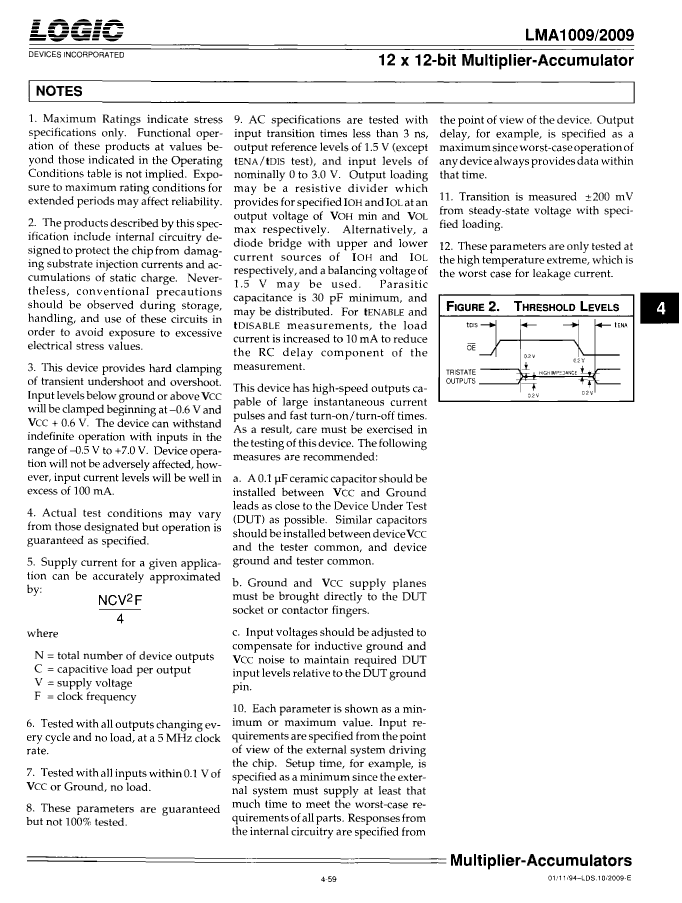

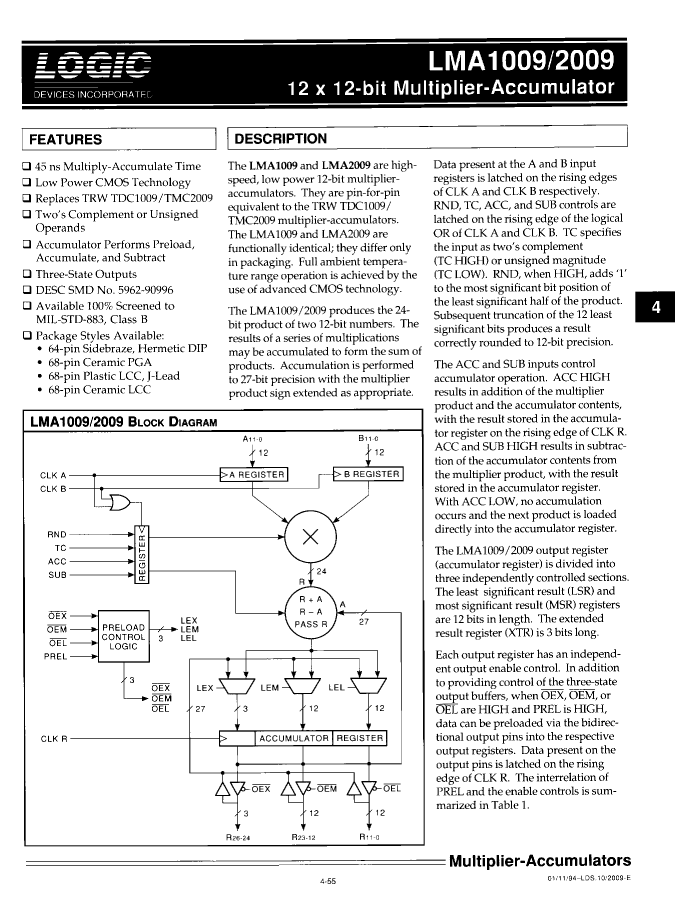

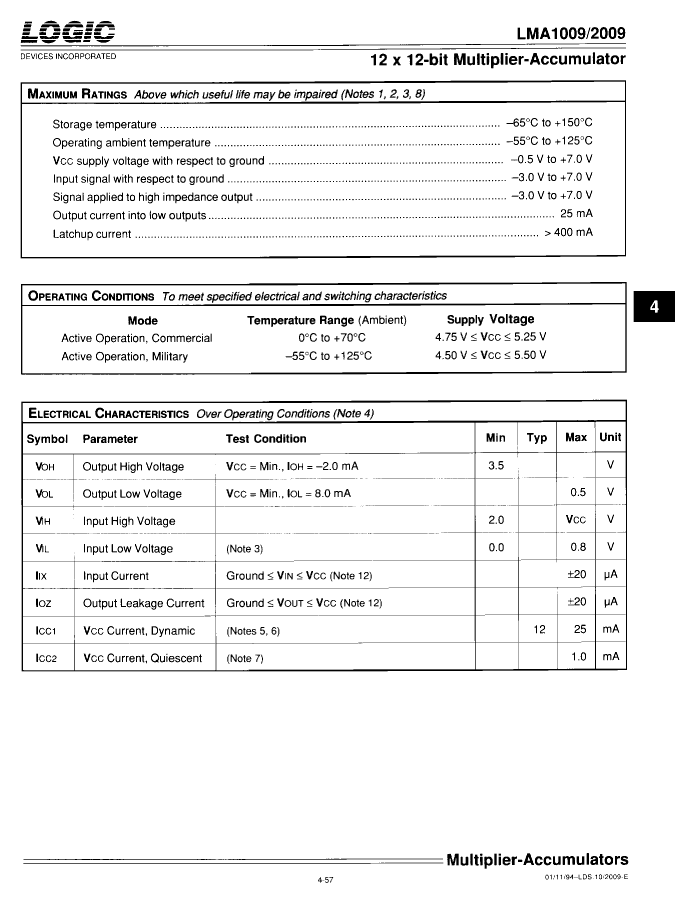

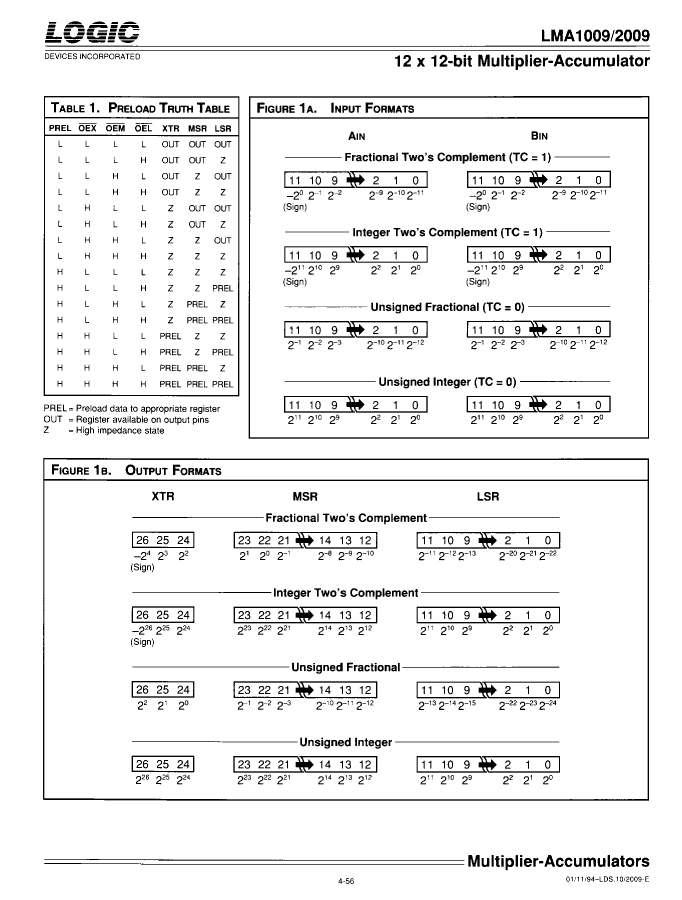

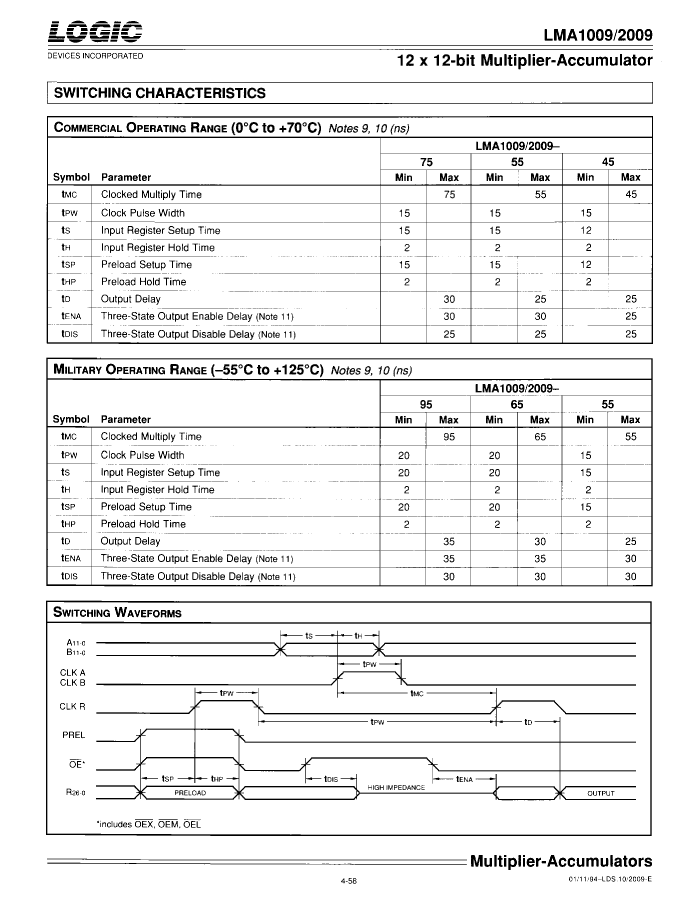

Preview

Download Datasheet

View All

5962-9099604MXA Related Products

	5962-9099604MXA	5962-9099604MYA	5962-9099602MUA	5962-9099603MXA	5962-9099603MYA	5962-9099602MYA	5962-9099603MUA	5962-9099604MUA	LMA2009KC75	5962-9099602MXA
Description	Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CDIP64	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CPGA68	Multiplier Accumulator/Summer, 12-Bit, CMOS, CQCC68, 0.950 X 0.950 INCH, CERAMIC, LCC-68	Multiplier Accumulator/Summer, 12-Bit, CMOS, 3.240 X 0.920 INCH, 0.225 INCH HEIGHT, DIP-64
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP,	QCCN,	PGA,	DIP,	QCCN,	QCCN,	PGA,	PGA,	QCCN, LCC68,.95SQ	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS; ICC SPECIFIED @ 5MHZ	2 X 12 BIT DATA INPUT BUS
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
External data bus width	12	12	12	12	12	12	12	12	12	12
JESD-30 code	R-CDIP-T64	S-CQCC-N68	S-CPGA-P68	R-CDIP-T64	S-CQCC-N68	S-CQCC-N68	S-CPGA-P68	S-CPGA-P68	S-CQCC-N68	R-XDIP-T64
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
low power mode	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	3	3	3	3	3	3	3	3	3	3
Number of terminals	64	68	68	64	68	68	68	68	68	64
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Output data bus width	27	27	27	27	27	27	27	27	27	27
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
encapsulated code	DIP	QCCN	PGA	DIP	QCCN	QCCN	PGA	PGA	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	GRID ARRAY	IN-LINE	CHIP CARRIER	CHIP CARRIER	GRID ARRAY	GRID ARRAY	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	PIN/PEG	THROUGH-HOLE	NO LEAD	NO LEAD	PIN/PEG	PIN/PEG	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	QUAD	PERPENDICULAR	DUAL	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER	DSP PERIPHERAL, MULTIPLIER ACCUMULATOR/SUMMER
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C
length	81.28 mm	24.1935 mm	29.4386 mm	81.28 mm	24.1935 mm	24.1935 mm	29.4386 mm	29.4386 mm	24.13 mm	-
Maximum seat height	3.81 mm	3.048 mm	3.81 mm	3.81 mm	3.048 mm	3.048 mm	3.81 mm	3.81 mm	3.048 mm	-
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	-
width	22.86 mm	24.1935 mm	29.4386 mm	22.86 mm	24.1935 mm	24.1935 mm	29.4386 mm	29.4386 mm	24.13 mm	-
Base Number Matches	1	1	1	1	1	1	1	1	-	-
