Datasheet> All Categories > The connector> 87746-5092

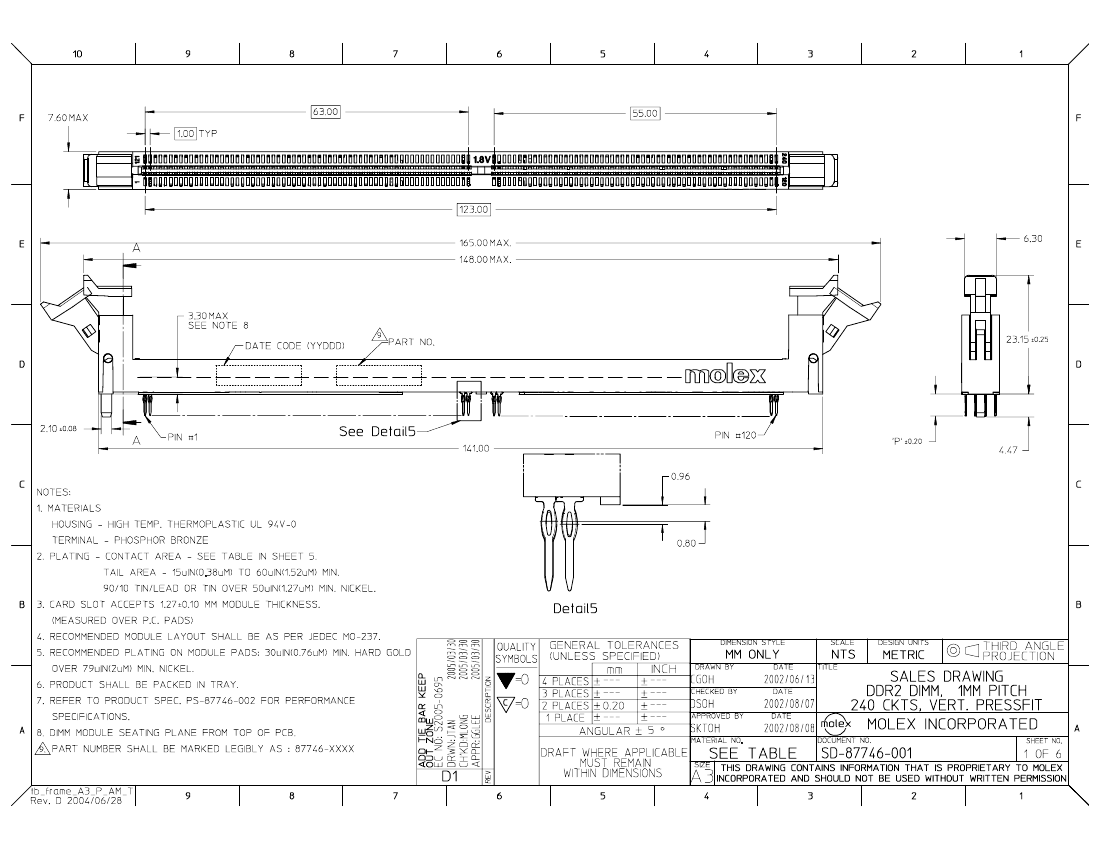

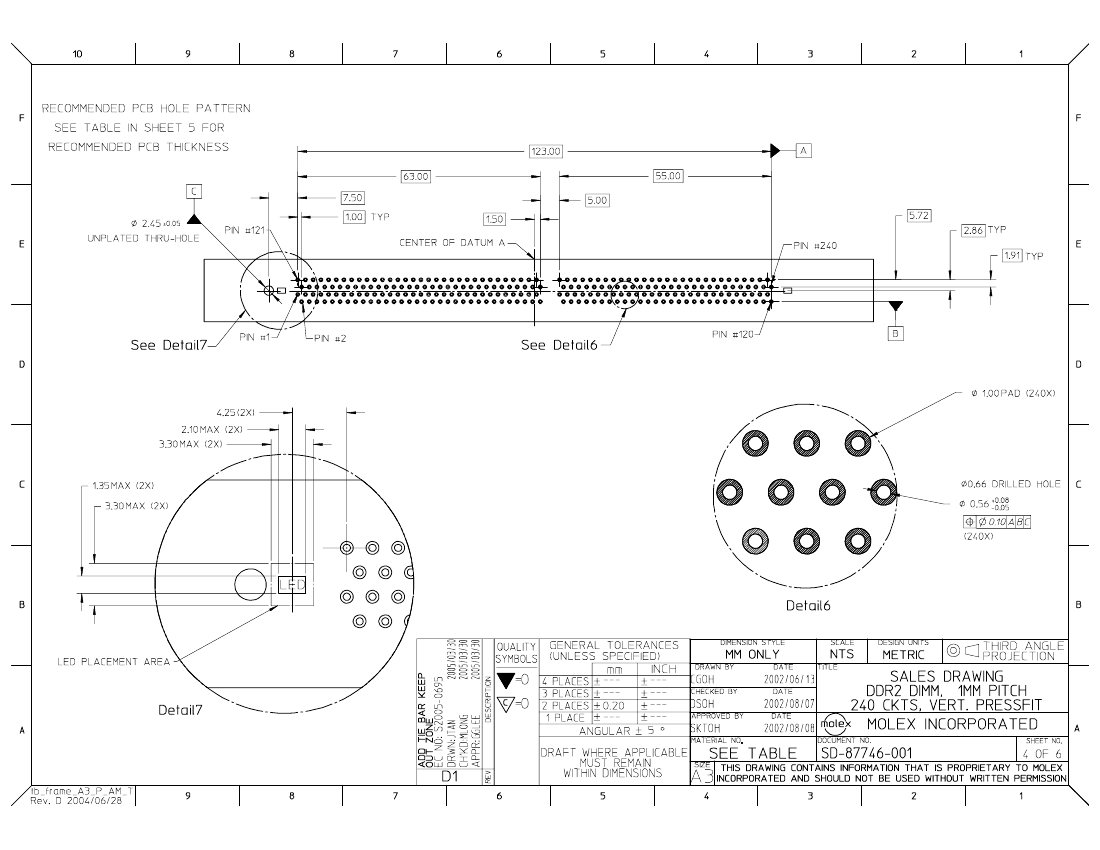

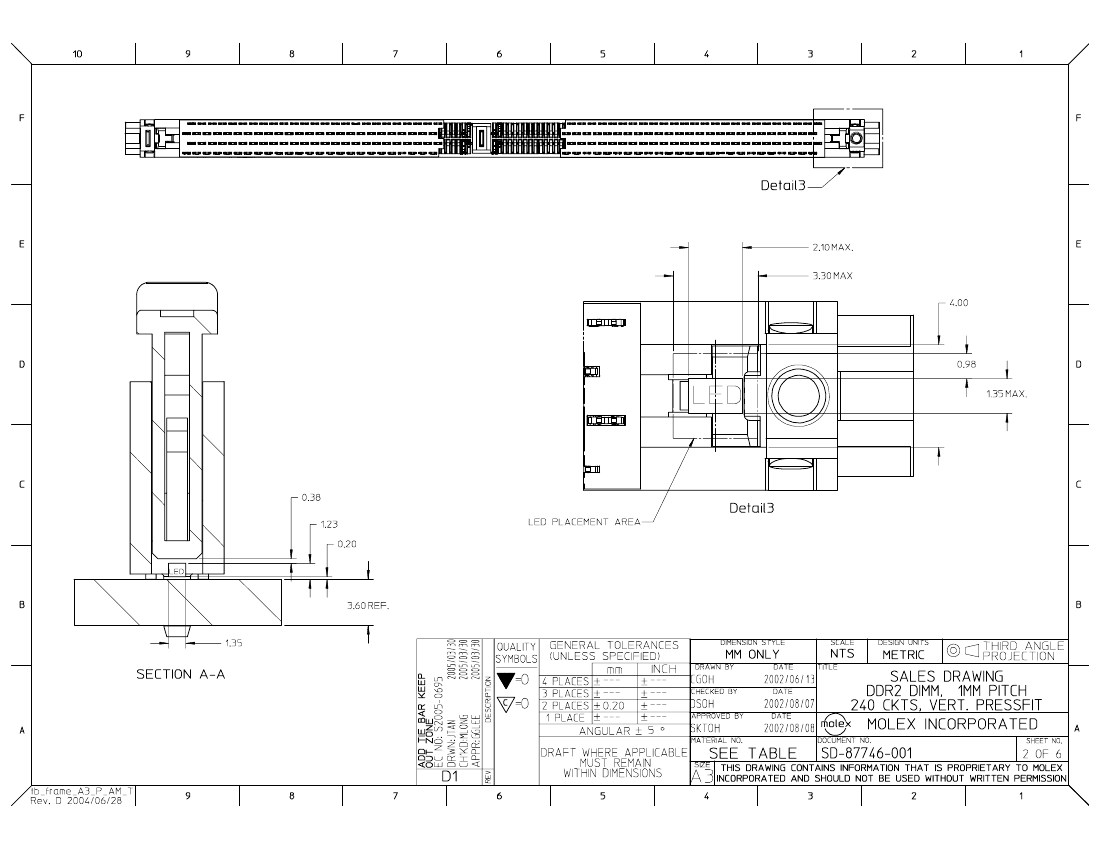

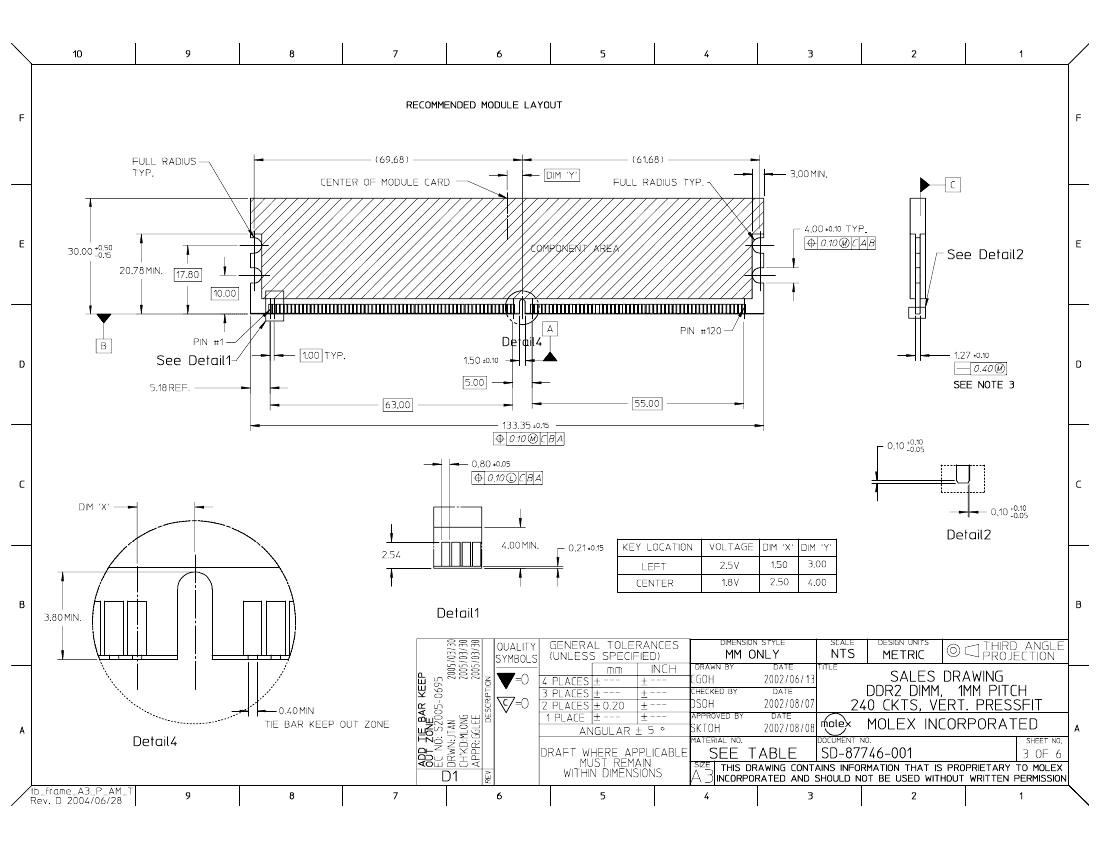

Preview

87746-5092: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal; CategoryThe connector; File Size460KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87746-5092 Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal

87746-5092 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	LATCHED, POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87746
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	PRESS FIT
Total number of contacts	240
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

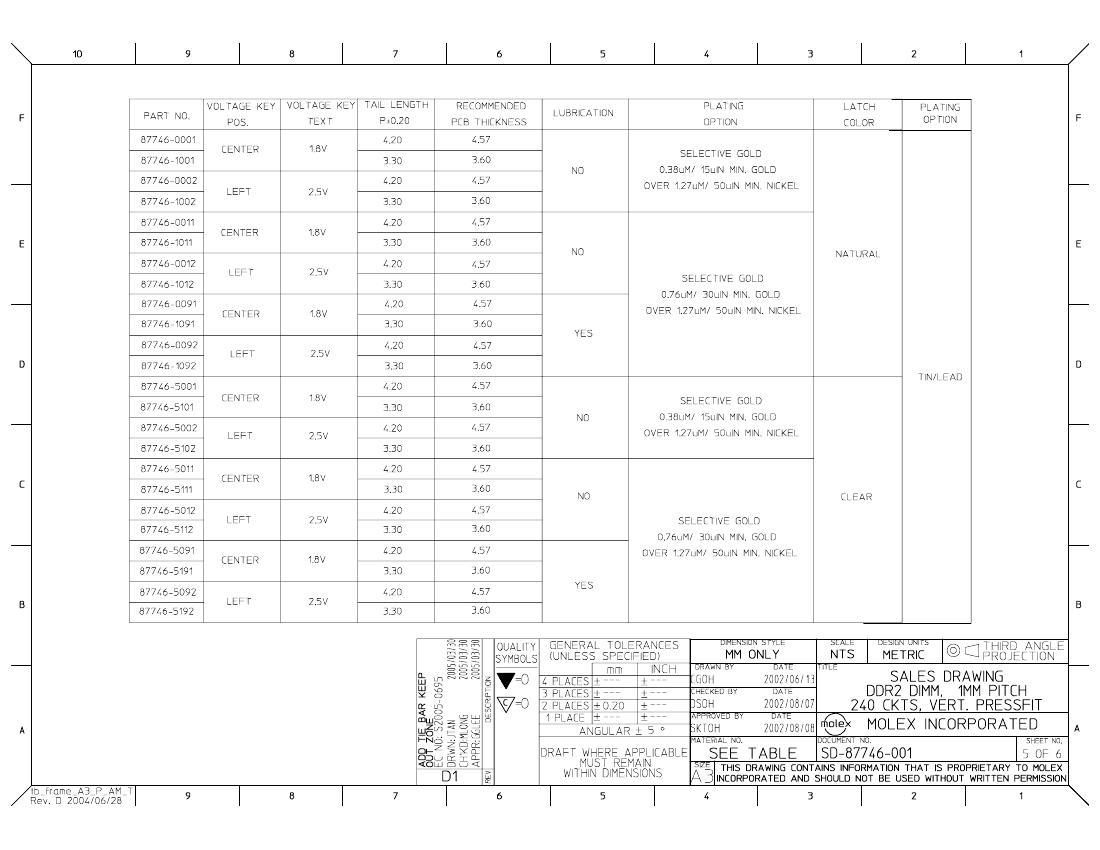

87746-5092 Related Products

	87746-5092	87746-0092	87746-1092	87746-5192	87746-5292	87746-5392	87746-8092	87746-9092
Description	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal	Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED	LATCHED, POLARIZED
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87746	87746	87746	87746	87746	87746	87746	87746
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	240	240	240	240	240	240	240	240
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
