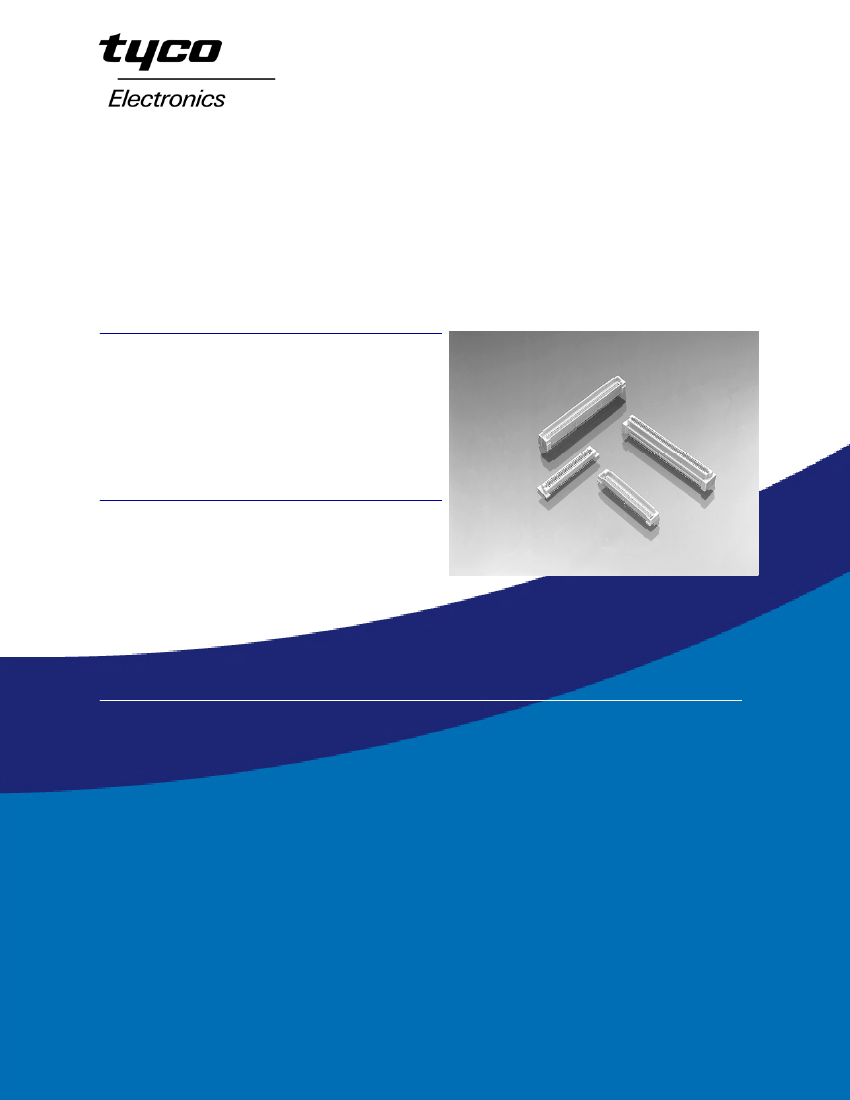

.8mm Free Height (FH)
Connector System
Now offering 30u” Gold Plating Options
and Right Angle Plugs
DESCRIPTION
The popular .8mm FH connector system is
now available with 30u” Gold Plating. In
addition, a right angle plug in 60 and 80
positions is also available. The right angle
plug product is a thru-hole, while the balance
of the product line remains surface mount.
APPLICATION
The 30u” Gold product is intended for stacking
applications in high end Computer,
Telecommunications, Industrial, and Mil/Aero
applications. The right angle plug is ideal for
test cards and card extenders, and mates to
standard vertical receptacles.
KEY FEATURES
• Available Position Sizes: 40 thru 200
positions in increments of 20 positions
• Stack Height Options: 5mm thru 16mm
in increments of 1mm
• Tube, Tube with Pickup Cap, and Tape
and Reel Packaging Options
• Polarized locating posts
• 8u” Gold, and 30u” Gold plating options
• RoHS Compliant numbers available now
• Optional Solder Peg (holddown)
• Right Angle Plugs in 60 and 80 positions
.8mm Free Height (FH)
Connector System
Page 2

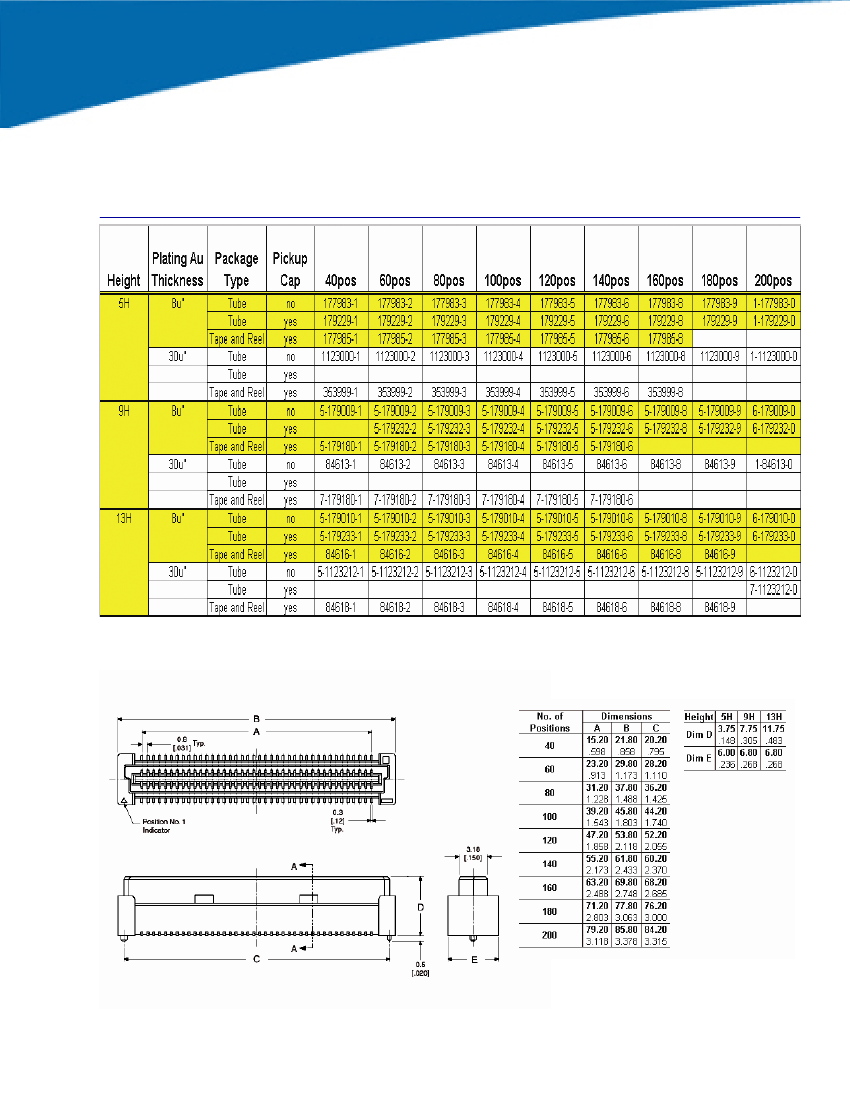

RECEPTACLE PART NUMBERS
Stack Height = ((Rcpt Height + Plug Height) - 5)
example: ((13H Rcpt + 6H Plug) - 5) = ((13 + 6) - 5) = 14mm stack height
.8mm Free Height (FH)
Connector System
Page 3

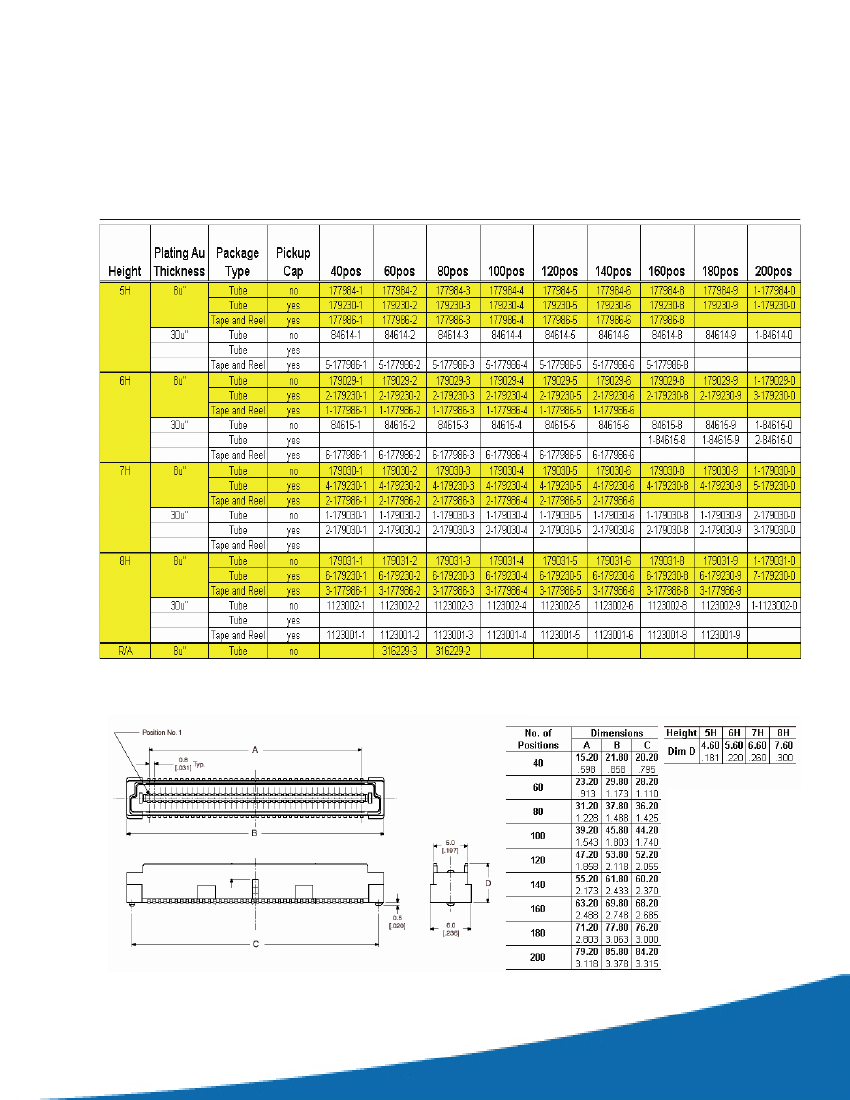

PLUG PART NUMBERS
Stack Height = ((Rcpt Height + Plug Height) - 5)
example: ((13H Rcpt + 6H Plug) - 5) = ((13 + 6) - 5) = 14mm stack height
.8mm Free Height (FH)
Connector System
Page 4

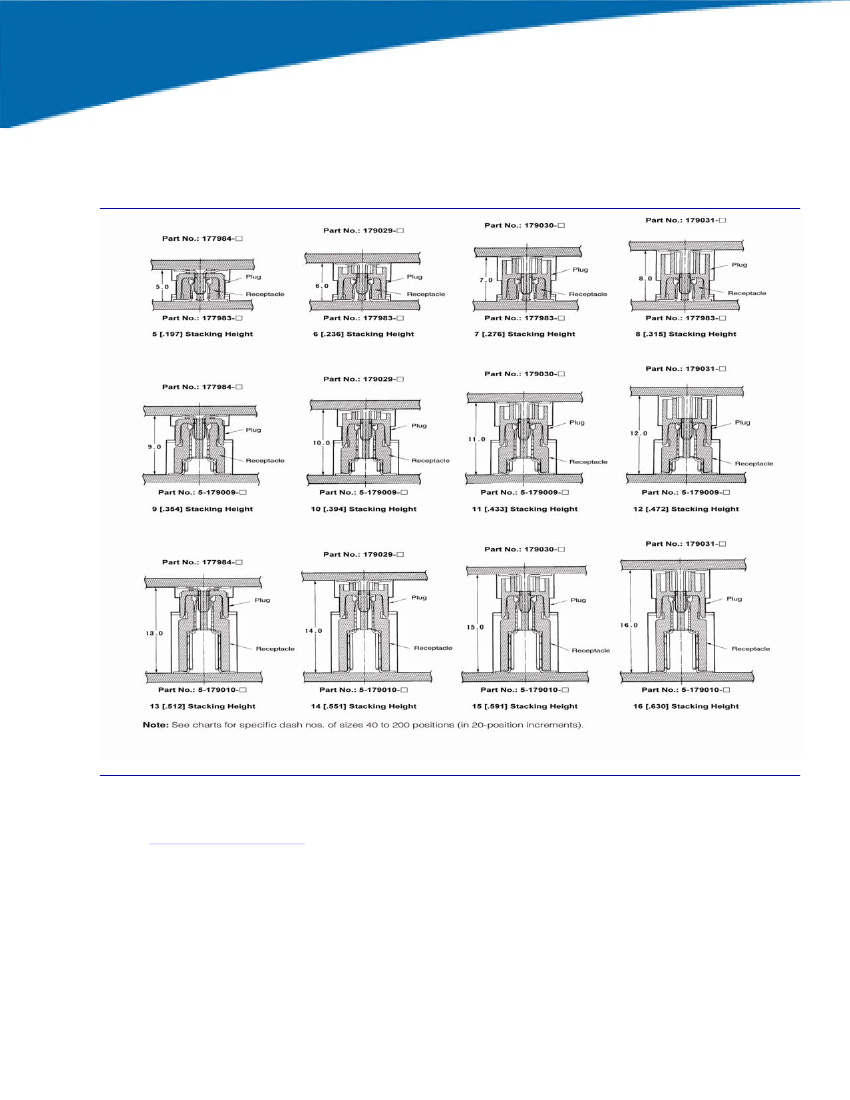

BOARD-TO-BOARD STACKING HEIGHTS
(By Plug/Receptacle Combinations)
FOR MORE INFORMATION
Product Specification: 108-5390
Technical Support
Internet:
http://www.tycoelectronics.com
USA: 1-800-522-6752
John Larkin, Product Manager
Phone: 1-717-592-2074
E-mail: jtlarkin@tycoelectronics.com
