534257-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 534257-9

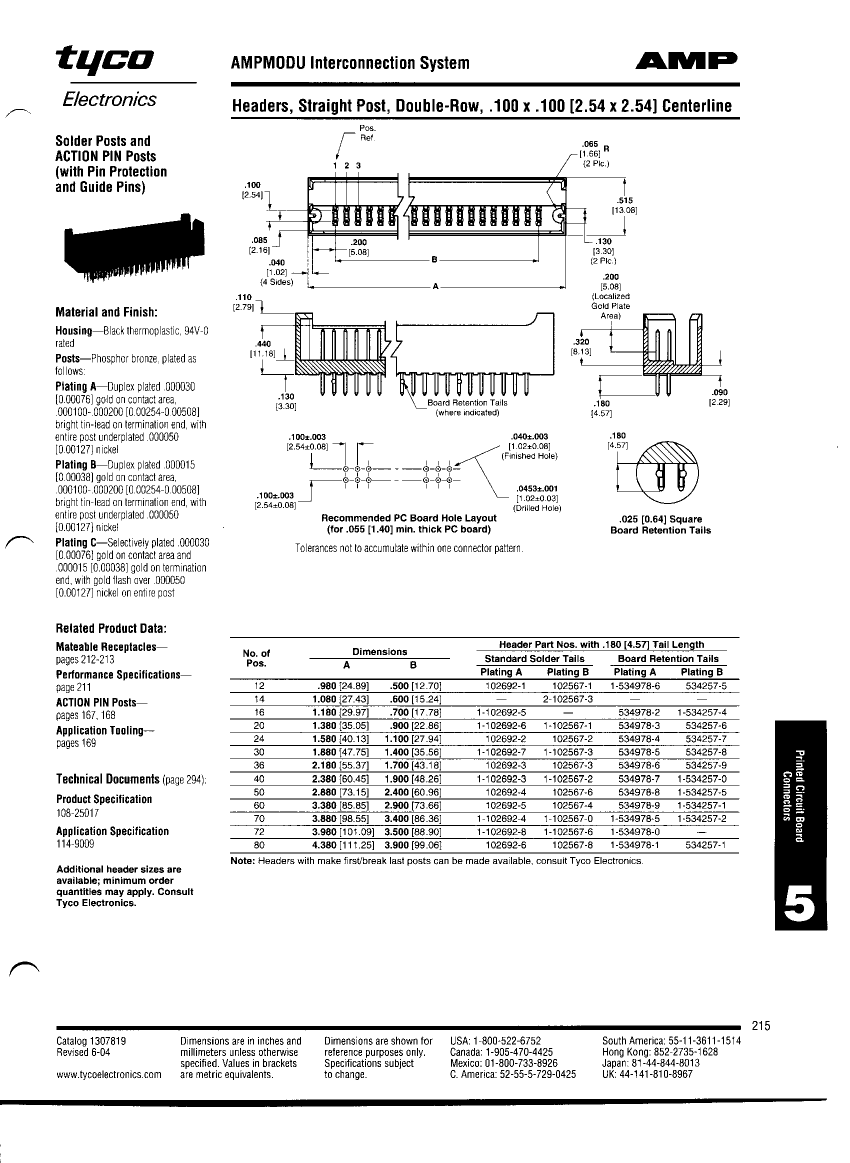

534257-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL; CategoryThe connector; File Size42KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

534257-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL

534257-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.515 inch
subject depth	0.55 inch
body length	2.18 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	75 Cycles
maximum insertion force	1.112 N
Insulation resistance	103000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	534247
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	HOUSING SIDE
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	36
Evacuation force-minimum value	.2085 N
Base Number Matches	1

Preview

Download Datasheet

View All

534257-9 Related Products

	534257-9	1-534257-5	1-534257-4	102692-6	534257-8	534257-6	1-534257-1	534257-1
Description	HEADER CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL	50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT	HEADER CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,60 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,80 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	unknow	compli	compliant	unknown	unknown	unknown
body width	0.515 inch	0.515 inch	0.515 inch	0.515 inch	0.515 inch	0.515 inch	0.515 inch	0.515 inch
subject depth	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch	0.55 inch
body length	2.18 inch	2.88 inch	1.08 inch	4.38 inch	1.88 inch	1.38 inch	3.38 inch	4.38 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ	12 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	75 Cycles	75 Cycles	75 Cycles	200 Cycles	75 Cycles	75 Cycles	75 Cycles	75 Cycles
maximum insertion force	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N	1.112 N
Insulation resistance	103000000 Ω	103000000 Ω	103000000 Ω	103000000 Ω	103000000 Ω	103000000 Ω	103000000 Ω	103000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	534247	534257	534257	102692	534247	534247	534247	534247
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	15u inch	15u inch	15u inch	30u inch	15u inch	15u inch	15u inch	15u inch
polarization key	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE	HOUSING SIDE
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch	0.18 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER KINKED LEADS	PRESS FIT	PRESS FIT	SOLDER	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	36	50	16	80	30	20	60	80
Evacuation force-minimum value	.2085 N	.2085 N	.2085 N	.2085 N	.2085 N	.2085 N	.2085 N	.2085 N
Base Number Matches	1	1	1	1	1	1	1	1
Maker	TE Connectivity	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
