Part Number

Search

74AC646CW

Description
Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, DIE
Categorylogic
File Size214KB,10 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

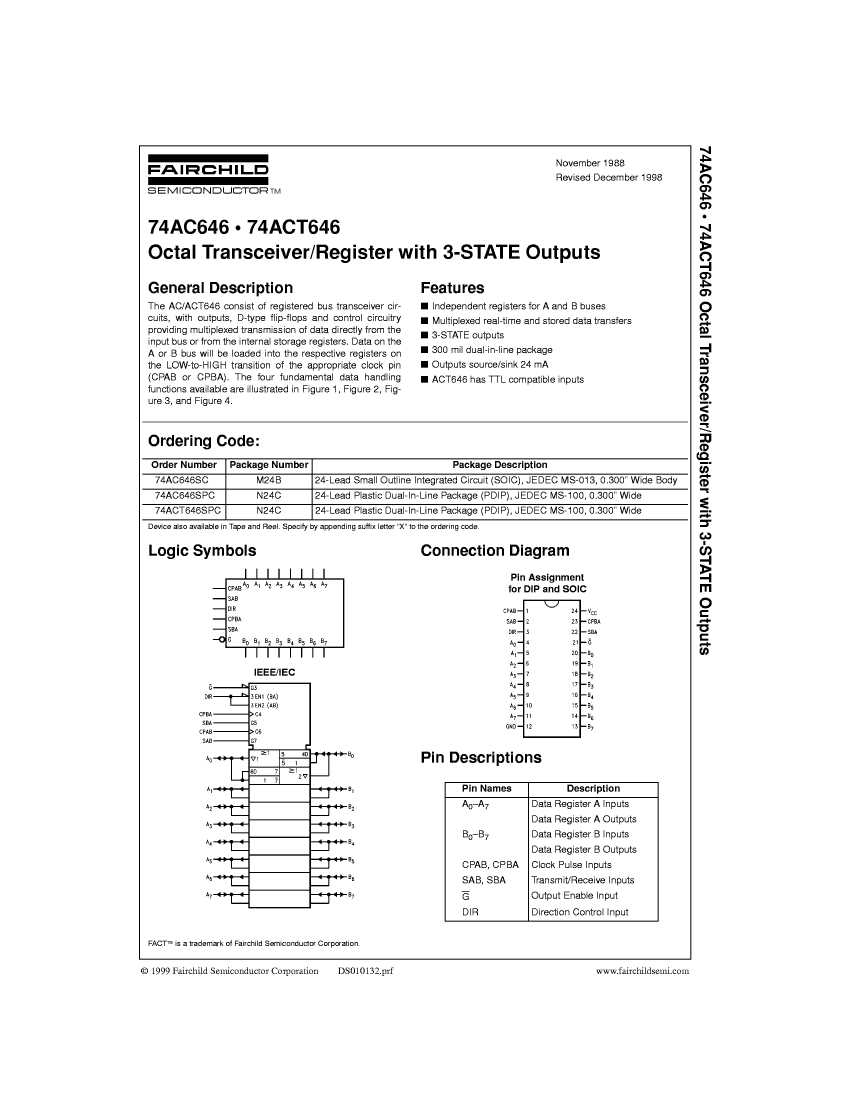

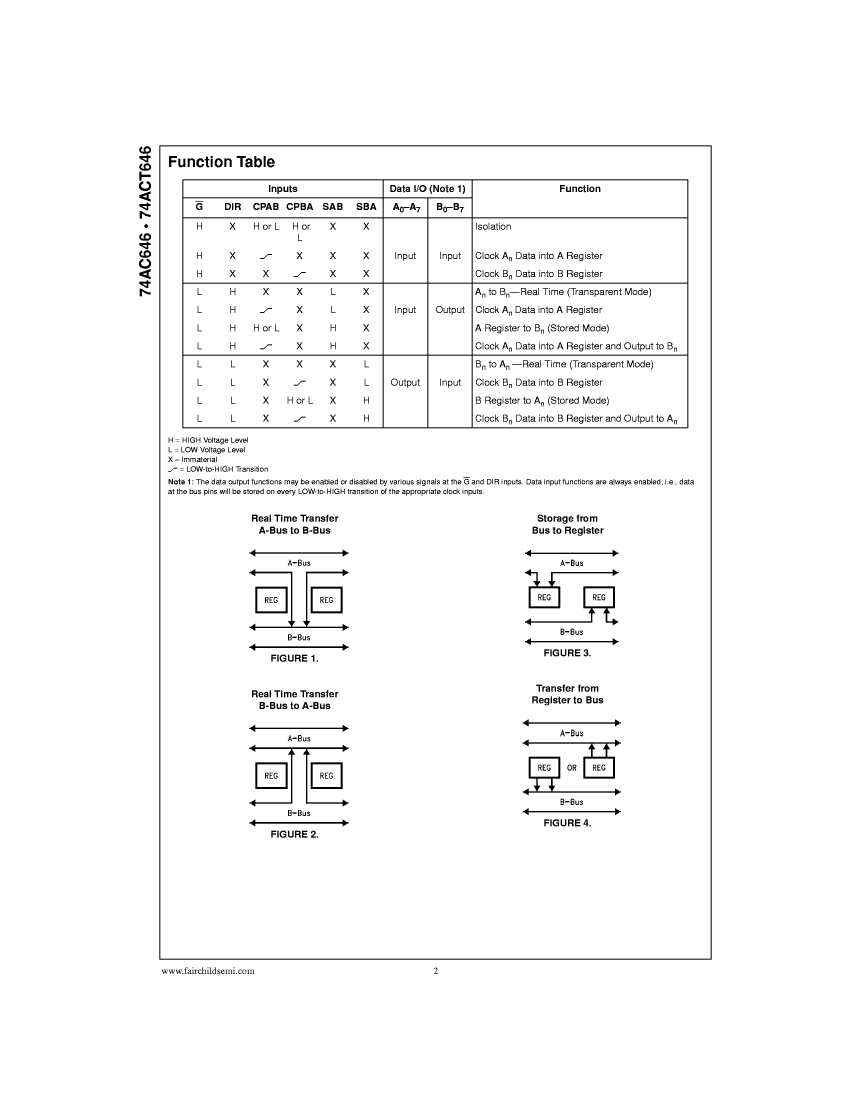

74AC646CW Overview

Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, DIE

74AC646CW Parametric

Parameter NameAttribute value
MakerRochester Electronics
package instructionDIE,
Reach Compliance Codeunknown
seriesAC
JESD-30 codeR-XUUC-N24
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
Number of digits8
Number of functions1
Number of ports2
Number of terminals24
Output characteristics3-STATE
Output polarityTRUE
Package body materialUNSPECIFIED
encapsulated codeDIE
Package shapeRECTANGULAR
Package formUNCASED CHIP

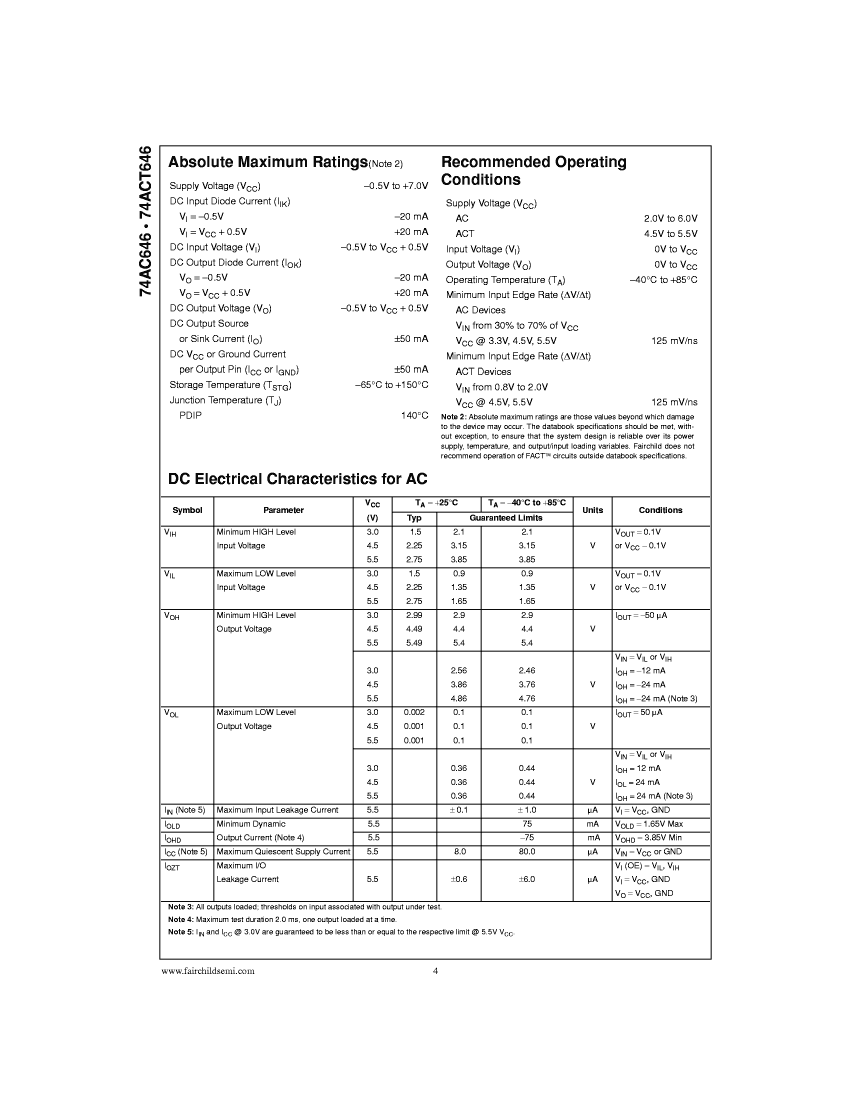

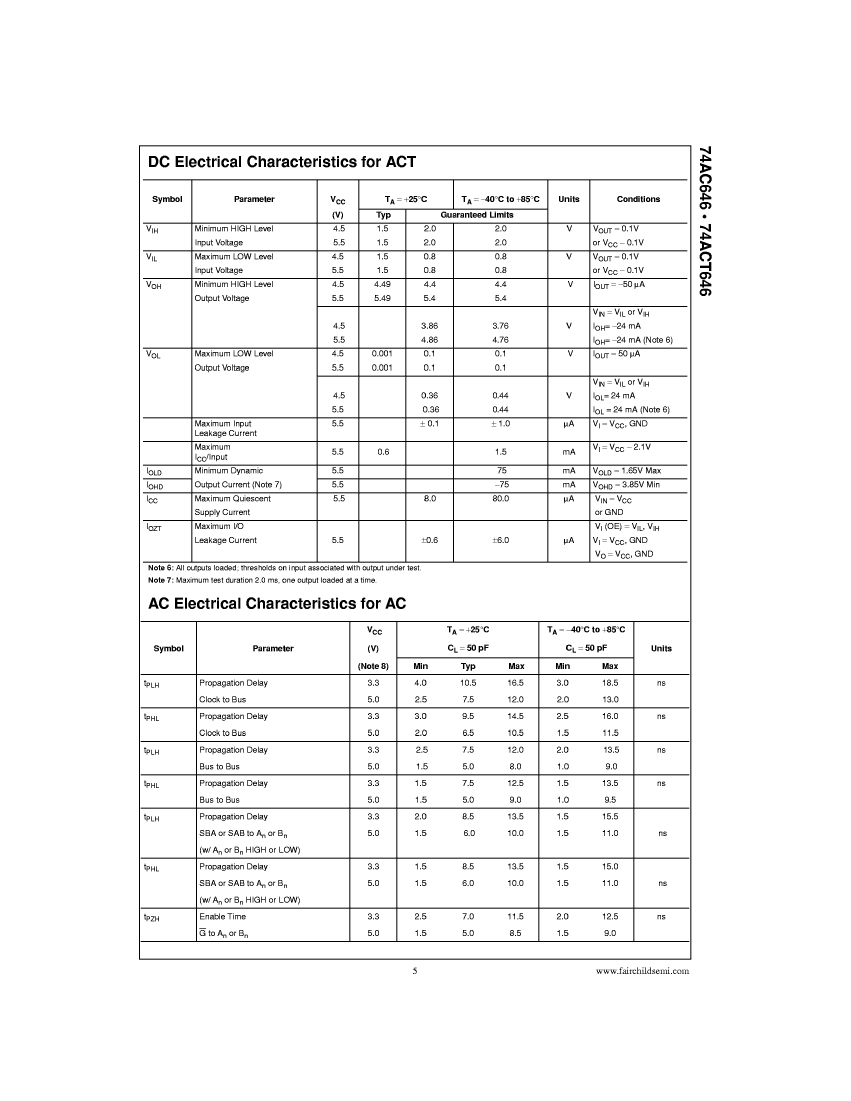

propagation delay (tpd)14.5 ns
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)2 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Terminal formNO LEAD
Terminal locationUPPER
Base Number Matches1

74AC646CW Related Products

74AC646CW 74ACT646CW
Description Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, True Output, CMOS, DIE Registered Bus Transceiver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, DIE
Maker Rochester Electronics Rochester Electronics
package instruction DIE, DIE,
Reach Compliance Code unknown unknown
series AC ACT
JESD-30 code R-XUUC-N24 R-XUUC-N24
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
Number of digits 8 8
Number of functions 1 1
Number of ports 2 2
Number of terminals 24 24
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material UNSPECIFIED UNSPECIFIED
encapsulated code DIE DIE
Package shape RECTANGULAR RECTANGULAR
Package form UNCASED CHIP UNCASED CHIP
propagation delay (tpd) 14.5 ns 14.5 ns
Maximum supply voltage (Vsup) 6 V 5.5 V
Minimum supply voltage (Vsup) 2 V 4.5 V
Nominal supply voltage (Vsup) 3.3 V 5 V
surface mount YES YES
technology CMOS CMOS
Terminal form NO LEAD NO LEAD
Terminal location UPPER UPPER
