8100611EX datasheet, PDF - EEWORLD Datasheet

8100611EX: DescriptionSPDT, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16; CategoryThe signal circuit; File Size242KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

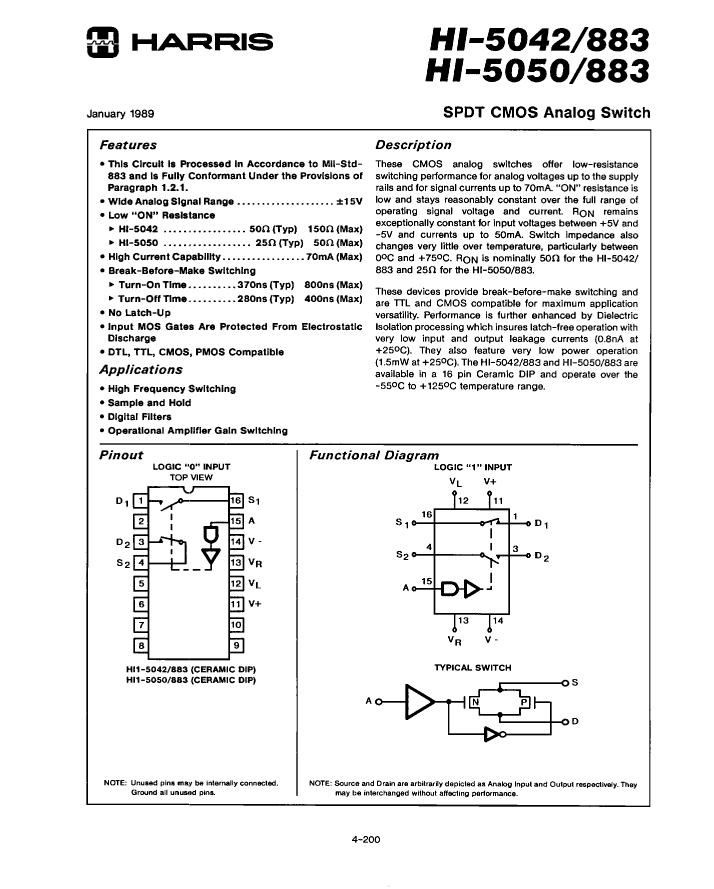

8100611EX Overview

SPDT, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16

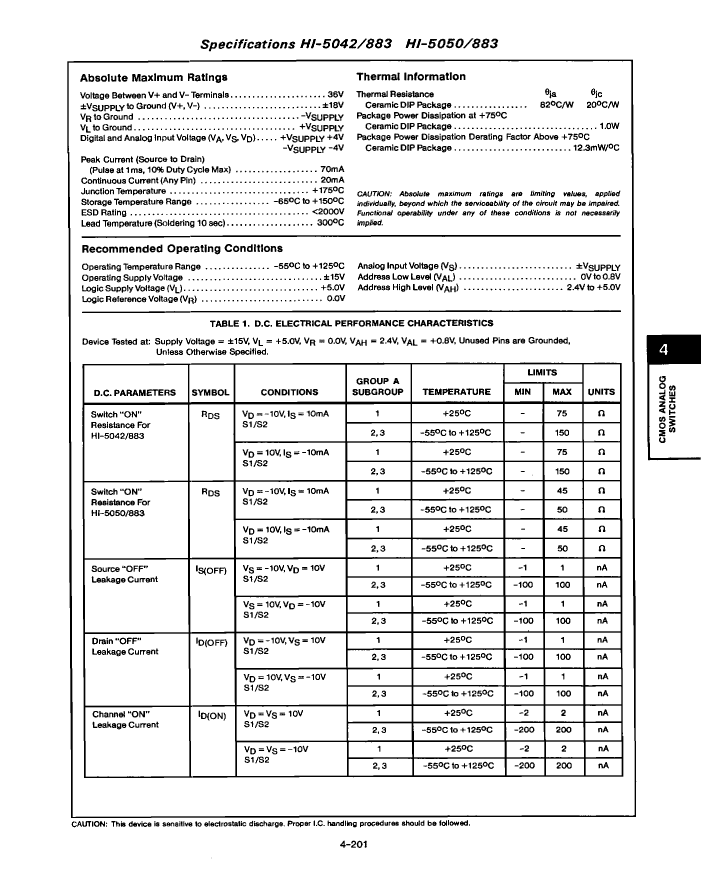

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPDT
JESD-30 code	R-CDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	16
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO

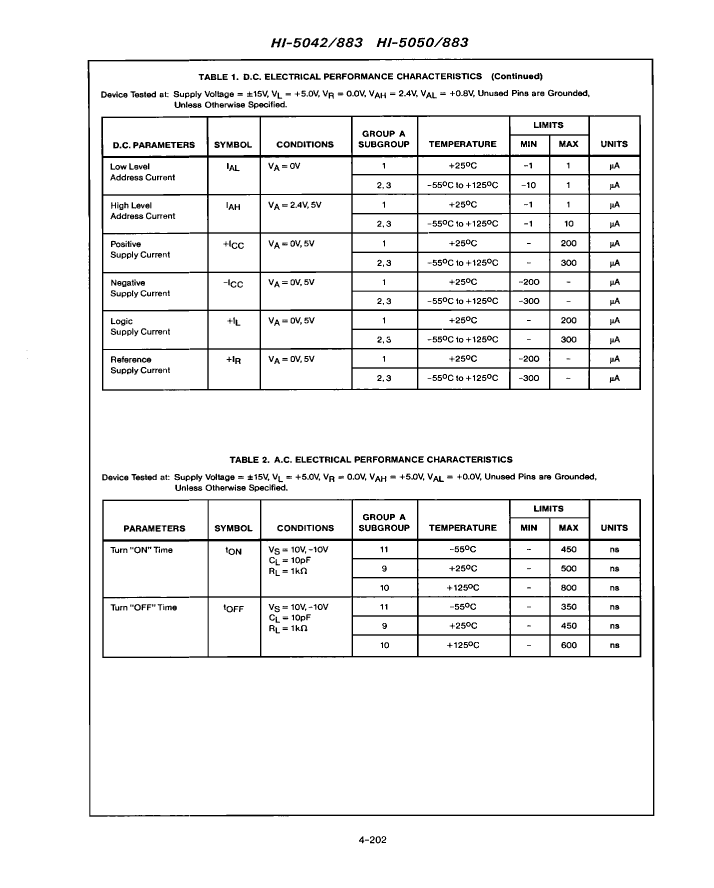

Maximum disconnect time	350 ns
Maximum connection time	450 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

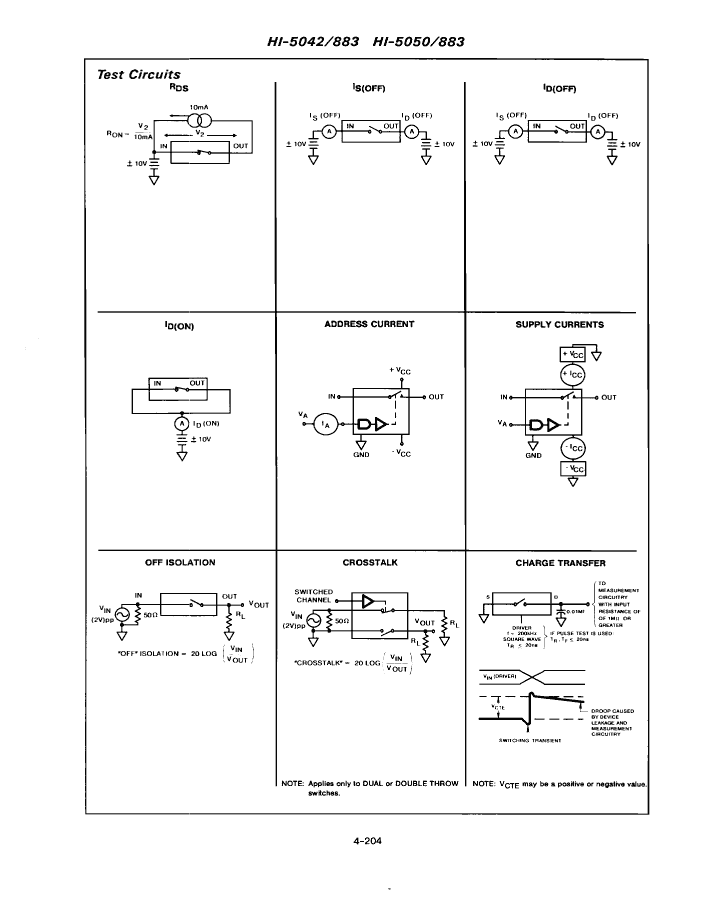

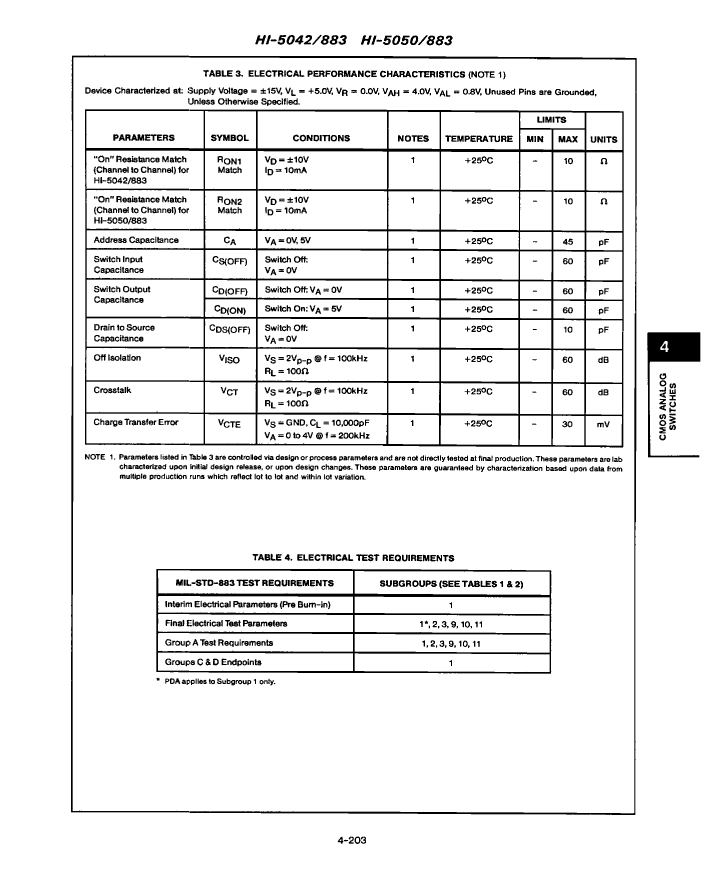

	8100611EX	8100611EA	8100621EX	8100621EA
Description	SPDT, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16	SPDT, 1 Func, 1 Channel, CMOS, CDIP16	SPDT, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16	SPDT, 1 Func, 1 Channel, CMOS, CDIP16
Maker	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPDT	SPDT	SPDT	SPDT
JESD-30 code	R-CDIP-T16	R-GDIP-T16	R-CDIP-T16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	1	1	1	1
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum on-state resistance (Ron)	75 Ω	75 Ω	45 Ω	45 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
Maximum disconnect time	350 ns	450 ns	350 ns	450 ns
Maximum connection time	450 ns	500 ns	450 ns	500 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
