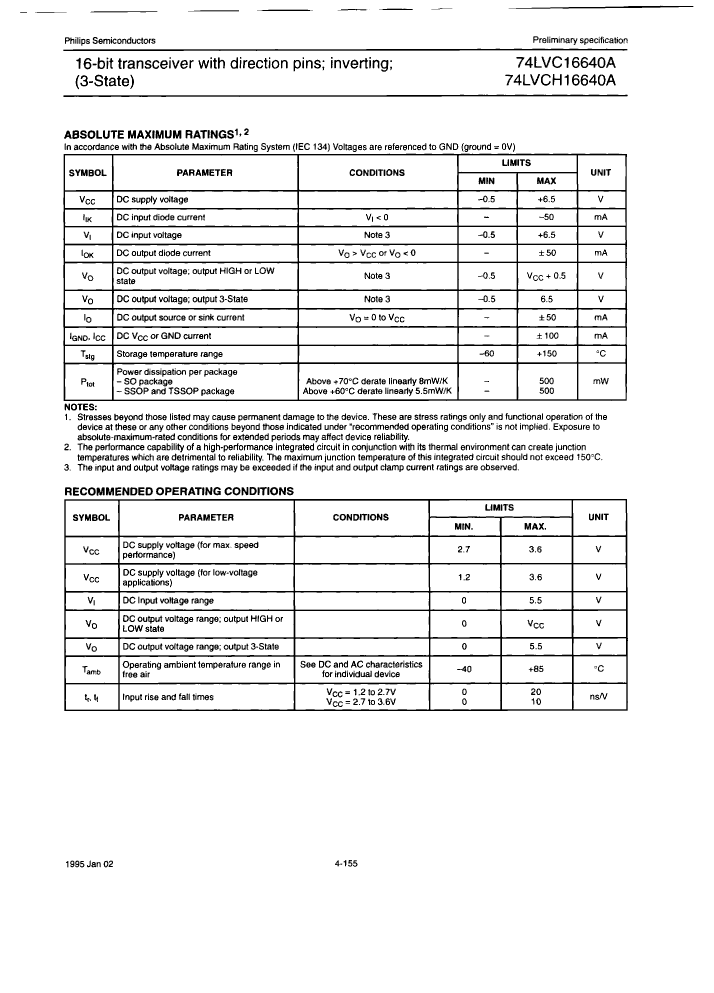

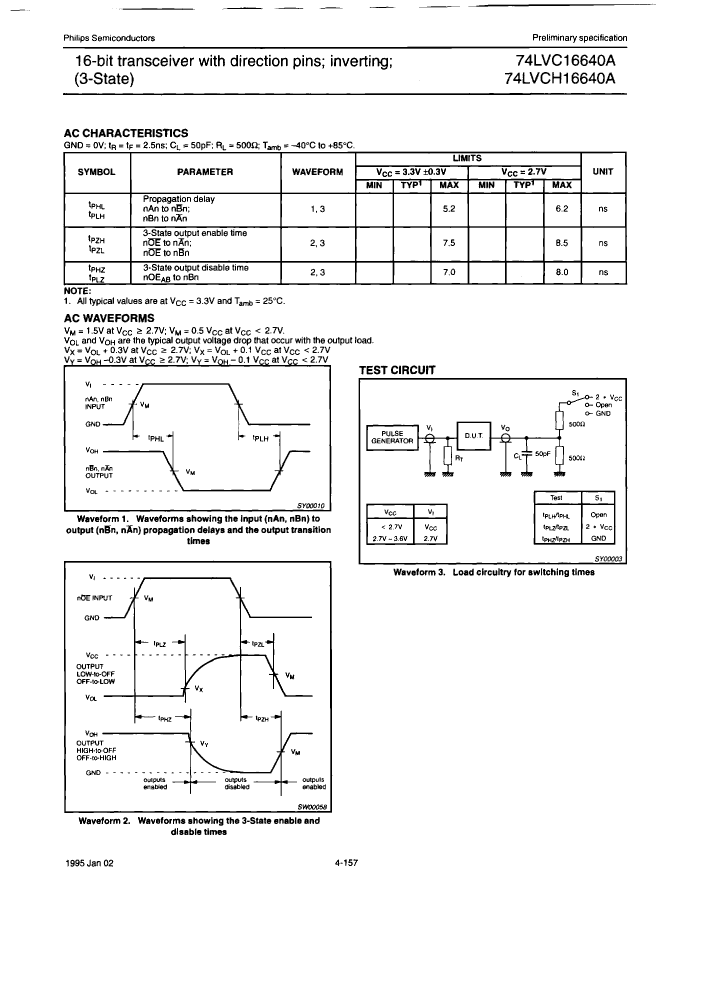

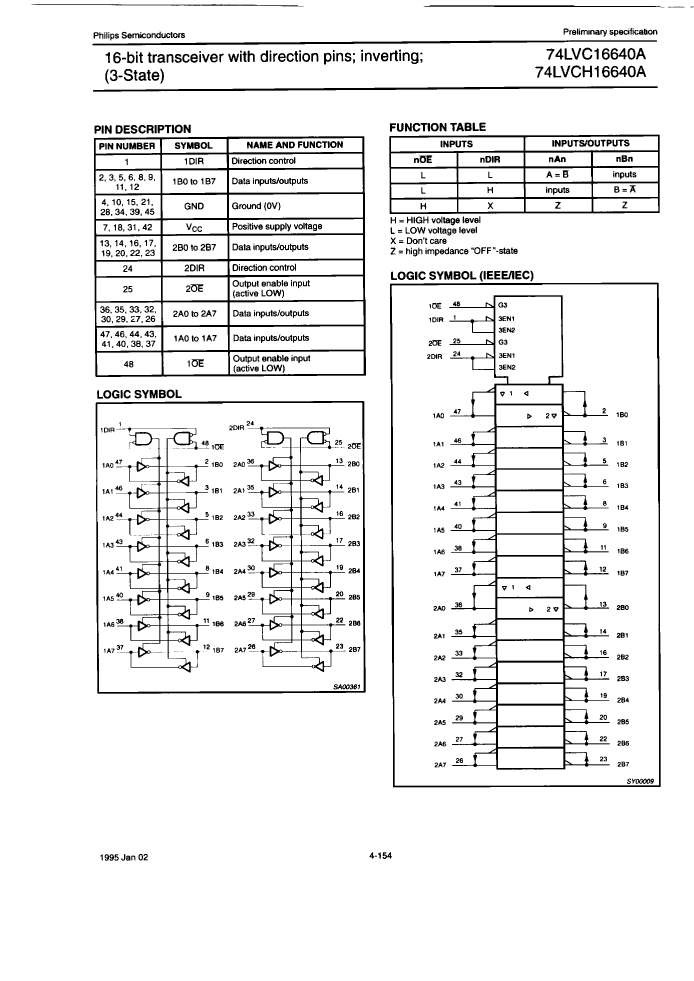

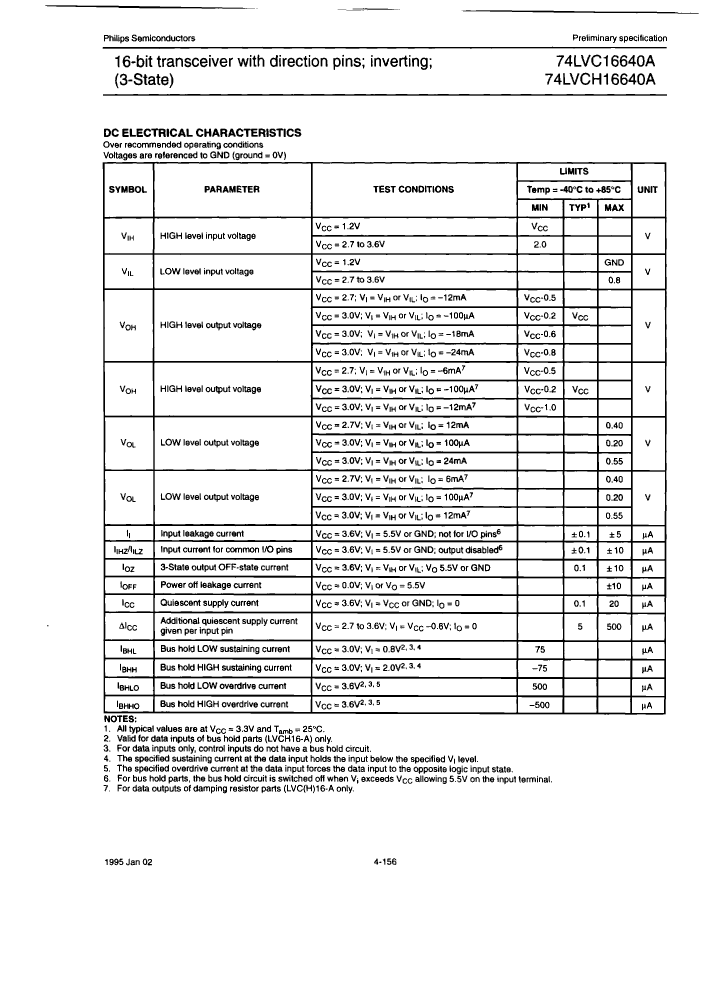

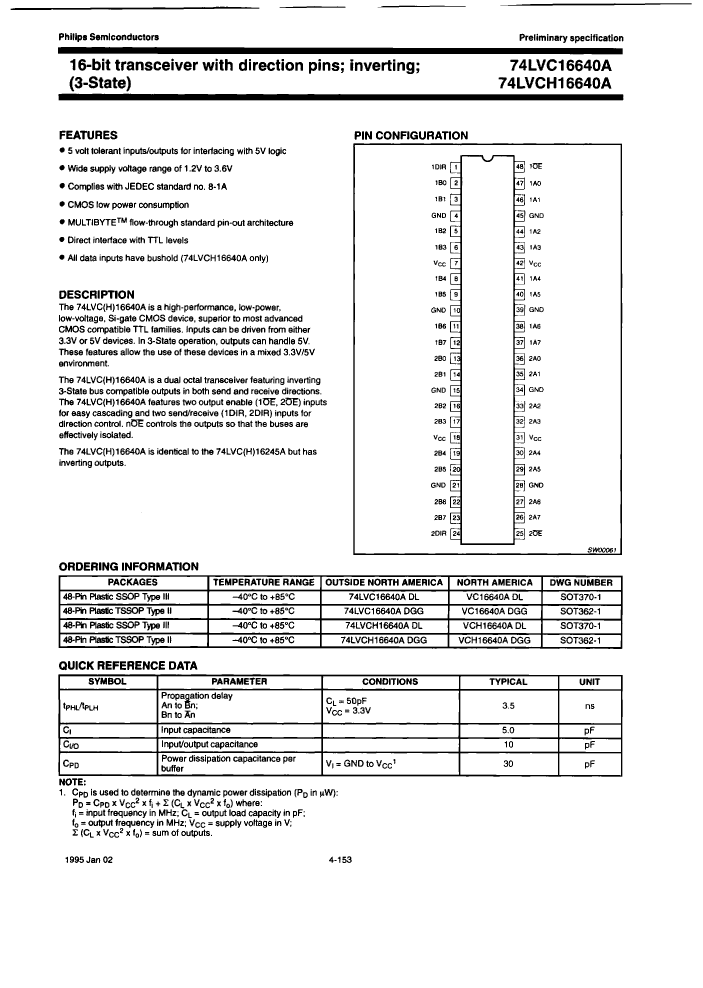

74LVCH16640ADL-T: DescriptionIC LVC/LCX/Z SERIES, DUAL 8-BIT TRANSCEIVER, INVERTED OUTPUT, PDSO48, Bus Driver/Transceiver; Categorylogic; File Size165KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

74LVCH16640ADL-T Overview

IC LVC/LCX/Z SERIES, DUAL 8-BIT TRANSCEIVER, INVERTED OUTPUT, PDSO48, Bus Driver/Transceiver

74LVCH16640ADL-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G48
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	6.2 ns
Certification status	Not Qualified
Maximum seat height	2.8 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1
