891-014 and -015

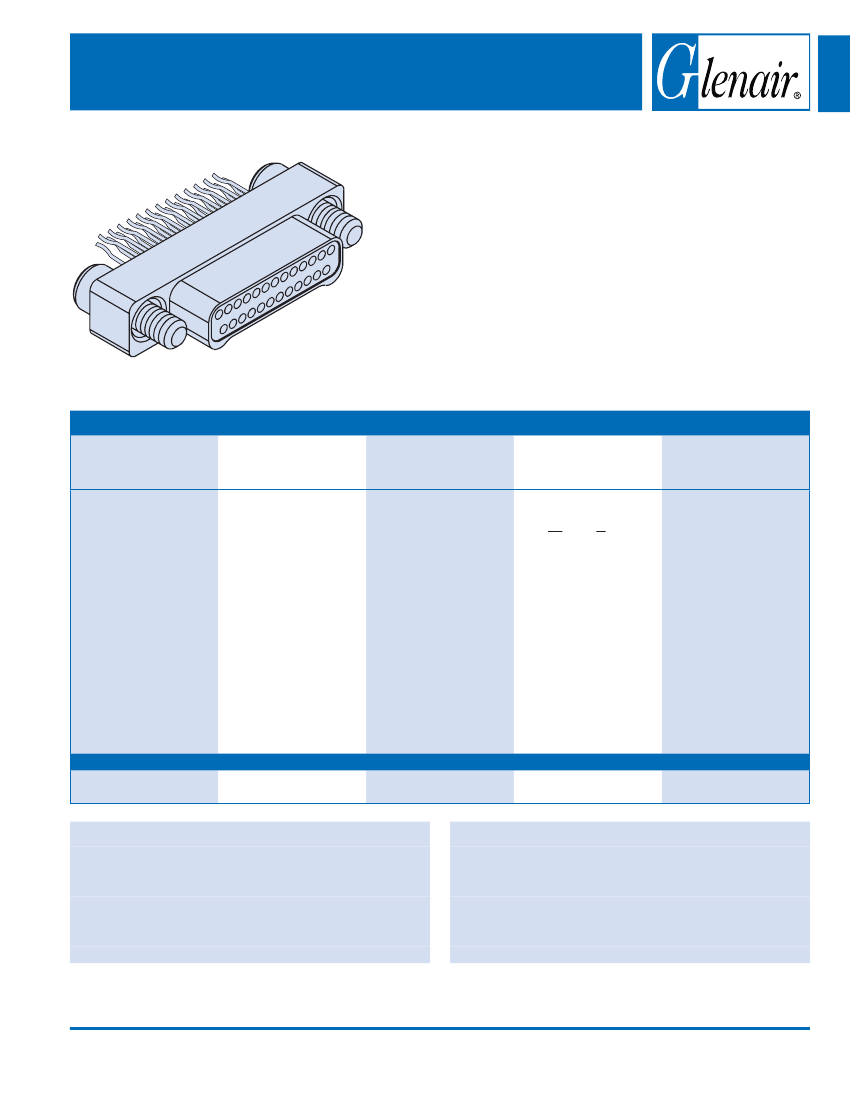

Series 89 Nanominiature Connectors
Straddle Mount
Straddle Mount PCB Nano Connectors
feature gold alloy
TwistPin contacts, offering premium performance and reliability
for demanding applications. Available with #0-80 female
threads, or with jackscrews for use with flexible circuits.
Pre-Tinned PC Tails
are coated with Sn63Pb37 tin-lead for
excellent solderability.
Choose Aluminum, Titanium or Stainless Steel Shells
in seven layouts from 9 to 51 contacts. Complies to the
requirements of MIL-DTL-32139. These connectors are
intermateable with any corresponding Glenair Series 891
Double row metal shell nanominiature connector.
HOW TO ORDER STRADDLE MOUNT PCB CONNECTORS
Series
Insert
Arrangement/
Contact Type
Plugs (891-014)
Shell Material
and Finish
A1
Aluminum Shell, Cadmium
Plating
Termination Type
Hardware
891-014
Plug, Pin Contacts, Double
Row, Straddle Mount
Nanominiature
STM
”STraddle
Mount”
J
Jackscrew, #0-80
891-015
Receptacle, Socket
Contacts, Double
Row, Straddle Mount
Nanominiature
9P
15P
21P
25P
31P
37P
51P
Receptacles (891-015)
A2
Aluminum Shell, Electroless
Nickel Plating
T
#0-80
Female Thread
T
Titanium Shell, Unplated
9S
15S
21S
25S
31S
37S
51S
S
Stainless Steel Shell,
Passivated
Sample Part Number
891-015
— 37S
A1
—STM
T
MATERIALS AND FINISHES
Connector Shell
Insulator
Contacts
Hardware
PC Tails
PCB Trays
Encapsulant
See Ordering Information
Liquid Crystal Polymer (LCP),30% Glass-Filled
Gold Alloy, Unplated
300 Series Stainless Steel
#30 (.010 Dia.) Copper Wire, Solder Dipped
Liquid Crystal Polymer (LCP) or Epoxy
Epoxy
SPECIFICATIONS
Durability
Current Rating
Voltage Rating (DWV)
Insulation Resistance
Operating Temperature
Contact Resistance
Thermal Vacuum Outgassing
200 Cycles Minimum
1 AMP Maximum
300 VAC RMS Sea Level
5000 Megohms Minimum
-55° C. to +125° C.
71 mV. @1 AMP #30 AWG Wire
1.0% Max TML, 0.1% Max. VCM
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
57
E-Mail: sales@glenair.com
Double Row
Connectors
891-014 and -015
Series 89 Nanominiature Connectors
Straddle Mount

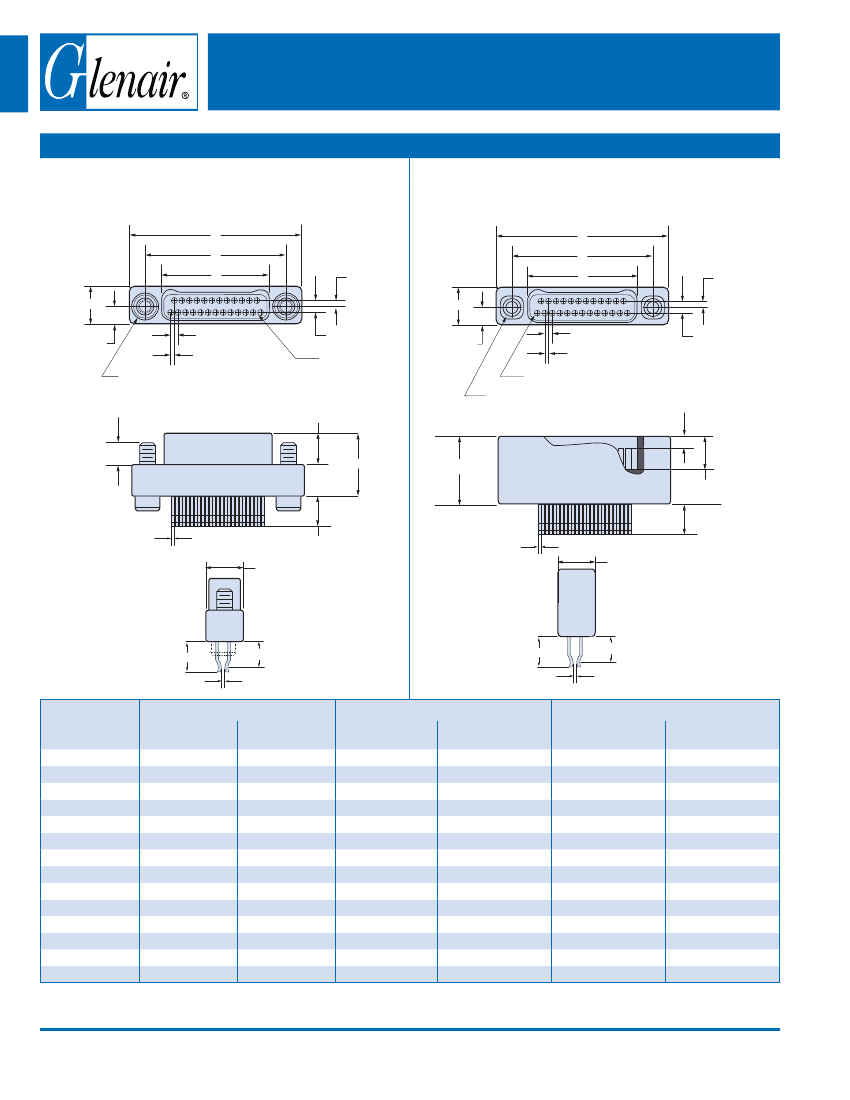

STRADDLE MOUNT NANO DIMENSIONS
Plug (Pin) Connectors
Receptacle (Socket) Connectors
Double Row
Connectors
A
B
C
.125 (3.18)
.025 (0.64) TYP
.0125 (0.32) TYP
#0-80 UNF-2A, 2X
.0575 (1.46)
.080
(2.03)
.010 (.25) DIA.
.125 (3.18)
.100 (2.54)
.086 (2.18)
.010 (.25) MAX.
A
B
.020 (0.51)
.125 (3.18)
.040 (1.02)
PIN 1
.025 (0.64) TYP
.0125 (0.32) TYP
SOCKET
1
.108 / .102
2.74 / 2.59
#0-80 UNF-2B, 2X
.042/.037
(1.07/0.94)
.040 (1.02)
C
.020 (0.51)
.0575 (1.46)
.210 (5.33
)
.225 (5.72)
.110 ± .003
(2.79 ± 0.08)
.100 (2.54)
.010 (.25) DIA.
.100 (2.54)
.125 (3.18)
.100 (2.54)
.086 (2.18)
.010 (.25) MAX.
A
Layout
In. ± .005
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
.375
.375
.450
.450
.525
.525
.575
.575
.650
.650
.725
.725
.900
.900
B BSC.
mm. ± 0.13
9.52
9.52
11.43
11.43
13.33
13.33
14.60
14.60
16.51
16.51
18.41
18.41
22.86
22.86
C BSC.
mm.
6.86
6.86
8.76
8.76
10.67
10.67
11.94
11.94
13.84
13.84
15.75
15.75
20.19
20.19
In.
.270
.270
.345
.345
.420
.420
.470
.470
.545
.545
.620
.620
.795
.795
In.
.160
.163
.235
.238
.310
.313
.360
.363
.435
.438
.510
.513
.685
.688
mm.
4.06
4.14
5.97
6.04
7.87
7.95
9.14
9.22
11.05
11.12
12.95
13.03
17.40
17.47
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
58
E-Mail: sales@glenair.com
891-014 and -015
Series 89 Nanominiature Connectors
Straddle Mount

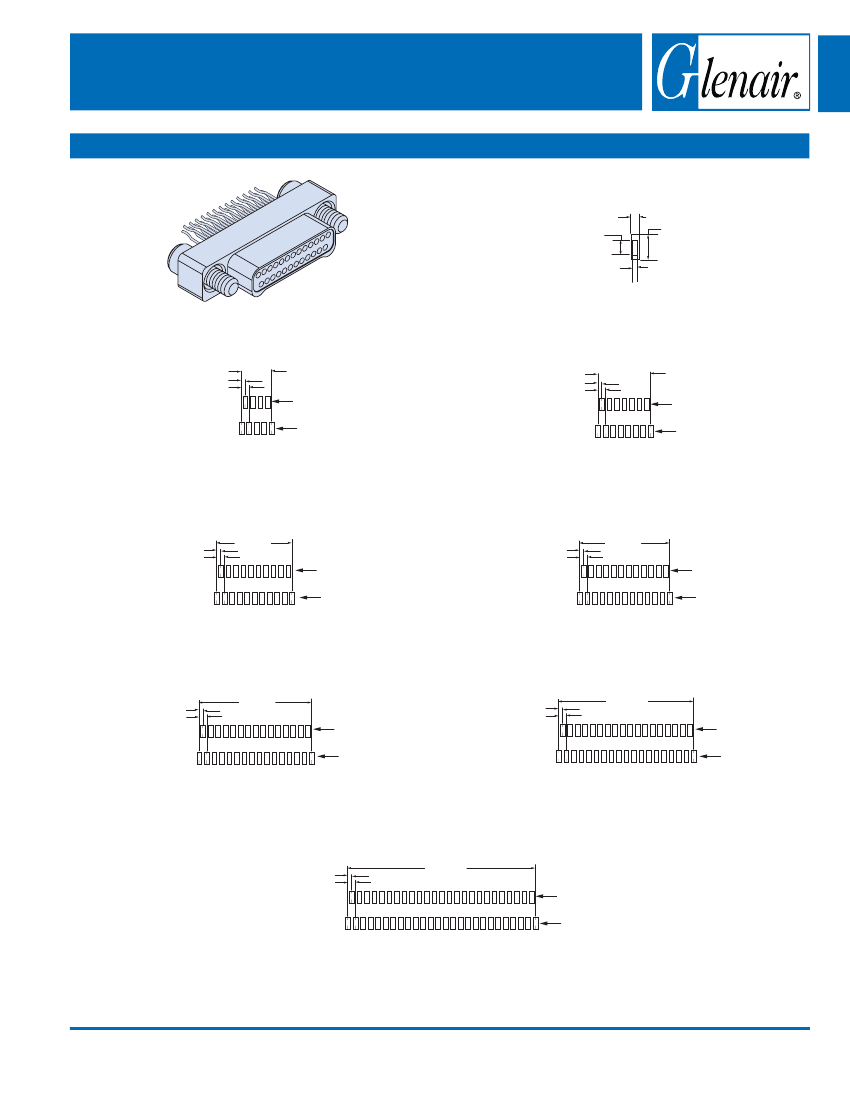

STRADDLE MOUNT BOARD LAYOUT — 891-014 PLUGS (PIN CONTACTS)
"A
"
e
Sid
id
"S
e
.016 (0.41) TYP
PAD WIDTH
.030 (0.76)
LEAD LENGTH
.050 (1.27)
PAD HEIGHT
.010 (0.25)
LEAD WIDTH
"B
PAD/ FOOTPRINT DETAIL
.100 (2.54)
.0125 (0.32) TYP
.025 (0.64) TYP
9 8 7 6
5 4 3 2 1
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.175 (4.45)
.0125 (0.32) TYP
.025 (0.64) TYP
1 1 1 1 1 1 9
5 4 3 2 1 0
8 7 6 5 4 3 2 1
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
9 Contacts
15 Contacts
.0125 (0.32) TYP
.025 (0.64) TYP
.250 (6.35)
2 2 1 1 1 1 1 1 1 1
1 0 9 8 7 6 5 4 3 2
1 1 9 8 7 6 5 4 3 2 1
1 0
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.0125 (0.32) TYP
.025 (0.64) TYP
.300 (7.62)
2 2 2 2 2 2 1 1 1 1 1 1
5 4 3 2 1 0 9 8 7 6 5 4
1 1 1 1 9 8 7 6 5 4 3 2 1
3 2 1 0
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
21 Contacts
.375 (9.53)
3 3 2 2 2 2 2 2 2 2 2 2 1 1 1
1 0 9 8 7 6 5 4 3 2 1 0 9 8 7
1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
6 5 4 3 2 1 0
25 Contacts
.450 (11.43)
3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2
7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
9 8 7 6 5 4 3 2 1 0
.0125 (0.32) TYP
.025 (0.64) TYP
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.0125 (0.32) TYP
.025 (0.64) TYP
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
31 Contacts
37 Contacts
.0125 (0.32) TYP
.025 (0.64) TYP
.625 (15.88)
5 5 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 3 3 3 3 2 2 2
1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7
2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
51 Contacts
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
59
E-Mail: sales@glenair.com
Double Row
Connectors
891-014 and -015
Series 89 Nanominiature Connectors
Straddle Mount
STRADDLE MOUNT BOARD LAYOUT—891-015 RECEPTACLES
Double Row
Connectors
"
S
A"
ide
e
.016 (0.41) TYP
PAD WIDTH
.030 (0.76)
LEAD LENGTH
.050 (1.27)
PAD HEIGHT
.010 (0.25)
LEAD WIDTH
"B
id
"S
PAD/ FOOTPRINT DETAIL
.100 (2.54)
.0125 (0.32) TYP
.025 (0.64) TYP
6 7 8 9
1 2 3 4 5
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.175 (4.45)
.0125 (0.32) TYP
.025 (0.64) TYP
9 1 1 1 1 1 1
0 1 2 3 4 5
1 2 3 4 5 6 7 8
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
9 Contacts
15 Contacts
.0125 (0.32) TYP
.025 (0.64) TYP
.250 (6.35)
1 1 1 1 1 1 1 1 2 2
2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1
0 1
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.0125 (0.32) TYP
.025 (0.64) TYP
.300 (7.62)
1 1 1 1 1 1 2 2 2 2 2 2
4 5 6 7 8 9 0 1 2 3 4 5
1 2 3 4 5 6 7 8 9 1 1 1 1
0 1 2 3
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
21 Contacts
25 Contacts
.0125 (0.32) TYP
.025 (0.64) TYP
.375 (9.53)
1 1 1 2 2 2 2 2 2 2 2 2 2 3 3
7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1
0 1 2 3 4 5 6
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
.0125 (0.32) TYP
.025 (0.64) TYP
.450 (11.43)
2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7
1
1 2 3 4 5 6 7 8 9 0 1 1 1 1 1 1 1 1 1
1 2 3 4 5 6 7 8 9
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
31 Contacts
37 Contacts
.0125 (0.32) TYP
.025 (0.64) TYP
.625 (15.88)
2 2 2 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 5 5
7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
1 2 3 4 5 6 7 8 9 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6
"B" SIDE
OF FLEX
"A" SIDE
OF FLEX
51 Contacts
© 2007 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
60
E-Mail: sales@glenair.com
