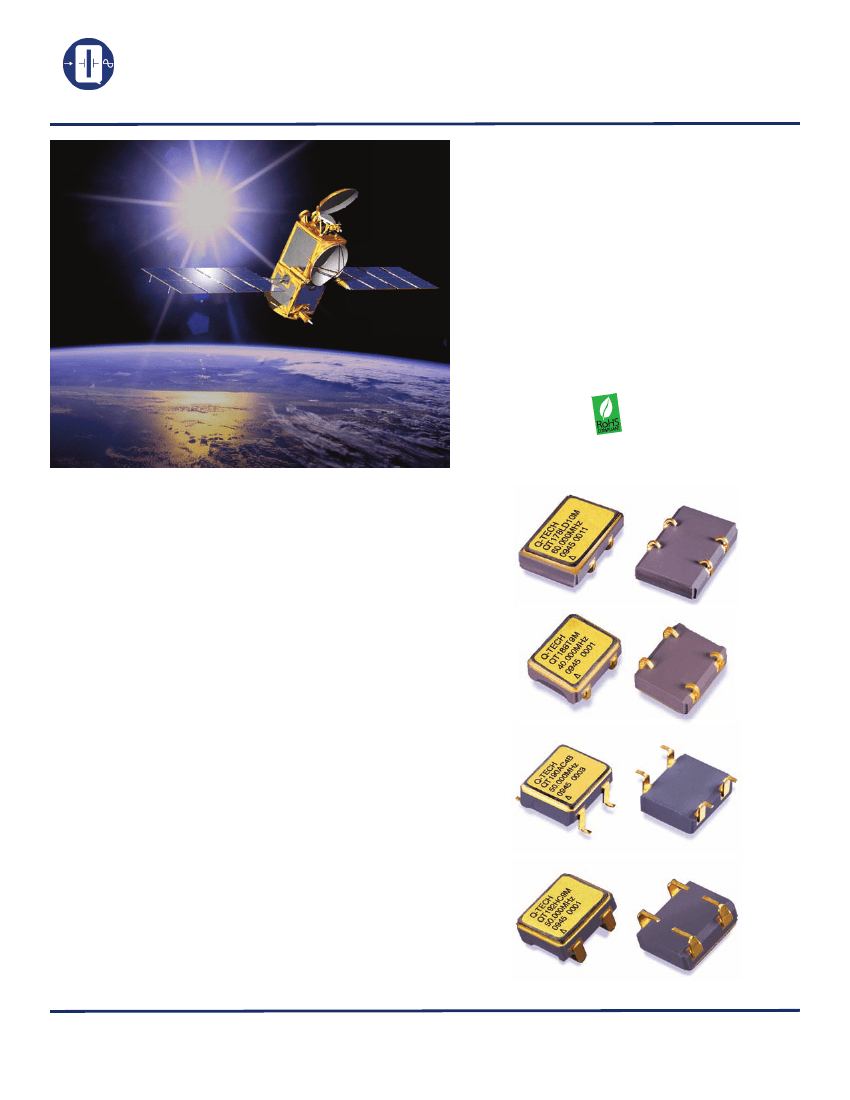

CLASS B+ PRODUCTS
Q-TECH
CORPORATION
CRYSTAL CLOCK OSCILLATORS
3.3 to 5.0Vdc - 450kHz to 85MHz
Features
• Made in the USA
• ECCN: EAR99
• DFARS 252-225-7014 Compliant:
Electronic Component Exemption
• USML Registration # M17677
• Broad frequency range from 450kHz to 85MHz
• Rugged 4 point mount design for high shock and
vibration
• ACMOS, HCMOS, TTL or LVHCMOS logic
• Tri-State Output Option (D)
• Hermetically sealed ceramic SMD package
• Fundamental and 3rd Overtone designs
• Low phase noise
• Custom designs available
• Q-Tech does not use pure lead or pure tin in its
products
• RoHS compliant
See website for link to RAD test data.
Introduction
The commercial satellite industry has requested that smaller, lighter, less
expensive oscillator products with shorter lead times be made available
for minisatellites, microsatellites, nanosatellites and picosatellites. In
addition some newer satellite programs are being created for short term
space lives and do not need oscillators with the assurance of a 15-20 year
life span.
Q-Tech Corporation, the industry leader in both Class B and Space Rated
hybrid crystal oscillators is pleased to advise that we have created a
special category of product designated as Class B+ for these applications.
We have created these Class B+ products for the discriminate user’s
applications and needs using our small form MIL QPL Class B oscillators.
You, the customer, can now pick and choose the style of clock oscillator
you wish, whether you want a 100kRad (Si) High Dose Tolerant NSC
54ACT3301 (FACT) or a standard Class B qualified die, a swept quartz
space qualified crystal or a Class B cultured quartz crystal and/or a
combination thereof in an oscillator product that otherwise utilizes Class
B qualified passive devices. Q-Tech offers several different screening
options to allow you to choose the screening plan that best suits your
needs.
Q-Tech Corporation does not guarantee the specific radiation hardness
of its Class B+ products but will provide the necessary active device
component traceability to allow you to make your own decision and do
your own testing and evaluation based upon your specific needs and
requirements.
Initially we will begin this product offering in our leading miniature clock
oscillator product lines: QT78 (M55310/27, /28 & /30) , QT88
(M55310/33 & /34), QT90, and QT92 (M55310/37 & /38). Product will
be available in 5.0 and 3.3 Vdc from 450kHz to 85MHZ. Please consult
the factory if you would like to know if this option is available in other
standard Q-Tech Class B product lines or if you have any other specific
oscillator needs that we can help you with.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-te ch.com
Class B+ Products (Revision C, November 2009) (ECO #9732)
1
CLASS B+ PRODUCTS
Q-TECH
CORPORATION
CRYSTAL CLOCK OSCILLATORS
3.3 to 5.0Vdc - 450kHz to 85MHz
Electrical Characteristics
Parameters
QTX78
QTX88, QTX90, & QTX92
QTX78AC
QTX88AC
QTX90AC
QTX92AC
QTX78HC
QTX88HC
QTX90HC
QTX92HC
450kHz — 85.000MHz
500kHz — 85.000MHz
5.0Vdc ± 10%
-0.5 to +7.0Vdc
See Option codes
See Option codes
-62ºC to + 125ºC
20 mA max. -
25 mA max. -
35 mA max. -
45 mA max. -
450kHz ~ < 16MHz
16MHz ~ < 32MHz
32MHz ~ < 60MHz
60MHz ~ ≤ 85MHz
QTX78T
QTX88T
QTX90T
QTX92T
QTX78L
QTX88L
QTX90L
QTX92L
450kHz — 70.000MHz
500kHz — 70.000MHz
3.3Vdc ± 10%
Output frequency range (Fo)
Supply voltage (Vdd)
Maximum Applied Voltage (Vdd max.)
Frequency stability (∆F/∆T)
Operating temperature (Topr)
Storage temperature (Tsto)
Operating supply current
(Idd) (No Load)
3 mA max. - 450kHz
6 mA max. - 500kHz
10 mA max. - 16MHz
20 mA max. - 32MHz
30 mA max. - 60MHz
~
~
~
~
~
< 500kHz
< 16MHz
< 32MHz
< 60MHz
< 70MHz
Symmetry
(50% of ouput waveform or 1.4Vdc for TTL)
6ns max. - Fo < 30MHz
3ns max. - Fo ≥ 30 - 85MHz
(between 10% to 90%)
15pF // 10kohms
Output Load
50pF max. or 10TTL
for (Fo < 60MHz)
30pF max. or 6TTL
for (Fo ≥ 60MHz)
Start-up time (Tstup)
Output voltage (Voh/Vol)
Output Current (Ioh/Iol)
Enable/Disable Tristate function Pin 1
Jitter RMS 1σ (at 25ºC)
Aging (at 70ºC)
45/55% max. - 450kHz ~ < 15MHz
40/60% max. - 15 ~ ≤ 85MHz
(Tighter symmetry available)
7ns max. - Fo < 30MHz
3ns max. - Fo ≥ 30 - 85MHz
(between 10% to 90%)
15pF // 10kohms
(2LSTTL)
5ns max. - Fo < 30MHz
3ns max. - Fo ≥ 30 - 85MHz
(between 0.8V to 2.0V)
10TTL (Fo < 60MHz)
6TTL (Fo ≥ 60MHz)
45/55% max. - 450kHz ~ < 15MHz
40/60% max. - 15 ~ ≤ 70MHz
(Tighter symmetry available)
6ns max. - 450kHz ~ < 40MHz
3ns max. - 40 ~ ≤ 70MHz
(between 10% to 90%)
15pF // 10kohms
(30pF max. for F ≤ 50MHz)
Rise and Fall times (with typical load)
5ms max.
0.9 x Vdd min.; 0.1 x Vdd max.
± 24mA max.
± 8mA max.
VIH ≥ 2.2V Oscillation;
VIL ≤ 0.8V High Impedance
8ps typ. - < 40MHz
5ps typ. - ≥ 40MHz
15ps typ. - < 40MHz
8ps typ. - ≥ 40MHz
2.4V min.; 0.4V max.
-1.6 mA/TTL
+40 µA/TTL
0.9 x Vdd min.; 0.1 x Vdd max.
± 4mA max.
± 5ppm max. first year / ± 2ppm max. per year thereafter
Q-TECH Corporation
-
10150 W. Jefferson Boulevard, Culver City 90232
-
Tel: 310-836-7900 - Fax: 310-836-2157
-
www.q-t e ch .co m
Class B+ Products (Revision C, November 2009) (ECO #9732)
2
CLASS B+ PRODUCTS
Q-TECH
CORPORATION
CRYSTAL CLOCK OSCILLATORS
3.3 to 5.0Vdc - 450kHz to 85MHz
Package Specifications and Outline
QTX78
QTX88
0.350±0.005
(8.89±0.13)
QTX90
0.350±.0.005
(8.89±0.13)
4
3
QTX92
0.350±.0.005
(8.89±0.13)
4
3
0.550±.0.005
(13.970±0.13)
4
3
4
Q-TECH
P/N
FREQ.
D/C S/N
3
Q-TECH
P/N
FREQ.
D/C S/N
0.350±0.005
(8.89±0.13)
0.290±0.005
(7.37±0.13)
Q-TECH
P/N
FREQ.
D/C S/N
0.290±0.005
(7.37±0.13)
Q-TECH
P/N
FREQ.
D/C S/N
0.290±0.005
(7.37±0.13)
1
2
0.100±.005
(2.54±0.13)
1
2
0.100±0.005
(2.54±0.13)
1
2
0.100±.005
(2.54±0.13)
1
2
0.100±.005
(2.54±0.13)
0.200±.005
(5.08±0.13)
0.200±.005
(5.080±0.13)
0.200±0.005
(5.08±0.13)
0.200±.005
(5.080±0.13)
0.170 MAX.
(4.318 MAX.)
0.018±.003
(0.46±0.08)
0.170 Max.
(4.32)
0.018±0.003
(0.457±0.076)
0.018±.003
(.457±0.076)
0.190 MAX.
(4.826 MAX.)
0.190 MAX.
(4.826 MAX.)
0.048±.002
(1.22±0.051)
6X
0.375±0.005
(9.525±0.13)
.130 MAX.
3.302 MAX.
0.315±0.005
(8.00±0.13)
0.315±0.005
(8.00±0.13)
0.315±0.005
(8.00±0.13)
0.040 Max.
(1.02)
0.240±0.005
(6.10±0.13)
0.008
0.400TYP.
(10.160±0.13)
0.008
(.203)
0.055±.005
(1.396±0.13)
0.110±.005
(2.794±0.13)
0.300±.005
(7.620±0.13)
(.203)
Dimensions are in inches (mm)
Pin No.
1
2
3
4
Function
TRISTATE or NC
GND/CASE
OUTPUT
VDD
Package Information
• Package material: 90% AL2O3
• Lead material: Kovar
• Lead finish:
Gold Plated: 50μ ~ 80μ inches
Nickel Underplate: 100μ ~ 250μ inches
• Weight: 1.1g typ., 3.0g max.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-te ch.com
Class B+ Products (Revision C, November 2009) (ECO #9732)
3
CLASS B+ PRODUCTS
Q-TECH
CORPORATION
CRYSTAL CLOCK OSCILLATORS
3.3 to 5.0Vdc - 450kHz to 85MHz
Ordering Information
Sample part number
Q T 17 8A C D 9 S -8 5. 00 0 M Hz
Q T 1 78 AC D 9 S - 85.000MHz
T = Standard
S = Solder Dip
(*)
Blank
1
2
3
=
=
=
=
Class B Die, Cultured Quartz Crystal
100 kRad (Si) High Dose 54ACT3301, Swept Quartz Crystal
100 kRad (Si) High Dose 54ACT3301, Cultured Quartz Crystal
Class B Die, Swept Quartz Crystal
78
88
90
92
= QT78
= QT88
= QT90
= QT92
Output frequency
Blank
M
B
S
}
See screening level
tables on page 4
L = CMOS 3.3V
AC = ACMOS 5V
HC = HCMOS 5V
T = TTL 5V
Tristate Option D
(Left blank if no Tristate)
1
4
5
6
9
10
11
12
14
15
=
=
=
=
=
=
=
=
=
=
± 100ppm
± 50ppm
± 25ppm
± 50ppm
± 50ppm
± 100ppm
± 50ppm
± 100ppm
± 20ppm
± 25ppm
at
at
at
at
at
at
at
at
at
at
0ºC
0ºC
-20ºC
-55ºC
-55ºC
-55ºC
-40ºC
-40ºC
-20ºC
-40ºC
to
to
to
to
to
to
to
to
to
to
+70ºC
+70ºC
+70ºC
+105ºC
+125ºC
+125ºC
+85ºC
+85ºC
+70ºC
+85ºC
(*)
Hot Solder Dip Sn60 per MIL-PRF 55310 is optional for an additional cost
Frequency stability vs. temperature codes may not be available in all frequencies.
For Non-Standard requirements, contact Q-Tech Corporation at Sales@Q-Tech.com
Packaging Options
• Standard packaging in anti-static plastic tube (60pcs/tube)
• Tape and Reel is available for an additional charge.
Specifications subject to change without prior notice.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-te ch.com
Class B+ Products (Revision C, November 2009) (ECO #9732)
4
CLASS B+ PRODUCTS
Q-TECH
CORPORATION
CRYSTAL CLOCK OSCILLATORS
3.3 to 5.0Vdc - 450kHz to 85MHz
Screening Test Table
SCREENING
Blank M B S
✓
✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓ ✓
✓ ✓ ✓
✓ ✓ ✓
✓
✓
TEST DESCRIPTION
Internal visual
Stabilization bake
Temperature cycling
Constant acceleration
Particle impact noise detection (PIND)
Pre burn-in electrical
Burn-in #1
Interim electrical
Burn-in #2
Final electrical
STANDARD
883
883
883
883
883
METHOD
2017
1008
1010
2001
2020
CONDITION
Class H
C
B (for M)
C (for B & S)
A
B
QUANTITY
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
COMMENTS
48 hours at 150'C
10 cycles
Y1 direction only
5 passes minimum
(see note 1)
(see note 2)
Refer to Table I and detail specification
883
1015
125°C for 160 hours
Refer toTable I, II and detail specification
883
1015
125 °C for 160 hours
Refer to detail specification ................... (for Blank)
Refer to Table I and detail specification ....... (for M)
Refer to Table I and detail specification ....... (for B)
Refer to Table I, II and detail specification ... (for S)
883
883
883
MIL-PRF-55310
MIL-PRF-55310
883
2009
1014
1014
2012
-
A1
C
Class S
+70°C± 3ºC
(see note 2)
✓
✓ ✓ ✓
✓
✓
✓ ✓ ✓
✓ ✓ ✓
✓
✓
✓ ✓ ✓
Seal: Fine leak
Seal: Gross leak
Radiographic inspection
Frequency aging 30days
Frequency/Temperature stability
External visual
100%
100%
100%
100%
±1.5ppm max.
(see note 3)
Measure the output frequency at ten equispaced points
minimum of the specified operating temperature range
100%
✓
✓ ✓ ✓
1. PIND testing shall be performed using five (5) independent passes and all failures found at the end of each pass are rejected. The survivors of the
last pass are acceptable.
2. Burn-in shall be under the specified load and nominal voltage conditions.
3. Normally, frequency aging tests are for 30 days. However, the frequency aging test may be ceased if after 15 days the measured aging rate is less
than half of the specified aging rate.
Table I Electrical Test - Measurement Requirements (Applicable to screening level M, B, & S only)
Parameters
Output frequency
Frequency/temperature stability
Frequency/voltage stability
Input current
Output voltage
Waveform
Duty cycle (symmetry)
Rise and fall times
Start up time
Pre BI at 25ºC
M
✓
✓
✓
✓
✓
✓
✓
✓
✓
Pre BI Low T
M
B
✓
✓
Pre BI High T Interim BI at 25ºC Post BI at 25ºC
M
B
✓
✓
Post BI Low T
M
B
✓
✓
Post BI High T
M
B
✓
✓
B
✓
✓
✓
✓
✓
✓
✓
✓
✓
S
✓
✓
✓
✓
✓
✓
✓
✓
✓
S
✓
✓
S
✓
✓
M
B
S
✓
✓
M
✓
✓
✓
B
✓
✓
✓
✓
✓
✓
✓
✓
✓
S
✓
✓
✓
✓
✓
✓
✓
✓
✓
S
✓
✓
S
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Table II Delta Limits (Applicable to screening level S only)
Test
Burn-In (second 160 hours Burn-In period)
Frequency aging after 30 days at +70°C
Parameter
Supply current
Output Frequency
Symbol
Icc
Fo
Delta Limits
±10% of initial reading
Refer to detail spec.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-te ch.com
Class B+ Products (Revision C, November 2009) (ECO #9732)
5
RF/Wirelessly
京公网安备 11010802033920号
EEWORLD
