5962-8870102XX

Description

5962-8870102XX amplifier basic information:

5962-8870102XX is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

5962-8870102XX amplifier core information:

The minimum operating temperature of the 5962-8870102XX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.05 µA

The nominal supply voltage of 5962-8870102XX is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of 5962-8870102XX is 1000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8870102XX:

5962-8870102XX has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 2

5962-8870102XX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The material of the 5962-8870102XX package is mostly METAL. And its package shape is ROUND. The 5962-8870102XX package pin format is: FLANGE MOUNT.

Its terminal forms are: PIN/PEG.

CategoryAmplifier circuit
File Size61KB，4 Pages
ManufacturerInternational Rectifier （ Infineon ）
Websitehttp://www.irf.com/
Alternative parts：5962-8870102XX
Download Datasheet Parametric Compare View All

5962-8870102XX Overview

5962-8870102XX amplifier basic information:

5962-8870102XX is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

5962-8870102XX amplifier core information:

The minimum operating temperature of the 5962-8870102XX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.05 µA

The nominal supply voltage of 5962-8870102XX is 34 V, and its corresponding nominal negative supply voltage is -34 V. The input offset voltage of 5962-8870102XX is 1000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8870102XX:

5962-8870102XX has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 2

5962-8870102XX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBFM-P8. The material of the 5962-8870102XX package is mostly METAL. And its package shape is ROUND. The 5962-8870102XX package pin format is: FLANGE MOUNT.

Its terminal forms are: PIN/PEG.

5962-8870102XX Parametric

Parameter NameAttribute value
MakerInternational Rectifier （ Infineon ）
Parts packaging codeTO-204AA
package instruction,
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.05 µA
Nominal Common Mode Rejection Ratio90 dB
Maximum input offset voltage1000 µV
JESD-30 codeO-MBFM-P8
Nominal Negative Supply Voltage (Vsup)-34 V
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialMETAL
Package shapeROUND
Package formFLANGE MOUNT
Certification statusNot Qualified
Nominal supply voltage (Vsup)34 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal formPIN/PEG
Terminal locationBOTTOM
Base Number Matches1

Preview

Download Datasheet
OMA541SKB OMA541SKCB
OMA541SDB OMA541SDZB
POWER OPERATIONAL AMPLIFIER IN METAL DUAL IN-LINE
PACKAGE APPROVED TO DESC DRAWING 5962-88701
8-Pin, TO-3 And Isolated DIP, 10 Amp
Power Operational Amplifier,
DESC Drawing 5962-88701
FEATURES
• Approved to DESC Drawing 5962-88701
• Available In Isolated Standard TO-3, “Copper Slug” TO-3 And
Power DIP Packages
• 10 Amp Peak Output Current
• Power Supplies to ±40V
• Programmable Current Limit
• FET Input
DESCRIPTION
The OMA541 is a power operational amplifier capable of operation from power
supplies up to ±40V and continuous output current up to 5A. Internal current limit
circuitry can be user-programmed with a single external resistor, protecting the
amplifier and load from fault conditions. This product includes three distinctively
different package styles. They are the industry standard TO-3, an enhanced TO-3
with a copper slug and the optimum style, a dual in-line power package. This device
is ideally suited for Military motor driver, servo amplifier, synchro exertation as well as
other power drive circuitry and approved to DESC drawing 5962-88701.
ABSOLUTE MAXIMUM RATINGS
@ 25°C
Supply Voltage, +V
S
to -V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V
Output Current, Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A
Output Current, Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A
Power Dissipation, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125W
Operating Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 125°C
Storage Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55°C to 150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175°C
Lead Temperature (10 Sec. Soldering) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
3.4
SCHEMATIC
+V
S
PIN CONNECTION
NC
+V
S
8
-In
+In
7
6
5
Current
Sense
R
CL
Output
Drive
(ext.)
Output
Pin 1 Designation
•
1
2
3
4
Pin 1:
Pin 2:
Pin 3:
Pin 4:
Pin 5:
Pin 6:
Pin 7:
Pin 8:
-V
S
NC
OUTPUT
CS
+V
S
NC
+IN
-IN
3
-In
4
+
2
1
Current
Sense
+In
5
6
-V
S
-
8
7
NC
R
CL
Output
Output
Drive
-V
S
D-8 Top View
TO-3 Top View
4 11 R1
Supersedes 3 05 R0
3.4 - 45

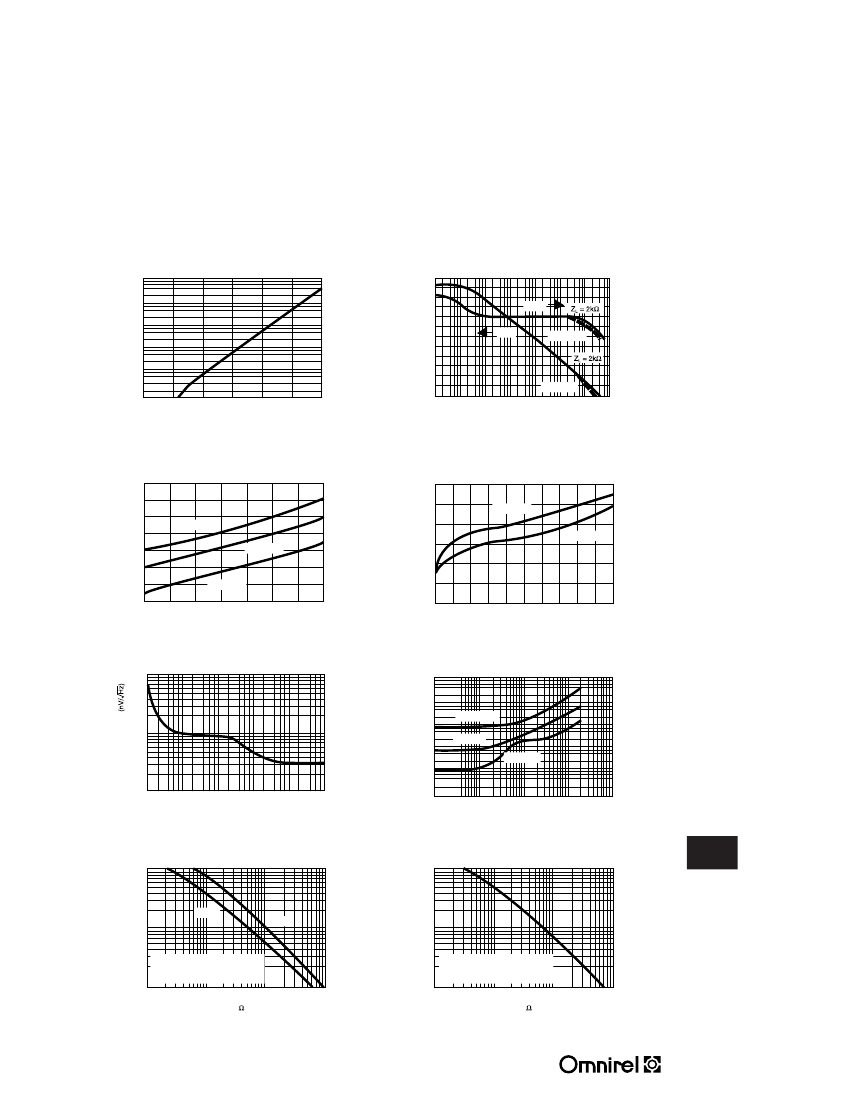

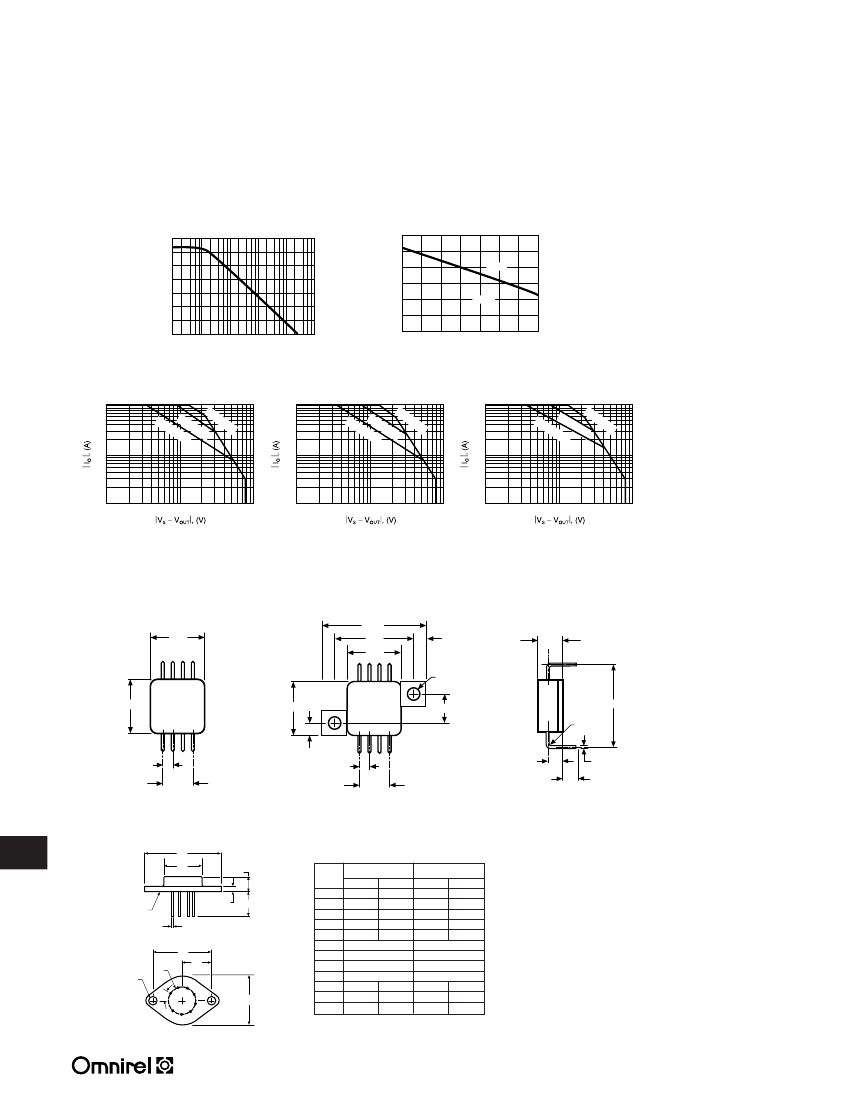

5962-8870102XX Related Products

5962-8870102XX 5962-8870101UX 5962-8870101XX 5962-8870101YX OMA541SDBPBF OMA541SDZBPBF OMA541SKBPBF
Description Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, MBFM8, Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, POWER, Z-TAB PACKAGE-8 Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, MBFM8, TO-3, 8 PIN Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, POWER, DIP-8 Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, MDIP8, POWER, HERMETIC SEALED, METAL, DIP-8 Operational Amplifier, 1 Func, 1000uV Offset-Max, BIPolar, MDFM8, POWER, HERMETIC SEALED, METAL, DIP-8 Operational Amplifier, 1 Func, 1000uV Offset-Max, MBFM8, TO-3, 8 PIN
Parts packaging code TO-204AA DFM TO-204AA DIP DIP DFM TO-204AA
Contacts 2 8 2 8 8 8 2
Reach Compliance Code unknown unknown unknown unknown compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Maximum average bias current (IIB) 0.05 µA 0.00005 µA 0.00005 µA 0.00005 µA 0.05 µA 0.05 µA 0.05 µA
Nominal Common Mode Rejection Ratio 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB 90 dB
Maximum input offset voltage 1000 µV 1000 µV 1000 µV 1000 µV 1000 µV 1000 µV 1000 µV
JESD-30 code O-MBFM-P8 S-XDFM-P8 O-XBFM-P8 S-XDIP-P8 S-MDIP-P8 S-MDFM-P8 O-MBFM-P8
Nominal Negative Supply Voltage (Vsup) -34 V -34 V -34 V -34 V -34 V -34 V -34 V
Number of functions 1 1 1 1 1 1 1
Number of terminals 8 8 8 8 8 8 8
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package body material METAL UNSPECIFIED UNSPECIFIED UNSPECIFIED METAL METAL METAL
Package shape ROUND SQUARE ROUND SQUARE SQUARE SQUARE ROUND
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT IN-LINE IN-LINE FLANGE MOUNT FLANGE MOUNT
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 34 V 34 V 34 V 34 V 34 V 34 V 34 V
surface mount NO NO NO NO NO NO NO
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal location BOTTOM DUAL BOTTOM DUAL DUAL DUAL BOTTOM
Base Number Matches 1 1 1 1 1 1 1
Maker International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） International Rectifier （ Infineon ） - - -
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR -
Negative supply voltage upper limit - -40 V -40 V -40 V -40 V -40 V -40 V
Supply voltage upper limit - 40 V 40 V 40 V 40 V 40 V 40 V
