LPO6610-682MTB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > inductor> Fixed inductance> LPO6610-682MTB

LPO6610-682MTB: DescriptionGeneral Purpose Inductor, 6.8uH, 20%, 1 Element, Ferrite-Core, SMD, 2622, ROHS COMPLIANT; Categoryinductor Fixed inductance; File Size178KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPO6610-682MTB Overview

General Purpose Inductor, 6.8uH, 20%, 1 Element, Ferrite-Core, SMD, 2622, ROHS COMPLIANT

LPO6610-682MTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	2622
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2622
structure	Unshielded
core material	FERRITE
DC Resistance	0.32 Ω
Nominal inductance(L)	6.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	LPO6610
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1 mm
Package length	6.6 mm
Package form	SMT
Package width	5.5 mm
method of packing	TR
Maximum rated current	0.85 A
self resonant frequency	66 MHz
series	LPO6610
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 333-1

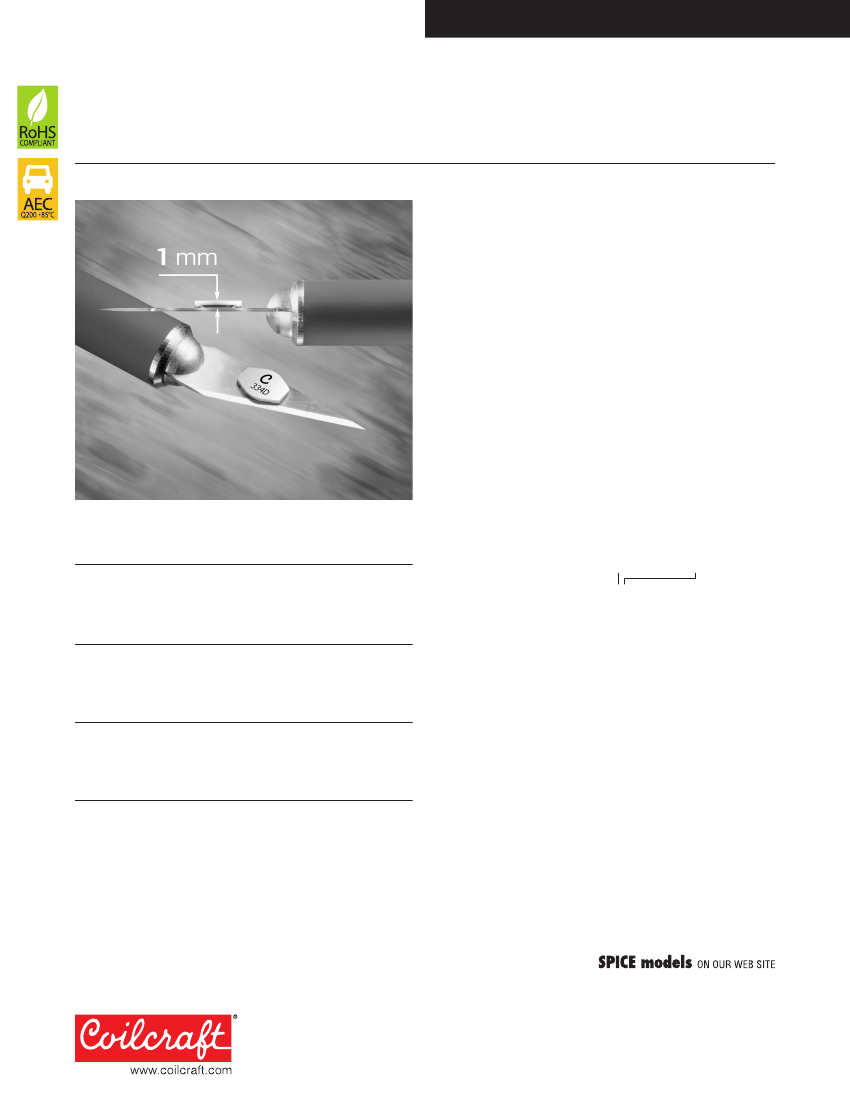

SMT Power Inductors – LPO6610

• Very low profile - only 1.0 mm high!

• Handles current up to 1.7 Amps rms

Designer’s Kit C367

contains 3 each of all values

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

91.0 – 95.0 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel Plastic tape: 12 mm wide, 0.3 mm thick,

8 mm pocket spacing, 1.2 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

DCR

±20% max

(µH) (Ohms)

1.2

0.08

1.5

0.10

2.2

0.12

3.3

0.16

4.7

0.20

6.8

0.32

0.41

0.55

0.85

1.3

1.8

2.5

100

3.5

150

5.0

220

7.0

330

15.0

SRF

typ

(MHz)

190

140

115

Isat

(A)

2.1

1.9

1.6

1.3

1.1

0.90

0.80

0.65

0.50

0.40

0.35

0.30

0.25

0.18

0.16

0.13

Irms

(A)

1.7

1.5

1.4

1.2

1.1

0.85

0.75

0.60

0.52

0.42

0.36

0.30

0.26

0.21

0.18

0.13

LPO6610-122ML_

LPO6610-152ML_

LPO6610-222ML_

LPO6610-332ML_

LPO6610-472ML_

LPO6610-682ML_

LPO6610-103ML_

LPO6610-153ML_

LPO6610-223ML_

LPO6610-333ML_

LPO6610-473ML_

LPO6610-683ML_

LPO6610-104ML_

LPO6610-154ML_

LPO6610-224ML_

LPO6610-334ML_

1. When ordering, please specify

termination

and

packaging

codes:

LPO6610-334MLC

Termination: L

= RoHS compliant silver-palladium-platinum-glass frit.

Special order:

= RoHS tin-silver-copper (95.5/4/0.5)

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP

4263B LCR meter or equivalent.

3. DC current at which the inductance drops 10% (typ) from its value

without current.

4. Current that causes a 40°C temperature rise from 25°C ambient.

5. Electrical specifications at 25°C.

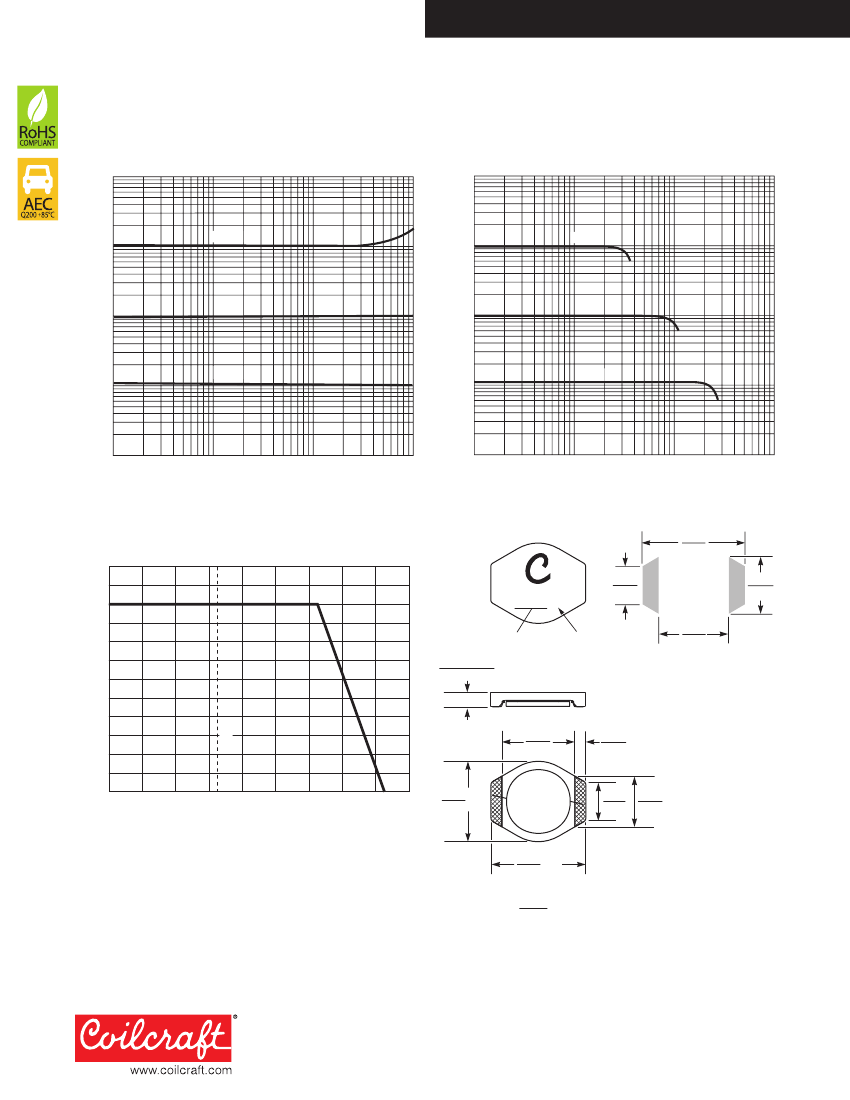

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Specifications subject to change

+1-847-639-6400 sales@coilcraft.com

without notice.

Please check our website for latest information.

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 333-1

Revised 06/01/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
