74LVC86PW-T datasheet, PDF - EEWORLD Datasheet

74LVC86PW-T: DescriptionIC LVC/LCX/Z SERIES, QUAD 2-INPUT XOR GATE, PDSO14, Gate; Categorylogic; File Size163KB，9 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

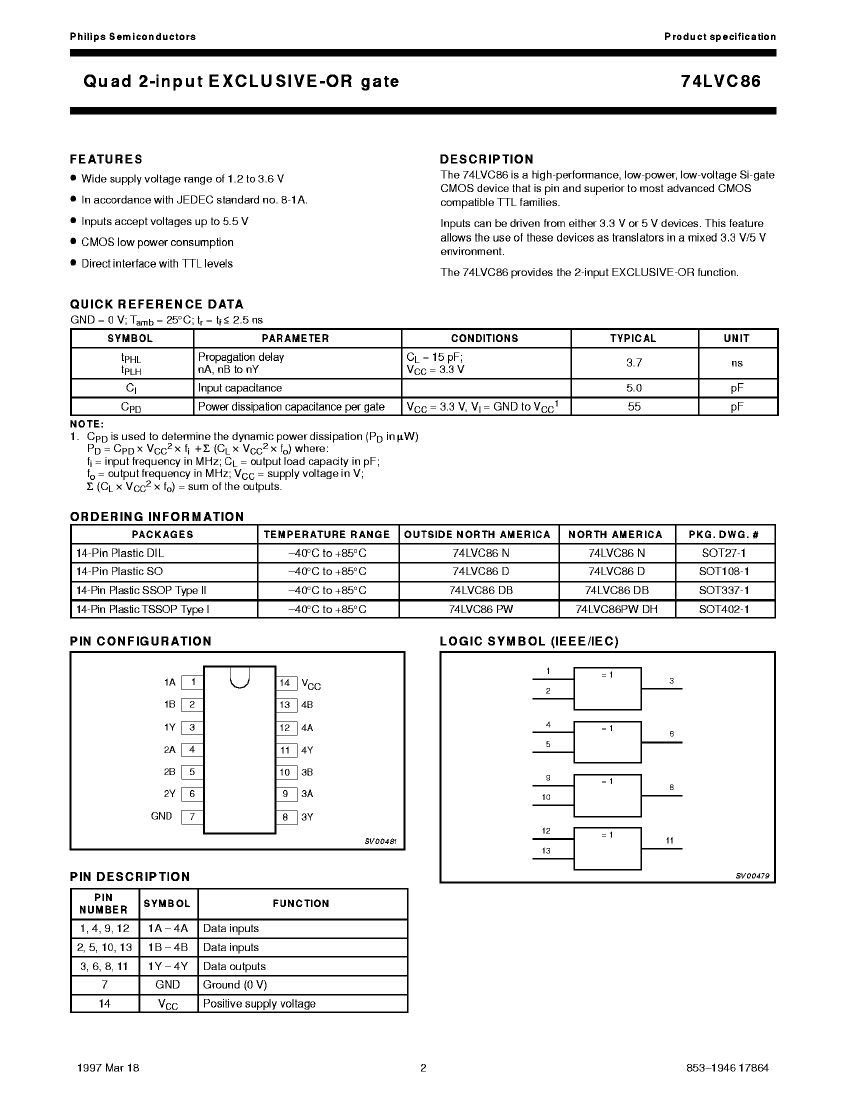

74LVC86PW-T Overview

IC LVC/LCX/Z SERIES, QUAD 2-INPUT XOR GATE, PDSO14, Gate

Parameter Name	Attribute value
Maker	NXP
package instruction	TSSOP,
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
length	5 mm
Load capacitance (CL)	50 pF

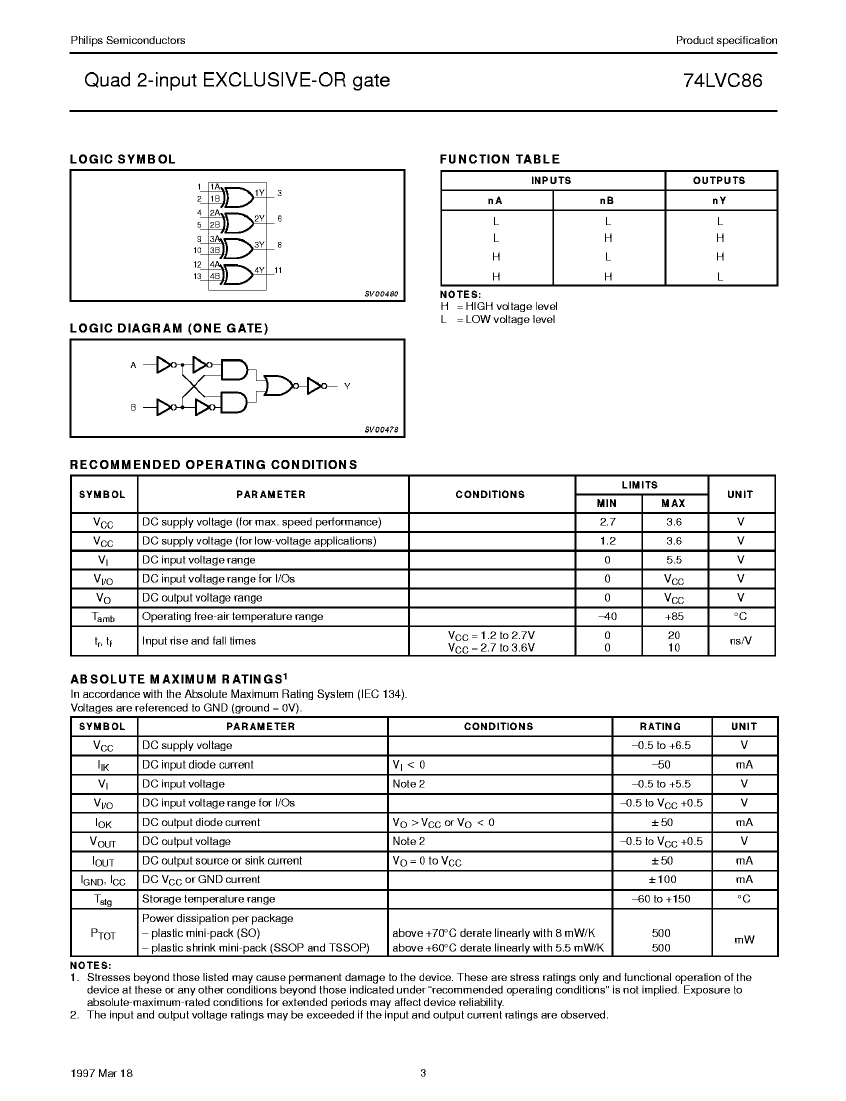

Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

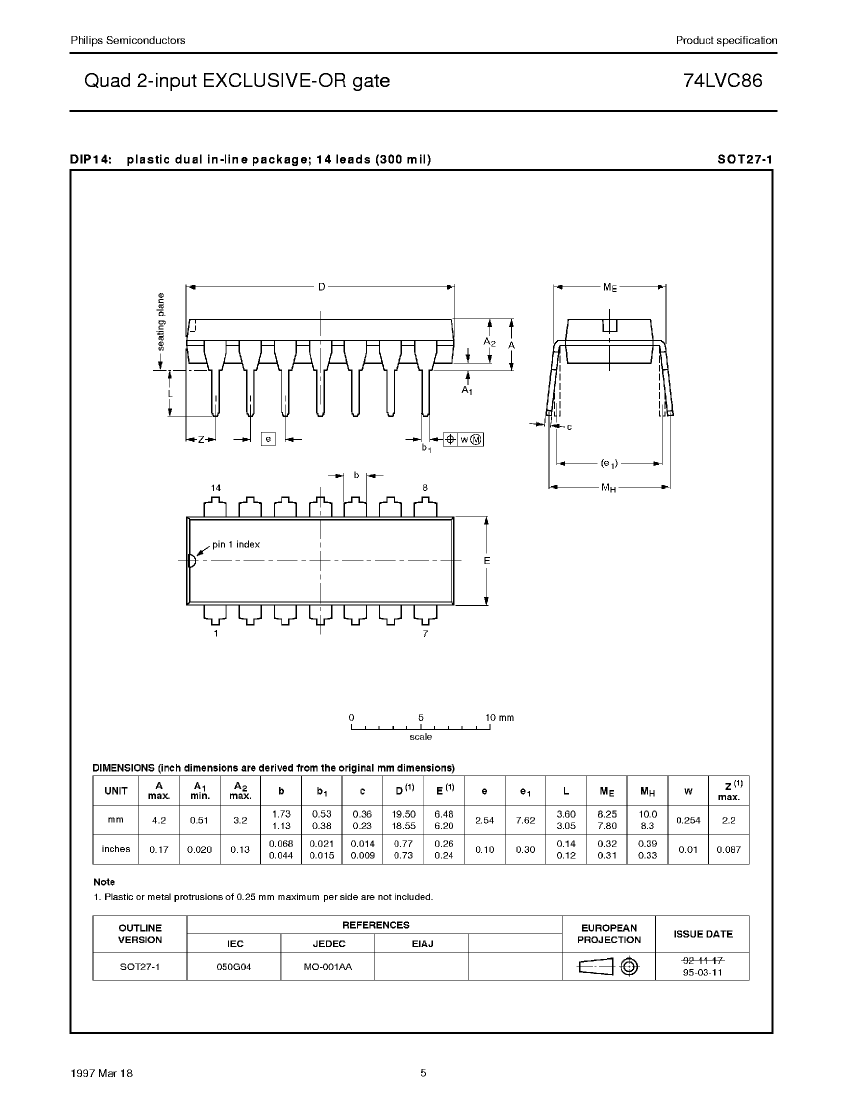

Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

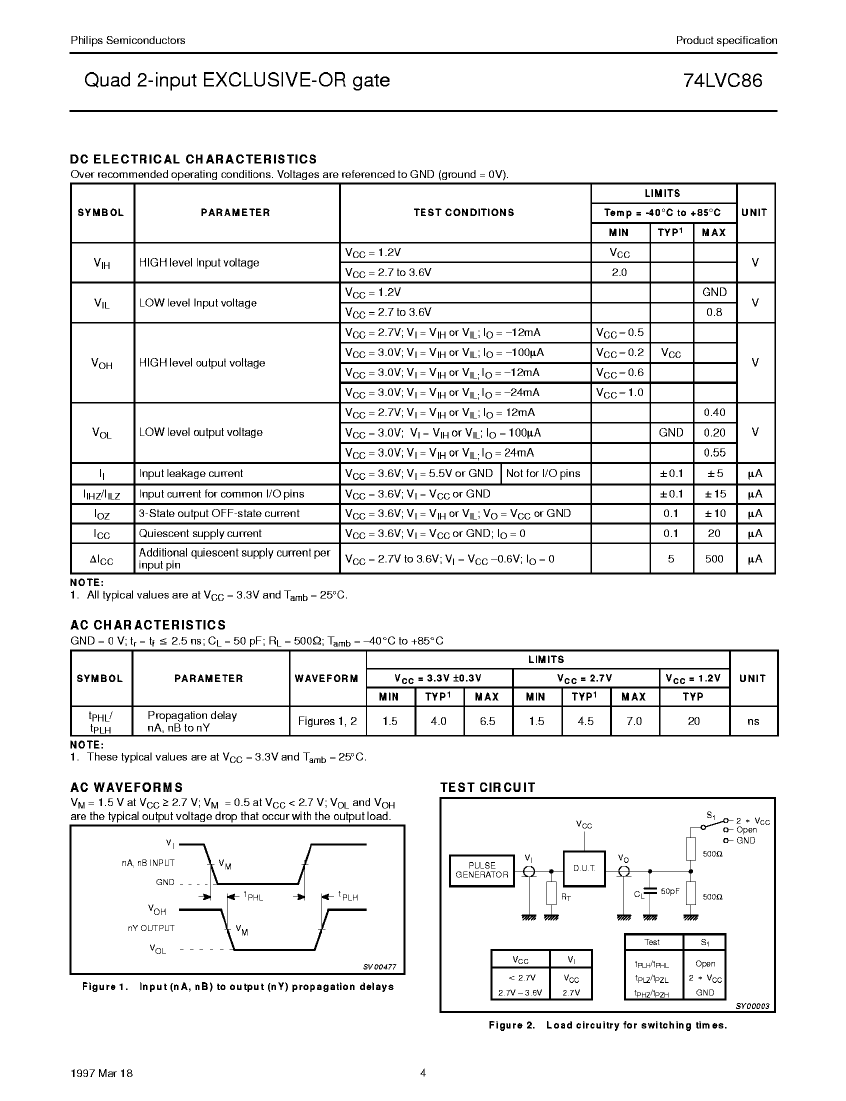

propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1
