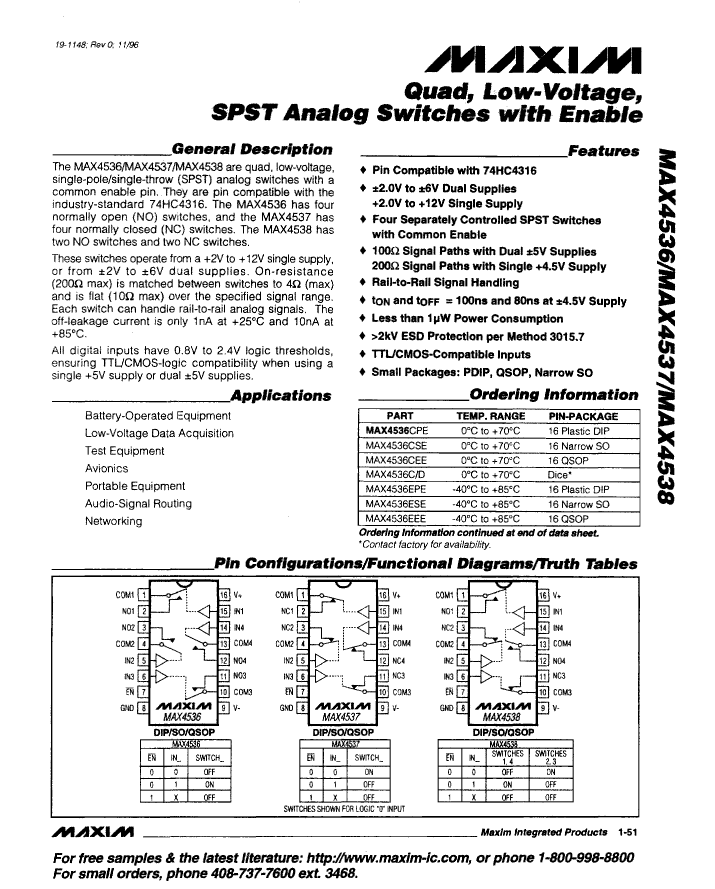

SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, QSOP-16

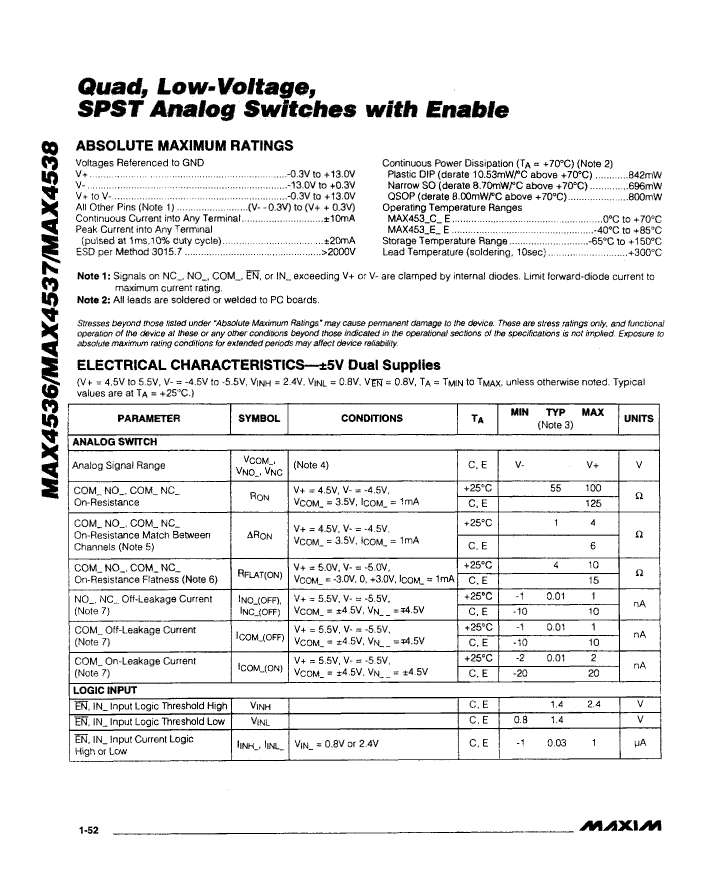

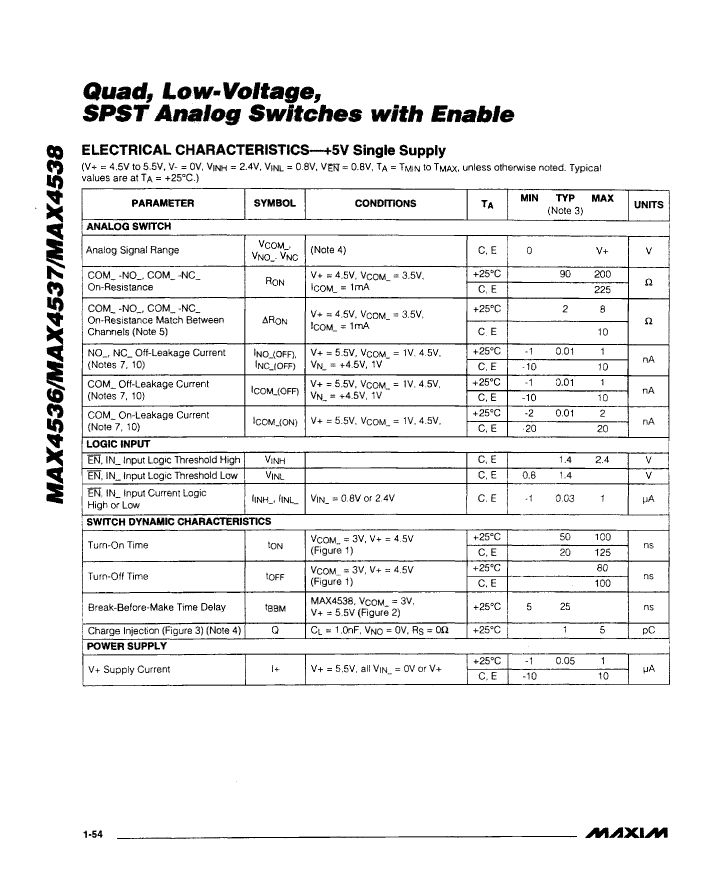

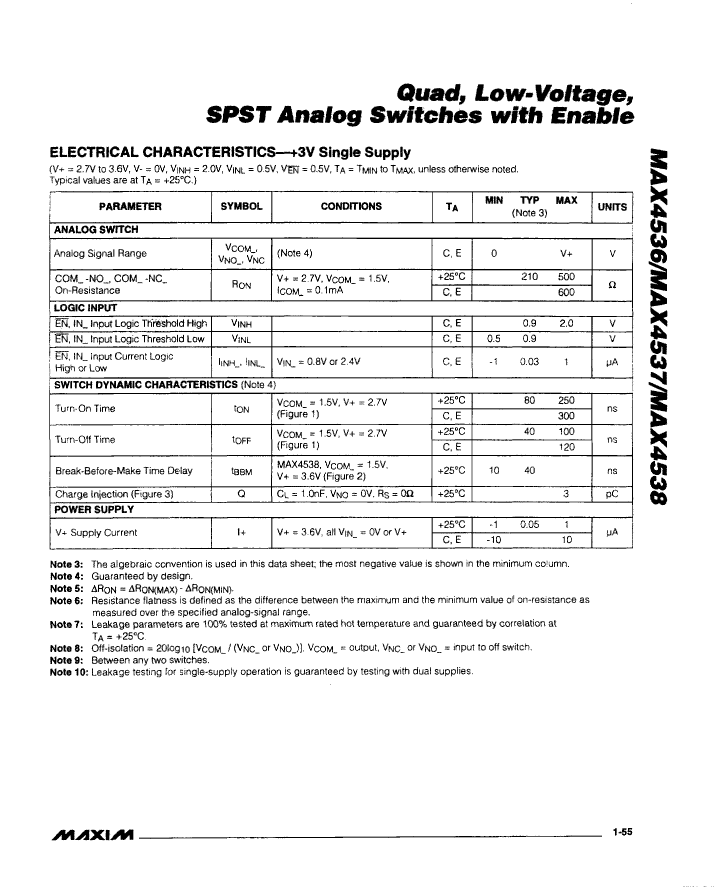

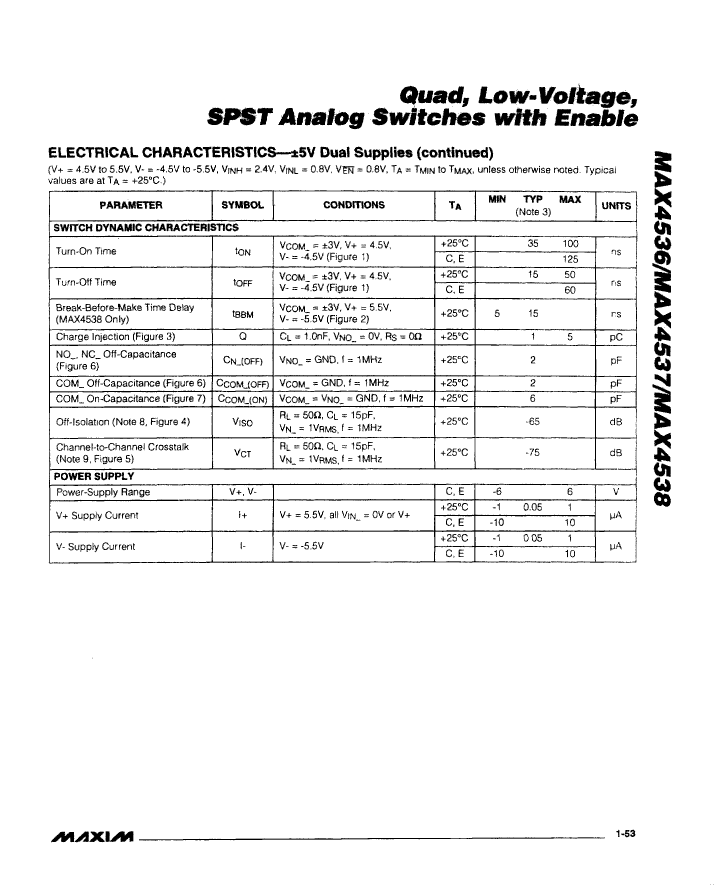

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Maxim |
| Parts packaging code | SOIC |
| package instruction | 0.150 INCH, 0.025 INCH PITCH, QSOP-16 |
| Contacts | 16 |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e3 |
| length | 4.9 mm |
| Humidity sensitivity level | 1 |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 16 |
| Nominal off-state isolation | 65 dB |
| On-state resistance matching specifications | 4 Ω |
| Maximum on-state resistance (Ron) | 100 Ω |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| Maximum disconnect time | 50 ns |
| Maximum connection time | 100 ns |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 3.9 mm |
| Base Number Matches | 1 |
| MAX4538CEE+T | MAX4538EEE+ | MAX4536CEE+ | MAX4537CSE+ | MAX4537CEE+ | |
|---|---|---|---|---|---|
| Description | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, QSOP-16 | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, QSOP-16 | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, QSOP-16 | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, MS-012C, SOIC-16 | SPST, 4 Func, 1 Channel, CMOS, PDSO16, 0.150 INCH, 0.025 INCH PITCH, QSOP-16 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Maker | Maxim | Maxim | Maxim | Maxim | Maxim |
| Parts packaging code | SOIC | SOIC | SOIC | SOIC | SOIC |
| package instruction | 0.150 INCH, 0.025 INCH PITCH, QSOP-16 | SSOP, | SSOP, | SOP, | 0.150 INCH, 0.025 INCH PITCH, QSOP-16 |
| Contacts | 16 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | SPST | SPST |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 |
| length | 4.9 mm | 4.9 mm | 4.9 mm | 9.9 mm | 4.9 mm |
| Humidity sensitivity level | 1 | 1 | 1 | 1 | 1 |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V | -5 V | -5 V |
| Number of channels | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Nominal off-state isolation | 65 dB | 65 dB | 65 dB | 65 dB | 65 dB |
| On-state resistance matching specifications | 4 Ω | 4 Ω | 4 Ω | 4 Ω | 4 Ω |
| Maximum on-state resistance (Ron) | 100 Ω | 100 Ω | 100 Ω | 100 Ω | 100 Ω |
| Maximum operating temperature | 70 °C | 85 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SSOP | SSOP | SOP | SSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | 260 | 260 | 260 | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 1.75 mm | 1.75 mm | 1.75 mm |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES |
| Maximum disconnect time | 50 ns | 50 ns | 50 ns | 50 ns | 50 ns |
| Maximum connection time | 100 ns | 100 ns | 100 ns | 100 ns | 100 ns |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 0.635 mm | 0.635 mm | 1.27 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 3.9 mm | 3.9 mm | 3.9 mm | 3.9 mm | 3.9 mm |
