HSP9520CS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Microcontrollers and processors> HSP9520CS

Preview

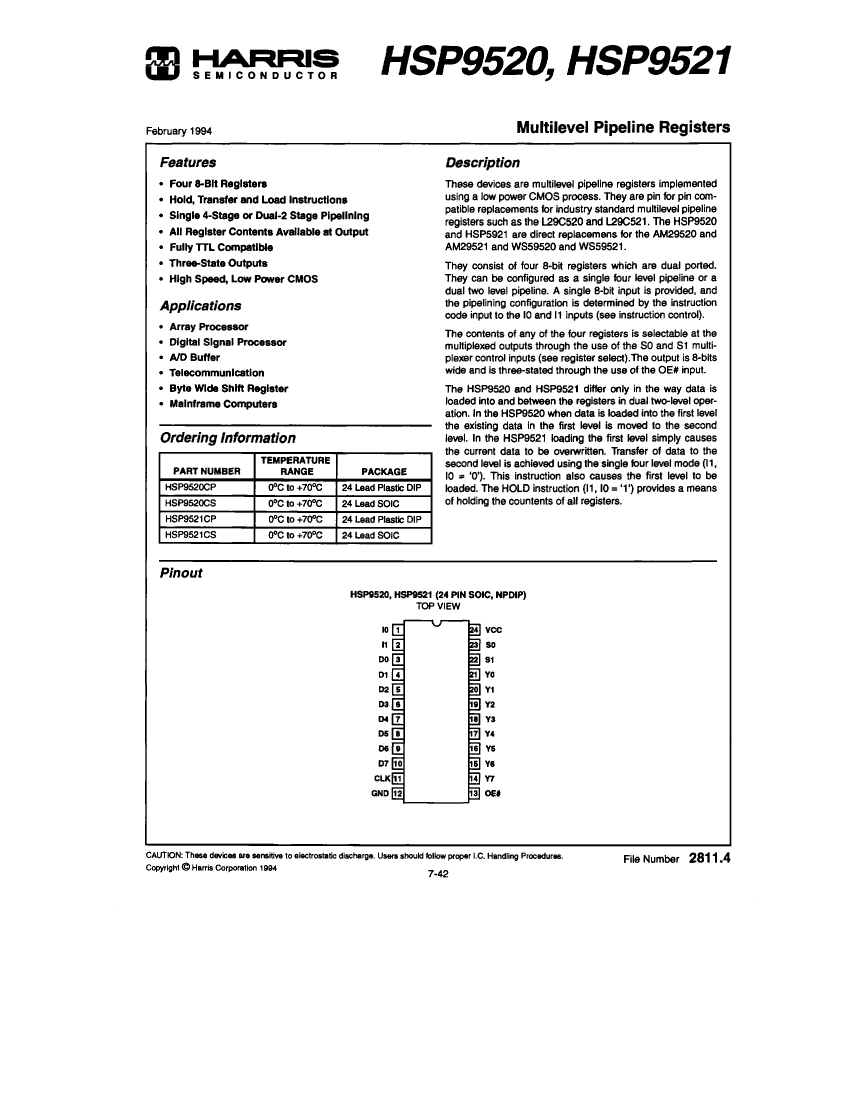

HSP9520CS: DescriptionPipeline Register, 8-Bit, CMOS, PDSO24; CategoryMicrocontrollers and processors; File Size116KB，4 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

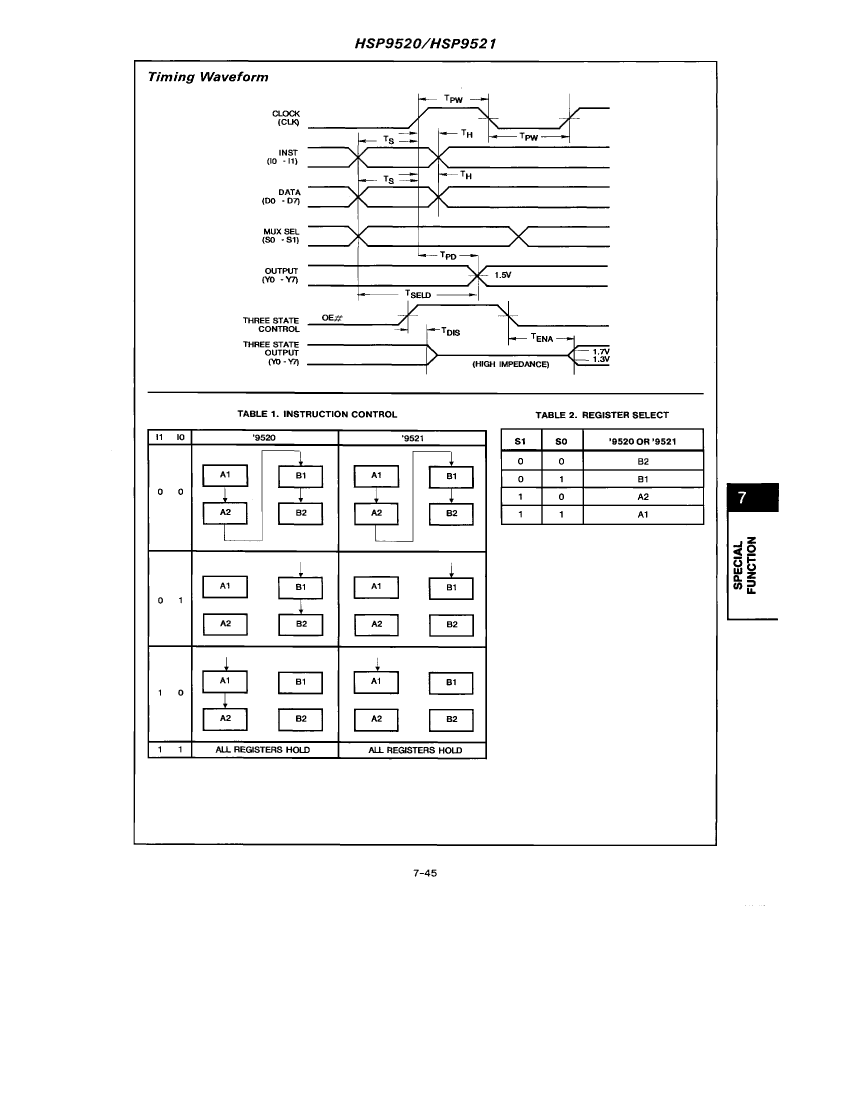

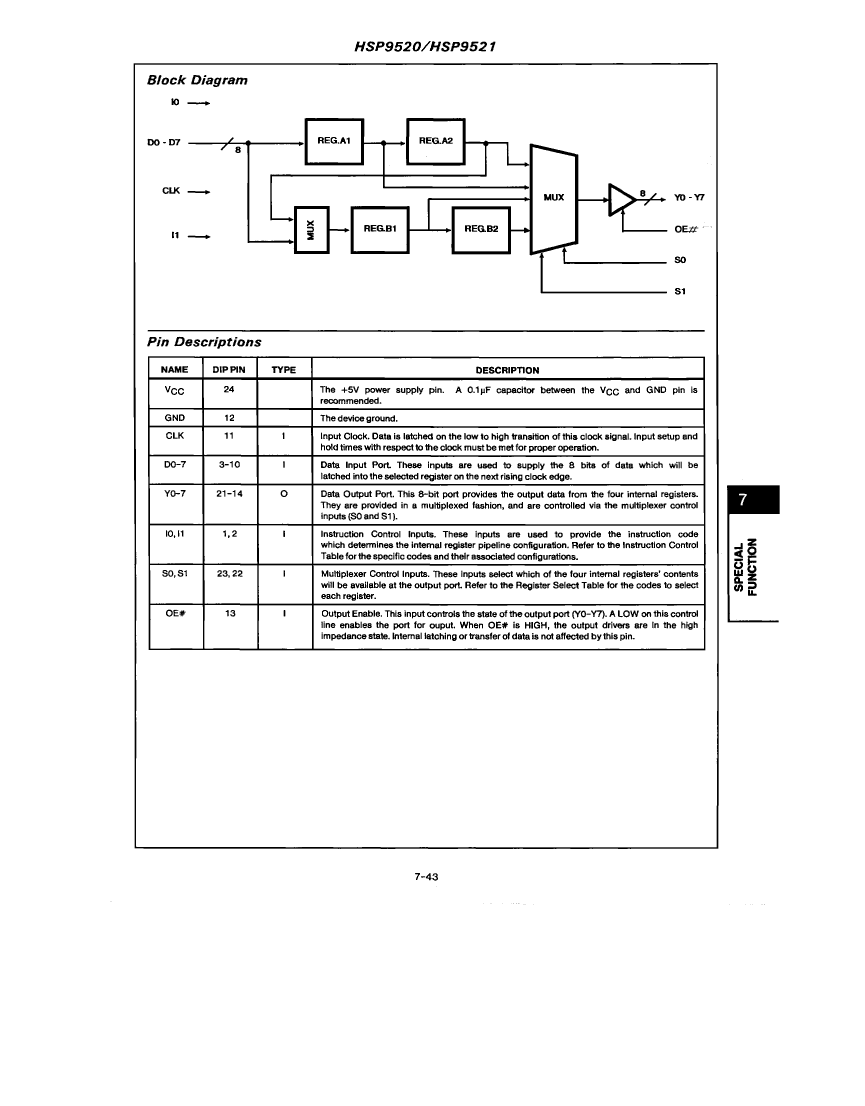

HSP9520CS Overview

Pipeline Register, 8-Bit, CMOS, PDSO24

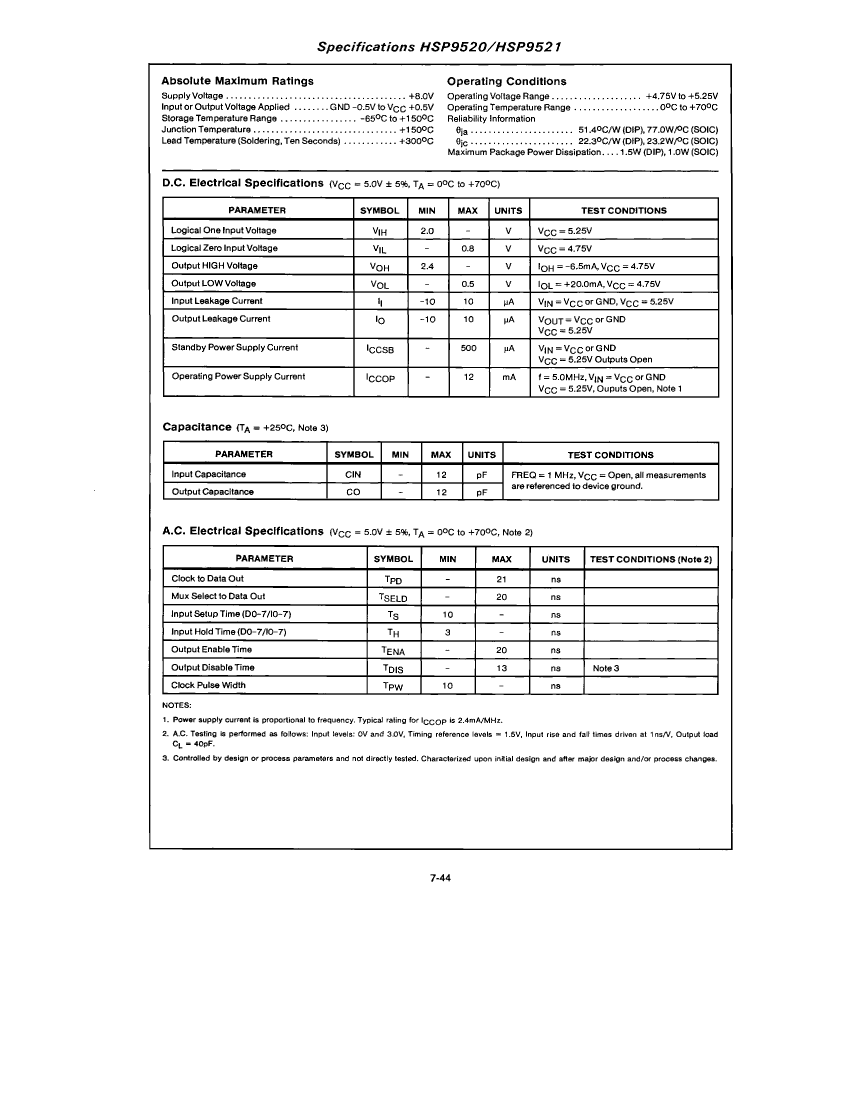

HSP9520CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP24,.4
Reach Compliance Code	unknown
Is Samacsys	N
Other features	MULTIPLEXED OUTPUT; SINGLE 4-STAGE OR DUAL 2-STAGE PIPELINING; ICC SPECIFIED @ 5.0MHZ
boundary scan	NO
External data bus width	8
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
low power mode	NO
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output data bus width	8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	12 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
Base Number Matches	1

Preview

Download Datasheet

View All

HSP9520CS Related Products

	HSP9520CS	HSP9521CS	HSP9521CP	HSP9520CP
Description	Pipeline Register, 8-Bit, CMOS, PDSO24	Pipeline Register, 8-Bit, CMOS, PDSO24	Pipeline Register, 8-Bit, CMOS, PDIP24	Pipeline Register, 8-Bit, CMOS, PDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris
package instruction	SOP, SOP24,.4	SOP, SOP24,.4	DIP, DIP24,.3	DIP, DIP24,.3
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	MULTIPLEXED OUTPUT; SINGLE 4-STAGE OR DUAL 2-STAGE PIPELINING; ICC SPECIFIED @ 5.0MHZ	MULTIPLEXED OUTPUT; SINGLE 4-STAGE OR DUAL 2-STAGE PIPELINING; ICC SPECIFIED @ 5.0MHZ	MULTIPLEXED OUTPUT; SINGLE 4-STAGE OR DUAL 2-STAGE PIPELINING; ICC SPECIFIED @ 5.0MHZ	MULTIPLEXED OUTPUT; SINGLE 4-STAGE OR DUAL 2-STAGE PIPELINING; ICC SPECIFIED @ 5.0MHZ
boundary scan	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e0	e0	e0	e0
low power mode	NO	NO	NO	NO
Number of terminals	24	24	24	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output data bus width	8	8	8	8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP
Encapsulate equivalent code	SOP24,.4	SOP24,.4	DIP24,.3	DIP24,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	12 mA	12 mA	12 mA	12 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER	DSP PERIPHERAL, PIPELINE REGISTER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
